HRM100 Temperature Relay Control Module Temperature Control Relay Module Multifunction Digital Module 5/12/24V Power

HRM100 Temperature Relay Control Module Temperature Control Relay Module Multifunction Digital Module 5/12/24V Power

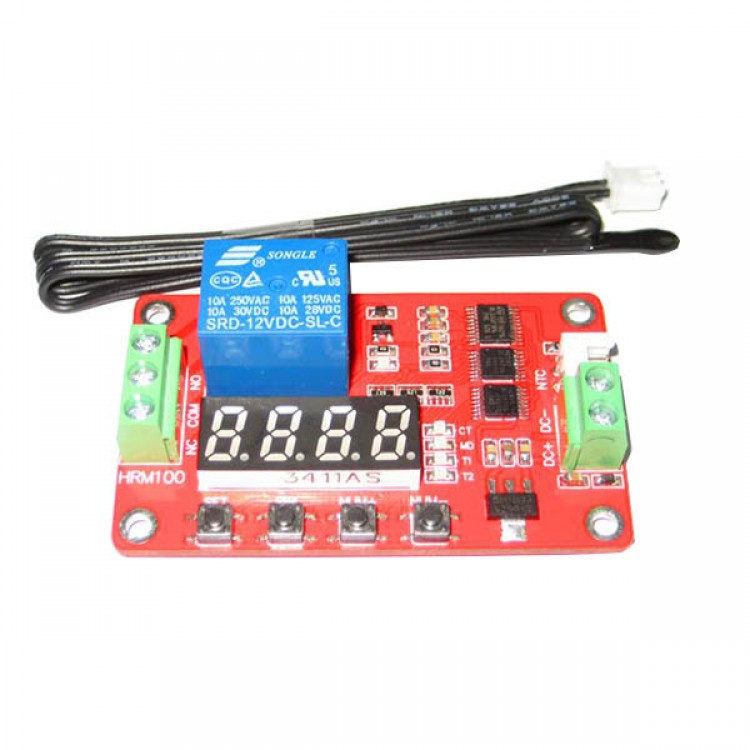

Description:
- DHRM100 temperature relay control module, is a high-precision , high sensitivity, high stability temperature controller, using industrial-grade micro- controller as the master unit , wide measurement range and high accuracy. The controller preset three different functions , and can be based on user needs, customize and add other specific functions.
- Genuine quality power relay modules , high power high-voltage transistors, multiple blue signal lights, military-grade double-sided PCB board, cloth board to consider a comprehensive, stable performance , can be widely used in various types of occasions temperature system .

Features:
- The new upgrade to version 2.1 offers three kinds of features for users to choose ;
- Comes standard with 0.5 meters of water temperature sensor , while the other type or length of the temperature sensors are available ;
- Measurement resolution upgrade to 0.1 degree, temperature range -40.0 to 125.0 degree
- 4 increase the automatic power saving feature, users can independently set ;
- All settings option to automatically save the contents of non-volatile setting .

A module function
Users can display the key and select the following three functions in one , you can set and save function parameters , you can also view the parameters of the current function setting on the specific operating instructions ( ie, user's manual ) , can be obtained from vendors.
- Function 1 :
Temperature measurement: select this feature , the relay does not operate , the digital display the current ambient temperature ;
- Function 2:
Heating control : When the temperature is lower than the preset temperature T1 and T2 in the lower one , the relay , T1 and T2 the temperature is above the higher one , the relay is disconnected ;
- Function 3:
Cooling Control: When the temperature is higher than the preset temperature T1 and T2 in the higher one , the relay , T1 and T2 the temperature is below the lower one , the relay is disconnected ;
Tips: According to different functions of the controller will automatically determine the preset temperature T1 and T2, which is the starting temperature , the temperature of which is to stop , do not tangle small users who set up large who , who who after the former problem .

Two electrical parameters
- Operating voltage : DC 5V, 12V, 24V three options ( should not exceed the nominal voltage of + / -10 % )
- Working current: 5V less than 90mA ( when the relay is not operating less than 15mA, turn off the display of less than 3mA)
  12V is less than 50mA ( when the relay is not operating less than 15mA, turn off the display of less than 3mA)
   24V is less than 35mA ( when the relay is not operating less than 15mA, turn off the display of less than 3mA)
- Working temperature : Recommended -20  -60 degree( limit range -30 -70 degree
- Measurement Range : Recommended -30  -120degree( limit range -40 -125 degree
- Load capacity : Relay normally open port maximum load capacity : DC 0-30V/10A, AC 0-250V/10A normally closed relay port maximum load capacity : DC 0-28V/10A, AC 0-125V/10A

Three module interface
- Module voltage / signal input : 4 -wire interface , all interfaces are terminal, user-friendly
     DC +: DC power positive
     DC-: negative DC power supply
     3 & 4, NTC: temperature sensor connector
- Load relay outputs: 3 -wire interface , all interfaces are terminals
     NO: normally open relay interface, the relay before the vacant after the pull shorted with COM
     COM: Common Interface Relays
     NC: normally closed relay interface relay shorted with COM ago , after the pull- vacant
- Four module sizes
   Dimensions : 66mm * 40mm * 20mm ( L * W * H )
