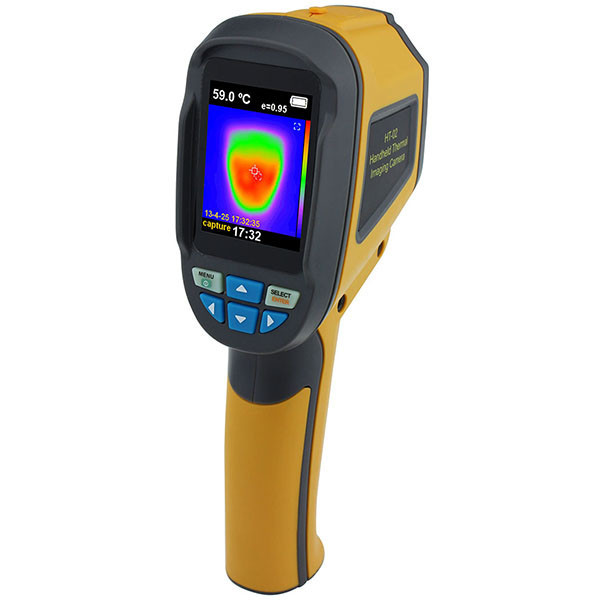

HT-02D Handheld Infrared Thermal Imager Camera with 2.4 Inch Color Lcd Display

HT-02D Handheld Infrared Thermal Imager Camera with 2.4 Inch Color Lcd Display

Product Description: Infrared thermal imager camera is widely used in the medical, archaeological, transport, agriculture and so on. This infrared thermal imager combines the functions of surface temperature and real-time thermal imaging.

Features:
- Infrared thermal imager that can blend the visible and infrared images.
- Resolution of infrared image/visible image: 3600 pixels/0.3 mega pixels.
- This infrared imaging device is professional, precision and efficient.
- For car engine overhaul, transformer room line maintenance, air conditioner repair, etc.
- Our infrared thermal imager can turn thermal image into visional image, quickly find out the problem area.

Specifications:
- Display:2.4inch color display thermal imaging camera
- Resolution:32*32
- Total pixel:3600
- FOV/Shortest focal length:20°× 20°
- Thermal sensitivity :0.15oC
- Measuring mode:Infrared focal plane measuring temperature
- Temperature range:-20oC-300oC(-4oF-572oF)
- Measuring accuracy:±2oC
- Wavelength range:8-14μm
- Image frequency:8HZ
- Emissivity:0.1-1.0/Adjustable
- Focus mode:Fixed
- Palette: Iron color,rainbow,black and white
- Image storage:SD card(8G)
- File format:JPG
- Set control:Unit Adjustment/Language/Date Time Format/automatic shut down
- Battery type:3.7V rechargeable lithium battery
- Adapter voltage:DV 5V output
- Operating temperature :0oC-50oC
- Storage temperature:-40oC-70oC
- Humidity:<90%RH
- Vibration:2G, IEC60068-2-6
- Drop resistance:2m
- Size:230×80×52mm
- Weight:410g

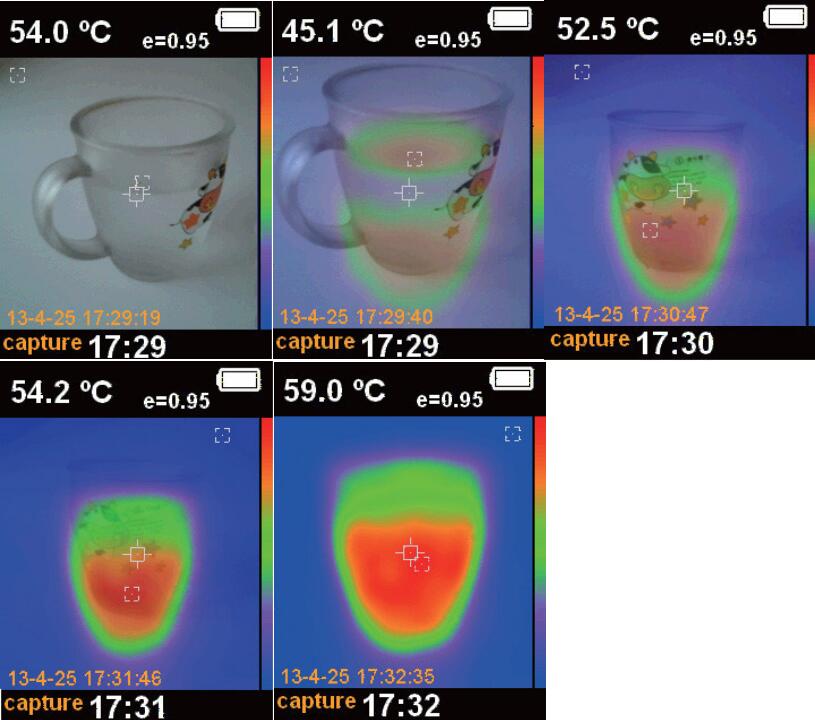

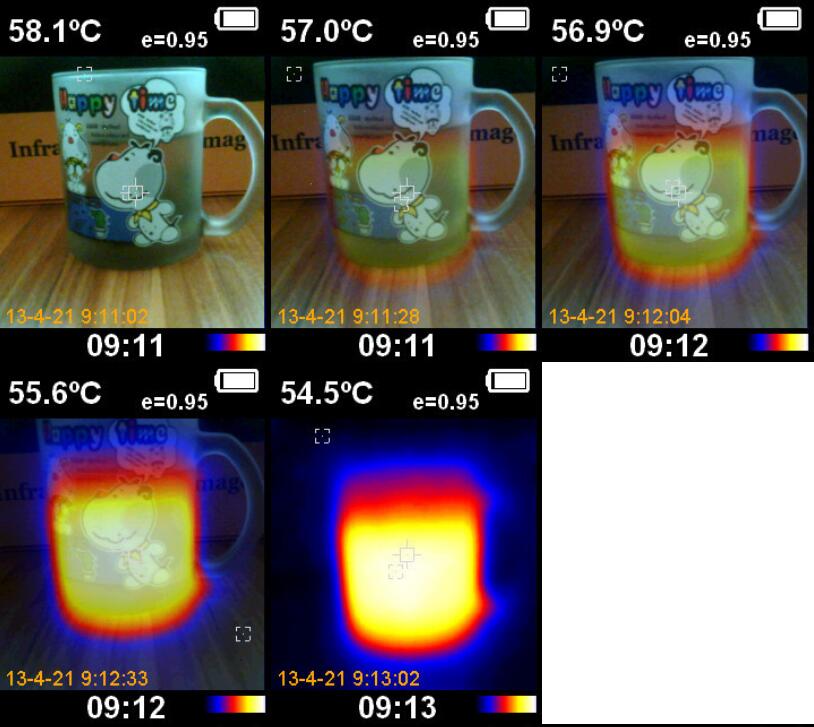

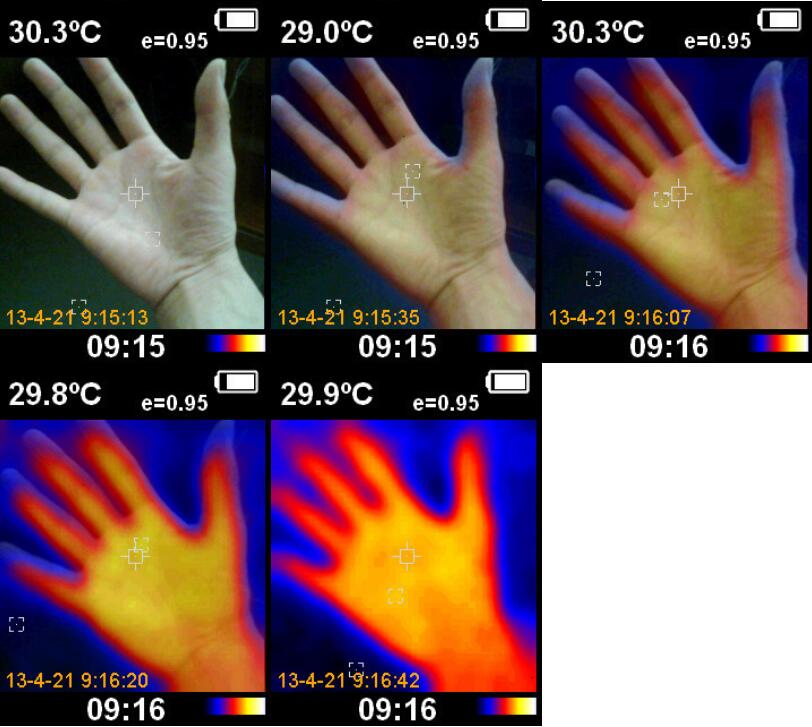

Thermal Imager Camera product results show:

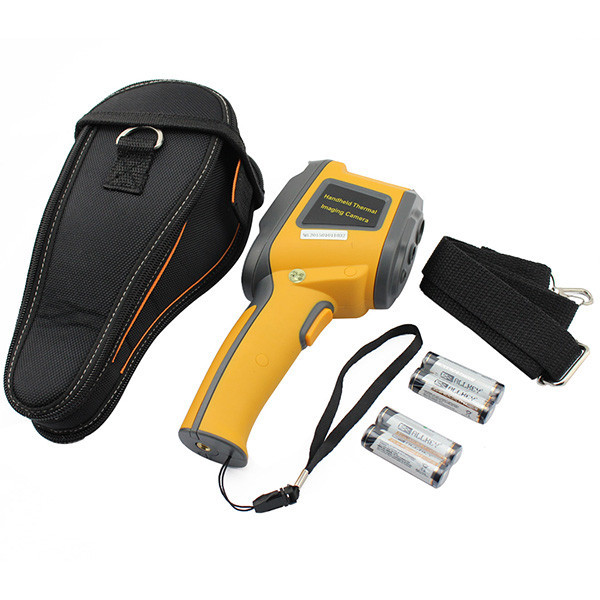

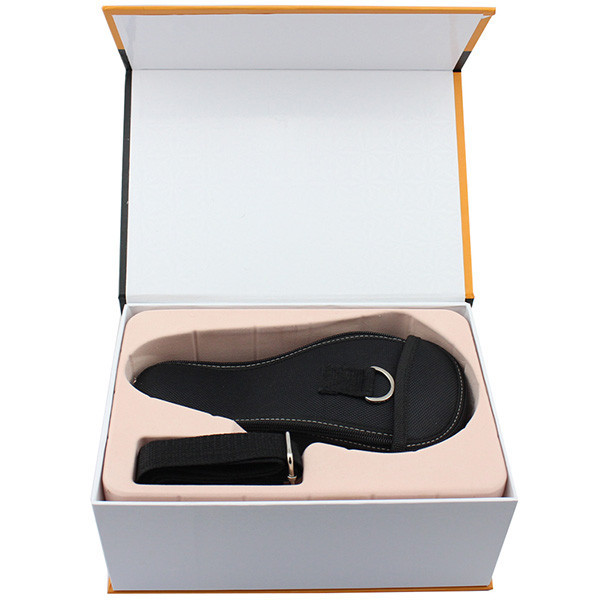

Package List:
- 1 x Thermal Infrared Imager
- 1 x SD Card(4G)
- 1 x User Manual
- 1 x Drop Resistance Rope

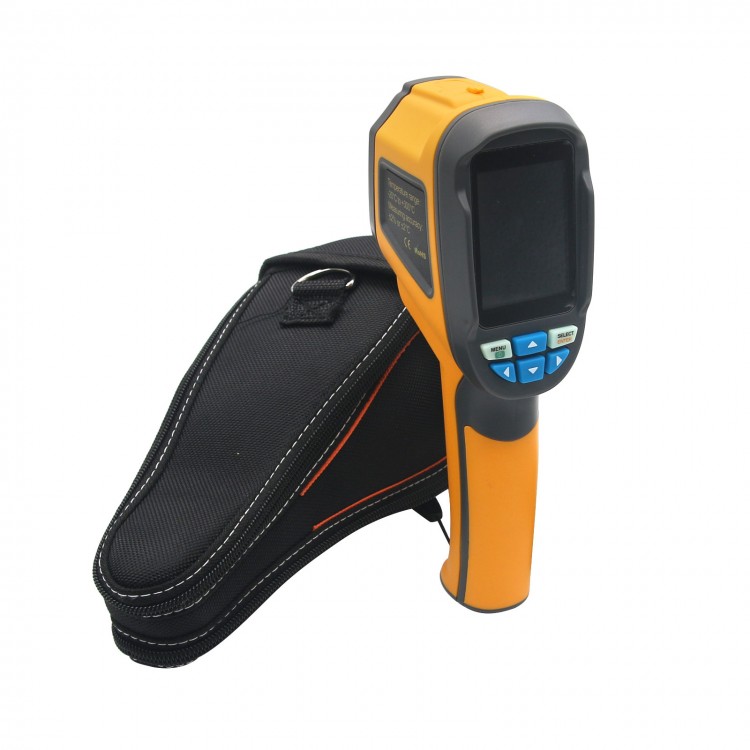

- 1 x Protection bag
