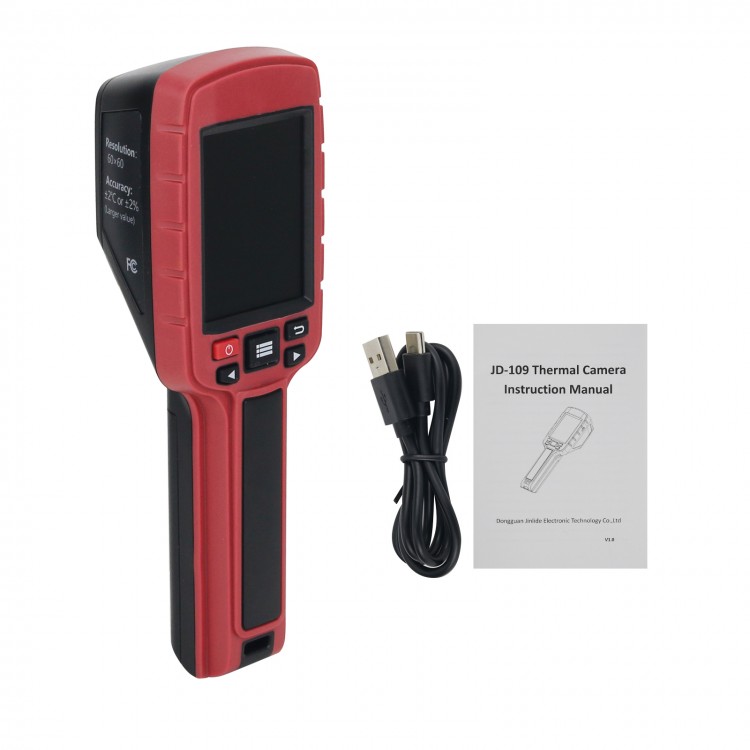

JD-109 Infrared Thermal Camera Handheld Thermal Imager Infrared Resolution 60x60 Pixel 2.8" LCD
Description:
This device is a tool-based handheld infrared thermal imager, which can realize the combination of surface temperature measurement and real-time thermal image. With 3,600 infrared pixels, potential problems can be clearly displayed on the color display, which helps users quickly and accurately locate the center point of the measurement cursor and measure the temperature. In order to increase the degree of recognition, the image can be mixed from a full thermal image to a full visual image.
Technical Parameters:
- LCD: 2.8-inch full-view high-resolution color screen
- Infrared resolution: 60x60 Pixel
- Visible light resolution: 300,000 pixels
- Field of view: 66° x 66°
- Thermal sensitivity: 0.15℃
- Temperature measurement range: -20℃ to 500℃
- Precision: ±2℃or ±2% (Larger value)
- Emissivity: 0.1~0.99
- Image capture frequency: 9Hz
- Wavelength range: 8um~11.5um
- File format: bpm
- Operating temperature: 0℃ to 40℃
- Storage temperature: -20℃ to 60℃
- Storage humidity: 10%RH~85%RH
Package Included:
- 1 x Set of Thermal Camera
