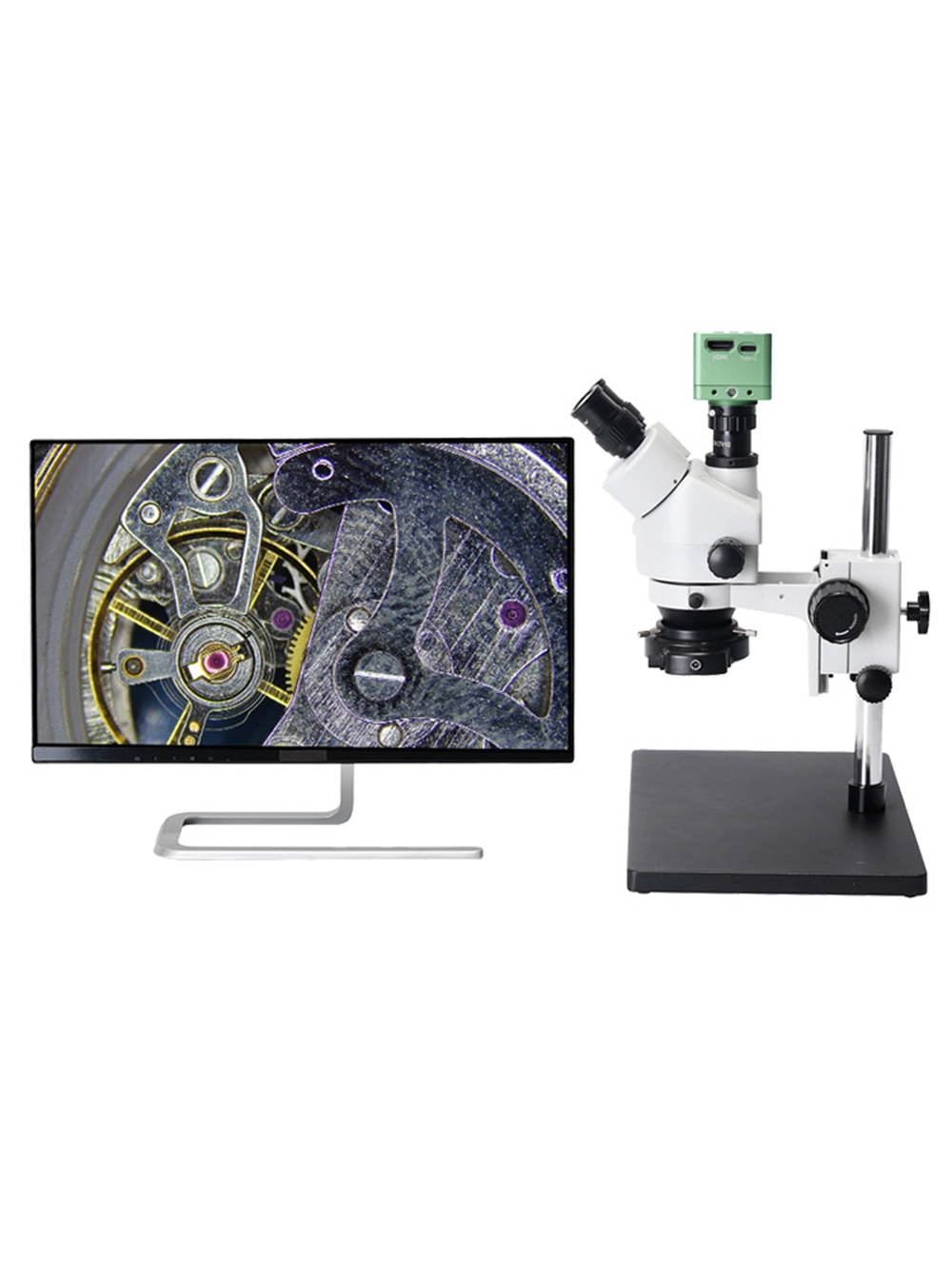

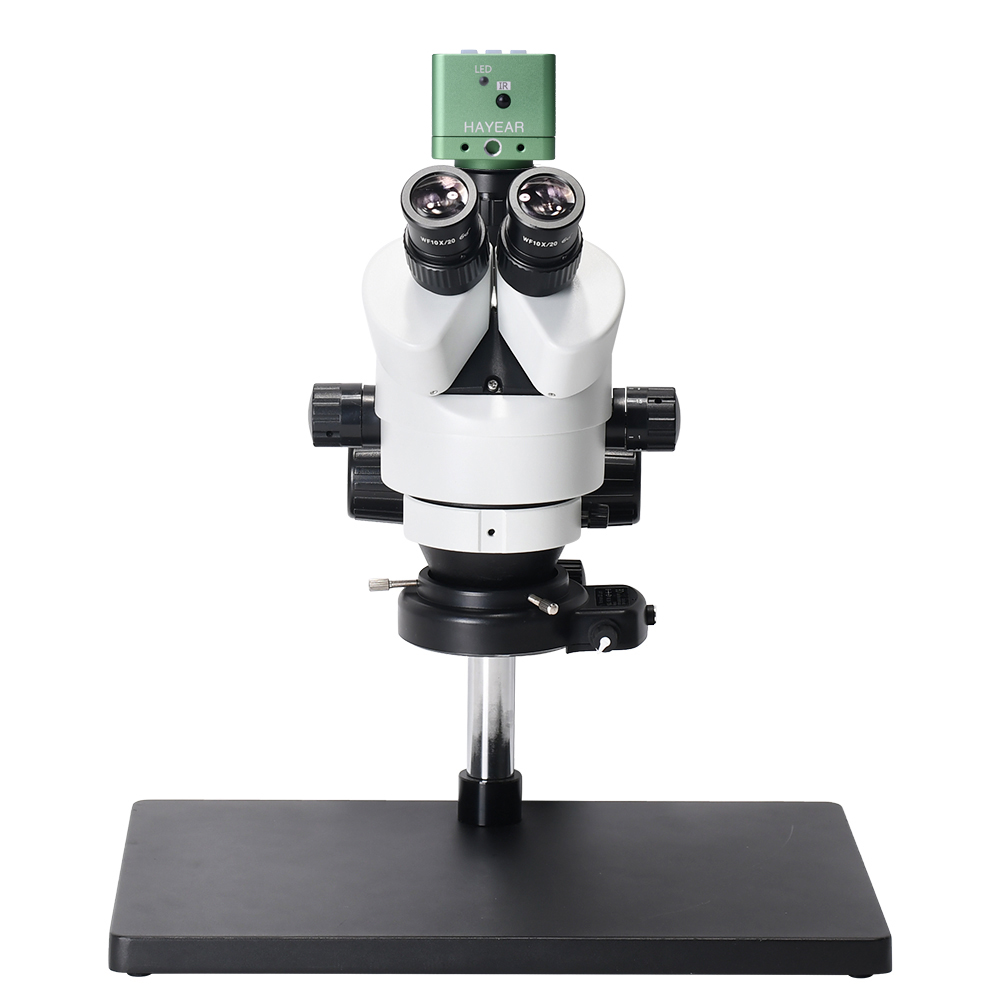

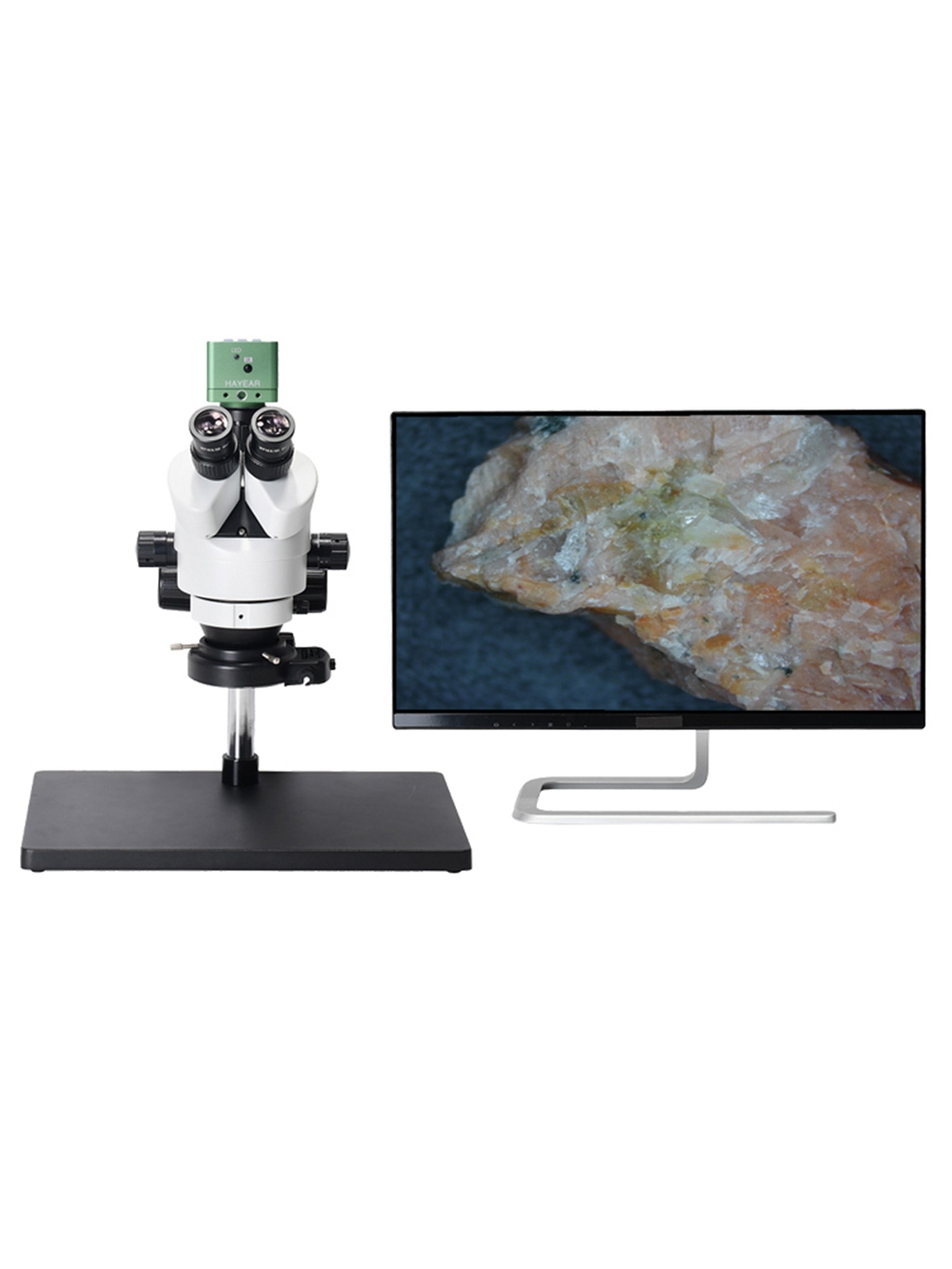

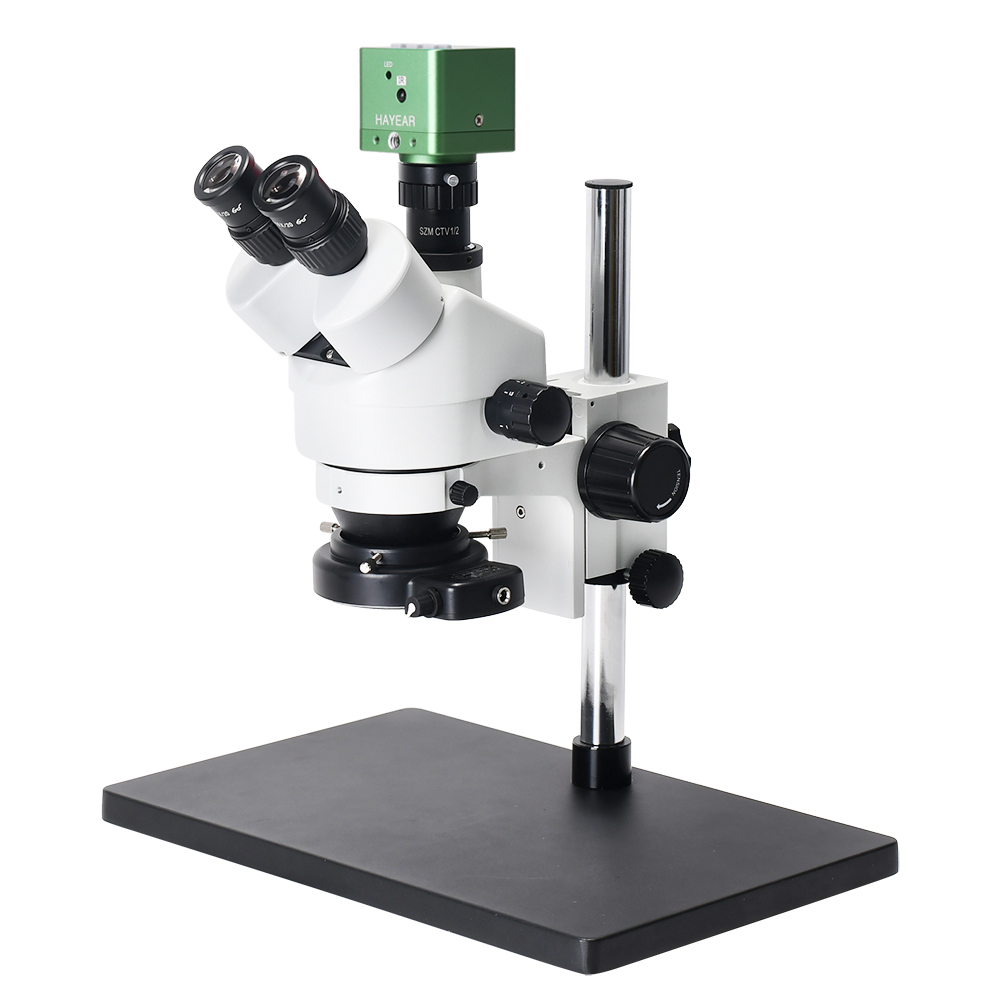

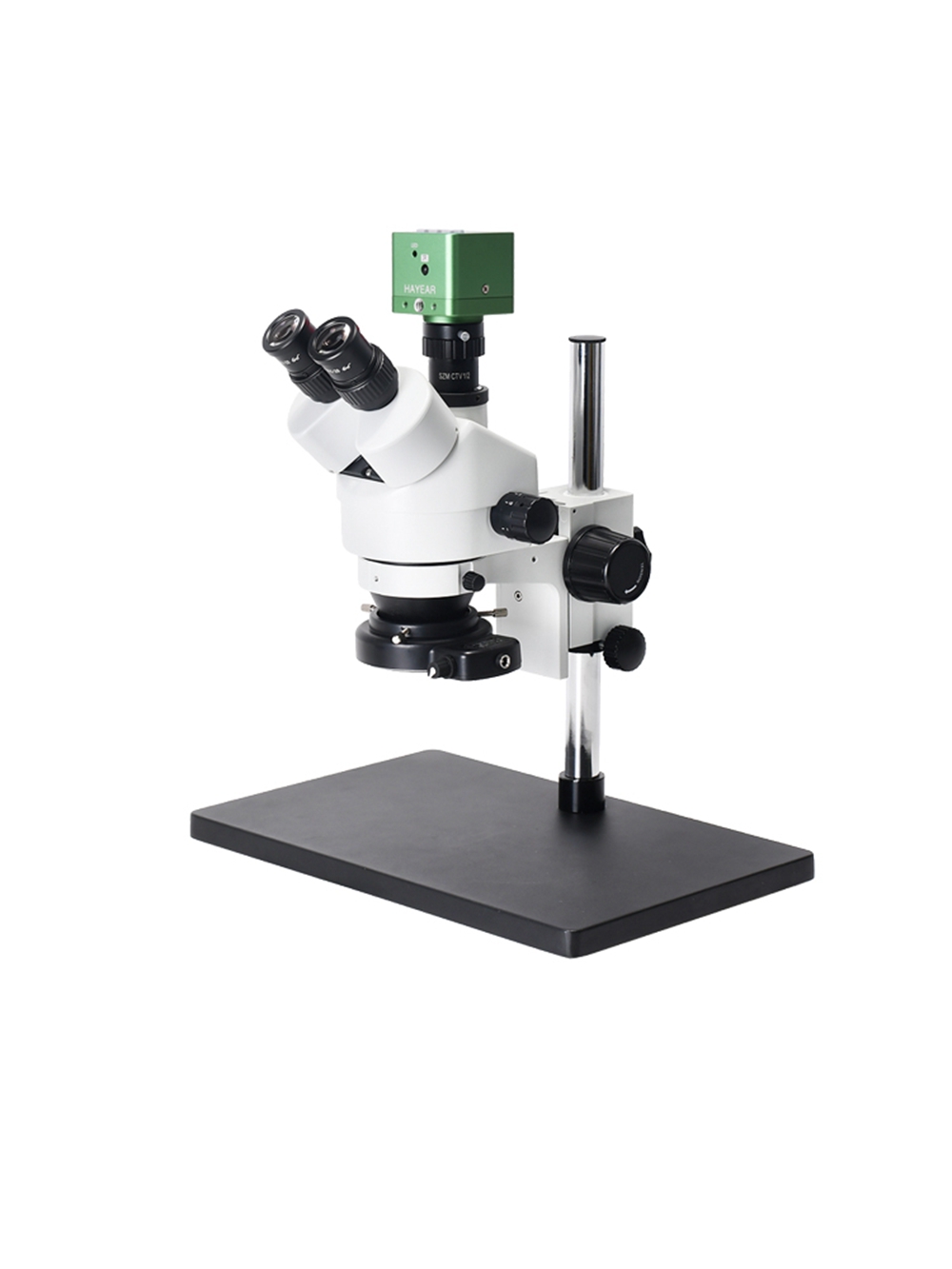

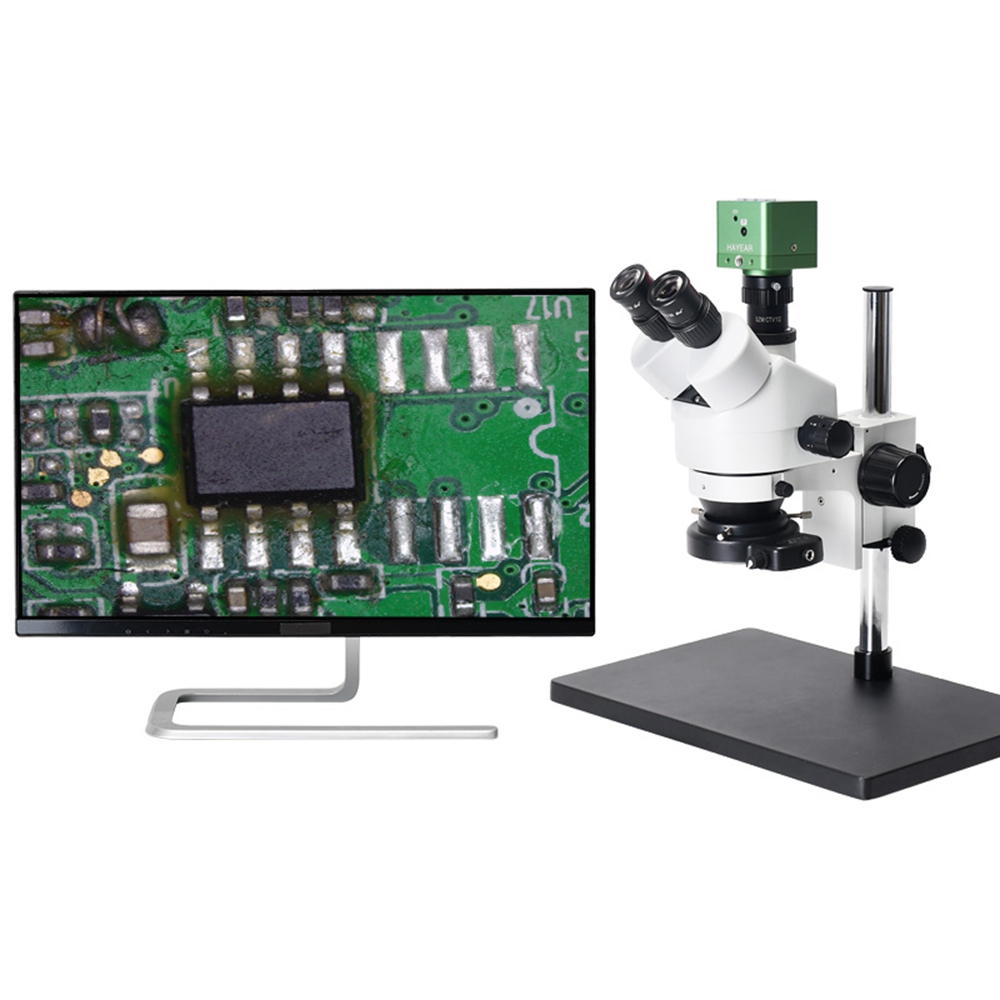

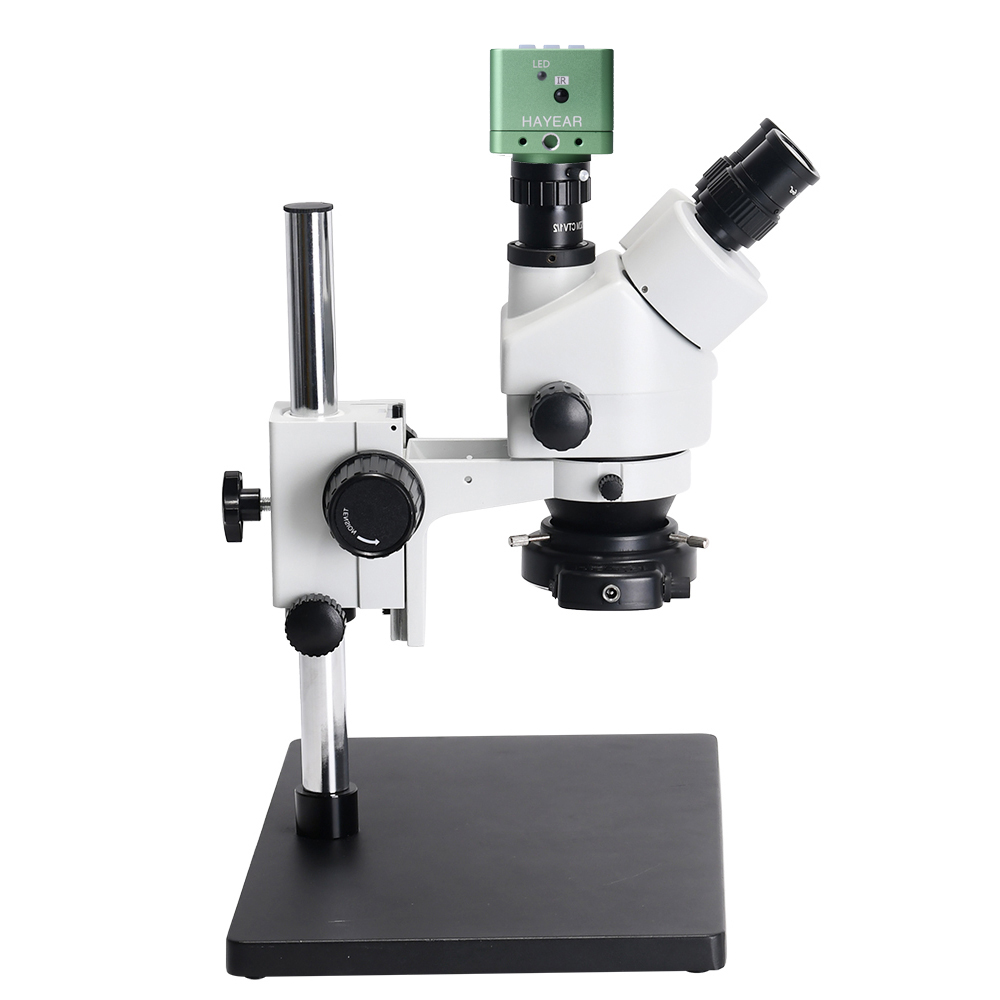

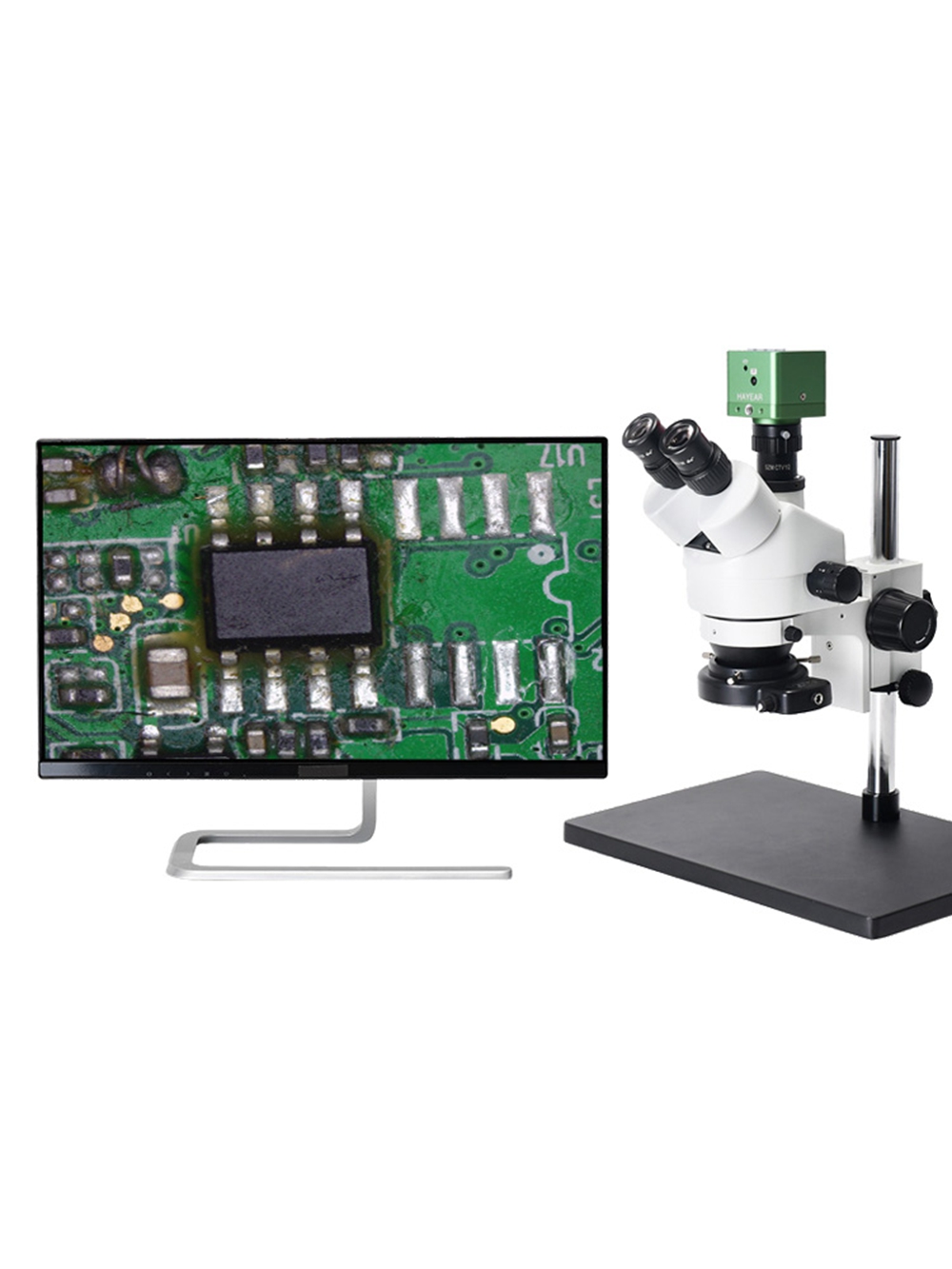

HY-6210G-SM7045 3.5X 45X Simul-Focal Big Boom Stand Trinocular Stereo Zoom Microscope 41MP 4K HDMI Camera 144 LED Light

HY-6210G-SM7045 3.5X 45X Simul-Focal Big Boom Stand Trinocular Stereo Zoom Microscope 41MP 4K HDMI Camera 144 LED Light

Features:
- An excellent stereo inspection microscope with intensity-adjustable 144-LED ring light
- 7X-45X super wide zoom magnification power
- Bright cool light 144-LED illumination system
- High resolution with great flatness and contrast, giving sharp and clear images
- Binocular head with 45 degree inclined 360 degree swiveling eye tubes
- Sharp stereo erect images with a wide field of view
- Crystal clear original true color microscope images
- Dual eye tubes with adjustable diopters
- Working Distance: 7X-45X (100mm) Use 0.5x objective lens 3.5X-25X(165mm)
- Sturdy all-metal table stand
- Accurate alignment reduces eye strain for longer periods of viewing
- Full optical glass elements
- Precise ground glass lenses
- Full metal chrome-plated mechanical components
- Adjustable inter-pupillary distance
- Rubber eye-guards included
- Steel gears on focusing holder
- Standard size focusing holder - will fit scope heads with diameter of 76mm

Specification:
- Model: HY-6210G-SM7045

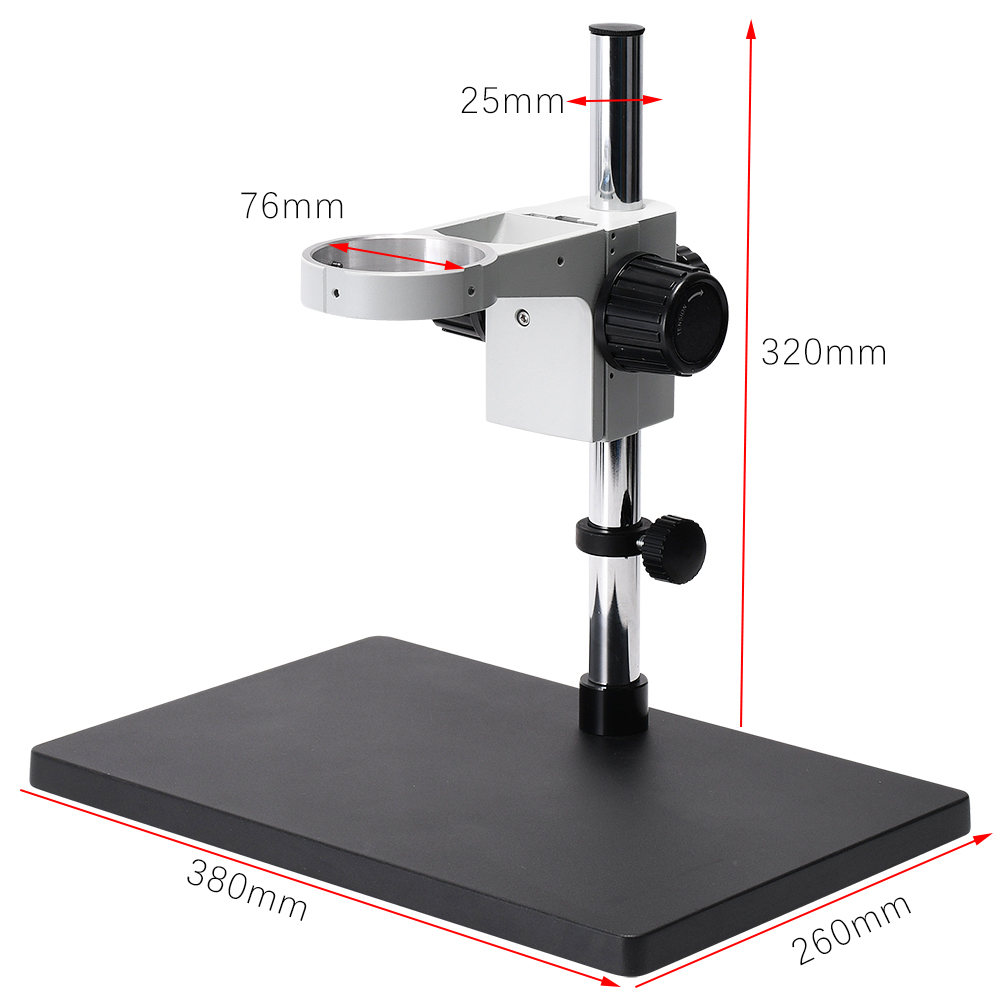

- Vertical pillar: 320mm (high), 25mm (diameter)
- Base size: L x W x H = 380 x 260 x 320mm

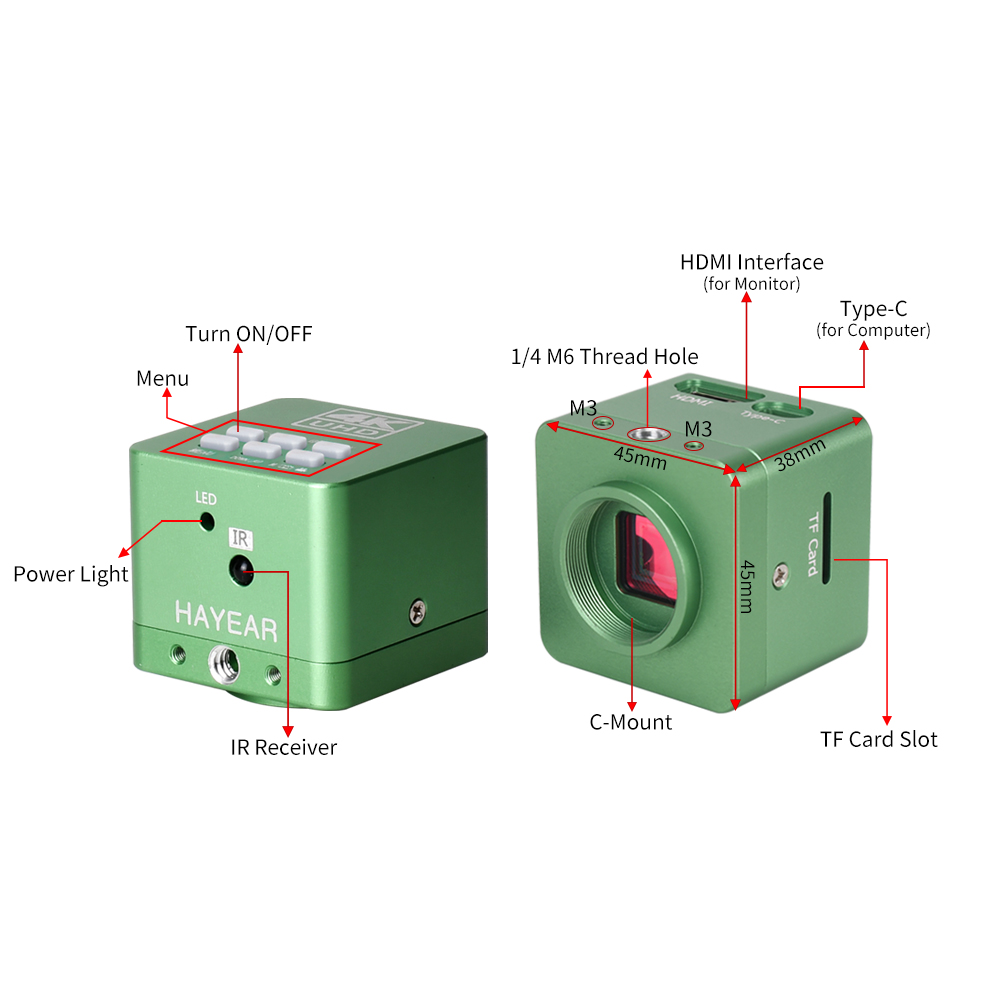

- Item type: microscope camera
- Sensor: 334 CMOS
- Optical format: 1/1.8 inch
- Pixel size: 2.0μmx2.0μm
- Interface: HDMI (Type-A), USB (Type-B), small memory card
- HDMI image resolution: 41MP
- Video resolution: 4K at 30FPS or 1080P at 60FPS
- HDMI scale: support 4:3, 16:9, 16:10 screen
- USB2.0 (drive free): 1920 x 1080 at 30FPS, 1280 x 720 at 30FPS, 640 x 510 at 30FPS
- Small memory card: up to 128GB (not included)
- AWB: AWB color correction/automatic/manual
- R.G.B value setting independent
- Exposure: Automatic/manual. AE value can be set
- Cross line: 8 lines, color, width, position can be set
- Scale line: 2 lines.
- Dotted line: 2 lines, color, width, position can be set
- Sharpness contrast color gain: support
- Mono negative film: support
- Mirror: horizontal and vertical mirror
- Language: English / Simplified Chinese / French / Spanish / Japanese / German and other languages
- Digital zoom: support
- Infrared remote control: support
- Voltage input: DC 12V
- Power supply voltage:
  Input: AC100-240V
  Output: DC12V
- Power consumption: maximum 0.15W 12V, 0.12A
- Lens interface: C/CS port
- Remote control battery: 1 x 2302 button battery (delivered without battery)

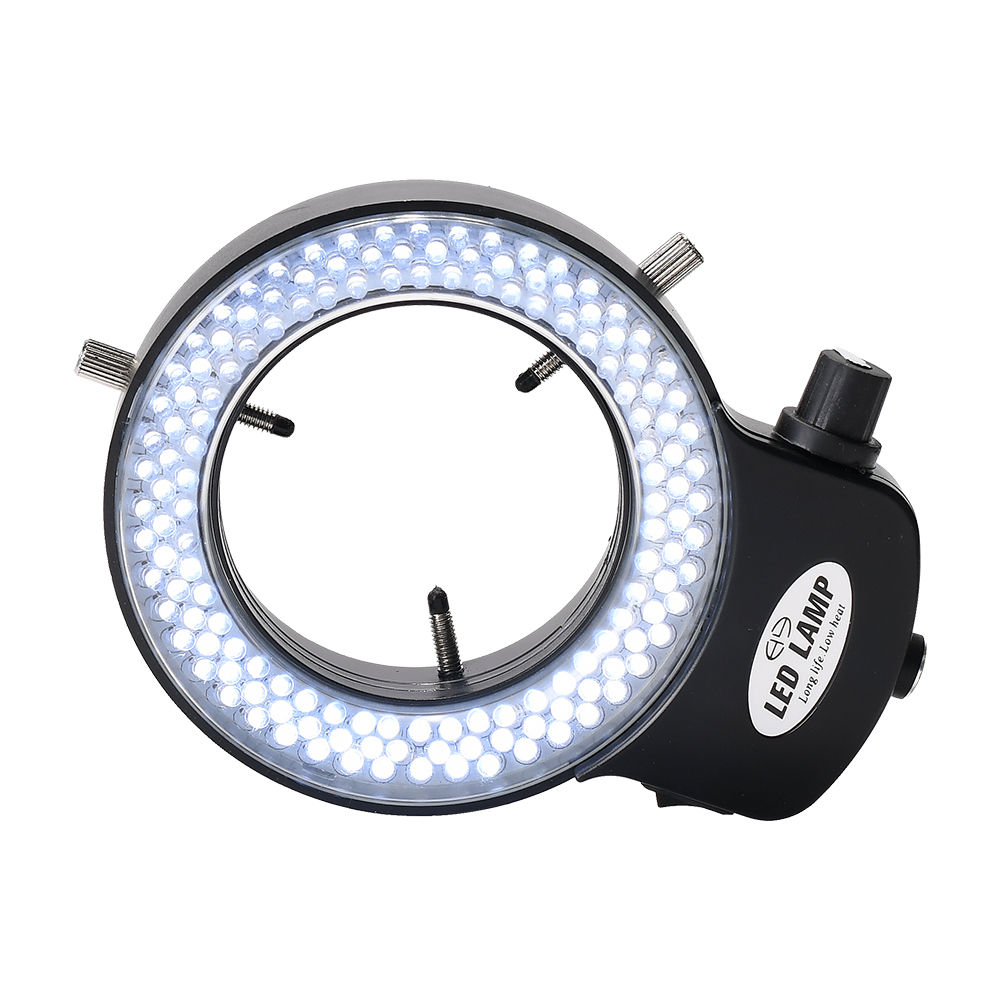

144 bright LED:
- Variable lighting direction
- Variable power control
- Strong and concentrated shadow less lighting
- 100,000 hours of life
- Power Input: 100-240V, 50-60HZ, automatic switching
- The inner diameter of the ring light: Approx. 27mm / 1.1in
- Overall outer diameter: Approx. 45mm / 1.8in
- Working distance: Approx.27 ~ 120mm / 1.1 ~ 4.7in

Problem Solution:
- LCD no video or flickering:
  Check the power supply. Check if the red LED lights up. Press power key to move it up.
  Check the lens cover. Increase lighting.
- LCD has black bars and image distortion:
  Change the resolution of LCD
  Change the camera resolution
- Dirty spots:
  Check the camera and lens, find the dust, and then cleanly it with absolute ethanol or detergent

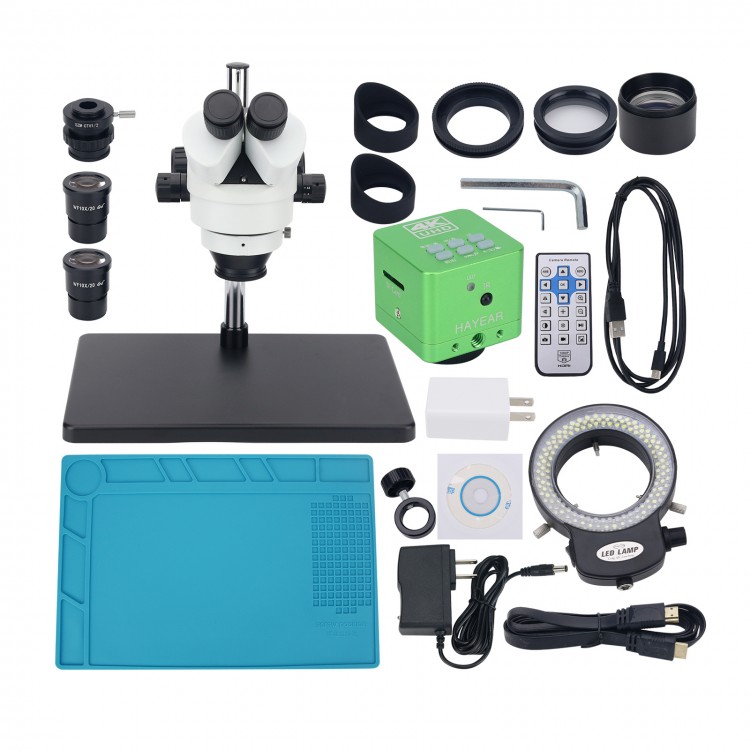

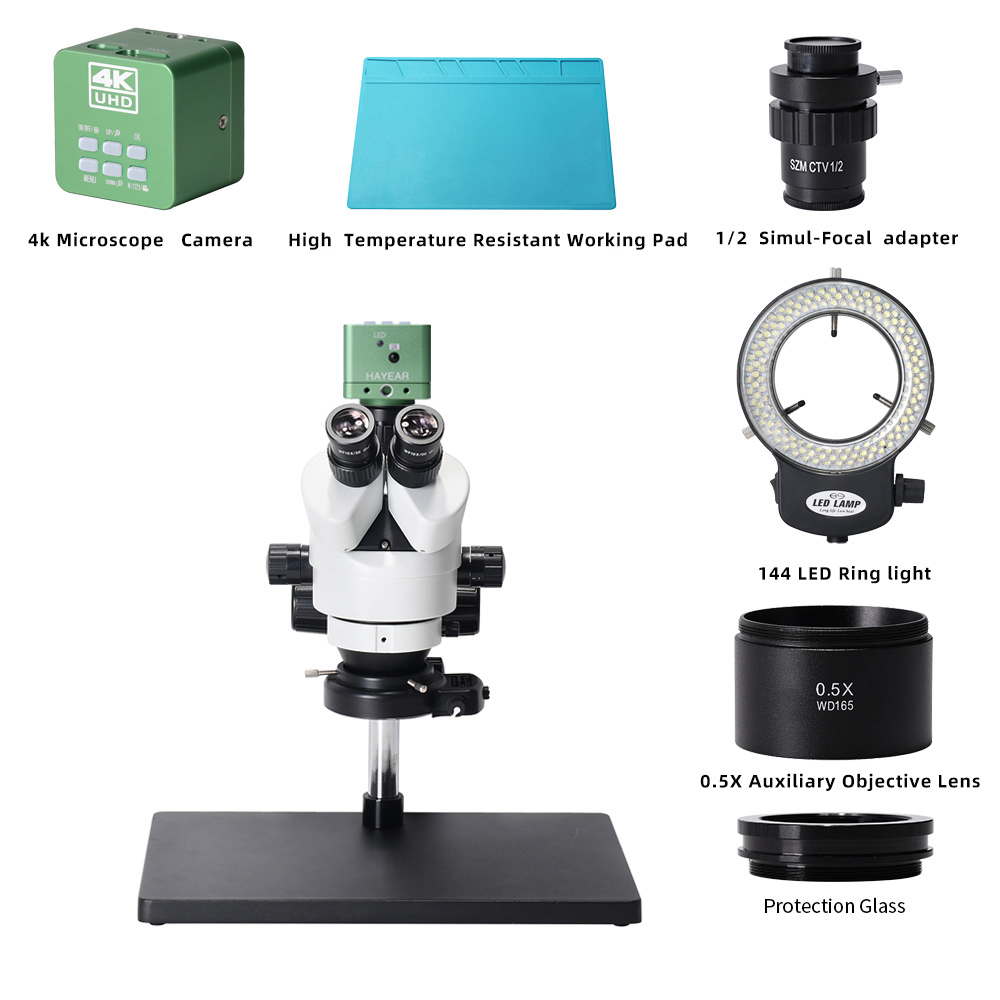

Package Included:
- 1 x 4K Microscope Camera
- 1 x HDMI Cable (for Monitor)
- 1 x Type-C Cable (for Computer)
- 1 x IR Remote Control
- 2 x Power Adapter

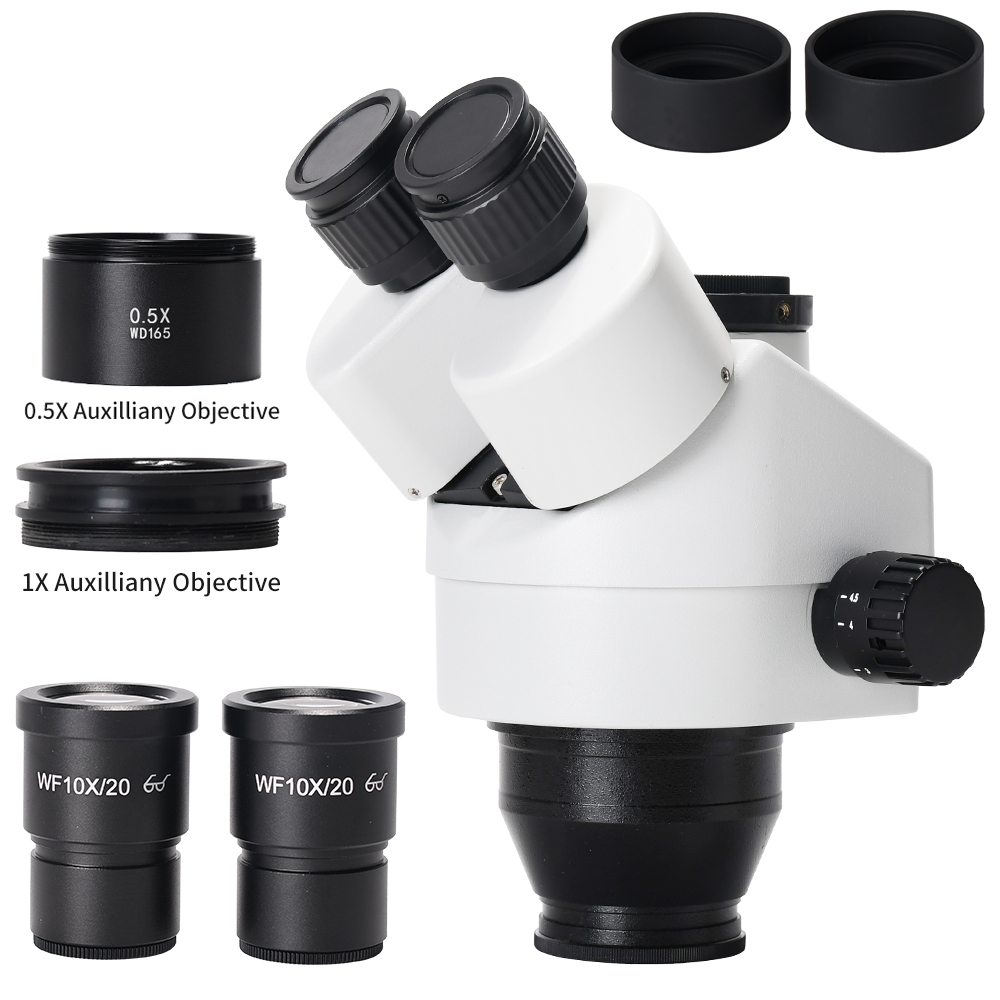

- 1 x Trinocular Stereo Zoom Head
- 1 x Pair of Super Widefield 10X20MM Eyepieces
- 1 x 144-LED Ring Light
- 1 x Microscope Bracket

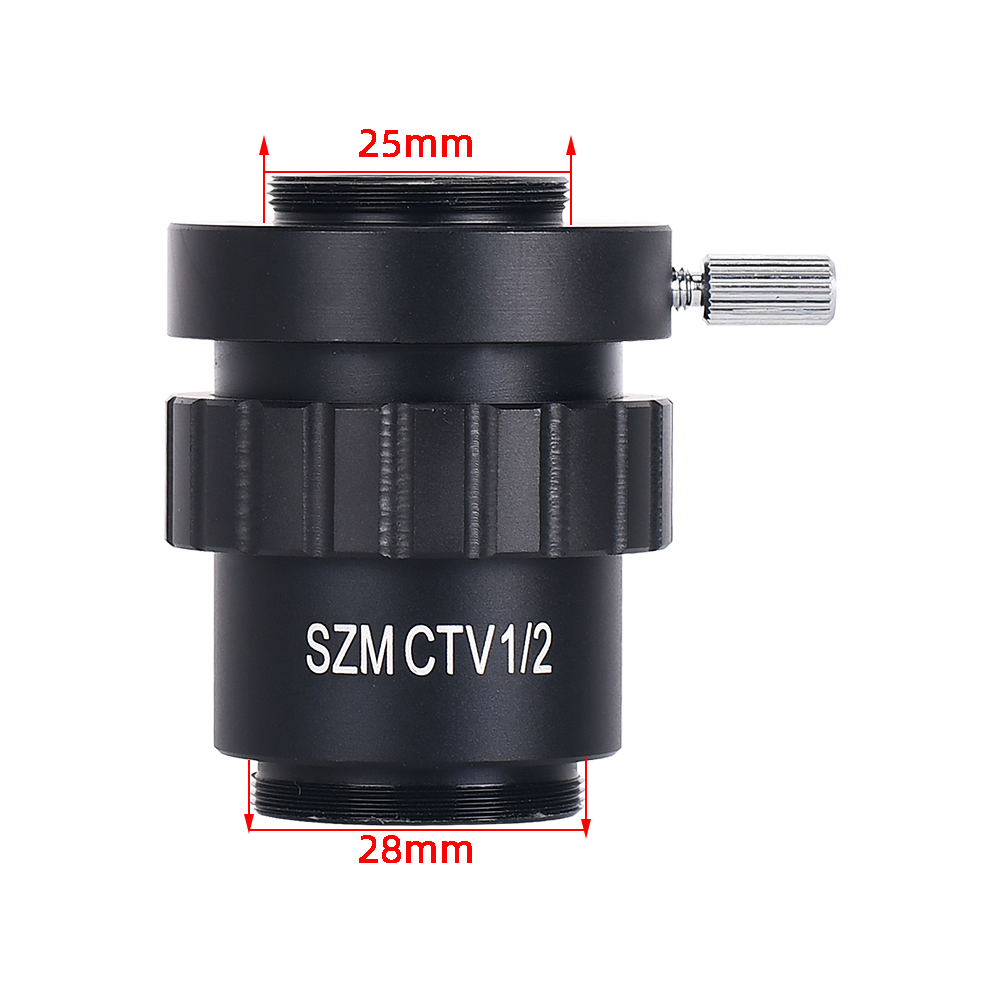

- 1 x 0.5X Simul-Focal Adapter
- 1 x Pair of Eye-Guards
- 1 x Dust Cover
- 1 x Paper Manual
- 1 x 0.5X Microscope Auxiliary Objective Lens (Working distance 165mm)
- 1 x 1X Objective Lens (Oil Smoke Proof Mirror)
