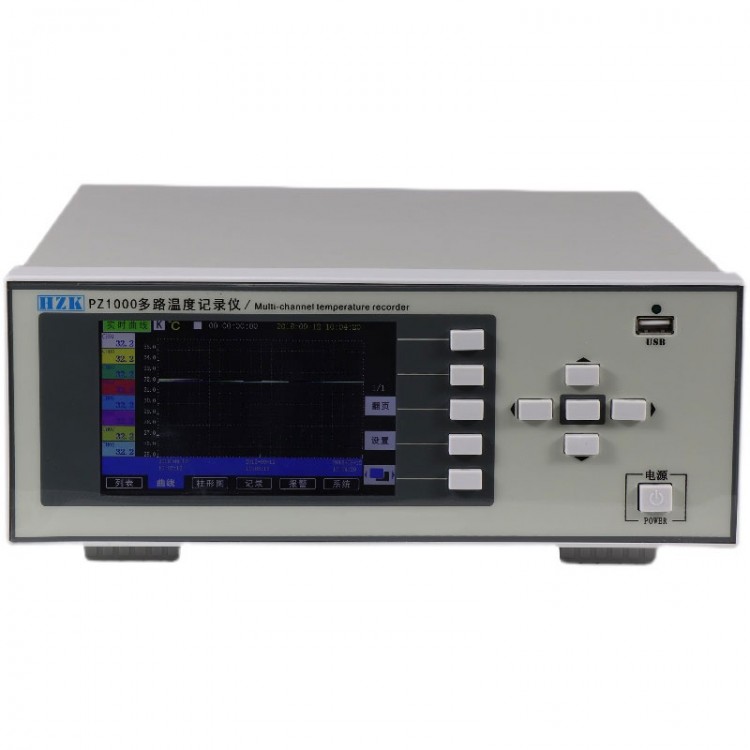

HZK PZ1000P Series Multi-Channel Temperature Recorder (PZ1008P 8CH) with 8GB Memory & Curve Display

HZK PZ1000P Series Multi-Channel Temperature Recorder (PZ1008P 8CH) with 8GB Memory & Curve Display

Features:
* PZ1000P Series Multi-channel Temperature Recorder: It features a 5-inch industrial true-color LCD display, and supports multiple sensor inputs. 8-32 channels are optional.
* True Color Large LCD Screen: The large true-color LCD screen provides live monitoring with clear, easy-to-read data for convenient and intuitive operation.
* Multiple Interface Display: With comprehensive functionality, it supports real-time data display in list, curve, and bar graph formats to meet diverse customer needs.
* 5" Industrial True Color LCD Display: It offers a resolution of up to 800×600. Clear images, vivid colors, and a wide viewing angle.
* Wide Applications: Suitable for boiler management, cold storage monitoring, LED temperature testing, vehicle component evaluation, electronic component testing, and equipment temperature monitoring and maintenance.
* Powered by a 32-bit MCU design, ensuring more accurate measurements with faster and more stable sampling.
* Multi-interface Display: supports real-time numeric display, trend curve display, and bar chart display.
* Supports multiple sensor inputs: K, J, E, T, N, S, R, B.
* Voltage difference between channels up to AC/DC 350V, delivering excellent anti-interference capability
* Each channel can be independently set with multi-level alarm values: LL (ultra-low), L (low), H (high), HH (ultra-high), with relay output for alarms.
* Alarm list display shows the occurrence time.
* Independent temperature calibration (Δ value) and cold-junction correction for each channel.
* Built-in 8G large-capacity memory can store up to 64 files, each with up to 60,000 data groups. Historical curves can be queried directly on the device.
* It supports communication address code setup, allowing multiple devices to be used in parallel at different locations, with communication protocol provided.
* Standard USB communication interface; optional RS232 or RS485 communication interfaces available.
* Equipped with a USB port for easy data download and copying via flash drive.
* Modular design makes it easy for users to expand capacity.
* Each module supports 8 channels; the device supports up to 32channels.
* Bilingual interface: Chinese/English switchable.
* Multi-level Alarm Prompt Function: Temperature upper and lower limit alarms can be set, and different thermocouples can be connected to meet different temperature measurement ranges.

Specifications:
* Display Type: 5-inch TFT true color LCD industrial screen
* Display Format: Real-time numerical list, real-time bar chart, real-time curve chart
* Record Query: Historical curves can be reviewed on the device
* Number of Channels: 8 channels per module, supports up to 32 channels
* Supported Thermocouples: K, J, T, S, R, N, E, B
* Thermocouple Types & Ranges:
   ** K-type: -100 to 1370℃, Accuracy ±0.5℃ + 0.6℃
   ** J-type: -100 to 1200℃, Accuracy ±0.5℃ + 0.6℃
   ** T-type: -100 to 400℃, Accuracy ±0.5℃ + 0.5℃
   ** S-type: 300 to 1768℃, Accuracy ±0.5℃ + 0.6℃
   ** R-type: 300 to 1768℃, Accuracy ±0.5℃ + 0.8℃
   ** N-type: 0 to 1300℃, Accuracy ±0.5℃ + 0.9℃
* Resolution: 0.1℃
* Recording Interval: 1-9999s via PC software; 1-9999s via instrument
* Communication Interfaces: USB (standard), RS485 (optional), RS232 (optional)
* Channel Isolation: AC/DC up to 350V, strong anti-interference capability (customizable to higher voltage values)
* Power Supply: 220V±10%, 50Hz/60Hz, ≤5W (standard); 86-265V wide voltage (optional), ≤5W
* Thermocouples Included: One 2-meter K-type thermocouple per channel

Packing List:
* 1 × Main unit
* 1 × Host computer CD
* 1 × Set of thermocouple wires
* 1 × User manual
* 1 × Power cord
* 1 × Certificate of conformity/Warranty card

Packaging Details:
* Weight: 3.72kg
