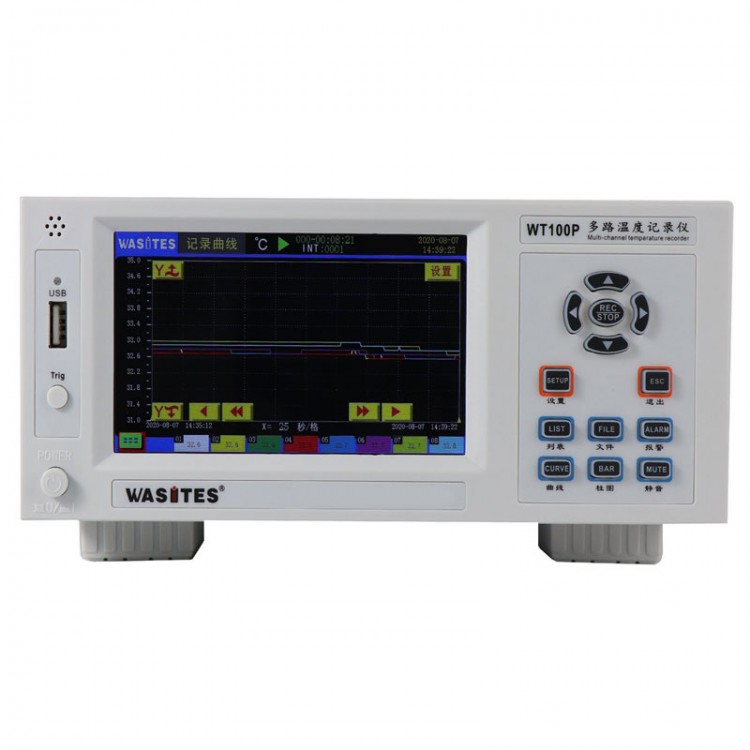

WASITES WT100P-8 8CH Multi-Channel Temperature Recorder w/ 5" Touch Screen Curve & Cylinder Chart

WASITES WT100P-8 8CH Multi-Channel Temperature Recorder w/ 5" Touch Screen Curve & Cylinder Chart

Features:
* WT100P series multi-channel temperature recorder: 854×480 resolution, 5" HD LCD touchscreen, 8-64 channels, 32-bit high-speed MCU and 64 file storage.
* Wide application: Lighting equipment, power tools, household appliances, pharmaceuticals, petroleum, and chemical industry.
* HD 5-Inch IPS industrial-grade LCD touchscreen, 854×480 resolution
* Equipped with a 32-bit high-speed MCU data processor and 24-bit high-speed AD measurement chip, offering fast response, high accuracy, and stable reliability
* Multi-interface display: file list, real-time list, bar chart, real-time/recorded/analysis curve display, alarm list, system settings, etc.
* Supports 4/8/16/32 multi-interface real-time numerical display
*  Supports multiple sensor inputs: K, J, E, T, N, S, R, B
* Each channel can use a different thermocouple type
* Customizable channel names which can be exported to EXCEL
* Channel-to-channel voltage difference up to AC/DC 350V, with strong anti-interference capability
* Each channel can independently set high/low alarm values and features audio-visual alarm functions.
* Each channel supports independent error correction Y=KX+B
* Built-in 8GB large-capacity memory, file list display, supporting up to 64 files, each storing up to 130,000 data sets. With a 1-second interval, continuous recording can last up to 97 days.
* Recorded files can be deleted or exported individually or in batches. Direct export to EXCEL via USB or PC.
* Standard USB and RS485 communication interfaces, dual relay alarm outputs.
* Supports communication address code settings, allowing multi-location and multi-device parallel use, protocol available
* Modular design: each module supports 8 channels, expandable up to 64 channels with automatic recognition.
* Multi-level alarm indication: HH, H, L, LL alarm settings and indications (with relay output), and historical alarm record viewing.

Specifications:
* Display Mode: 5-inch TFT True Color Industrial Touch Screen, 854×480 Pixels
* Display Format: Real-time List, Graph (Historical Curve), Bar Chart, Current Alarm (Historical Alarm), File Record List
* Record Query: View record curves and historical alarms on the device; analysis via PC software
* Number of Channels: 8 channels per module, up to 64 channels supported
* Supported Thermocouples: K, J, E, T, N, S, R, B
* Basic Accuracy: 0.2°C + 2 digits (excluding thermocouple error)
* Measuring Range: -200 to 1820°C (based on thermocouple type range)
* Cold Junction Compensation: Accuracy: 0.5°C
* Resolution: 0.1°C
* Calibration: Independent error correction per channel, formula Y = kx + b (x = measured value)
* Number of Files: 64 (cyclic recording)
* File Capacity: One file can record up to 130,000 data sets (channel number not differentiated)
* USB Port: Export record files, instant U-disk function (instrument recognized as USB drive), direct file and software access
* Recording Duration: With 1-second recording interval, continuous recording up to 97 days; Total duration = Recording Interval × 97 days
* Sampling Speed: Per channel – Fast: 0.1s, Slow: 1s
* Channel Isolation: AC/DC voltage up to 350V, high-voltage live measurement, excellent anti-interference capability
* Control Output: Two independent relay outputs, (H/L) and (HH/LL) relays
* Alarm Sound: One buzzer (sounds on any alarm, can be muted)
* Recording Interval: 1–9999 seconds, freely adjustable
* Communication Interface: Standard USB, RS485
* Power Supply: AC85–265V ±10%, Frequency 50Hz/60Hz, Power consumption <10W
* Thermocouple: Each channel equipped with one 2-meter K-type thermocouple
* Environmental Conditions: 5–40°C, 20%–80%RH (non-condensing)

Packing List:
* 1 × Main Unit
* 1 × Power Cable
* 1 × User Manual
* 1 × Set of Thermocouple Wires
* 1 × Certificate of Conformity / Warranty Card

Packaging Details:
* Weight: 2.86kg
