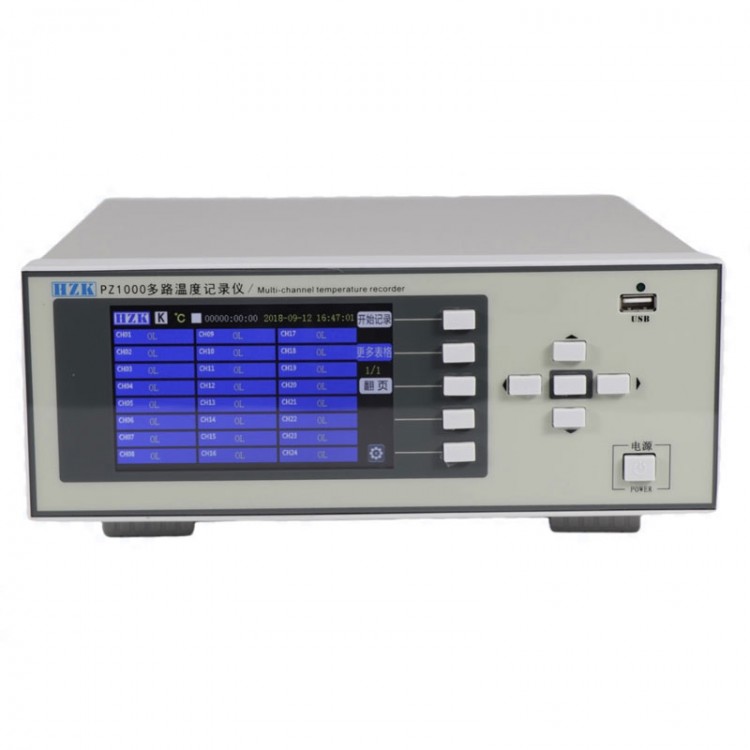

HZK PZ1000S Series Basic Multi-Channel Temperature Recorder (PZ1040S 40CH) w/ Built-in 8GB Memory

HZK PZ1000S Series Basic Multi-Channel Temperature Recorder (PZ1040S 40CH) w/ Built-in 8GB Memory

Features:
* PZ1000S Series Multi-Channel Temperature Recorder: It supports multiple sensor inputs. 8-64 channels are optional. The rear panel includes a cold junction compensation probe.
* Large Screen Display: It uses a 5-inch industrial true-color LCD with clear images, vibrant colors, and wide viewing angles. The full-color large-screen LCD provides real-time monitoring with clear readings for convenient and intuitive use.
* 32-bit MCU Design: Enables more precise measurements, faster sampling speed, and greater stability.
* Multi-Interface Display: Supports real-time numerical display, trend curves, and bar graphs.
* Supports Multiple Sensor Inputs: K-type, J-type and T-type thermocouples are supported.
* Independent Temperature Calibration for Each Channel: Δ-value calibration per channel.
* Built-in 8GB Memory: Can record up to 64 files, with each file storing up to 60,000 data points.
* Audio-Visual Alarm Indicators for alerts.
* USB Interface: Supports data download and copying via USB drive for convenience.
* Modular Design: Allows easy expansion to meet user requirements. Each module has 8 channels, and the device can support up to 64 channels (8 modules).
* Bilingual Interface: Switchable between Chinese and English.
* Multi-Level Alarm Function: Users can set upper and lower temperature limits. Different thermocouples can be connected to cover various temperature ranges.
* Wide Applications: Suitable for boiler management, cold storage monitoring, LED temperature testing, vehicle component evaluation, electronic component testing, and equipment temperature monitoring and maintenance.

Specifications:
* Display Type: 5-inch TFT true color LCD industrial screen
* Display Format: Real-time list of numerical values
* Number of Channels: 8 channels per module, supports up to 64 channels
* Thermocouples: K, J, T
* Thermocouple Types & Ranges:
   ** K-type: -100 to 1370℃, Accuracy ±0.5℃ + 0.6℃
   ** J-type: -100 to 1200℃, Accuracy ±0.5℃ + 0.6℃
   ** T-type: -100 to 400℃, Accuracy ±0.5℃ + 0.5℃
* Resolution: 0.1℃
* Recording Interval: 1s-9999s, adjustable
* Communication Interfaces: USB (included), RS485 (optional), RS232 (optional)
* Power Supply: 220V±10%, 50Hz/60Hz, ≤5W (standard); 86-265V wide voltage (optional), ≤5W
* Thermocouples Included: One 2-meter K-type thermocouple per channel

Packing List:
* 1 × Main unit
* 1 × User manual
* 1 × Certificate of conformity/Warranty card
* 1 × Set of thermocouple wires
* 1 × Host computer CD
* 1 × Power cord

Packaging Details:
* Weight: 3.89kg

Note:
* Alarm relay output is optional.
