| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $61.05 | $59.81 | $57.94 | $55.45 | Contact US |
SUP-C703S Signal Generator & Process Calibrator – mA, V, Ω, RTD, Thermocouple Output & Measurement
$156.44
6000A 20µH Air Core Inductor for Dual Pulse Testing and High-Performance Electrical Experiments
$86.76
DP8000 Max IGBT Pulse Generator with Internally Integrated IGBT Driver (Air Core Inductor Included)
$384.16

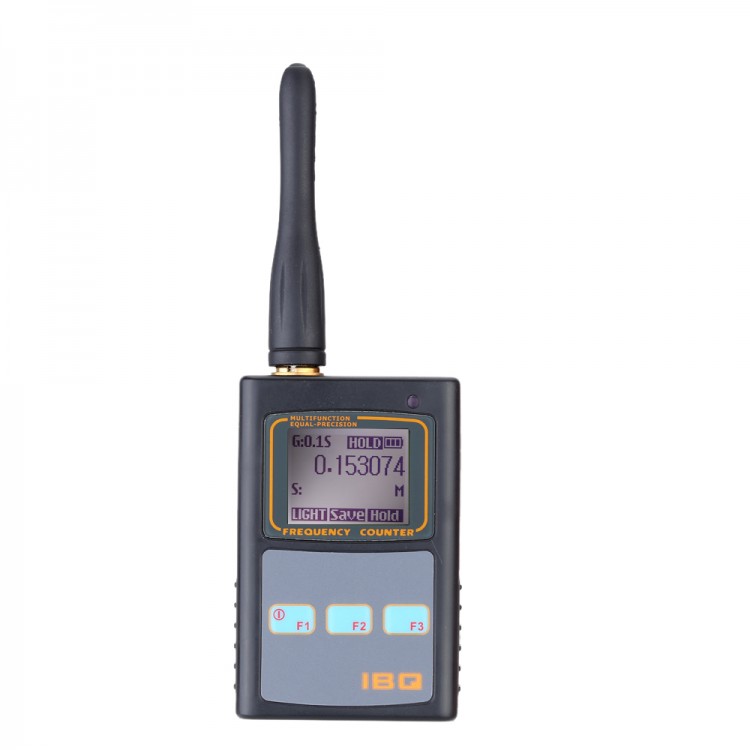

- Multi-Function LCD Display
- 9-Digit Display
- Analog bar and Digit Signal Strength Indicator
- Dispaly Holding
- 50 Display Readings Saving
- Power Indicator
- Interactive User Menu
- Equipped with UV antenna and USB Power Adapter
|
Model
|
IBQ101
|
|
Range
|
50MHz-2.6GHz
|
|
Amplifier
|
50 ohm
|
|
Impedance
|
50 ohm
|
|
VSWR<2:1
|
|
| Features |
RF signal strength
|
|
Screen Holding
|
|
|
Save
|
|
|
View
|
|
|
Battery Indicator
|
|
| Sensitivity |
<5mV@100MHz
|
|
<5mV@400MHz
|
|
|
<5mV@1GHz
|
|
| Gate | 0.1 ms |
| 0.1 s | |
| 1 s | |
| Time Base | <+/-30ppm |
| LSD | 100Hz/1 s |
| Battery | 3 X AAA Ni-MH |
| Power | 5VDC 1A |
| Cabinet | ABS |
| Sitz | 85mm(H)55mm(D)24mm(W) |
| ANT | (UHF) |
