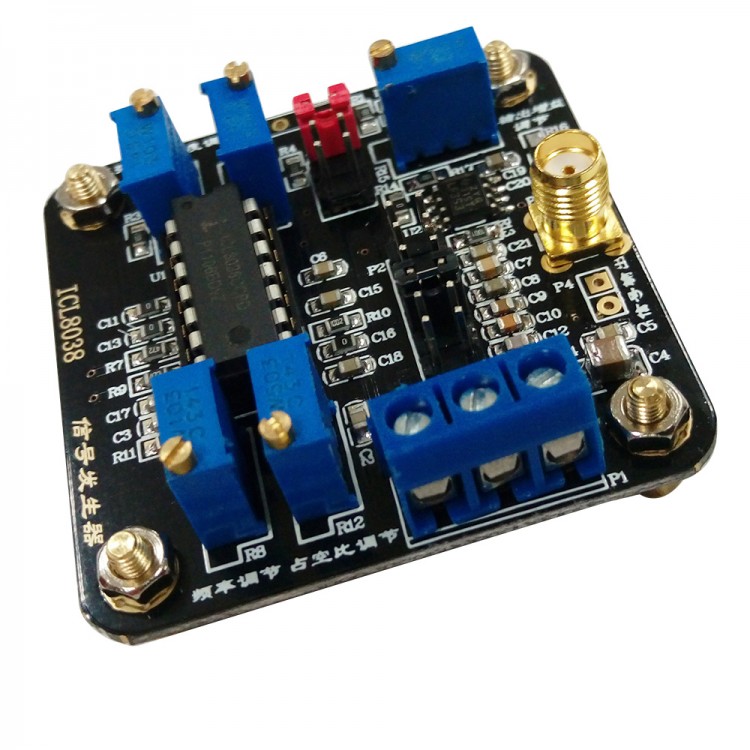

ICL8038 Low Frequency Signal Generator Module Sine Square Triangle Wave Board
Features:
The ICL8038 waveform generator is a monolithic integrated circuit capable of producing high accuracy sine, square, triangular, sawtooth and pulse waveforms with a minimum of external components. The frequency (or repetition rate) can be selected externally from 0.001Hz to more than 300kHz using either resistors or capacitors, and frequency modulation and sweeping can be accomplished with an external voltage.
Specifications:
- It's brand new, good quality & high performance.
- Module size:50*50mm
- Module working voltage:±5V-±12V DC
- Low Frequency Drift with Temperature : 50ppm/oC
- Low Distortion Sine Wave:011%
- Triangle Wave Output Linearity : 011%
- Wide Frequency Range : 01001Hz to 300kHz
- Duty Ratio Range : 2% to 98%
- Simultaneous outputs an arbitrary Sine, Square, and Triangle Wave
- Easy to Use
Package included:
- 1 x ICL8038 Low-frequency Signal Source Generator Module
