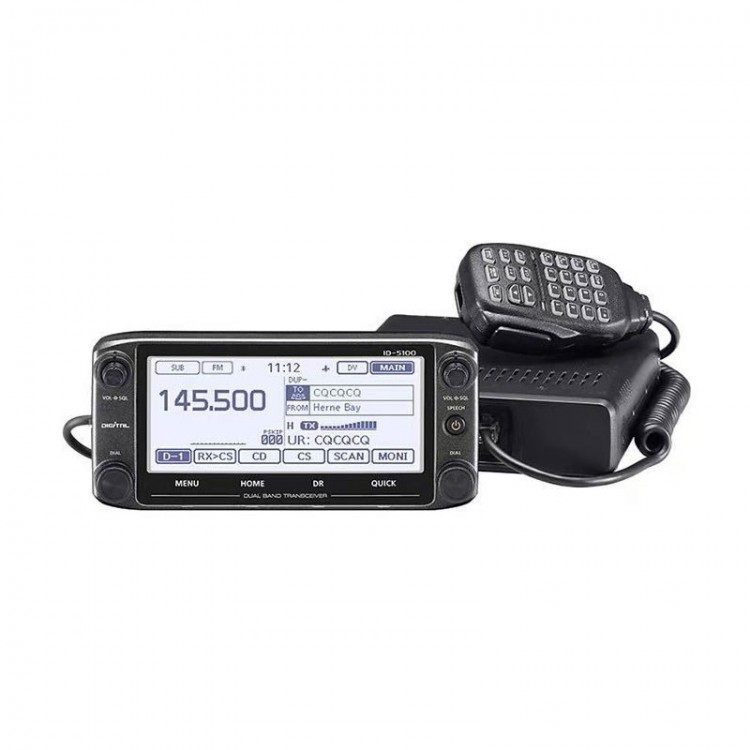

ID-5100A Walkie Talkie Dual Band Transceiver Dual Display with 5.5inch Touch Screen for ICOM

ID-5100A Walkie Talkie Dual Band Transceiver Dual Display with 5.5inch Touch Screen for ICOM

Description:
- The intuitive touchscreen interface enables fast and flexible operation, and the large 5.5-inch touchscreen display makes it quick and easy to change settings, enter frequencies, edit memory channels, and more.
- Dual band and dual display: ID-5100A can simultaneously receive two channels in FM/FM, FM/DV, DV/DV mode, dual band dual display, dual standby.
- Built-in GPS receiver, ID-5100A head has built-in GPS receiver, which can display information such as position, route, speed, altitude and so on. GPS location information can be used for location reporting, generating GPS logs, and finding nearby relay stations.

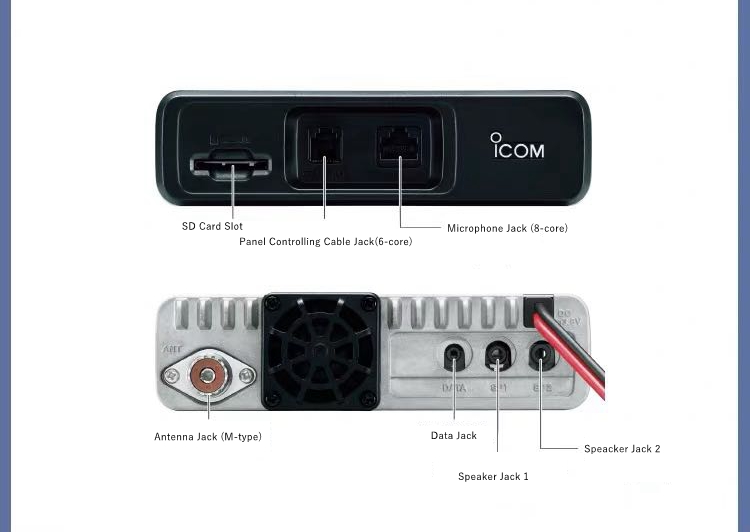

- Voice and data storage SD card slot, when using a microSD card, includes personal recordings, DV auto-reply messages, TX voice messages, contact logs, reception history logs, GPS log data, memory channels, D-STAR repeater information, etc. Settings can be stored on an SD card and loaded into the ID-5100A.

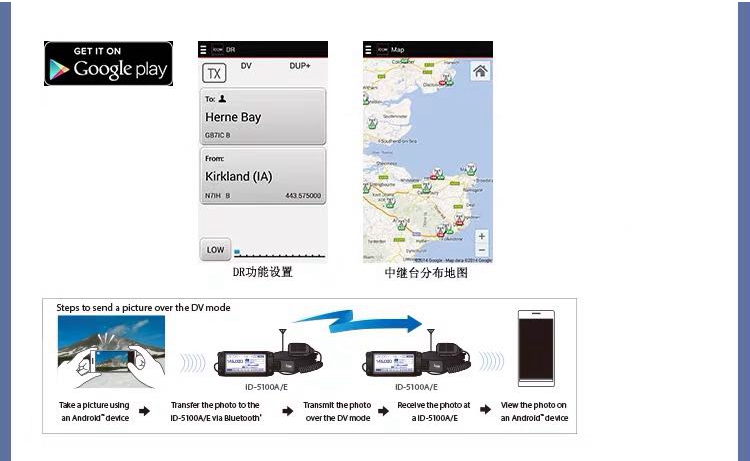

- RS-MS1A Android application software (Google play free download) Android device is wirelessly connected with ID-5100A through RS-MS1A software, to control and set DR function in DV mode, connect to map application and send/receive information, transfer pictures.

Other functions:
- Enhance D-PRS functions, including target, location, weather, etc.
- Convenient CSV format storage content processing
- Voice broadcast functions such as working frequency, mode, and receiving call sign.
- A/B band independent volume, mute knob
- AM aviation frequency band dual display
- CS-5100 Cloning Software
- VHF, UHF dual frequency 50W output power

Specification:
- Frequency Range:
  Transmit: 137-174, 400-470MHz
  Receive: 118-174, 375-550MHz
- Modes: DV, FM, FM-N, AM AM (receive), AM-N (receive)
- Number of channels: 1000 regular channels, 4 call channels, 50 programmable scan boundaries, 1200 repeater storage
- Transmit power: 50W
- Size: host 150 x 40 x 172.6mm
- Panel: 182.2 x 81.5 x 24.7mm
- Weight: host 1.3KG
- Panel: 260g
- Approval number: CMIIT ID: 2015FJ0386
- Complimentary domestic host mounting bracket, head mounting bracket and Chinese manual (electronic version)

Package Included:
- 1 x Host
- 1 x Controlling Panel
- 1 x HM-207 Handheld Microphone
- 1 x OPC-1132 Power Cord
- 1 x 3.5m Controlling Cable OPC-837
- 1 x Handheld Microphone Hook
- 1 x CD (CS-5100 software and PDF Format Operation Manual)
- 1 x Spare Fuse
- 1 x English User Manual
- 1 x Host Mounting Bracket
- 1 x Head Mounting Bracket
- 1 x Chinese User Manual (Electronic Version)
