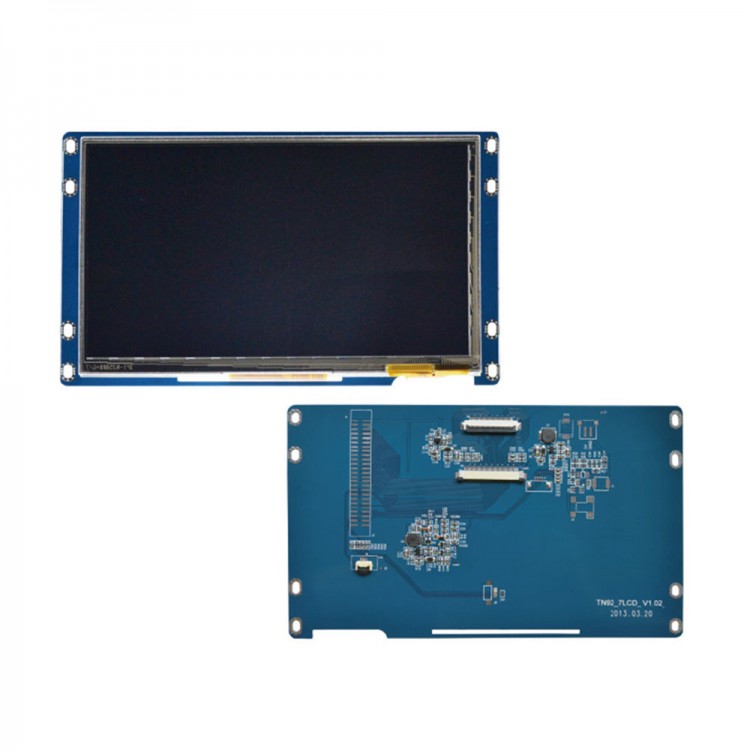

INNOLUX 7 inch TFT LCD Resistive Touch Screen TN92 800x3(RGB)x480 for TQ2416 TQ210 TQ335X E9

Availability: In stock, usually dispatched in 1 business day

  • Price:$64.18
  • Price in reward points: 642 Reward Points: 6
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $62.90 $61.61 $59.69 $57.12 Contact US
Quantity:

INNOLUX 7 inch TFT LCD Resistive Touch Screen TN92 800x3(RGB)x480 for TQ2416 TQ210 TQ335X E9

Specification:

- LCD size: 7.0inch(Diagonal)
- Resolution: 800x3(RGB)x480
- Driver element: a-Si TFT active matrix
- Display mode: Normally White,Transmissive
- Dot pitch: 0.0642(W)x0.1790(H)mm
- Active area: 154.08(W)x85.92(H)mm
- Module size: 164.9(W)x100.0(H)x5.7(D)mm
- Surface treatment: Anti-Glare
- Color arrangement: RGB-stripe
- Interface: Digital
- Backlight power consumption: TBD
- Panel power consumption: TBD
- Power voltage: 3.3V(Typical)DVdd;10.4V(Typical)AVdd
- Horizontal Display Area: 800(type) DCLK
- Vertical Display Area: 480(type) TH
- Operation Temperature:  -20~70  deg C
- Storage  Temperature: -30~80 deg C

Package List:
- 1 x Touch Screen
