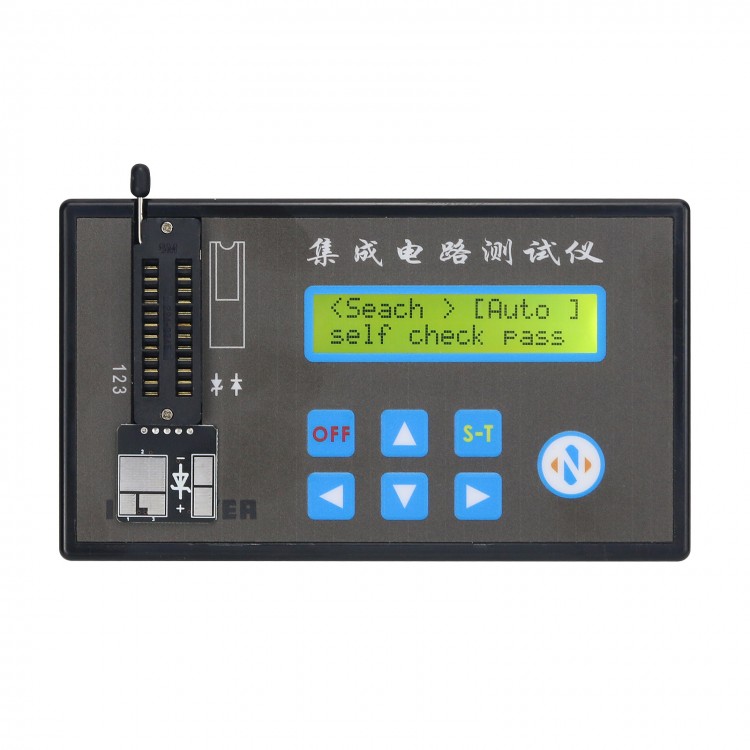

Integrated Circuit Tester Digital IC Tester for Logic Chip Optocoupler Diode Transistor Op Amp
Description:
The Integrated Circuit Tester can be used to test logic chips (including 74HC, 74LS, CD40, HEF40 and 45/145 series), op amps, optocouplers, diodes, regulator diodes, transistors, FET, thyristors, etc. It measures the quality of these components and identifies their models. Over 2000 kinds of components can be tested. Place your chip and measure with one button. It is easy to use.
Features:
- With 1602 LCD display
- 24-position locking socket
- Integrated SMD test board (to test SMD transistors)
- With built-in lithium battery, it can be charged by your phone charger
Package Included:
- 1 x IC Tester
Introduction of Buttons:
Up and Down buttons: Adjust the table of contents and numbers
Left and Right buttons: Move the cursor
Large round button: power on and test
OFF button: power off
S-T button: reset and machine self-test
Application:
1. Chip is placed on top according to the panel diagram.
2. Transistor is placed in the lower left corner.
3. Regulator diode is placed in the lower right corner, and the ordinary diode needs to be placed in the opposite direction.
4. One pin of optocoupler is placed on pin 13 of the IC socket to measure the saturation voltage drop.
