IO Module Digital Quantity Fully Isolated 8DI Transistor Input 8DO Relay Output For EtherCAT Protocol
Description:
The IO module is self-developed. It adopts a fully isolated design scheme. Thanks to its good stability and strong anti-interference ability, it is suitable for industrial automation equipment such as industrial robots.
Technical Index:
Digital Input:
- Number of channels: 8
- Input type: Bidirectional optocoupler (NPN/PNP)
- Filter time: 0.5ms
- Rated level: 24VDC (-15%/+20%)
- Port protection: none
- Isolation withstand voltage: 3750Vrms (MIN)
Digital Output:
- Number of channels: 8
- Output type: Relay
- Rated level: 30VDC/250VAC
- "1" signal level: relay dry contact is closed
- "0" signal level: relay dry contact is disconnected
- Maximum output current (single channel): 1.0A
- Maximum impulse current (single channel): 2.0A
- Maximum total output current: 8.0A
- Port protection: none
- Isolation withstand voltage: 3750Vrms (MIN)
Physical Characteristics:
- Power supply voltage: 24VDC (-15%/+20%)
- Communication protocol: for EtherCAT
- Communication rate: 100Mbps
- Address configuration: automatic scanning
- Product size: 103 x 103 x 46.7mm/4.1 x 4.1 x 1.8" (WxDxH)
- Installation method: DIN rail installation
Package Included:
- 1 x IO Module

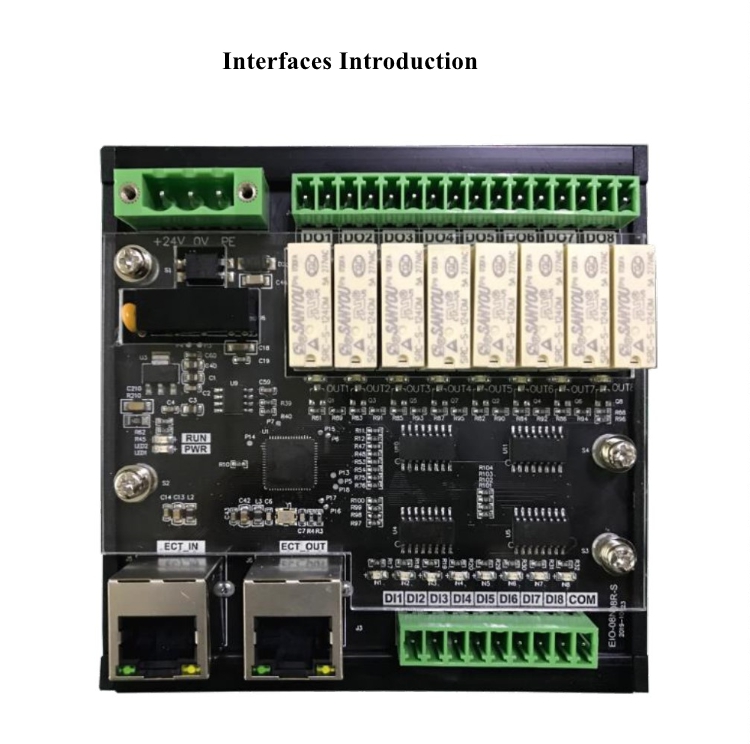

Power Supply:
* +24V port: Power supply input. Connect to DC power supply 24V
* 0V port: Power supply input. Connect to the ground end of DC power supply
* PE port: Shell ground. Connect to the ground
Input Ports:
* DI1-DI8: 8 input signal channels. When a signal is valid, the corresponding input indicator light will turn on
*
COM: Input signal common. 1. COM is grounded. It is valid when the
input signal is high. 2. COM connected to 24V. It is valid when the
input signal is low
Output Ports:
* D01-D08: Output
signal and relay dry contact. Every two output ports work for a relay.
When the dry contact of relay is closed, the output is valid, and the
corresponding output indicator light will turn on
