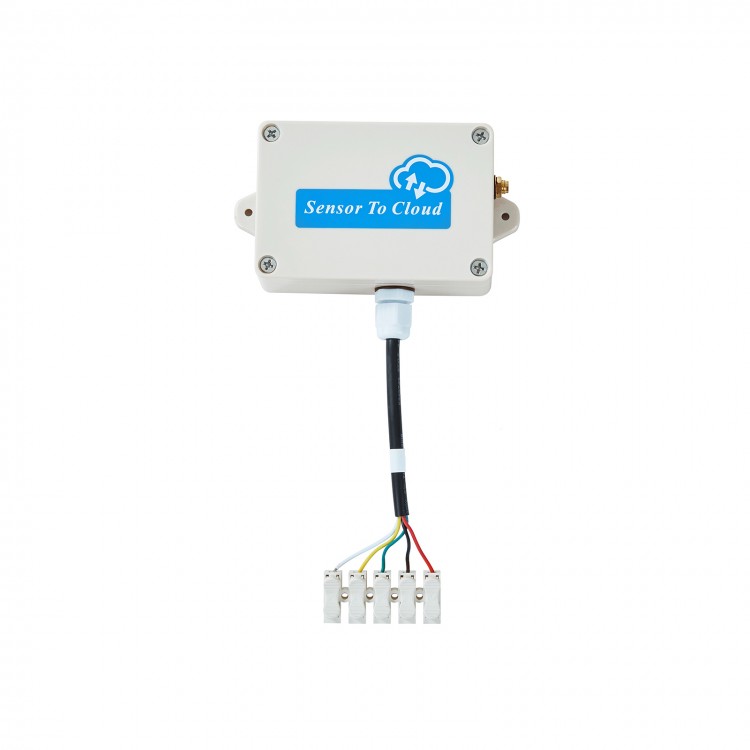

IOT101 DIN IoT Module Digital Input w/ Waterproof Shell For Modbus RTU Over TCP 4G Communication

Availability: In stock, usually dispatched in 1 business day

  • Price:$67.47
  • Price in reward points: 675 Reward Points: 7
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $66.12 $64.77 $62.75 $60.05 Contact US
Quantity:

IOT101 DIN IoT Module Digital Input w/ Waterproof Shell For Modbus RTU Over TCP 4G Communication

Description:

The Wireless DIN IoT Module is a wireless IoT gateway, designed for converting digital (NC/NO) signal to wireless communication, and connect to IoT cloud platform. Suitable for water level sensor, smoke detector, door contact, motion sensor,and other digital output sensor,etc.

I/O Type:
1-way switch DIN input (dry contact and wet contact compatible)

Features:
- Communication protocol: For Modbus RTU Over TCP
- Housing: waterproof shell
- 2 working modes are optional: (1) Normal mode: data is communicated in real time, allowing users to know on-site situation in time; (2) Low power consumption mode: ultra-low power consumption design (less than 230uA), suitable for places where data is collected periodically
- Support setting parameters and viewing real-time data through SMS, computer configuration software, cloud platform;
- Support 10 user numbers, each number can be set individually to receive specific alarm messages and alarm calls;
- Support 10 timers, you can set timing restart, timing report, timing online, timing offline, etc .;
- Support 2 different server centers, can set IP address or domain name;
- Support for Modbus RTU Over TCP protocol or data transparent transmission;
- Perfect data reissue mechanism to ensure that each piece of data is uploaded to server effectively;
- 32M-bit cache capacity, can cache up to tens of thousands of historical data;
- Wide working voltage design, support 7-24VDC power supply, and with anti-reverse protection;
- Built-in clock chip and super capacitor to ensure long-term timing after power failure;
- Support for Nano-SIM mobile phone card, support PIN code verification function to ensure the safety of the card.

Package Included:
- 1 x Set of IOT101
