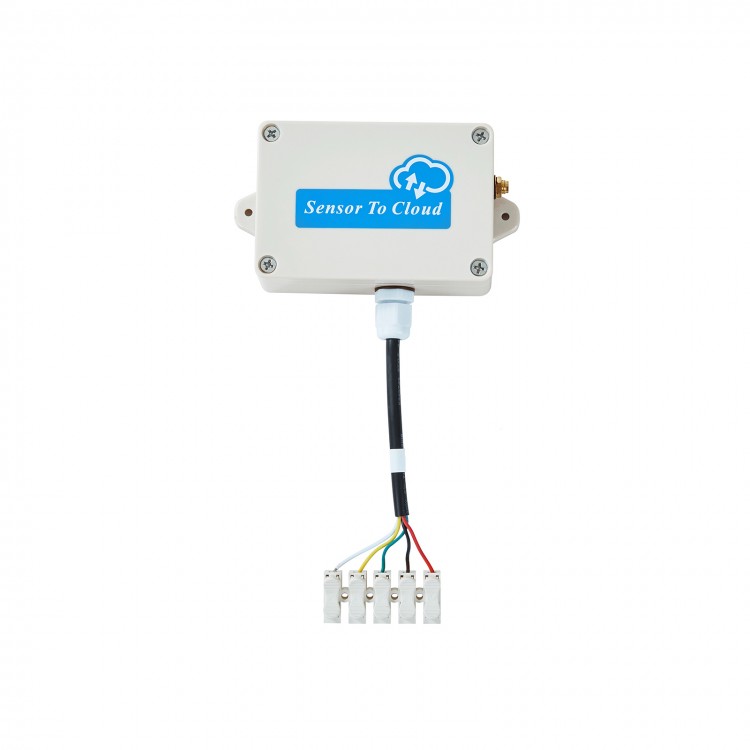

IOT103V IoT Module 0-5V Analog Input w/ Waterproof Shell For Modbus RTU Over TCP 2G Communication

IOT103V IoT Module 0-5V Analog Input w/ Waterproof Shell For Modbus RTU Over TCP 2G Communication

Description:
0-5V DC wireless IoT module is a wireless IoT gateway designed to convert 0 ~ 5V DC analog sensor signals into wireless communication and connect to IoT cloud platform. The module is suitable for pressure sensor, wind speed sensor, oil level sensor, liquid level sensor, etc.

I/O Type:
1-way 0-5V analog input

Features:
- Communication protocol: For Modbus RTU Over TCP
- Housing: waterproof shell
- 2 working modes are optional: (1) Normal mode: data is communicated in real time, allowing users to know on-site situation in time; (2) Low power consumption mode: ultra-low power consumption design (less than 230uA), suitable for places where data is collected periodically
- Support setting parameters and viewing real-time data through SMS, computer configuration software, cloud platform;
- Support 10 user numbers, each number can be set individually to receive specific alarm messages and alarm calls;
- Support 10 timers, you can set timing restart, timing report, timing online, timing offline, etc .;
- Support 2 different server centers, can set IP address or domain name;
- Support for Modbus RTU Over TCP protocol or data transparent transmission;
- Perfect data reissue mechanism to ensure that each piece of data is uploaded to server effectively;
- 32M-bit cache capacity, can cache up to tens of thousands of historical data;
- Wide working voltage design, support 7-24VDC power supply, and with anti-reverse protection;
- Built-in clock chip and super capacitor to ensure long-term timing after power failure;
- Support for Nano-SIM mobile phone card, support PIN code verification function to ensure the safety of the card.

Package Included:
- 1 x Set of IoT Module
