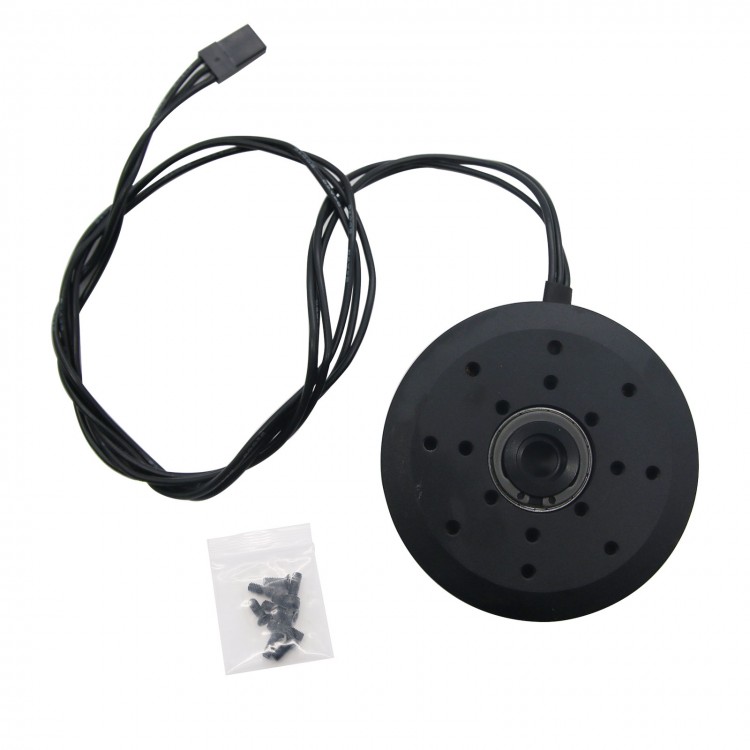

iPower Brushless Gimbal Motor GBM5208H-200T Hollow Shaft for 800-1550g DSLR Gimbal Mount PTZ

iPower Brushless Gimbal Motor GBM5208H-200T Hollow Shaft for 800-1550g DSLR Gimbal Mount PTZ

Description:
The GBM52 series motor by iPower Motors are the ultimate brushless gimbal motor for DSLR / CANON 5D MARKII, MARKIII Cameras. This motor is designed for large scale multi-rotor platforms looking to lift Red Epic & DSLR sized gear – 4KG/cm Torque. The principle of the camera stabilization using brushless direct drive motors In fact, gimbal based on BLDC motors is very similar to regular gimbal based on hobby servo.

Specifications
- Model NO.: GBM5208H-200T
- Weight: 179g
- Motor Dimensions: dia 63mm x hgt 24.5mm
- Stator Dimensions    : dia 52mm x hgt 8mm
- Copper wire (OD): 0.27mm
- Configuration: 12N14P
- Resistance: 15.5 ohms
- Base center pitch: 25mm 30mm
- Pre-wound: with 200 turns, Hollow shaft
- Hollow Shaft Diameter    : 12.6mm
- Camera range: 800-1550 grams
- Test Voltage (Max Voltage): 11.1V (22.2V)
- Test Current: 0.066A
- Max Current: 10A
- Test Rotational Speed (Max)    : 278 rpm (560 rpm)

Package Included:
- 1 x GBM5208H-200T Gimbal Brushless Motor
