IRS2092 2x750W Class D Digital Audio Amplifier Board Dual-Channel High-Power Stereo HiFi Amp

Availability: In stock, usually dispatched in 1 business day

  • Price:$167.15
  • Price in reward points: 1672 Reward Points: 17
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $163.81 $160.46 $155.45 $148.76 Contact US
Quantity:

IRS2092 2x750W Class D Digital Audio Amplifier Board Dual-Channel High-Power Stereo HiFi Amp

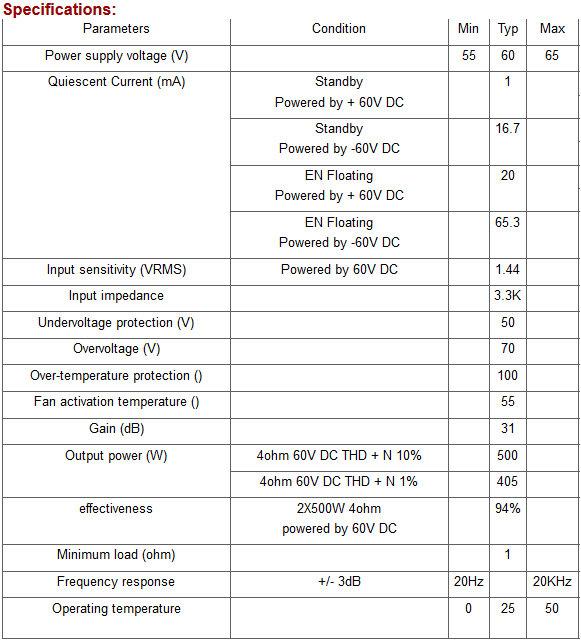

Parameters:

- Weight: 1152g
- Size: 160.02mm (L)×228.60mm (W)× 73.66(H)2mm
- PCBThickness: 2mm
- Power range:+/- 55V-65V DC
- Recommend power: DC 60V
- Analog single-ended signal inputs (RCA)
- Distortion: 0.009%100W
- Dynamic range:102dB
- Frequency response:20Hz-30kHz
- SNR:92dB
- Residual noise: 280uV
- High Output Power: 500W 4 60V DC THD + N 10%
- 400W 4 60V DC THD + N1%
- Operating temperature: 0~50 deg C
- Storage temperature: -20~ 105 deg C

Features:
- Copper thickness is 2Ounce,Double thickness of copper
- Mounting holes for easy installation
- A variety of wiring for easy connection
- Have a great and intelligent radiator cooling fan
- Over or low voltage protection
- Over-current protection
- Short-circuit and over-temperature protection

Applications:
- AV Receiver
- Active Speakers
- Replace subwoofer
- Musical Instrument Amplifier
- PA
- Automotive external speaker system
- Background music system
- Family DIY

Package included:
- 1 x Amplifier Board
