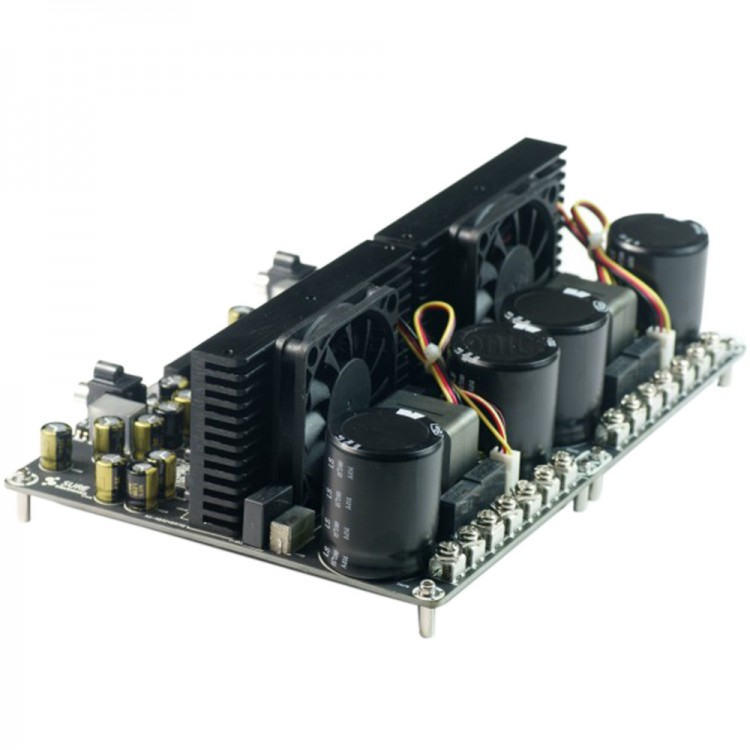

IRS2092 Class D 2x2500W Digital Power Amplifier Board HIFI Stereo Mono Dual Channel Amp
Specification:
- Product Weight: 1180g
- Product Dimensions: LxW: 160.02mmx228.6mm -+0.2mm
- Height: 73.66mm 2mm
| Parameter | Condition | Minimum | Typical Value | Maximum |
| Voltage(V) | -+55 | -+92 | -+95 | |
| Static power(W) | Fan is on, SD suspended | 19.4 | ||
| Fan is off, SD suspended | 17.9 | |||
| Input sensitivity | 2Ohm,2500W,1KHz | 2.35 | ||
| Input impedance(KOhm) | 3.3 | |||
| Gain(db) | 31 | |||
| Output power(W rm s) | 2Ohm THD+N 1% | 2230 | ||
| 2Ohm THD+N 10% | 2500 | |||
| Efficiency(%) | 2500W 2Ohm | 95 | ||
| Minimum load(Ohm) | 1 | |||
| Frequency response(KHz) | SD is suspended | 357 | ||
| Operating temperature(deg C) | 20 | 50 | ||
| SNR(db) | 2230W 2Ohm THD+N 1% | 96 |
Package included:
- 1 x Audio Amplifier Board
