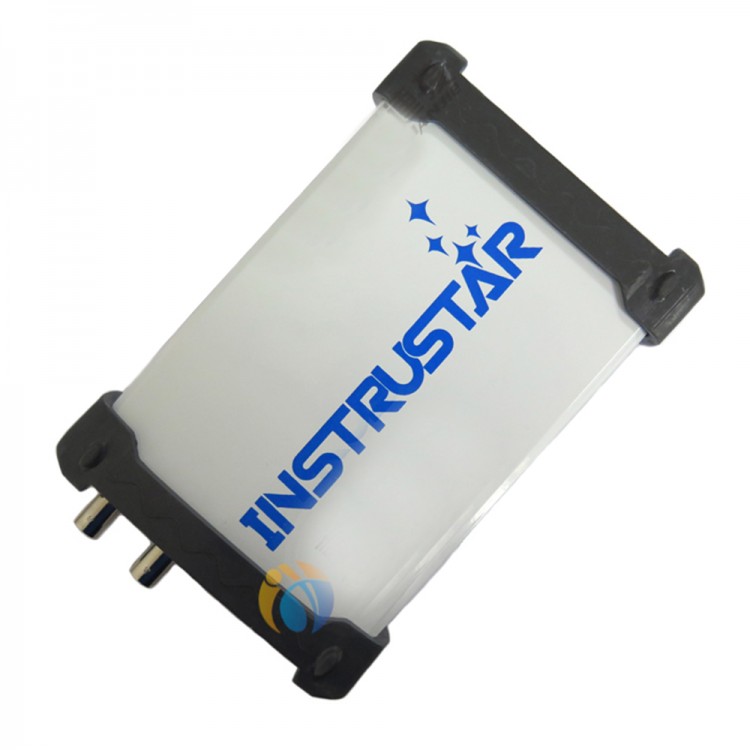

ISDS210A 2CH 40MHz Bandwith 100M Sample Rate Virtual PC USB Oscilloscope FFT Spectrum Analyzer

ISDS210A 2CH 40MHz Bandwith 100M Sample Rate Virtual PC USB Oscilloscope FFT Spectrum Analyzer

Features:
- Streamlined design, compact size, USB2.0 interface, no external power source.
- More suitable for notebook computer, used easily on business.
- A small size (mm): 150 (L) x100 (W) x30 (H), easy to carry.
- High refresh rate, high sampling rate, 100MS / s real-time sampling.
- The software supports: Windows XP (SP3), Win7 (32 bit), Win7 (64-bit).
- Waveforms: add, subtract, multiply, X-Y display.
- The waveform data can be output to EXCEL, BMP, OSC by time and voltage.
- FFT spectrum analysis.
- Full-function signal generator, and supports adjustable voltage amplitude and offset.
- A computer can connect many DSO.
- Secondary development library that provides an example of VC development.

Digital Storage Oscilloscope:
- Channels: 2
- Impedance: 1MOhm 25pF
- Coupling: AC / DC
- Vertical resolution: 8Bit
- Voltage range:-16V ~ 16V(probex1), -160V-160V(probex10)
- Vertical accuracy: ± 3%
- Timebase range: 1ns-20s
- Vertical adjustable: 10mV/div-10V/div (1MOhm)
- Input protection: Diode clamping
- Auto Setup: Yes (10Hz to 40MHz)
- Trigger mode: automatic, continuous, single
- Trigger Slope: + / -
- Trigger level adjustable: Yes
- Trigger Type: Analog
- Trigger source: CH1, CH2
- Memory Depth: 512KB/CH
- Single Bandwidth: 40MHz
- Maximum real-time sampling rate: 100MS / s
- Sampling Rate Selection: Yes
- Vertical mode: CH1, CH2, ADD, SUB, MUL
- Display Mode: X alternately, Y and X-Y mode alternately
- Cursor measurements: Yes
- Cursor display: frequency, voltage
- Waveform Save format: Osc (private), Excel and Bmp

Spectrum Analyzer
- Channels: 2
- Bandwidth: 40MHz
- Algorithm: FFT (18 window), correlation, power spectrum, supports Rectangle, bartlett, triangular, cosine, hanning, bartlett_hanning, hamming, blackman,
blackman_Harris, tukey, Nuttall, FlatTop, Bohman, Parzen, Lanczos, kaiser, gauss,
dolph_chebyshev as many as 18 kinds of windows;
FFT data points per channel: 8 -1048576

Filter:
FIR supports arbitrary amplitude frequency sampling method and Rectangle, bartlett, triangular,
cosine, hanning, bartlett_hanning, hamming, blackman, blackman_Harris, tukey, Nuttall, FlatTop,
Bohman, Parzen, Lanczos, kaiser, gauss window function method;
IIR filter support "Butterworth", "Chebyshev I", "Chebyshev II", "oval" type;

 Package:
- 1 x ISDS210A oscilloscope
- 2 x Oscilloscope probe
- 1 x USB cable
- 1 x Output cable
- 1 x CD
