ITEAD for Arduino Xbee Expansion Board Xbee Shield Compatible with Bluetooth Bt Bee Wifi Bee

Availability: In stock, usually dispatched in 1 business day

  • Price:$11.02
  • Price in reward points: 110 Reward Points: 1
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $10.80 $10.58 $10.25 $9.81 Contact US
Quantity:

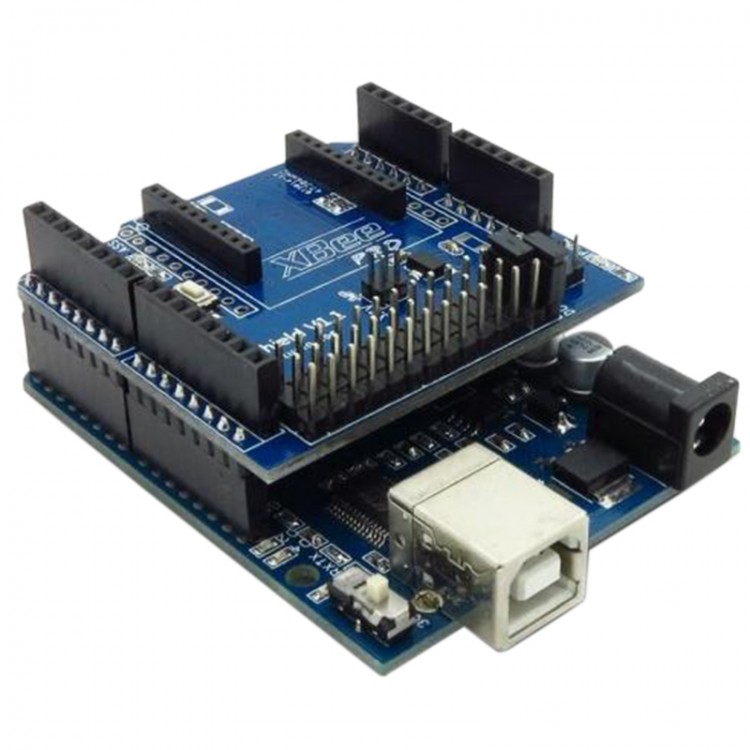

ITEAD for Arduino Xbee Expansion Board Xbee Shield Compatible with Bluetooth Bt Bee Wifi Bee

Description:

- This enhanced XBee expansion board is for serial connections to choose model improved mainly, can choose arbitrarily by pin RX,TX connection.In other words, the most basic of XBee is connected to Arduio D0 D1, you can also choose to connect other digital pins, and then use the simulated serial port to XBee data read or control.Hardware serial ports for other purposes.
- Reserved 3 reset circuit on the Board for choice, if you are using a Sreial 1 versions  XBee, less Ard-uino can be utilized. We do not support function of this part of the reservation, but we can offer foreign references the Blog and forum posts.
- After you select 2 serial port pins, pins can be left by stack's mother continued to put the expansion boards are used.
- Support 3.3V and 5V operation level, when plug in the jumper Cap 3.3V JMP, can work with 3.3V main control board, into the leaf maple,ChipKit UNO32
- DI DO RSSI ON ASS and other XBee led leads, clearer understanding of XBee module position
- XBee module UART can connect to 2 Ard-uino pin (from D0 to D13), the jumper CAP to connect the DOUT pin DIN to needs.
- With reset button, reset the Arduino backplane

Package included:
- 1 x Board
