JD-108 Industrial Handheld 8um-14um Infrared Thermal Imager 160x120 HD Thermal Camera Built-in 16GB Micro SD

Availability: In stock, usually dispatched in 1 business day

  • Price:$166.57
  • Price in reward points: 1666 Reward Points: 17
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $163.24 $159.91 $154.91 $148.25 Contact US
Quantity:

JD-108 Industrial Handheld 8um-14um Infrared Thermal Imager 160x120 HD Thermal Camera Built-in 16GB Micro SD

Specification:

- Model: JD-108
- Detector type: uncooled vanadium oxide
- Infrared resolution: 160x120
- Wavelength range: 8μm ~ 14μm
- NETD: <50mK
- Thermal sensitivity: 0.15℃
- Field of view: 50°x 38°
- Output frame rate: 25Hz
- Visible light resolution: 2 million pixels
- LCD: 2.8-inch full-view high-resolution color screen
- Temperature measurement range: -20℃ ~ 400℃
- Precision: ±2℃ or ±2% (Larger value)
- Emissivity: 0.1~0.99 adjustable
- Storage capacity: 16GB Micro SD
- File format: jpg
- Video format: avi
- Power supply: built-in 3.7V/2000mAh rechargeable lithium battery
- Operating temperature: 0℃ ~ 50℃
- Storage temperature: -20℃ ~ 60℃
- Storage humidity: 10%RH ~ 85%RH

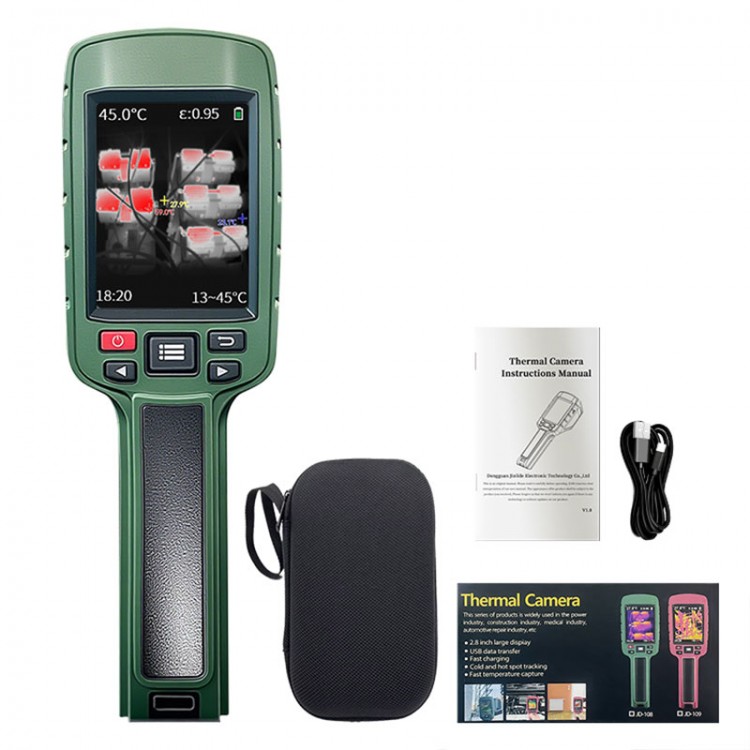

Package Included:
- 1 x Thermal Imager
- 1 x USB Type-C Cable
- 1 x User Manual
- 1 x Storage Bag
