JDS2800-15MHz Signal Generator Digital Dual-Channel DDS Signal Generator Frequency Meter Arbitrary

Availability: In stock, usually dispatched in 1 business day

  • Price:$83.47
  • Price in reward points: 835 Reward Points: 8
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $81.80 $80.13 $77.63 $74.29 Contact US
Quantity:

JDS2800-15MHz Signal Generator Digital Dual-Channel DDS Signal Generator Frequency Meter Arbitrary

Description:

JDS2800 series Dual-channel Function Signal Generator combines multiple functions in one, such as Function Signal Generator, Arbitrary Waveform Generator, Pulse Generator, Sweep, Counter and Frequency Meter etc. The instrument adopts the Direct Digital Synthesizer (DDS) technology and provides stable, precise, pure and low distortion signals. It's a great testing or measuring instrument for electronics engineers, electronic laboratory, teaching and researching.

Download User Manual & PC Software Here:
http://www.mediafire.com/folder/c1uuync3c0exh/JDS2800_Signal_generator

Features:
- Adopt 320*240 2.4" TFT color LCD display, simultaneously display parameters of CH1 and CH2; Ability to reproduce patterns of custom waveform
- Use soft silicone keys instead of traditional patch keys, high sensitivity and convenient for operation
- Max. output frequency(sine wave) up to 15MHz/40MHz/60MHz(optional), 266MSa/s sampling rate and 14bits vertical resolution
- Completely independent dual channels output, synchronizing operation and adjustable phase difference
- Great improvement for square wave performance, square frequency range up to 25MHz with no distortion
- 60 groups of arbitrary wave storage function, memory depth of each group is 2048*14bits
- High frequency accuracy and resolution: frequency accuracy up to 10^(-6) magnitude, total range frequency resolution is 0.01uHz
- High amplitude resolution: the minimum amplitude resolution can reach 1mV, amplitude range is 0Vpp~20Vpp
- Duty-cycle of each channel can be adjusted independently; the adjusting resolution is 0.1%
- Sweep function: linear sweep and logarithmic sweep functions; 0.1s-999.9s sweep time; forward, backward and roundtrip sweep directions
- With pulse trains burst output function: allow the unit output 1~1048575 arbitrary pulse trains
- Measurement functions: can measure signal frequency, cycle, positive/negative pulse width and duty cycle; 1Hz~100MHz frequency range
- Offset resolution: 0.01V; -9.99V~9.99V DC offset range
- With digital signal output function, CMOS output range 0~10V
- Storage feature: can store 100 groups of parameters set by the user and extract at any time; Counter function: with DC and AC coupling modes
- Arbitrary wave editing function: user can edit arbitrary wave on PC and then download to output from the instrument
- Communication function: the PC can be used to control the instrument
- With output short-circuit protection: all signal output can work 60s under load short-circuit condition

JDS2800-15MHz

Frequency Specifications:
- Sine frequency range: 0~15MHz
- Square frequency range: 0~15 MHz
- Triangle frequency range: 0~15MHz
- Pulse frequency range: 0~6 MHz
- TTL digital frequency range: 0~6 MHz
- Arbitrary wave frequency range: 0~6 MHz
- Square rise time: ≤25nS
- Pulse width adjustment range: 100nS - 4000S
- Frequency accuracy: ±20 ppm
- Frequency stability: ±1 ppm/3h

JDS2800-40MHz
Frequency Specifications:
- Sine frequency range: 0~40MHz
- Square frequency range: 0~25 MHz
- Triangle frequency range: 0~25 MHz
- Pulse frequency range: 0~6 MHz
- TTL digital frequency range: 0~6 MHz
- Arbitrary wave frequency range: 0~6 MHz
- Square rise time: ≤10nS
- Pulse width adjustment range: 40nS - 4000S
- Frequency accuracy: ±20 ppm
- Frequency stability: ±1 ppm/3h

JDS2800-60MHz
Frequency specifications:
- Sine frequency range: 0~60MHz
- Square frequency range: 0~25 MHz
- Triangle frequency range: 0~25 MHz
- Pulse frequency range: 0~6 MHz
- TTL digital frequency range: 0~6 MHz
- Arbitrary wave frequency range: 0~6 MHz
- Square rise time: ≤10nS
- Pulse width adjustment range: 25nS - 4000S
- Frequency accuracy: ±20 ppm
- Frequency stability: ±1 ppm/3h

Waveform Specifications:
- Waveform:  Sine, square, triangle, pulse (duty-cycle correction, pulse width and cycle time adjustable), arbitrary wave, CMOS, DC level, half-wave, full-wave, pos-ladder, neg-Ladder, noise, exponential rise, exponential fall, tone, cink pulse, lorentz pulse, and 60 kinds user-defined waveforms.
- Waveform vertical resolution:  14 bits
- Waveform sampling rate:  266 MSa/s
- Waveform length:  2048 points
- Sine - Harmonic suppression:  ≥45dBc(<1 MHz); ≥40dBc(1 MHz~20 MHz)
- Sine - Total harmonic distortion:  <0.8%(20 Hz~20 kHz,0dBm)
- Square and Pulse - Overshoot (Square):  ≤5%
- Square and Pulse - Duty-cycle range(Pulse):  0.1 - 99.9%
- Ramp wave – Linearity:  ≥98%(0.01 Hz~10 kHz)

Output Specifications:
- Amplitude range:  Frequency<10MHz,0-20VPP; Frequency>10 MHz, 0 - 10Vpp.
- Amplitude resolution:  1 mV
- Amplitude stability: ±0.5%/5 h
- Amplitude flatness: ±5%(<10 MHz); ±10%(>10 MHz)

Waveform Specifications:
- Output impedance: 50Ω±10%(typical)
- Protection:  Short circuit 60S will not be damaged

 DC Offset:
- Offset adjusting range: Output Amplitude>2V,-9.99V~9.99V;0.2V<Output Amplitude≤2V,-2.5V~2.5V;0<Output amplitude≤0.2V, -0.25V~0.25V
- Offset resolution: 0.01 V

Phase Specifications:
- Phase adjusting range:  0~359.9°
- Phase resolution: 0.1°

TTL/COMS Output:
- Low level: <0.3 V
- High level: 1 - 10 V
- Level rise/fall time:  ≤20ns

External Measurement Functions:
- Frequency meter function - Frequency measurement range:  1 Hz~100 MHz
- Frequency meter function - Measurement accuracy: Gate time continuously adjusted between 0.01S~10s
- Counter function - Counting region: 0-4294967295
- Counter function - Coupled mode:  2 Coupling modes, DC and AC
- Counter function - Counting mode: Manual operation
- Input signal voltage range:  2 – 20 Vpp
- Pulse width measurement:  0.01us (resolution), 20s (MAX measuring time)
- Period measurement: 0.01us (resolution), 20s (MAX measuring time)

Sweep Functions:
- Sweep channel: CH1 or CH2
- Sweep type: Linear sweep, log sweep
- Sweep time: 0.1s~999.9s
- Setting range: Arbitrarily set between start point and stop points
- Sweep direction: Forward, backward and round trip

General Technical Parameters:
- Display type: 2.4 inch TFT color LCD
- Storage and loading - Quantity: 100 groups
- Storage and loading – Location: 00 to 99(extract 00 place data at default boost state)
- Arbitrary wave – quantity: 1 to 60, totally 60 groups (default boost 15 groups)
- Interface mode:  USB to serial interface
- Extension interface: There is serial interface of TTL level mode to be convenient for secondary development.
- Communication speed - Adopt standard: 115200 bps
- Communication protocol - Adopt command: line mode, open protocol
- Power supply: DC 5 V±0.5 V
- Manufacturing process: Surface-mount technology, large scale integrated circuit, high reliability, long service life
- The user can set ON or OFF by procedure
- Operating characteristics: Full button operation, knob continuous adjustment
- Weight: 275g
- Size: 147.7*107.7*34.9mm

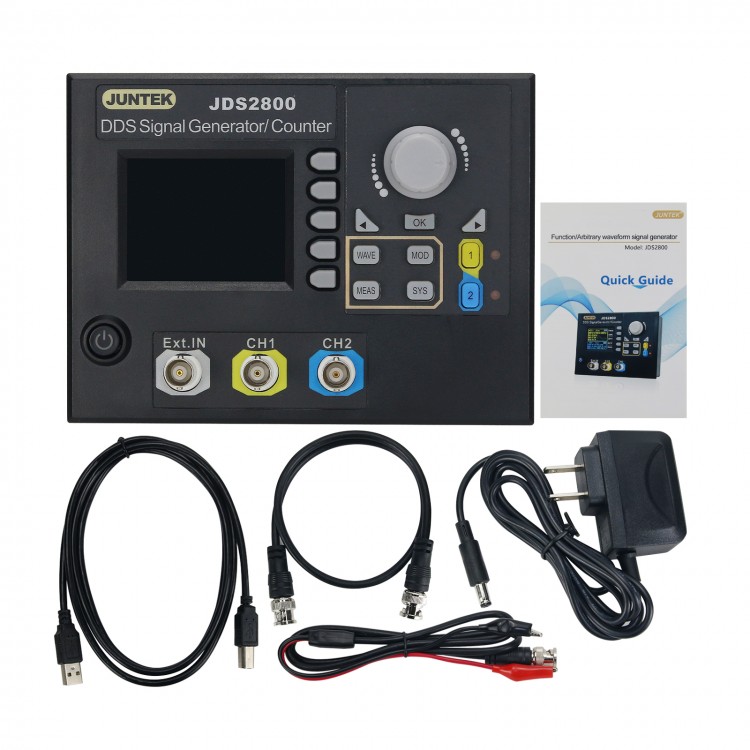

Package Included:
- 1 x DDS Signal Generator
- 1 x CD
- 1 x Power Adapter (In: 100~240V~50/60Hz, Out: 5.0V-2.0A)
- 1 x USB Data Cable
- 1 x BNC-BNC Cable
- 1 x BNC-Clip Cable
