Specifications:
- Model: JDS6031
- Screen resolution: 320*240
- Host length * width * height: 19.5cm * 9.5cm 3.7cm
- Outer packing length * width * height: 28.5 cm * 23 cm * 8 cm
- Host weight: 350g
- Overall gross weight: 700 g
- Channel: 1CH
- Bandwidth: 30M
- Sampling rate: 200MSa/S
- Storage depth: 2K
- Language: Chinese, English switching
- Switching Language Step: Long Press "Parameter" Key to Switch
- Power supply mode: EU/US Standard
- 18650 removable battery
- Signal Calibration: 1KHZ Square Wave
- Other: 1. Can save 6 BMP format USB connected computer to view pictures.
- 2. Full-color display of waveform data
- Incidental function: none

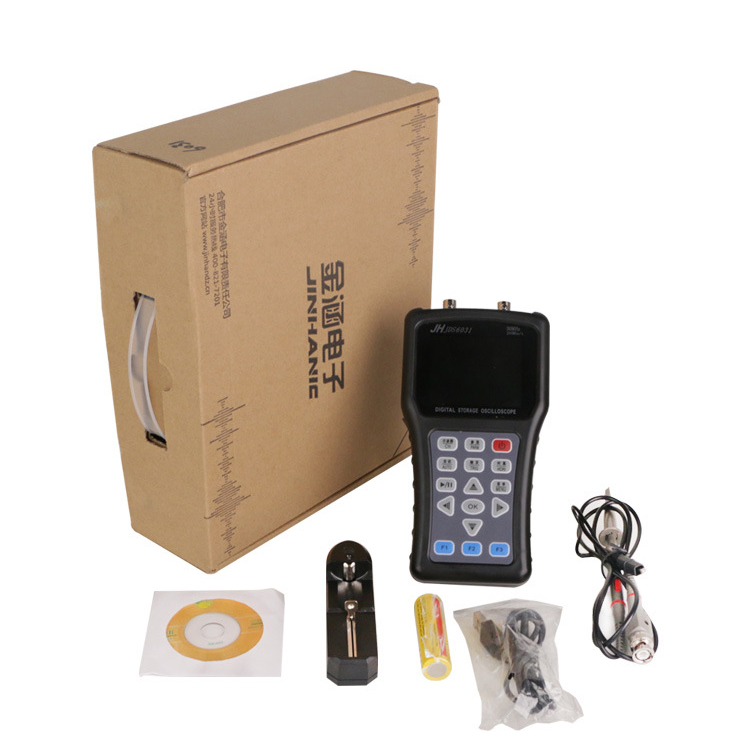

Packing list:
- Probe*1
- Charger*1
- USB Data cable*1
- Explanation CD*1
