Jetson Xavier NX Metal Case/ Enclosure with 2PCS WiFi Antennas for NVIDIA Jetson Xavier NX Developer Kit
Description:
- The NVIDIA jetson Xavier NX metal shell is upgraded from the NVIDIA Jetson Nano development board metal shell. It not only supports the installation of NVIDIA Jetson Xavier NX, but also is compatible with NVIDIA Jetson Nano A02 and B01 versions. This is a real AI computer chassis for the Jetson Nano. It can not only protect your motherboard, but also has all the functions of the computer chassis. This chassis is equipped with a power switch and a reset switch, while it also reserves the installation space for GPIO cable holes and fans, and is easy to assemble.
- Installation video: https://www.bilibili.com/video/BV19Z4y157y7/
Features:
- With power switch and reset switch, it is convenient for one button startup.
- Power switch with ring LED display.
- The Reset switch is placed on the back to prevent accidental contact.
- Equipped with an official camera bracket, which can be installed anywhere above the chassis.
- An antenna hole is reserved to facilitate the arrangement of external antennas.
- Simple and convenient installation.

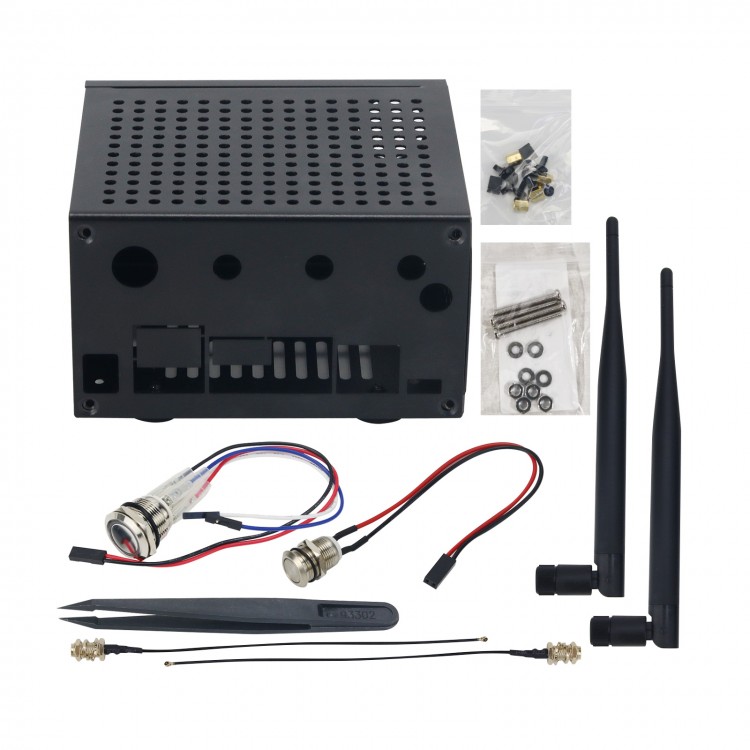

Package Included:
- 1 x NVIDIA Jetson Xavier NX metal case

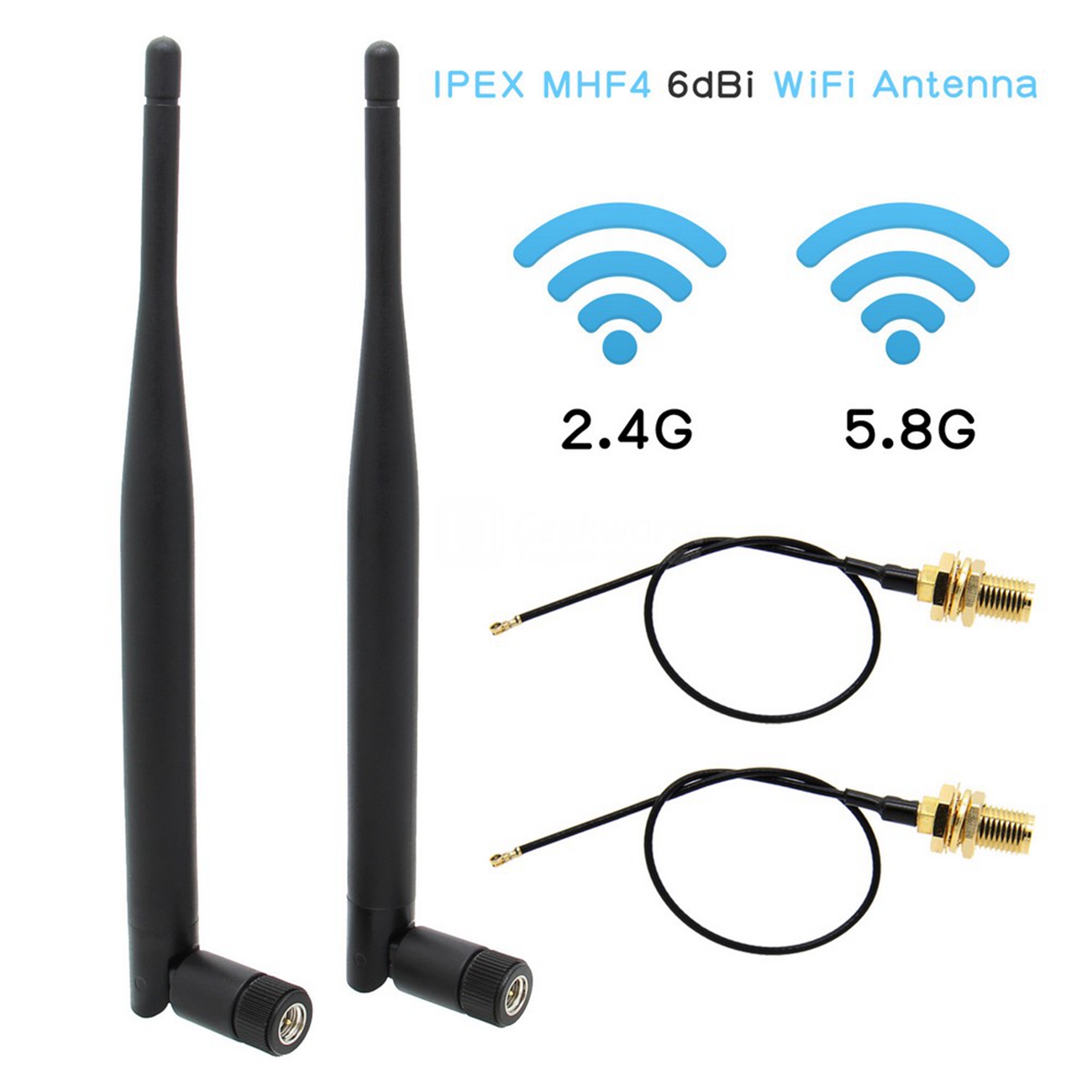

- 2 x IPEX MHF4 antenna
- 1 x Raspberry Pi official camera bracket
- 1 x power switch
- 1 x reset switch
- 2 x jumper
- 2 x screws pack
- 1 x ABS tweezers (only for fan installation)
Note:

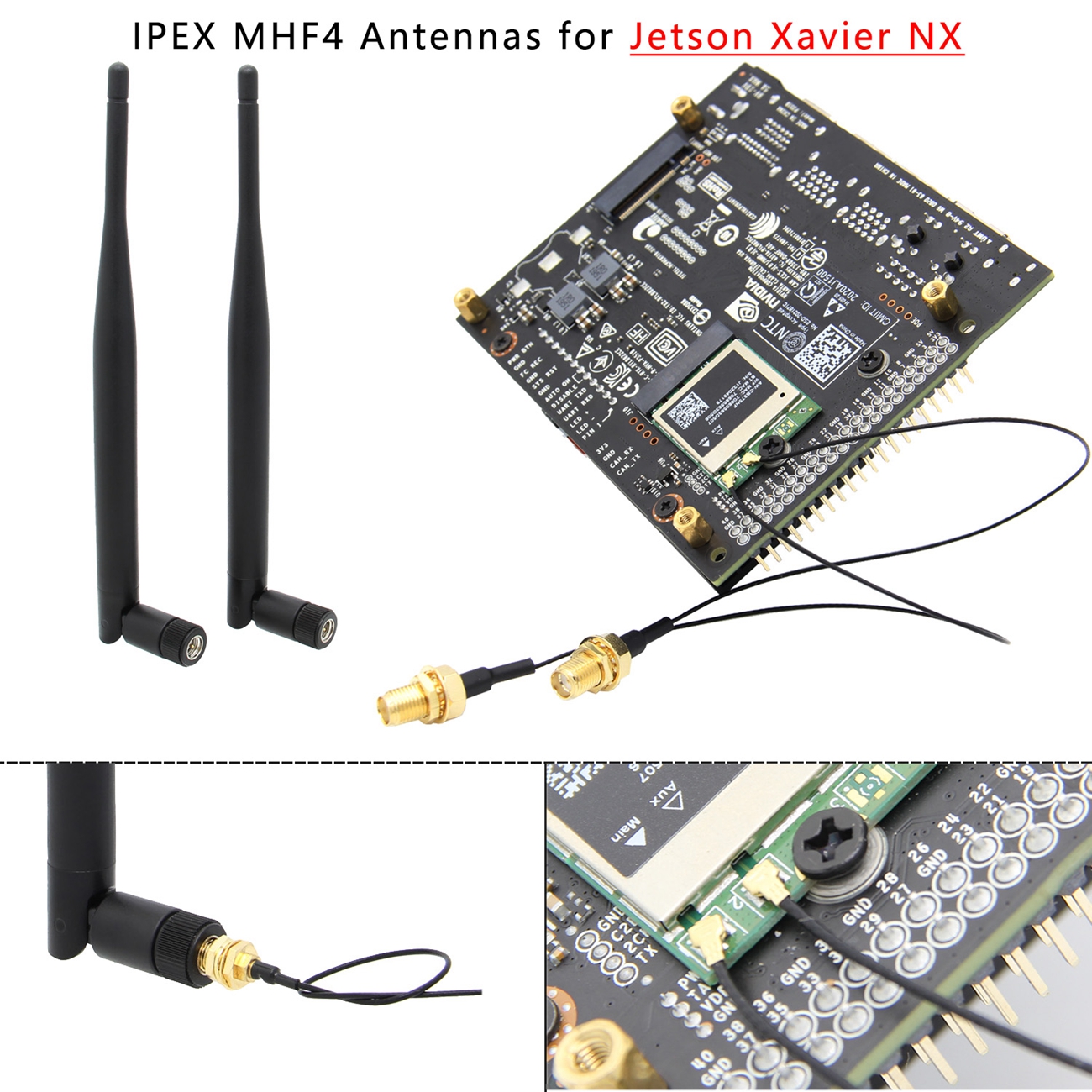

- When installing the NVIDIA Jetson Xavier NX, the base of the NVIDIA Jetson Xavier NX needs to be removed, and two additional antennas need to be equipped.
FAQ:
Q: Why is there no MICRO SD card slot?
A: In order to be compatible with the installation of NVIDIA Jetson NanoA02 and B01 and NVIDIA Jetson Xavier NX at the same time, we must increase the distance between the motherboard and the front panel of the housing to install the switch. We found that even if we retain the TF card slot, we cannot insert the TF card through the TF card slot by hand or with plastic tweezers, so we had to cancel the slot.
Q: How to select the appropriate power supply?
A: JETSON NANO supports power supply with two interfaces: Micro USB power adapter and DC Jack power adapter; You can select different power adapters by controlling the jumper of J48; We strongly recommend you to use the DC Jack power adapter, because DC Jack can provide greater current input than Micro USB.
Q: How to install the metal case?
A: Please refer to the following pictures or wiki: raspberrypiwiki.com/index.php/N100
Q: Does the power switch support shutdown?
A: Yes. Press and hold for 10 seconds to force shutdown. This is supported by the system.
Q: How to use jumper cap?

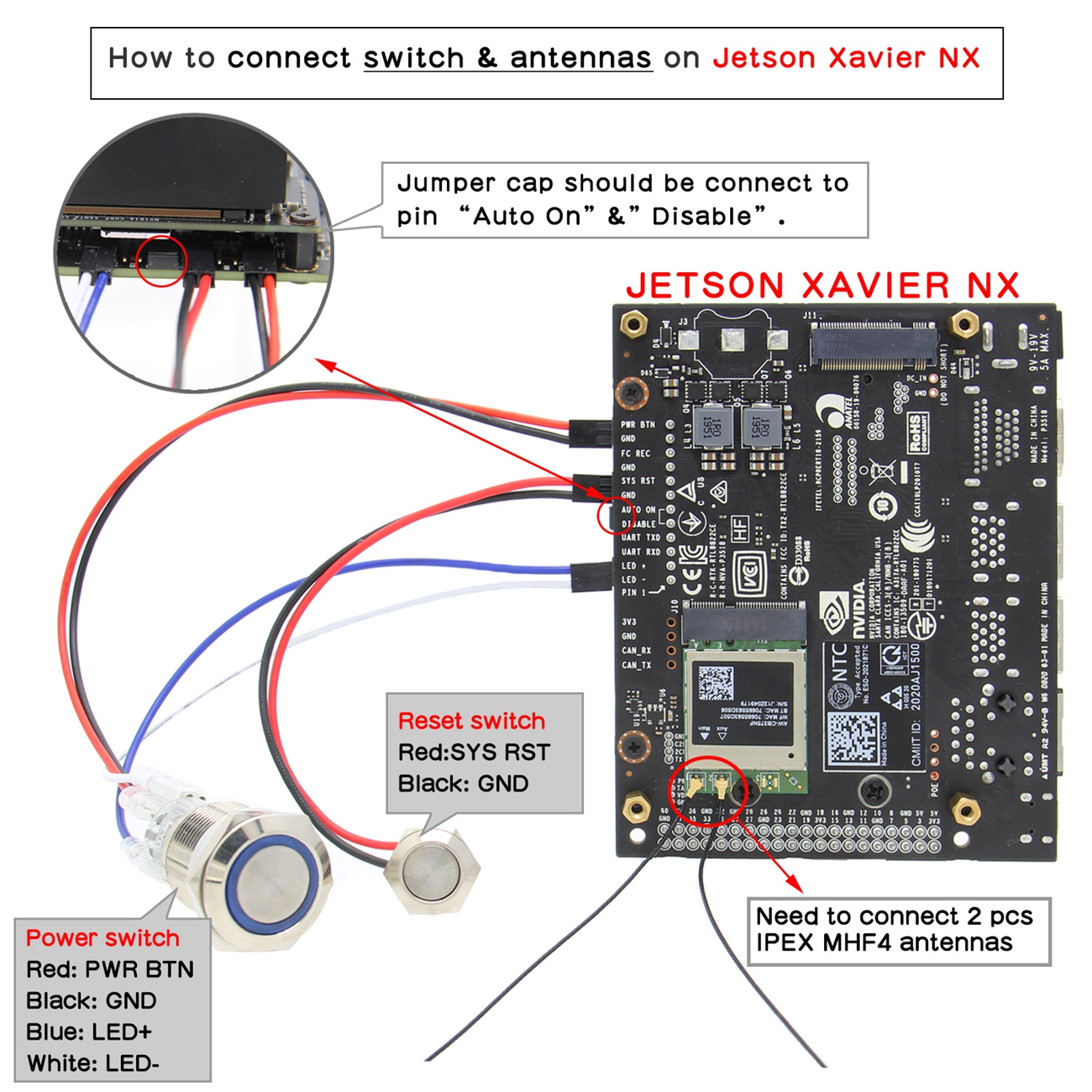

A: Since this housing has a power switch, you need to disable the AUTO ON function first. Please insert the jumper cap in the AUTO ON and DISABLE positions to disable the AUTO ON function; Refer to the figure below.
