Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $12.56 | $12.31 | $11.92 | $11.41 | Contact US |

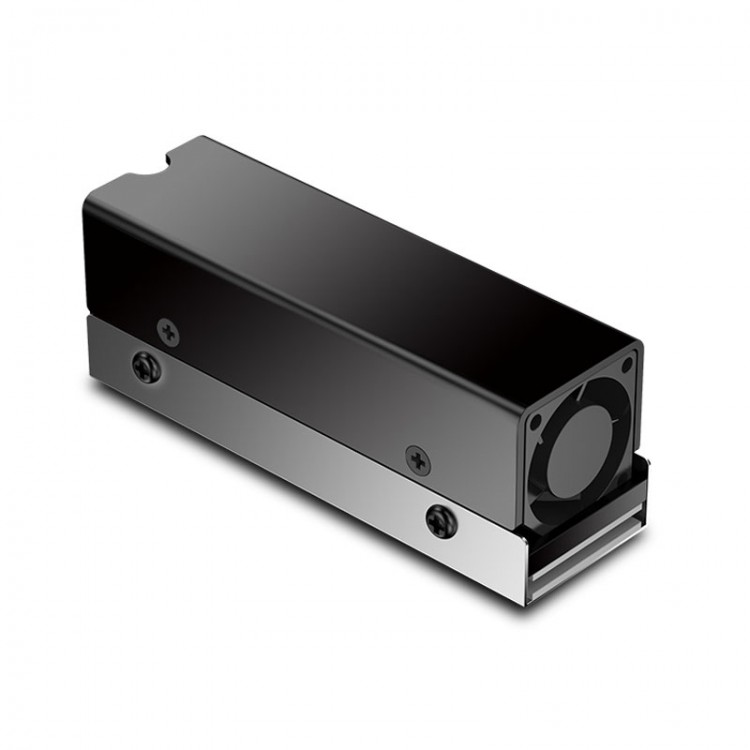

JIUSHARK M.2 2280 SSD Heatsink with 6000RPM SSD Cooling Fan – PCIe 4.0 Aluminum Cooling and Thermal Fins
Attention:
* The fan does not support speed control. Please be aware that the fan produces some noise. Please make sure that you don't mind before purchasing. Thank you!

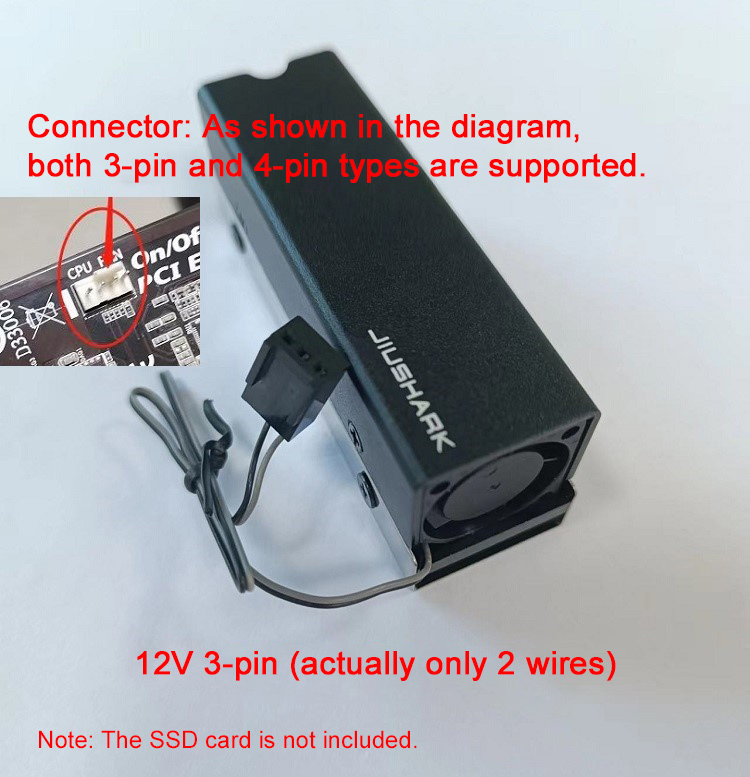

* The fan is a fixed-speed 2-pin model and requires 12V to operate. Since the fan headers on the case provide variable voltage, you must set the header to maximum output for the fan to spin.
Features:

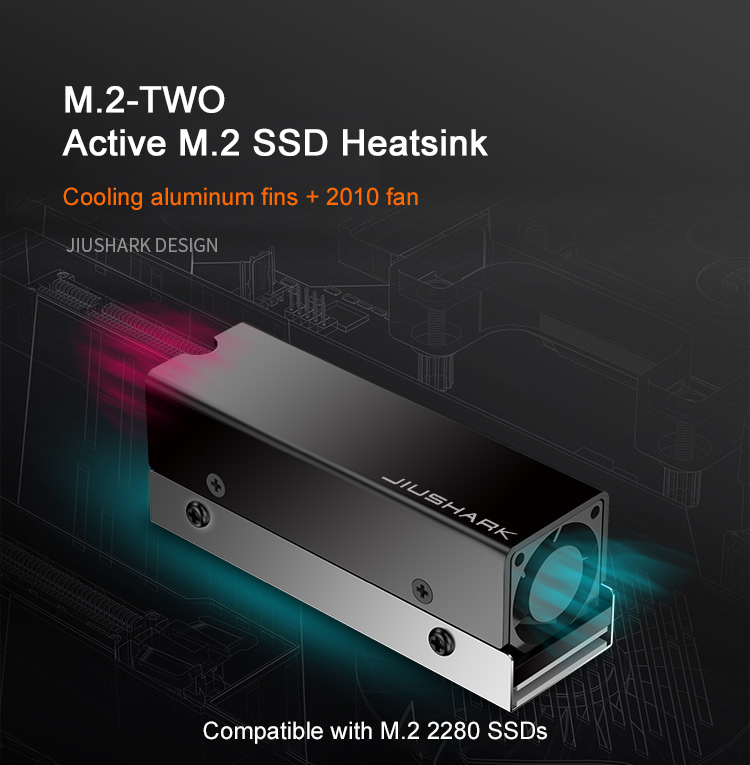

M.2-TWO Active M.2 SSD Heatsink
* Cooling aluminum fins + 2010 fan
* Compatible with M.2 2280 SSDs
* Easy to install, highly effective

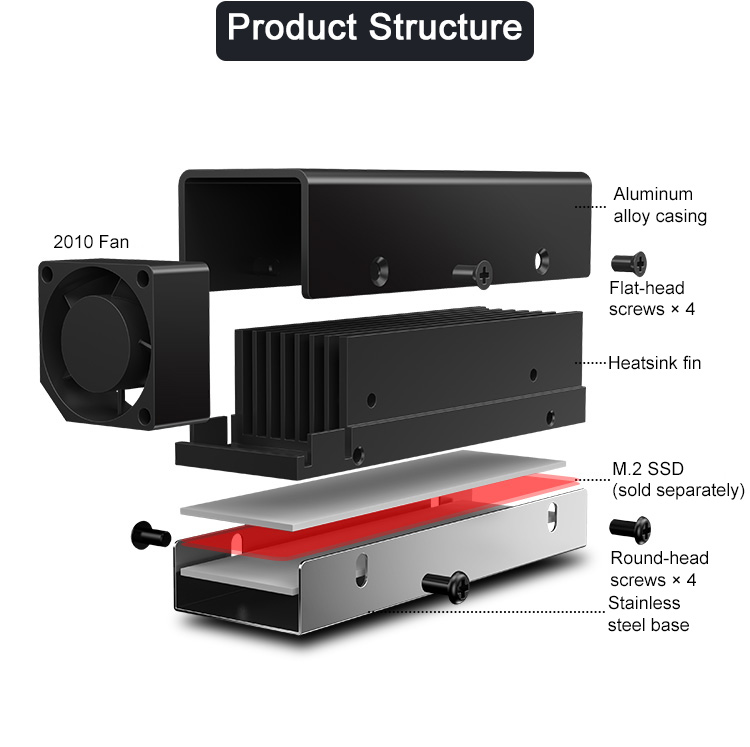

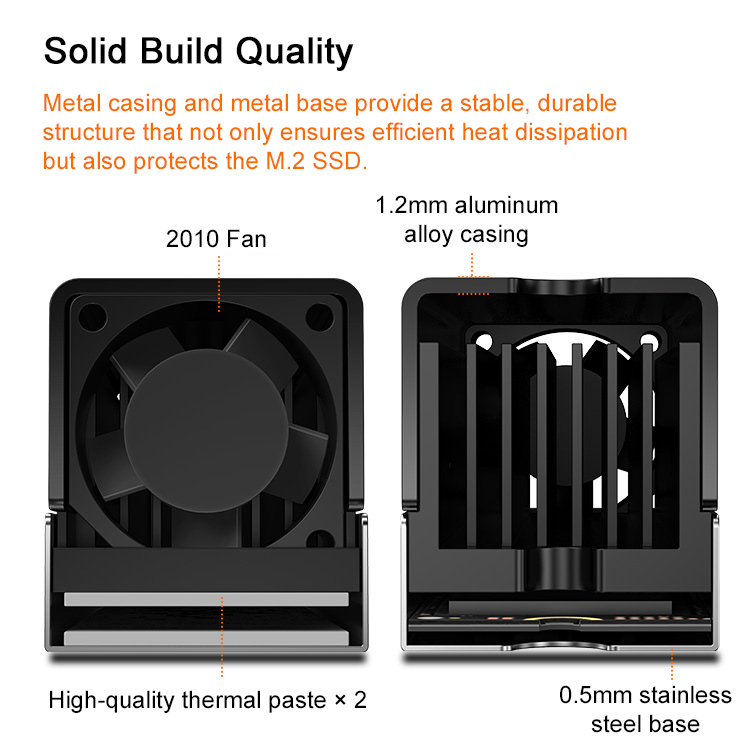

Solid Build Quality
* Metal casing and metal base provide a stable, durable structure that not only ensures efficient heat dissipation but also protects the M.2 SSD.
* 2010 Fan
* 1.2mm aluminum alloy casing
* High-quality thermal paste × 2
* 0.5mm stainless steel base

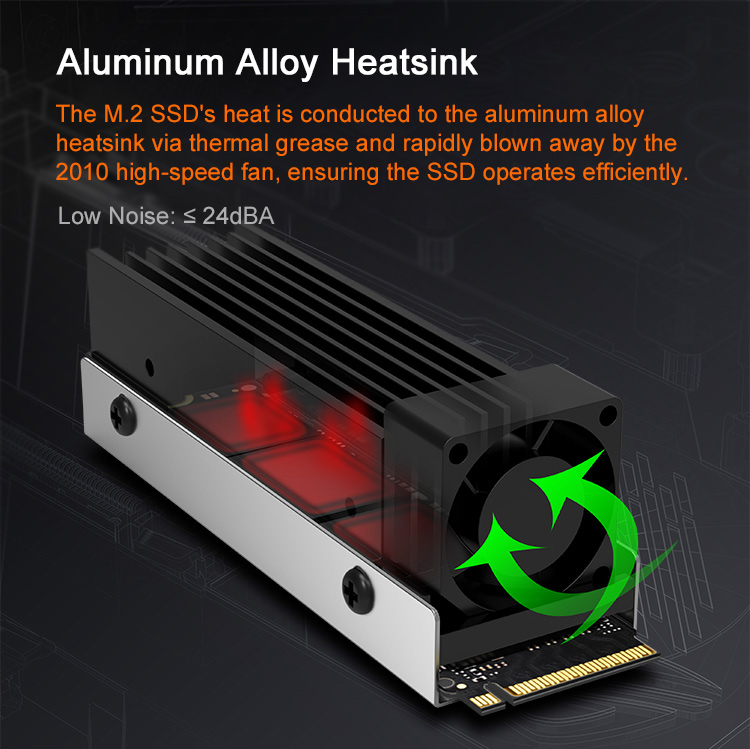

Aluminum Alloy Heatsink
* The M.2 SSD's heat is conducted to the aluminum alloy heatsink via thermal grease and rapidly blown away by the 2010 high-speed fan, ensuring the SSD operates efficiently.
* Low Noise: ≤ 24dBA

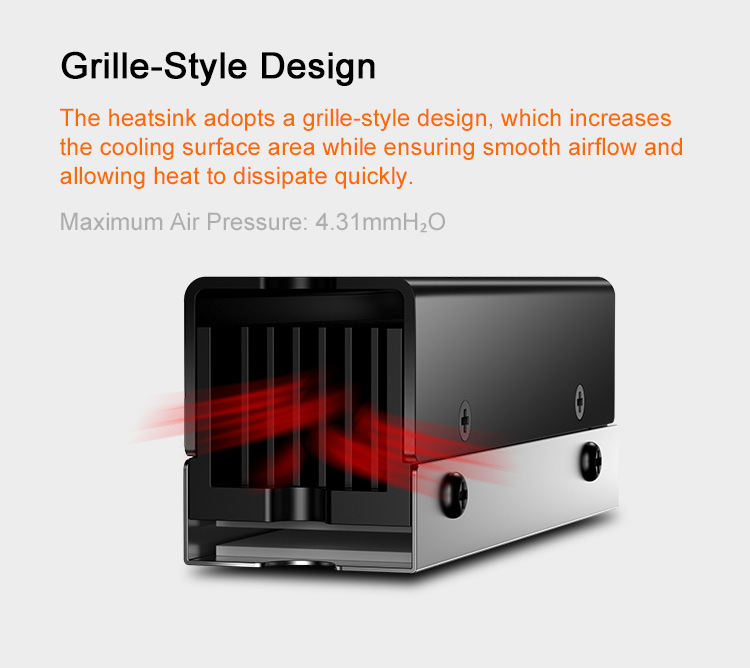

Grille-Style Design
* The heatsink adopts a grille-style design, which increases the cooling surface area while ensuring smooth airflow and allowing heat to dissipate quickly.
* Maximum Air Pressure: 4.31mmH₂O
Specifications:
* Product Color: Black

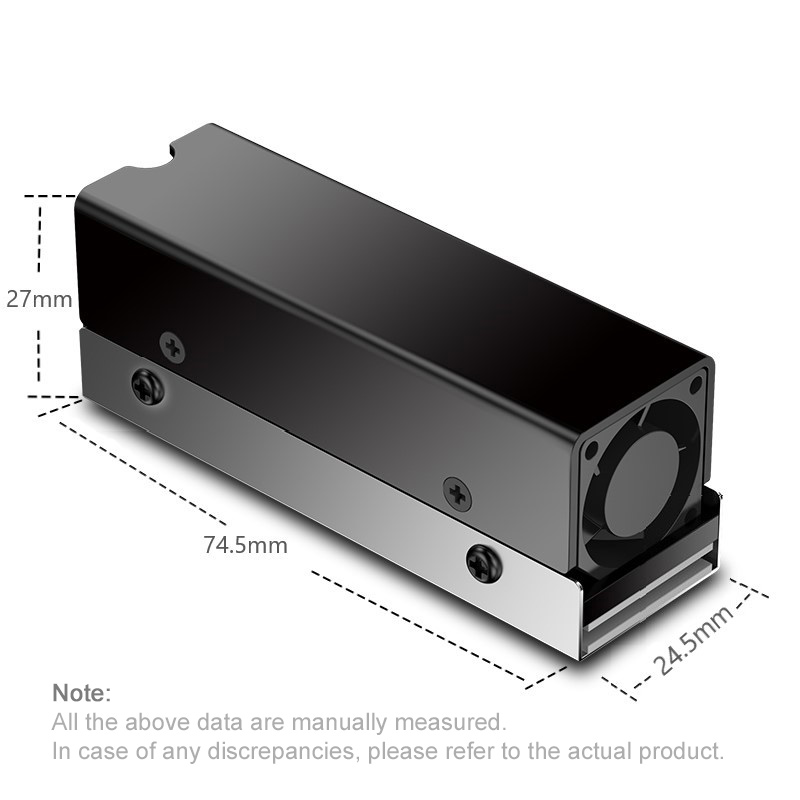

* Product Size: 74.5mm × 24.5mm × 27mm
* Cooling Method: Active Cooling
* Applicable Scope: M.2 2280 SSDs
* Rated Voltage: DC 12V
* Rated Current: 0.054A
* Input Power: 0.65W
* Fan Speed: 6000RPM±10%
* Maximum Airflow: 1.35CFM (cubic feet per minute)
* Maximum Air Pressure: 4.31mmH₂O
* Noise Level: 24dB (maximum)
* Net Weight: 60g
Packing List:
* 1 × Heatsink with Fan
Packaging Details:
* Weight: 0.15kg
Note:
* SSD card is not included.
