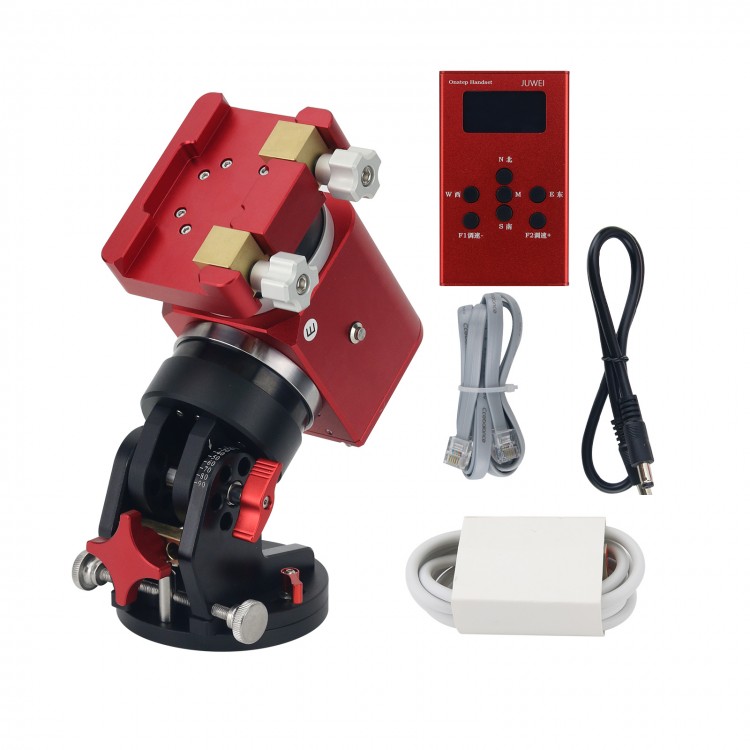

JUWE 14 (Red) Harmonic Equatorial Mount Telescope Equatorial Mount w/ 8KG Payload + Hand Controller

JUWE 14 (Red) Harmonic Equatorial Mount Telescope Equatorial Mount w/ 8KG Payload + Hand Controller

JUWE 14 Harmonic Equatorial Mount:
Features:
- With a stable structure
- Lightweight, portable, and easy to operate
- Excellent load capacity: 8kg without counterweight
- Versatile: It can work in equatorial mount and theodolite modes
- Joystick + APP control + Bluetooth: Wi-Fi control for real-time star map
- Precise control: harmonic reducer + synchronous belt
- Lightweight design: its body structure without counterweight

Specifications:
- Item name: JUWE 14 harmonic equatorial mount
- Equatorial mount weight: 3.35kg
- Latitude EQ base: With
- Payload without counterweight: 8kg
- Transmission mode: harmonic + synchronous wheel (RA synchronous wheel synchronous belt deceleration, and declination stepper motor direct drive)
- Reduction ratio: 400:1 for RA and 100:1 for declination
- Motor: 42 stepper motor
- Base specifications: 3/8 screw hole in the center, three M6 holes around, 30mm from the center
- Base diameter: 100mm
- Latitude adjustment range: 10-90 degrees
- Azimuth adjustment range: 20 degrees
- Power port specification: 5521
- Power supply voltage: 12V 3A
- Counterweight shaft interface: M12 thread
- Data interface: TYPE-C
- Guiding interface: Joystick and ST4
- System for Onstep: Supports for computer/mobile phone/ZWO smart Wifi controller/NINA/WiFi/Bluetooth/joystick control, etc.
- Other features: Laser collimation to the polar axis and bubble level

Hand Controller:
- Easy to operate
- GOTO autoguiding
- Automatic and accurate tracking
- Can be used with telescope equatorial mounts

Package Included:
- 1 x Equatorial mount
- 1 x USB cable
- 1 x Power cable
- 1 x Hand controller
- 1 x Network cable

Packaging Details:
- Weight: 4.5kg
