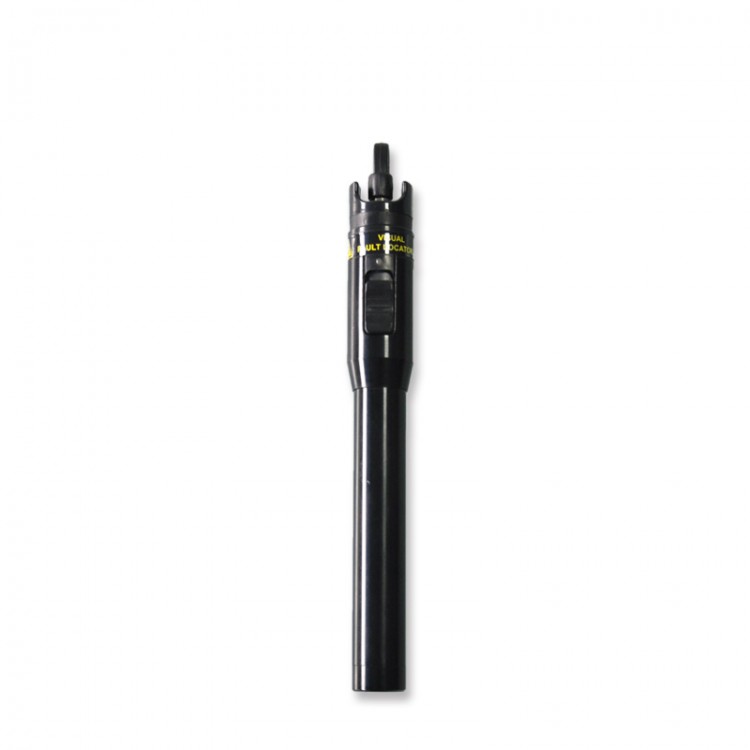

JW3105A 20MW Visual Fault Locator Pen Fiber Optic Light Source Red Light Source For SM MM Fibers

Availability: In stock, usually dispatched in 1 business day

  • Price:$29.03
  • Price in reward points: 290 Reward Points: 3
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $28.45 $27.87 $27.00 $25.84 Contact US
Quantity:

JW3105A 20MW Visual Fault Locator Pen Fiber Optic Light Source Red Light Source For SM MM Fibers

Description:

JW3105A uses a 650nm semiconductor laser, which can inject visible red light into optical fibers. By observing the light leakage position on a tested optical fiber, the position of optical fiber failure point can be easily and accurately determined. This product is widely used in the detection of bare fibers, jumpers, and other faults that can leak red light. It can work with OTDR to make up for the shortcomings of OTDR near-end blind zone. In addition, it can be used as a core wire comparison in multi-core cables and ribbon fiber tests.

Features:
1. Constant power output
2. Anti-drop design of laser head
3. ±8KV ESD protection level
4. CE certification
5. Super long lifespan
6. Has passed high-temperature aging test. Stable product performance

Specifications:
- Light source type: FP-LD
- Wavelength: 650 ±10nm
- Output power: 20MW
- Modulation method: CW/2
- Fiber type: SM and MM

Package Included:
- 1 x Set of Visual Fault Locator

Note:
- Batteries are not included in the package.
