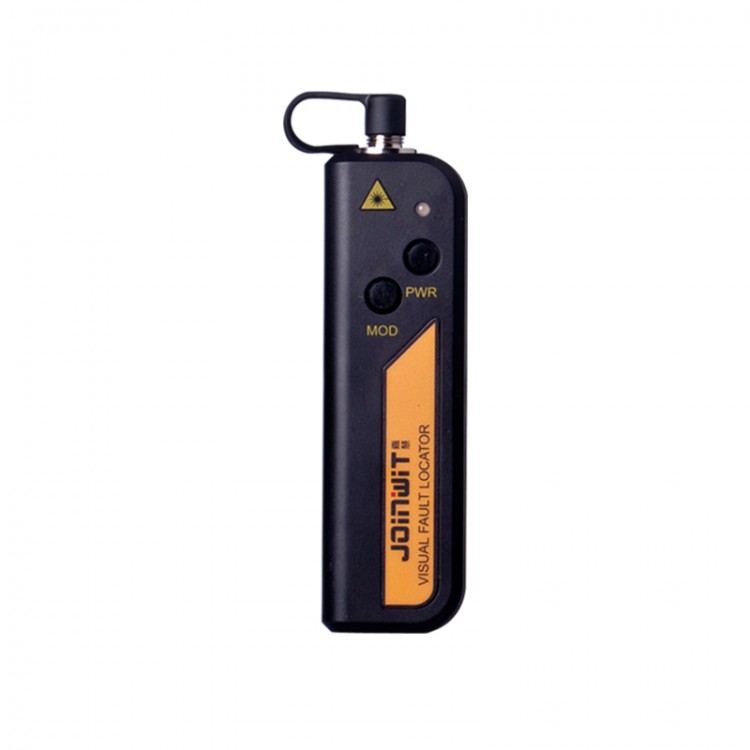

JW3105N Fiber Optic Visual Fault Locator Red Light Source Outputs 10MW Wavelength 650NM For SM MM

JW3105N Fiber Optic Visual Fault Locator Red Light Source Outputs 10MW Wavelength 650NM For SM MM

Description:
JW3105N Visual Fault Locator uses a 650nm wavelength semiconductor laser, which can inject visible red light into optical fibers. By observing the light leakage position on a tested fiber, the location of fiber failure point can be easily and accurately determined. This product is widely used in the detection of bare fibers, jumpers, and other faults that can leak red light. When it works with an OTDR, it can make up for the shortcomings of OTDR near-end blind zone. In addition, it can be used as a core wire comparison in multi-core cable and ribbon fiber testing.

Features:
1. Constant power output
2. Anti-drop design of laser head
3. ±8KV ESD protection level
4. CE certification
5. Ultra-small, ultra-thin design

Specifications:
- Light source type: FP-LD
- Wavelength: 650 ±10nm
- Output power: 10mw
- Modulation method: CW/2
- Fiber type: SM/MM

Package Included:
- 1 x Set of Red Light Source

Note:
- Batteries are not included in the package.
