Product Description:

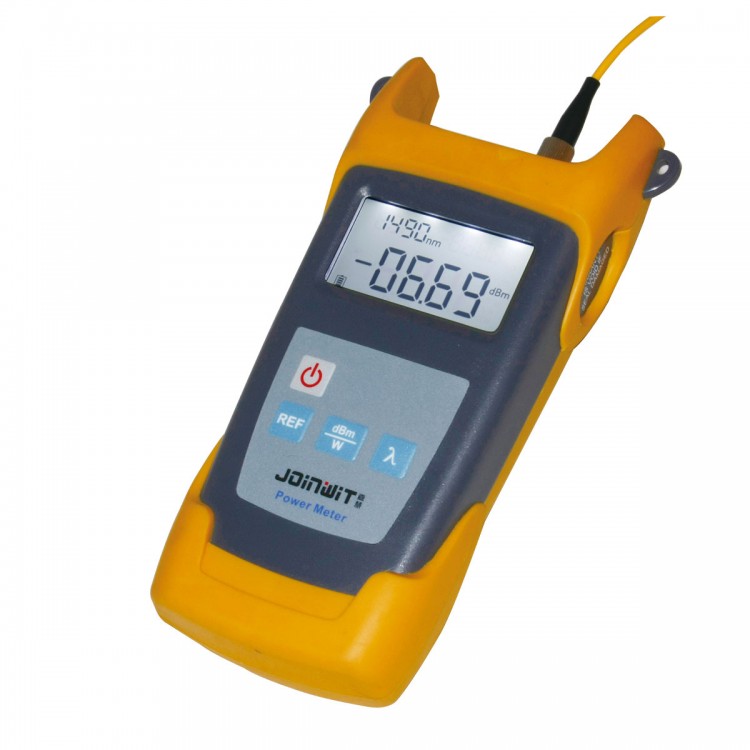

- JW3216 Handheld Optical Power Meter is handheld fiber Optic testing device.Multi wavelength calibration,it can work with JW3111 light source and JW3303 optical attenuator.
- It aims at fiber network installation,fiber network engineering acceptance and fiber network maintenance
Features:
- Large area detector,ultra wide testing range
- REF definition: can read light loss
- User self calibration:

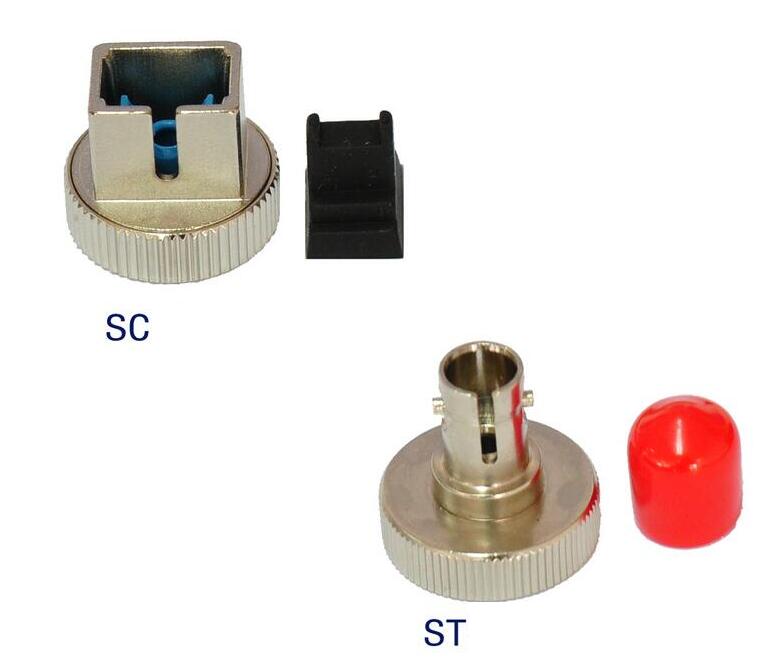

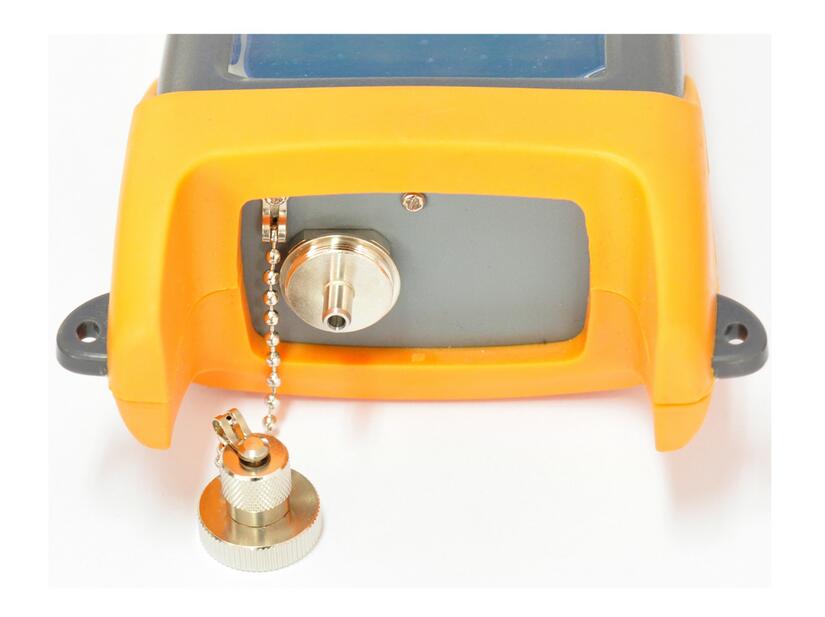

- General interface:UN/FC/SC/ST interface
- Power:AA battery,can work 140 hours;power adapter:auto switch off,backlight switch function.
Specification:
- Model:JW3211AA/C
- Wavelength range(nm):800~1700
- Calibrated (nm):850,980,1300,1310,1490,1550
- Detector type:InGaAs
- Detector area:Ф1.0mm
- Measurement Range (dBm):-70~+10(A type);-50~+30(C type)
- Uncertainty (dB):±0.22(5%)
- Linearity:0.03
- Display resolution(dB):0.01
- Alkaline battery:3*AA,1.5V
- Power Supply Adaptor (V):8.4
- Battery Operating time (h):140
- Auto switch off time:10 minutes
- Operation Temperature (°C):-10~+60
- Storage Temperature (°C):-25~+70
- Outline size (mm)/weight:192x102x50(300g)
Package List:
- 1 x JW3211A/C Optical Power Meter
- 1 x Power adapter
- 1 x Cotton Stick
- 1 x Soft Carrying Case
- 1 x User Manual
