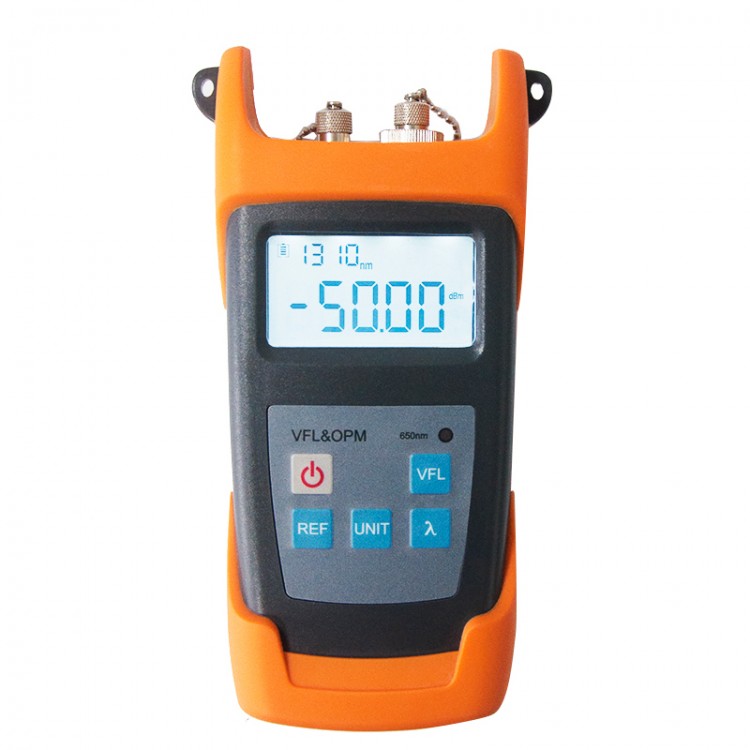

JW3223 Optical Multimeter 1490NM 1550NM Optical Power Meter OPM & VFL Visual Fault Locator
Description:
JW3223 is a practical measuring instrument launched according to the construction requirements of optical fiber projects. The instrument combines the actual needs of engineering construction personnel, and adopts a single interface to realize power measurement and VFL technology, thus solving the cumbersome steps in the maintenance of FTTX network and greatly improving working efficiency. It is the best choice for FTTX network maintenance and rapid cold connection detection.
Specifications:
- Model: JW3223
- Interface: 1 (switch by buttons)
- Wavelength range: 1490nm and 1550nm
- Calibration wavelength: 1490nm and 1550nm
- Probe type: InGaAs
- Power measurement range: -60 to +3dBm
- Uncertainty: ±0.5dB
- Display resolution: two decimal places
- Output power of red light source: 1mW
- Working temperature: -10 to 60℃
- Storage temperature: -25 to 70℃
- Automatic shutdown time: 10 min
- Dimensions: 192 x 102 x 50mm/7.6 x 4 x 2"
Package Included:
- 1 x Set of Optical Multimeter
Note:
- 3pcs 1.5V AA batteries are not included.
