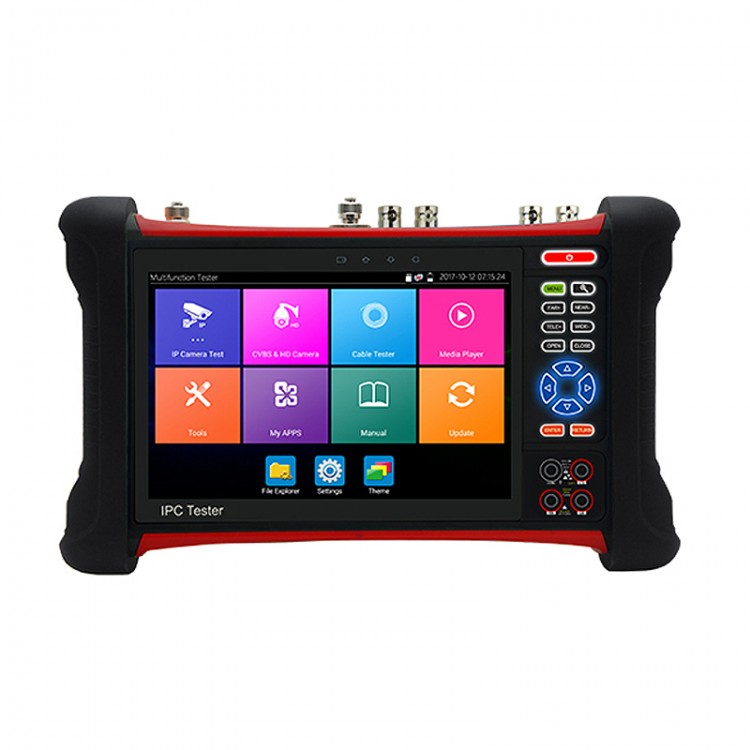

X7-ADH IPC Tester Network + Analog + Cable Tracker + HDMI Input Output + 8MP (AHD+CVI+TVI)

X7-ADH IPC Tester Network + Analog + Cable Tracker + HDMI Input Output + 8MP (AHD+CVI+TVI)

Version Introduction:
· X7-ADH: Network + Analog + Cable Finder + HDMI Input Output + 8MP (AHD+CVI+TVI)
· X7-ADHS: Network + Analog + Cable Finder + HDMI Input Output + 8MP (AHD+CVI+TVI+SDI)
· X7-MOVTADHS: Network + Analog + Cable Finder + HDMI Input Output + 8MP (AHD+CVI+TVI+SDI) + Multimeter + Optical Power Meter + Red Light Source + TDR Cable Breakpoint Test

More Details:
· M: Digital Multimeter: DC and AC voltage measurement, Resistance measurement, Continuity test, Diode measurements, Capacitance measurement
· O: Optical power meter, Wavelength: 1625nm, 1550nm, 1490nm, 1310nm, 1300nm, 850nm, measurement range, -70 to +10 dBm, for optical power testing and Fiber link loss relative measurement
· V: Visual fault locator: 10mW visual fault locator with 650nm wavelength can emit red laser sources to test multi-mode and single mode fiber’s bending and   breakage, test range 10KM
· T: TDR cable test: BNC cable, network cable, telephone cable, RVV cable and elevator cable, CAT 5/6 cable’s length and short circuit. measurement range 1.2KM
· A: AHD camera test, 8MP AHD camera test, 2560x1944P 12.5F/20F, UTC control/ call OSD menu
· H: TVI camera test: 8MP TVI camera test, 3840 x 2160P 15 FPS, UTC control/ call OSD menu
· D: CVI camera test : 8MP CVI camera test, 3840 x 2160P 12.5/15 FPS, UTC control/call OSD menu
· S: HD SDI/EX-SDI camera test, support 1080P 50/60 FPS

Features:
- 7-inch touch screen, 1920*1200 resolution
- 8MP (AHD+CVI+TVI)
- H.265/H.264, 4K video display via mainstream
- For Dahua, Hikvision, Axis etc. ONVIF camera test
- For Chrome browser, set parameters for Axis cameras
- Built-in Wifi, create Wifi hotspot
- HDMI input & output, support 1080P
- DC 12V 2A, DC 48V PoE power supply output
- Rapid ONVIF, auto view video and create testing report
- UTP cable tester/RJ45 cable TDR test, cable quality test
- Cable tracker and video level meter
- Test Play: Tester, mobile phone, PC display at the same time

Camera Test:
● 7 inch retina touch screen, 1920*1200 resolutions
● H.265 & H.264 IP, 4K video display via mainstream
● 8MP TVI test, 3840 x 2160P 15 fps, 4xzoom, video record &playback, coaxial PTZ control & call OSD menu
● 8MP AHD test, 2560x1944P12.5F/ 20fps, 4xzoom, video record & playback, coaxial PTZ & call OSD menu
● 8MP CVI test, 3840 x 2160P 12.5/15fps, 4xzoom, video record& playback, coaxial PTZ & call OSD menu
● HD SDI/EX-SDI camera test, support 1080P 50/60 FPS * (for X7-ADHS & X7-MOVTADHS)
● Rapid ONVIF, Auto log in and display image, create testing report
● For AXIS, Hikvision camera test, enter ONVIF app, input username and password to test
● CVBS camera test and PTZ control
● IPC TEST (Non-ONVIF test), test tool for HIK (for Hikvision camera), test tool for DH (for Dahua camera)
● Video level meter, peak video signal level, SYNC signal level, Color bar chroma level measurement
● DC12V/2A power output, camera can be powered from DC 12V
● 48V PoE power output power
● Rapid video, just by one key to detect all network cameras and auto display
● Built in Wi-Fi, display image from the wireless camera, create WIFI hotspot
● CVBS loop test, the tester send and receive color bar generator signal, to check BNC cable
● Enhanced Color bar generator, PAL/NTSC multi-system color bar video generator

Cable Test:
 ● Improvement cable tester, UTP cable, telephone cable etc order and connectivity test, can save testing report, if special number, need customized
● RJ45 cable TDR test, test cable pair status, length, attenuation, reflectivity, impedance, skew etc
● Cable tracer, search BNC cable, network cable and telephone cable from mess cables
● TDR cable test: BNC cable, network cable, telephone cable, RVV cable and elevator cable, cat 5/6 cable’s length and short circuit. measurement range 1.2KM *  (for X7-MOVTADHS)

Other Functions:
● Network tool: For Ping, IP scan, Port Flash, DHCP server, Trace Route
● POE & power information, DC12V & PoE power and voltage output /input measurement
● Tester Play: Tester, mobile phone for Android version and PC display at the same time
● Shortcut button, drop-down menu, can select Poe power, IP setting, CVBS, LAN info, HDMI IN etc
● HDMI input,720×480p /720×576p /1280×720p /1920×1080p /1024×768p/1280×1024p /1280×900p /1440×900p display, record and snapshot
● Traffic monitoring, display network port or WIFI connection real-time upload and download speeds and other network parameters
● Self -update software, you can install apps for Android version
● Media player, 4K video files and MKV/MP4 media files play
● Quick office, quick office app (support excel, word, ppt format) doc. editable
● 8GB SD card including
● Display its genuine resolution of IP camera images
● Audio in, support record and save the audio/LED lamp, calculators, music players and other application tools
● 6~7 hours charging

Specifications:
LCD:
- New 7 inch IPS touch screen, 1920*1200 resolution

Video Mode:
- CVBS:
  ● 1 channel BNC input & 1 channel BNC looped output, NTSC/PAL (Auto adapt)
  ● Analog video level meter, peak video signal level, SYNC signal level, Color bar chroma level measurement
  ● PTZ control,RS485 control, Baud 600-115200bps,compatible with more than 30  protocols. For PELCO-D/P, Samsung, Panasonic etc.
  ● CVBS loop test: the tester send and receive color bar generator signal, check BNC cable
- IP Camera Test 4k/H.265/H.264:
  ● IP Discovery/Quick ONVIF/IPC test /RTSP play /Client APK
  ● Rapid Video: Auto view the video, create testing report
  ● Test tool for Hik: Activate camera for Hikvision, modify user name, password  and IP parameters
  ● Test tool for Dahua: For Dahua camera test, modify the user name, password and IP parameters
- IP& CVBS Test: IP& CVBS test at the same time, converter test from analog to digital with dual test windows
- Coaxial HD Test:
  ● 8MP TVI camera test, 3840 x 2160P 15 FPS, UTC control/ call OSD menu
  ● 8MP CVI camera test,3840 x 2160P 12.5/15 FPS,UTC control d call OSD menu
  ● 8MP AHD test,2560x1944P 12.5F/20F, UTC control d call OSD menu
  ● HD SDI/EX-SDI camera test, support 1080P 50/60 FPS * (for X7-ADHS & X7-MOVTADHS)
- HDMI Input: 1 channel HDMI input, support 1080P
- Zoom Image: 4x zoom, to enlarge image, Screen snapshot, record, save, view and record and play back

Analog Video Out:
- Color bar generator: Output one channel PAL/NTSC color bar video signal for testing monitor or video cable

Power Output:
- PoE power output: 48V PoE power output, max power 24W
- DC12V power: DC12V /2A power output

Cable Test:
- TDR Cable Test: BNC cable, network cable, telephone cable, RVV cable and elevator cable, cat 5/6 cable’s length and short circuit. measurement range 1.2KM * (for X7-MOVTADHS)
- Cable Tracer: Search BNC cable, network cable and telephone cable from mess cables
- UTP cable test: Test UTP cable connection status and display on the screen. Read the number on the screen
- RJ45 cable TDR test: Test cable pair status, length, attenuation, reflectivity, impedance, skew etc. measurement range 180M.

TesterPlay:
- Screen projection: Tester, mobile phone and PC display at the same time (For Android version mobile phone)

Network Test:
- For Trace route, Link monitor, DHCP server, port flashing, Ping test

Wi-Fi:
- Built in WIFI, speeds 150M, display wireless camera image

Audio Test:
- 1 channel audio signal input, test whether sound normal, 1 channel audio signal, to connect headphone

Data Monitor:
- Catches and analyzes the command data from controlling device, also can send hexadecimal

PoE Test:
- Measurement POE switch or PSE power supply voltage and cable connection status

Drop-down Menu:
- You can select PoE power switch, IP setting, CVBS, LAN info, HDMI IN functions etc in any interface

External Power Supply:
- DC 12V 2A

Rechargeable:
- Charging 5~6 hours

Operation Setting:
- OSD menu, select your desired language: English, Chinese, Korean, Russian, Italian, French, Polish, Spanish, Japanese, etc.

Other Parameters:
- Auto Off: 1-30 (mins)
- Working Temperature: -10℃ to 50℃
- Working Humidity: 30%-90%
- Dimensions: 255 x 160 x 46 mm

Application:
● CCTV system installation and maintenance
● Network cabling project installation and maintenance
● Dome camera, 4K H.265 IP camera testing
● Video transmission channel testing
● PTZ controller

Package Included:
- 1 x Set of CCTV Tester
