JW3302E Automatic OTDR Optical Time Domain Reflectometer with 5.6-inch Capacitive Full Touch Screen

JW3302E Automatic OTDR Optical Time Domain Reflectometer with 5.6-inch Capacitive Full Touch Screen

Description:
- The JW3302E OTDR adopts a 5.6-inch capacitive full touch screen, integrating functions such as automatic OTDR, expert OTDR, event map, OPM, VFL, LS, etc. OTDR has a maximum dynamic range of 32/30dB and can achieve precise testing up to 100 kilometers. The minimum event blind spot is 3m, and the maximum sampling resolution is 2.5cm. OTDR is equipped with a 4600mAh high-density high-capacity polymer lithium battery, intelligent power saving management, and adopts mobile power supply/charging.
- JW3302E can be used to measure the length, loss, connection quality and other parameters of various fiber optic cables. It is widely used in engineering construction, line maintenance and emergency rescue test of FTTH, Metropolitan area network and secondary Backbone network communication systems, as well as the development and production measurement of optical fiber and cable.

Features:
- Maximum dynamic range: 32dB, 256k data sampling point
- Communication light automatic monitoring function
- Support Bellcore GR196 and sr-4731 file format
- Professional OTDR: measurement, curve, list, map simultaneous display
- Support light source output of continuous/modulation mode
- Automatic OTDR: one-key testing, no need for complex setting

Specification:
- Model: JW3302E
- Size: 177 x 109 x 37mm
- Weight: 0.8kg
- Working wave length: 1310/1550±20nm
- Maximum dynamic range: 32/30dB
- Events blind area: 3m
- Attenuation blind area: 8m
- Accuracy (m):±(0.75m + distance x 0.0025% + sampling cycle) (not consider the reflective error)
- Resolution (m): 0.025, 0.05, 0.1, 0.2, 0.5, 1, 2, 4, 8, 16, 32
- Distance (km): 0.4, 0.8, 1.6, 3.2, 6.4, 16, 32, 64, 128, 256, 512
- Pulse width (ns): 5, 10, 30, 80, 160, 320, 640, 1280, 5120, 10240, 20480
- Maximum sampling point: 256k
- Linearity (dB/dB): 0.03
- Loss resolution (dB): 0.001
- Refractive index setting range: 1.00000 ~ 1.99999 (0.00001 stepping value)
- Distance unit: km, m, thousand chi, chi (1/3 meter)
- Display: 5.6-inch TFT color LCD (capacitive touch screen)
- Optical output port: FC/UPC
- Outer port: USB Type-C, Micro-SD
- Power input: AC/DC power adapter, AC100V~ 240V, 50/60Hz
- Power output: DC12V/2A
- Built-in lithium battery: 3.7V, 4600mAh
- Battery working time: high brightness, standby time≥6h
- Working temperature: 0℃ ~ +40℃ (battery charging: 5℃ ~ 40℃)
- Storage temperature: -20℃ ~ +60℃ (battery: -20℃ ~ 60℃)
- Relative humidity: 5% ~ 95%, non-condensing

Package Included:

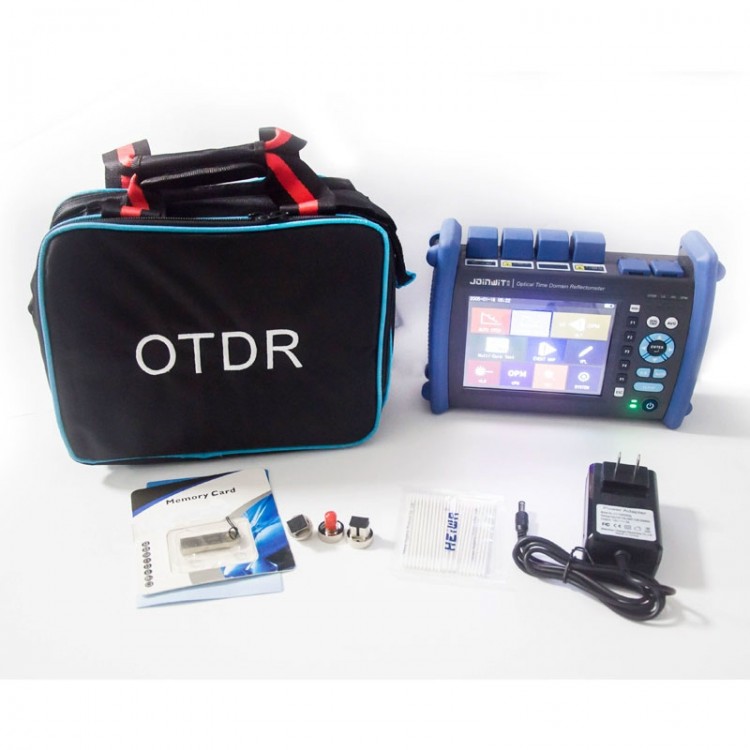

- 1 x Host
- 1 x Power Adapter
- 1 x TF Card
- 1 x User Manual
- 1 x Storage Bag
