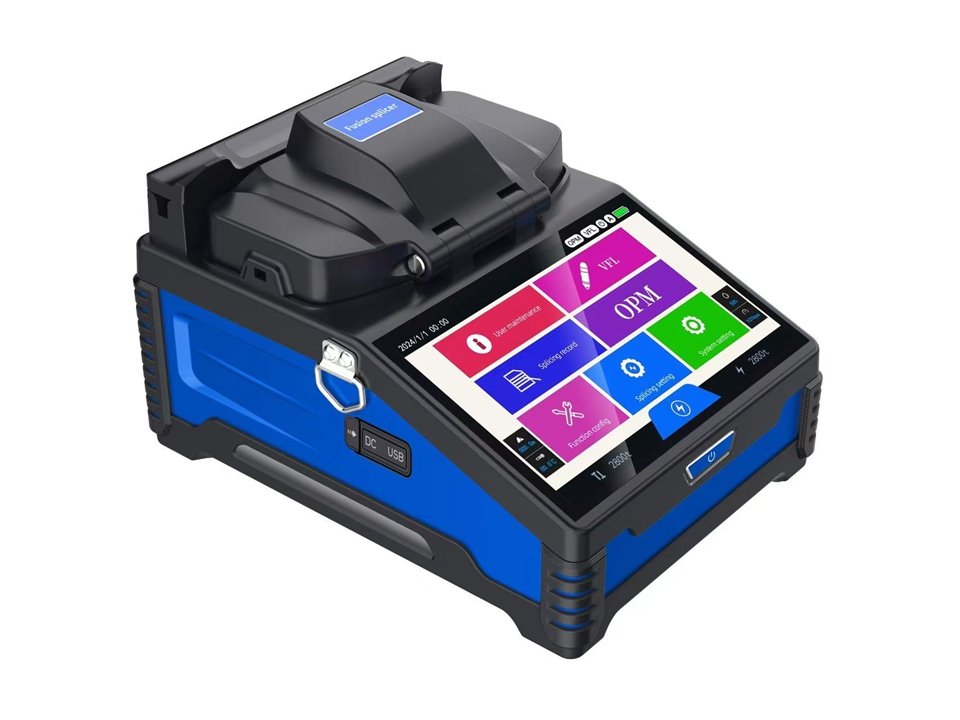

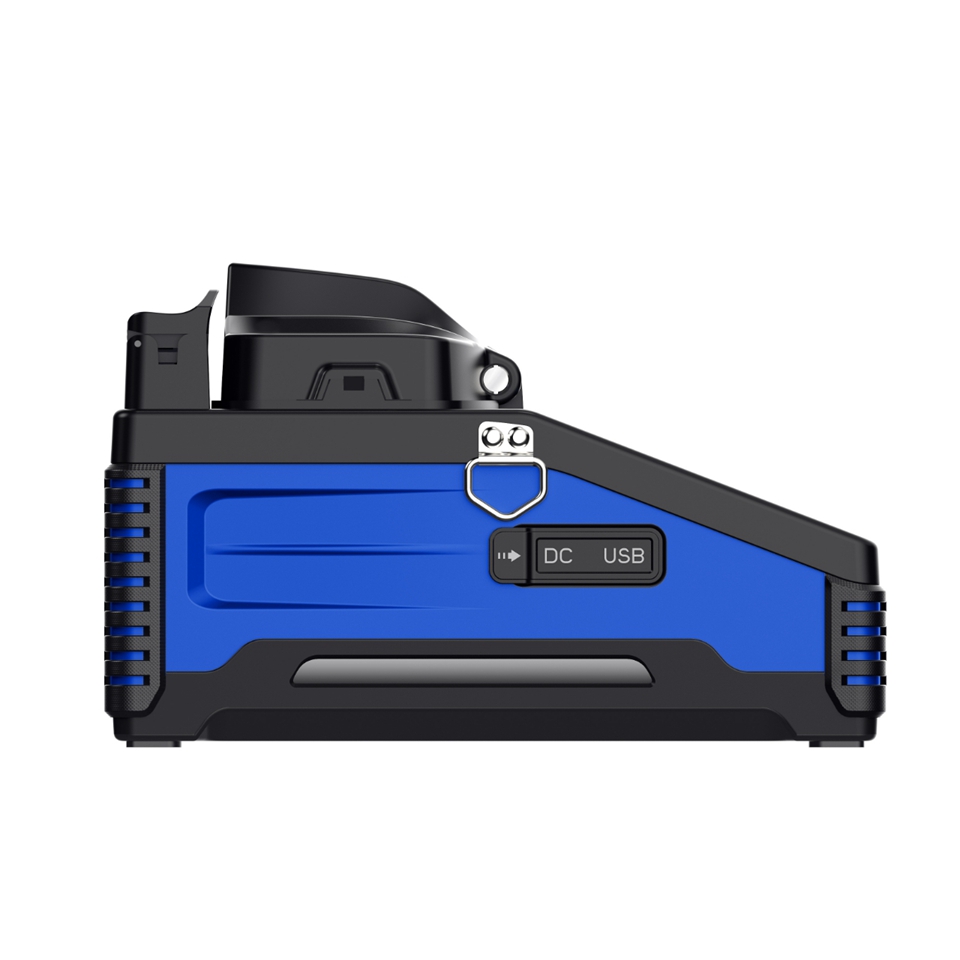

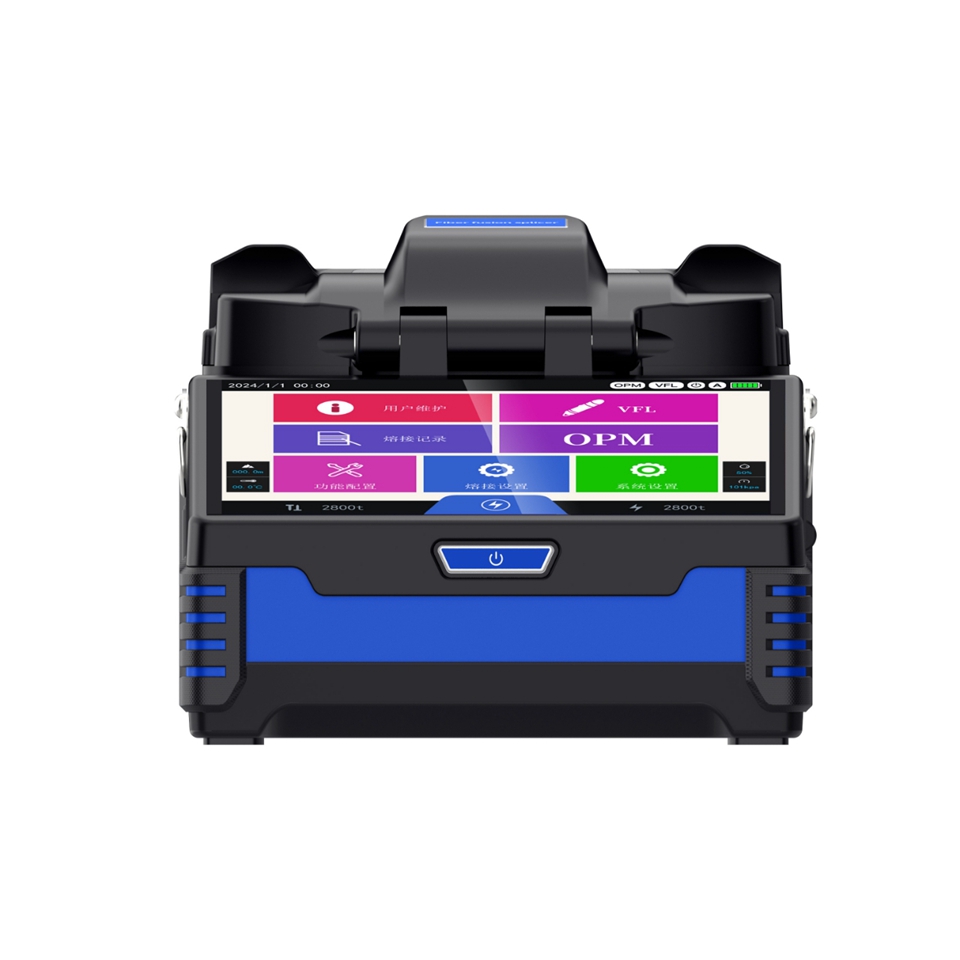

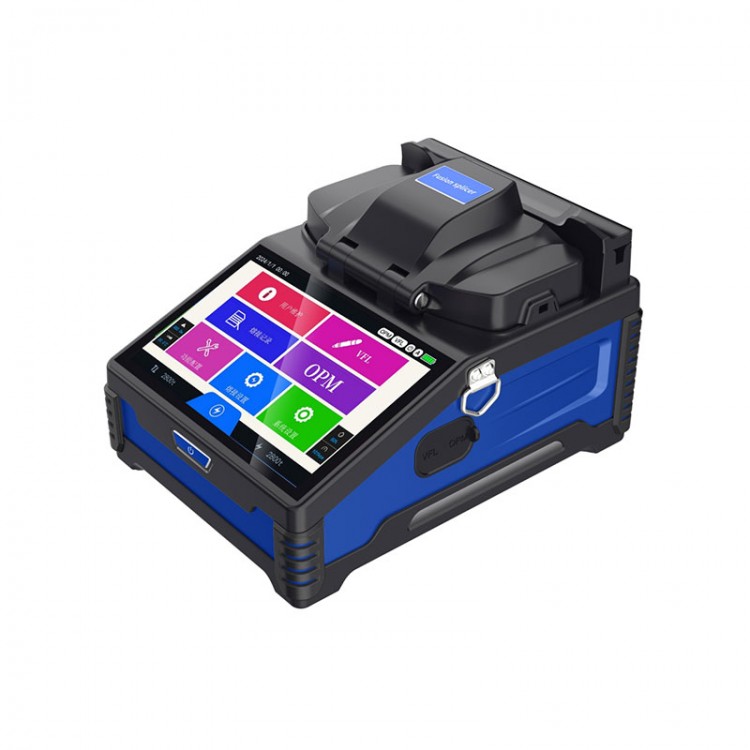

JW4107Pro 6 Motors Auto Focus Fiber Fusion Splicer with 5-inch Touch Screen for SMF MMF DSF NZDSF Fiber

JW4107Pro 6 Motors Auto Focus Fiber Fusion Splicer with 5-inch Touch Screen for SMF MMF DSF NZDSF Fiber

Specification:
- Applicable fiber: SMF (G.652), MMF (G.651), DSF (G.653), NZDSF (G.655)
- Fiber diameter: 80-150um for cladding; 0.1-3mm for coating
- Splice loss: 0.02dB (SMF), 0.01dB (MMF), 0.04dB (DSF/NZDSF) are measured by ITU-I shear method
- Alignment method: core, cladding
- Focus mode: six-motor auto focus
- Welding method: auto/manual
- Welding time: 8s (SMF typical value)
- Pull test: 1.96 - 2.25N
- Image display: capacitive 5-inch touch LCD screen
- Magnification: 300 (X/Y), 150 (X/Y synchronization)
- Welding records: 10000 groups (1000 pictures)
- Typical heating time: 18s (optional)
- Heating time: 0 - 60s
- Heat shrinkable: 20mm, 30mm, 40mm, 50mm, 60mm
- OPM range (dBm): -70 ~ +6/wavelength of 850nm - 1625nm/uncertainty of ±5%
- VFL: ≥10mW
- Operation interface: GUI graphical user operation interface
- System upgrade: USB upgrade
- Electrode life: 3000 times
- Lighting method: auto/manual
- Battery capacity: 7800mAh (typical value of welding and heating cycle 240 times)
- Charging time: ≤3.5hours
- Input voltage: DC 11.1V
- USB port output: 5V/500mA
- Charger:
  Input: AC 100 - 240V, 50/60Hz
  Output: DC13.5V/4A
- Working environment temperature: -15 ~ 50℃/ humidity: ≤95% RH (non-condensing)v/ Elevation: 0 - 5000mv/ wind speed: ≤15m/s
- Storage condition temperature: -40 ~ +80℃ / humidity: 0 - 95% / battery: -20℃ ~ +30℃
- Welding machine size: 191 x 141 x 119mm
- Welding machine weight: 1.62kg

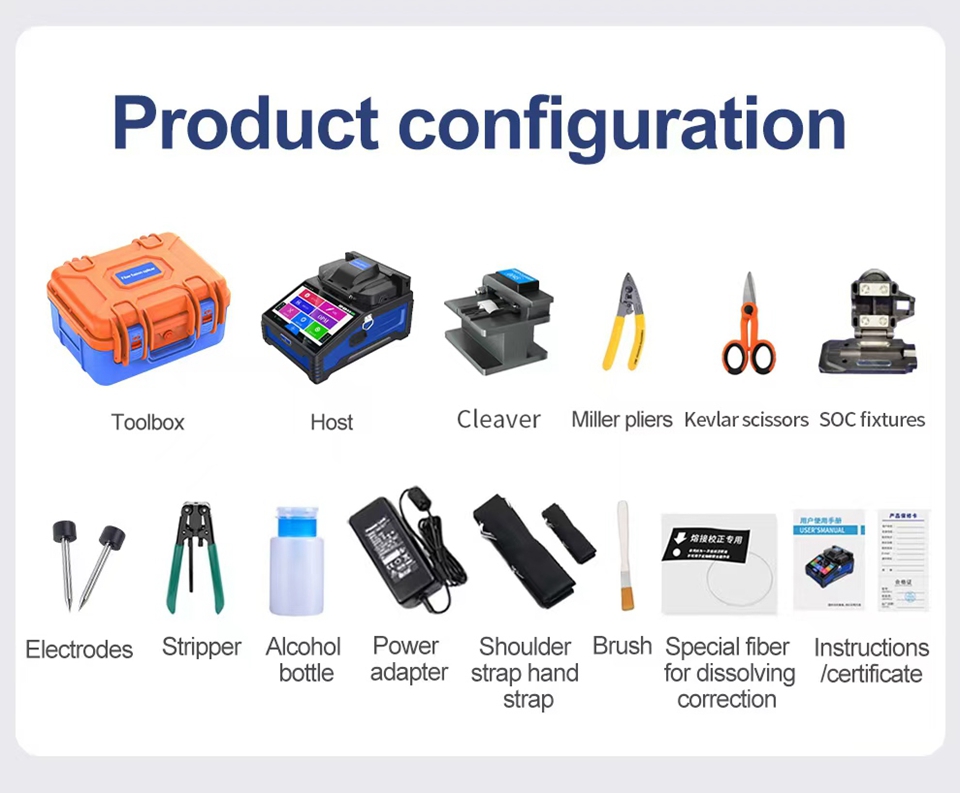

Package Included:
- 1 x Set of Fusion Splicer
