JYR8010 End Fed Antenna Shortwave Antenna 8-Band 150W HF Antenna Meets Your Need Of 3.5-29.7Mhz
Description:
According to user reports from HAM operators, this is a high-performance end-fed antenna that provides greater gain than both inverted V and regular V antennas. It's an extremely simple setup that can meet your operating needs across 3.5 to 29.7 MHz without the use of an antenna tuner.

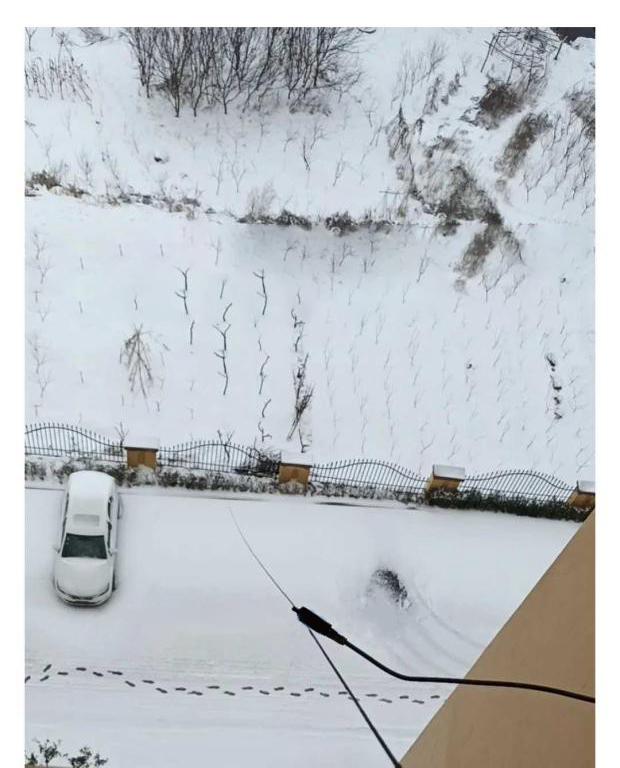

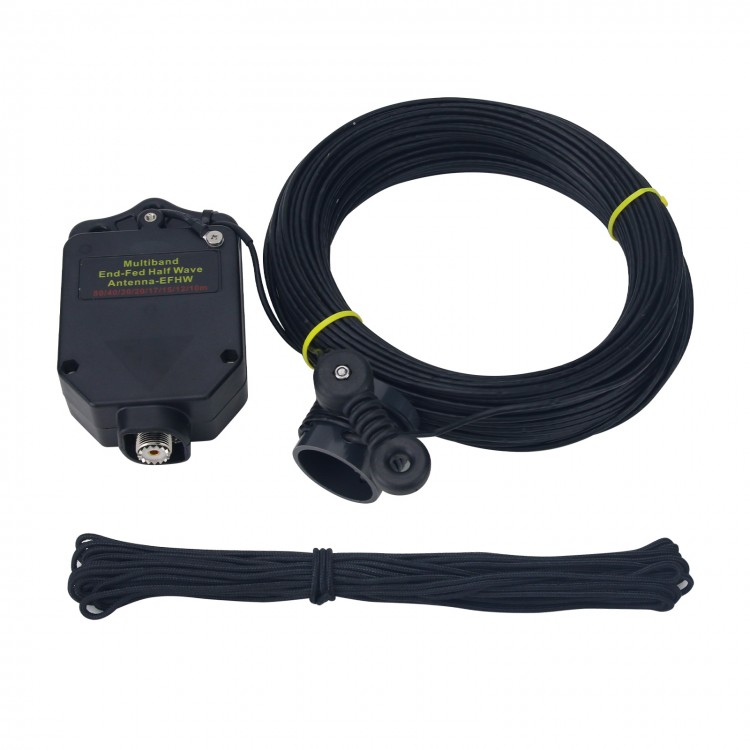

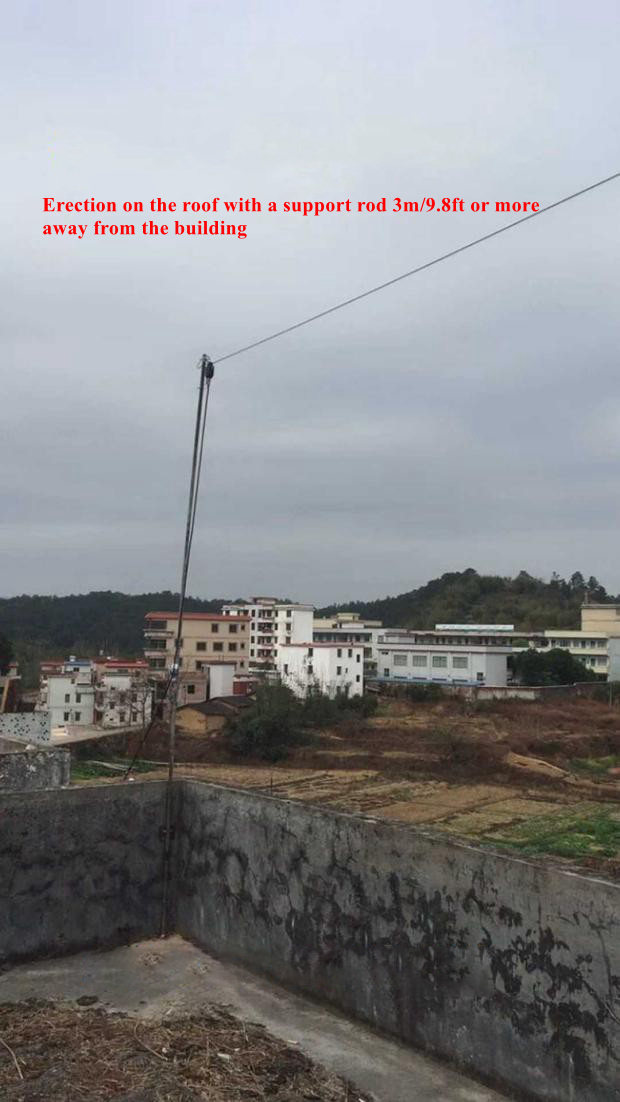

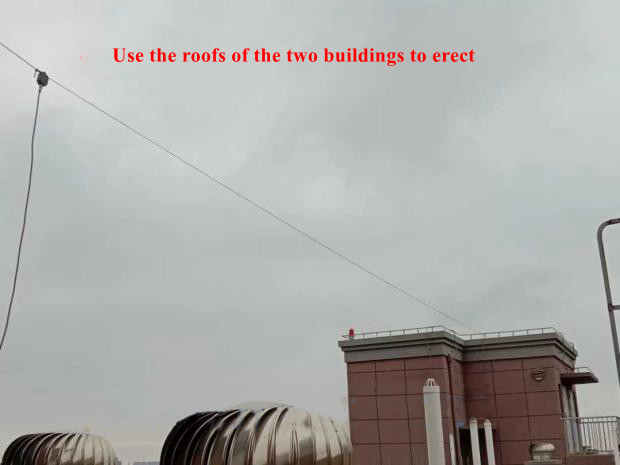

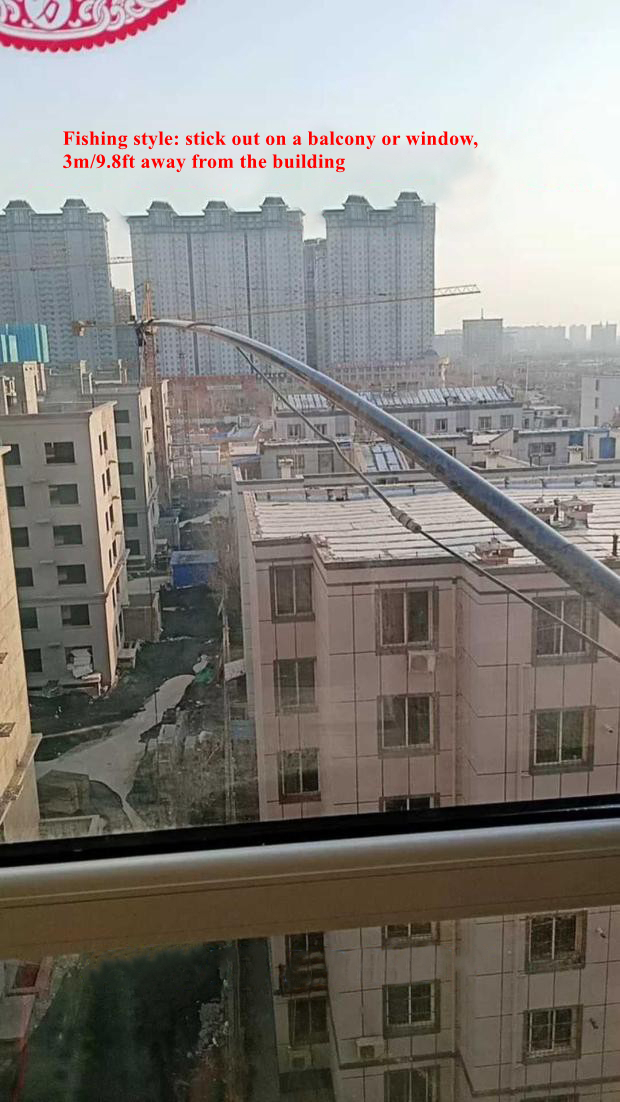

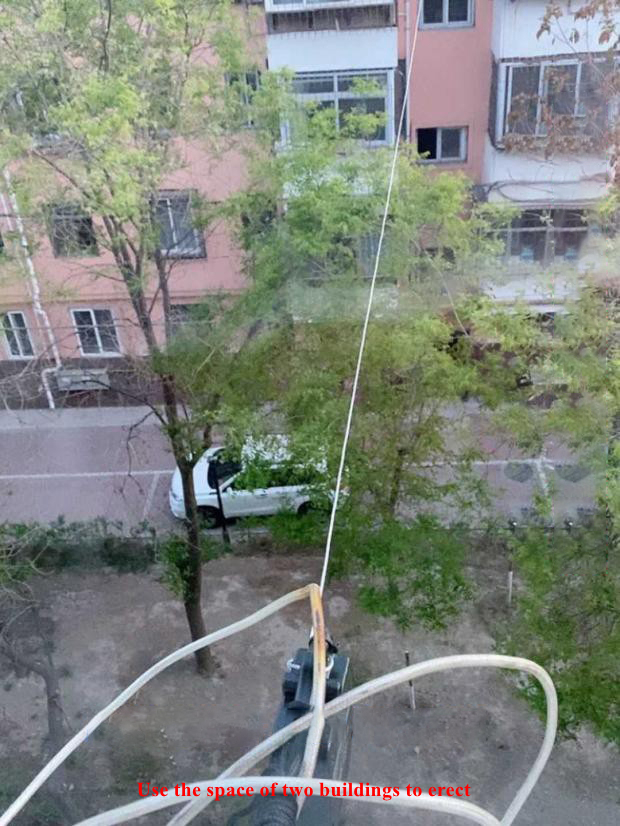

The JYR8010 end-fed antenna consists of a 1:64 balun and a 40.65-meter radiator. It requires an installation space of more than 45 meters (147.6 feet) in length. The antenna radiator should be installed at a height of 3 meters (9.8 feet) above the ground or buildings. The antenna can be stretched out horizontally, diagonally, or vertically. The radiator is allowed to have a naturally sagging arc but must not twist.
Specifications:
* Power handling: less than 150W for SSB, less than 120W for CW, and less than 80W for FT8 mode

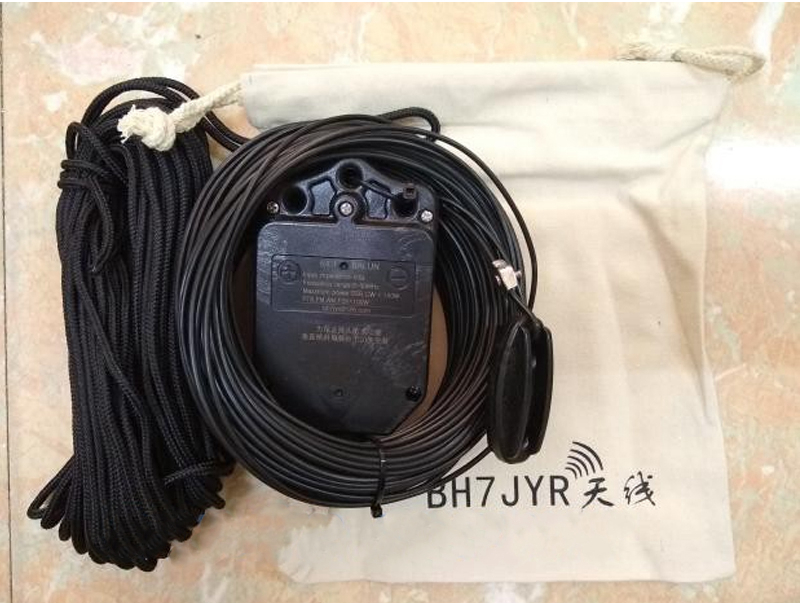

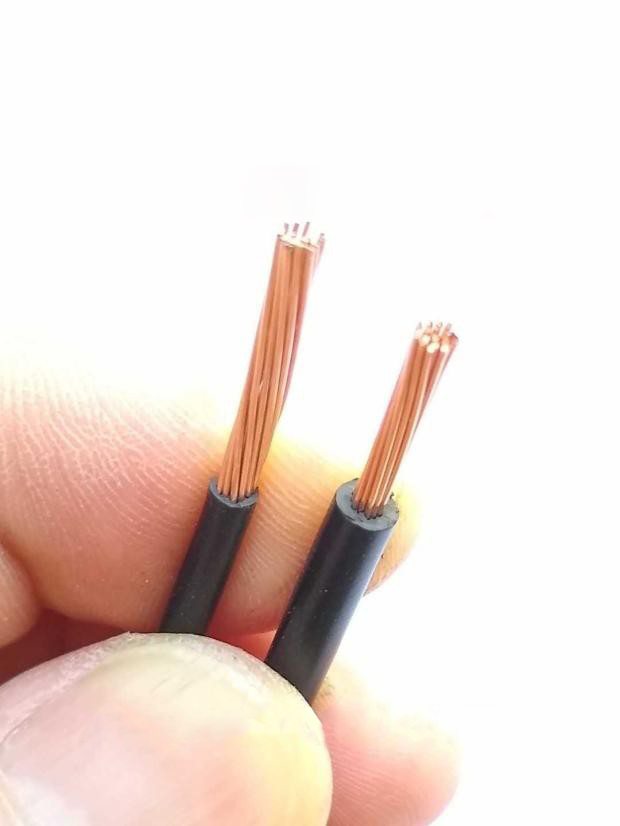

* Complete set includes: end-fed balun, 40.65-meter 2.5mm² high-tensile radiator wire, storage bag, 20-meter (65.6 feet) UV-resistant guy rope (must be checked every 6 months after 3–5 years of use)
Package Includes:
* 1 x Set of antenna
