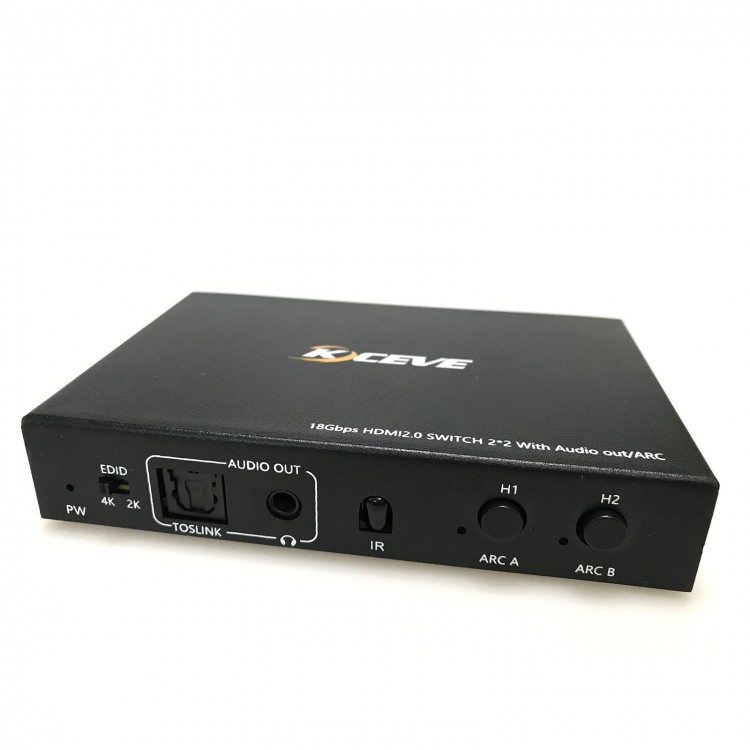

KC-HDA202A HDMI Audio Splitter 2 In 2 Out 18Gbps HDMI2.0 Switch 2*2 With Audio Out/ARC

KC-HDA202A HDMI Audio Splitter 2 In 2 Out 18Gbps HDMI2.0 Switch 2*2 With Audio Out/ARC

Description:
The 2x1 Switch and 1x2 HDMI 2.0 Splitter simultaneously output two route HDMI source to two routes HDMI display. It supports resolution up to 4K 2K at 60Hz (4:4:4) and HDCP 2.2. This product supports audio extract from HDMI source to optical and analog output. Output supports bypass and downscaler (4K->1080P ) function.

Features:
- HDMI 2.0b, HDCP2.2/HDCP1.4 compliant
- Support HDMI resolution the maximum up to 4K 2K at 50/60Hz (4:4:4)
- Support digital and analog audio extract output from HDMI source
- Supports output bypass and 4K->1080P down scaler function via dial switch on panel
- Support ARC function and EDID management
- Support for HDMI audio format LPCM, Dolby Digital/Plus/EX, Dolby True HD,DTS, DTS High Res and DTS-HD Master Audio

Specifications:
- Standards: HDMI 2.0b/HDCP 2.2/1.x
- Maximum data rate: 18Gbps
- Resolution range: Up to Up to 4K2K at 60Hz (4:4:4)
- Color Space: RGB 4:4:4, YCbCr 4:4:4/4:2:2/4:2:0
- Connector: HDMI-A Interface
- Color Depth: 8-bit, 10-bit, 12-bit (1080p at 60Hz); 8-bit (4K 2K at 60Hz YUV4:4:4); 8-bit,10-bit,12-bit (4K 2K at 60Hz YCbCr 4:2:2/4:2:0)
- Audio Formats HDMI: for PCM 7.1CH, Dolby TrueHD and DTS-HD Master Audio; Optical: for LPCM2.0, LPCM5.1, Dolby Digital2/5.1CH; L/R analog: LPCM 2.0
- ESD Protection Human-body Model: ±8kV (Air-gap discharge), ±4kV (Contact discharge)
- HDMI Cable Range <8M( Resolution: 3840*2160 at 60Hz); <15M( Resolution: 1920*1080 at 60Hz)

Connection:
- Input Ports: 2 x HDMI Type A [19-pin female]
- Output Ports: 2 x HDMI Type A [19-pin female]; 1 x L/R audio out [3.5mm Stereo audio Mini-jack]; 1 x Optical audio out [SPDIF]

Mechanical Parameters:
- Housing: Metal Enclosure
- Color: Black
- Power dissipation: 3W max
- Operating Temperature: -5℃ to 70℃
- Operating Humidity: 5% to 90%
- Dimensions: 100 x 60 x 20mm/3.9 x 2.4 x 0.8"

Package Included:
- 1 x HDMI Splitter Host
- 1 x Remote Control
- 1 x Power Cord
- 1 x User Manual
