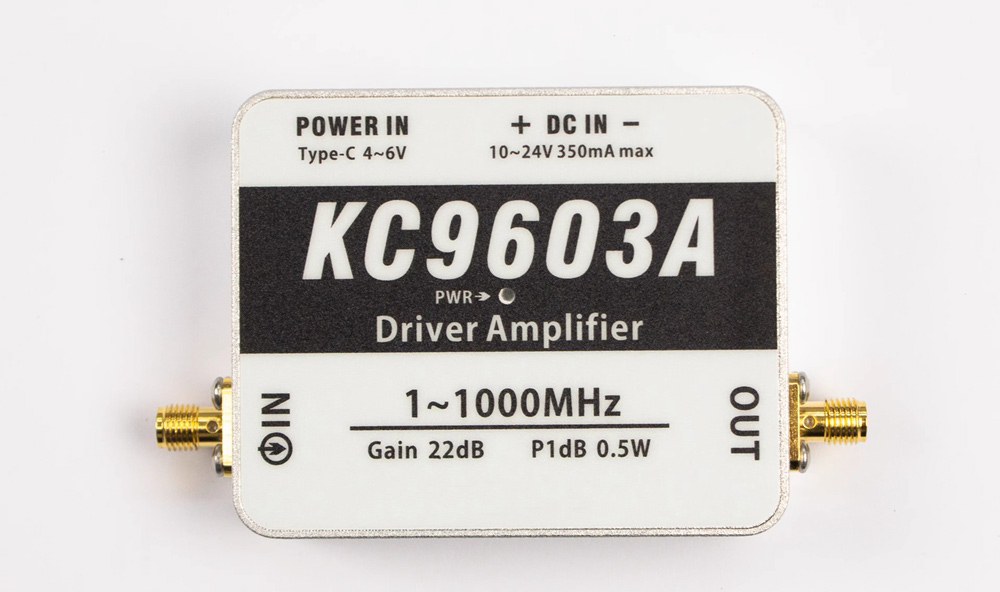

KC9603A 1-1000MHz 0.5W Driver Amplifier Preamplifier Preamp Module with 22dB Gain Medium Power

KC9603A 1-1000MHz 0.5W Driver Amplifier Preamplifier Preamp Module with 22dB Gain Medium Power

Description:

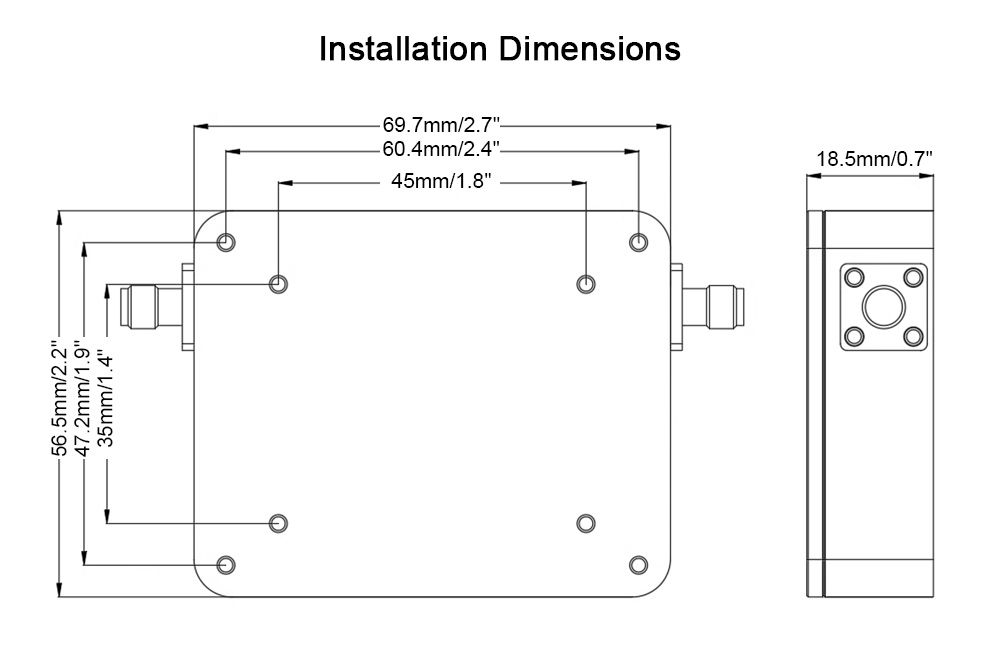

The original KC9603 was discontinued. KC9603A is slightly larger than the KC9603, but it has mounting holes that are compatible with the older model.

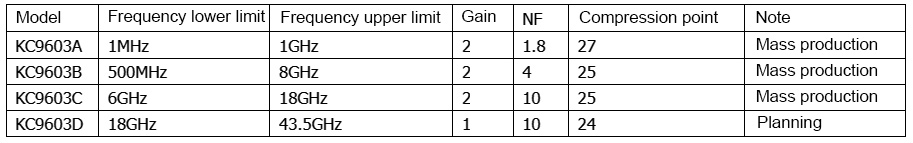

KC9603x is a series of medium power amplifiers for experimental use. All the experimental amplifiers support type-c power supply and 12V power supply. It is convenient to use in various experimental scenarios due to a built-in regulated power supply. At present, three models are launched. They are KC9603A 1MHz-1GHz, KC9603B 100MHz (nominal 500MHz)-8GHz, and KC9603C 6GHz-18GHz. Their output power is above 0.2W and KC9603A can reach 0.5W.

Due to the different frequency ranges required, users using the original KC9603 should consider using KC9603B, KC9601C, or KC9603A to replace the KC9603.


This product is suitable for driving amplification and is used in various applications that require slightly higher RF power, such as extending the signal transmission distance. With low noise, KC9603A is also suitable for pre-amplification that requires high dynamics, but it is not waterproof, and it is recommended to choose KC9605A for outdoor use.

Specifications of KC9603A:
- Frequency range: 1MHz-1000MHz
- Typical gain: 22dB (see test chart for details)
- Minimum gain: 18dB (guaranteed)
- Output Po1dB: 27dBm (guaranteed)
- Typical NF: 1.8dB
- RF interface: Standard SMA female connector
- Power supply voltage: 5V (USB), 12-24V
- Power supply interface: power socket, type-c socket
- Temperature range: -40 to +60°C
- Accessories included: Power plug

Package Included:

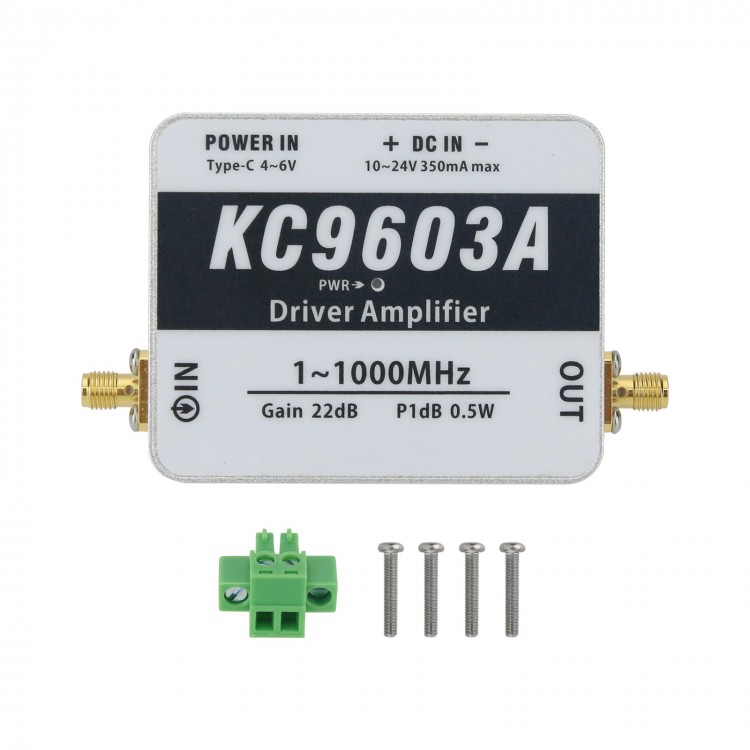

- 1 x Set of KC9603A Driver Amplifier

Packaging Details:
- G.W.: 0.2kg

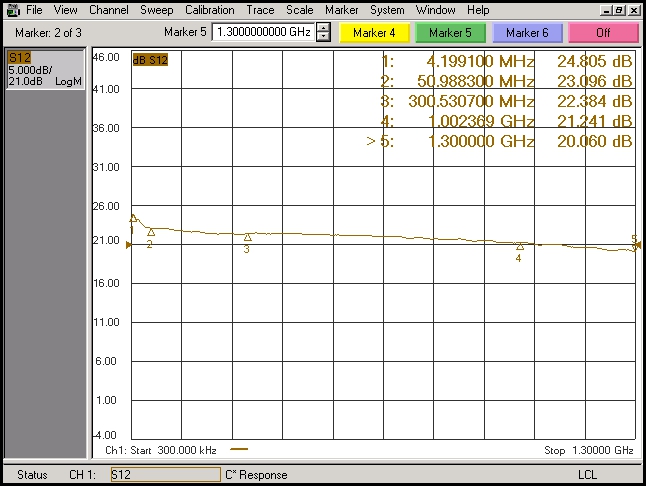

Measured Gain:

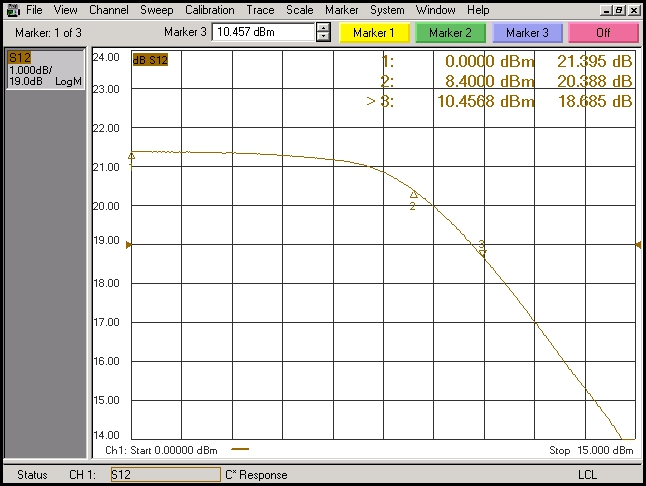

This is the actual measured compression point. Cursor readings are input power. And output power needs to be added to the gain shown on the right.

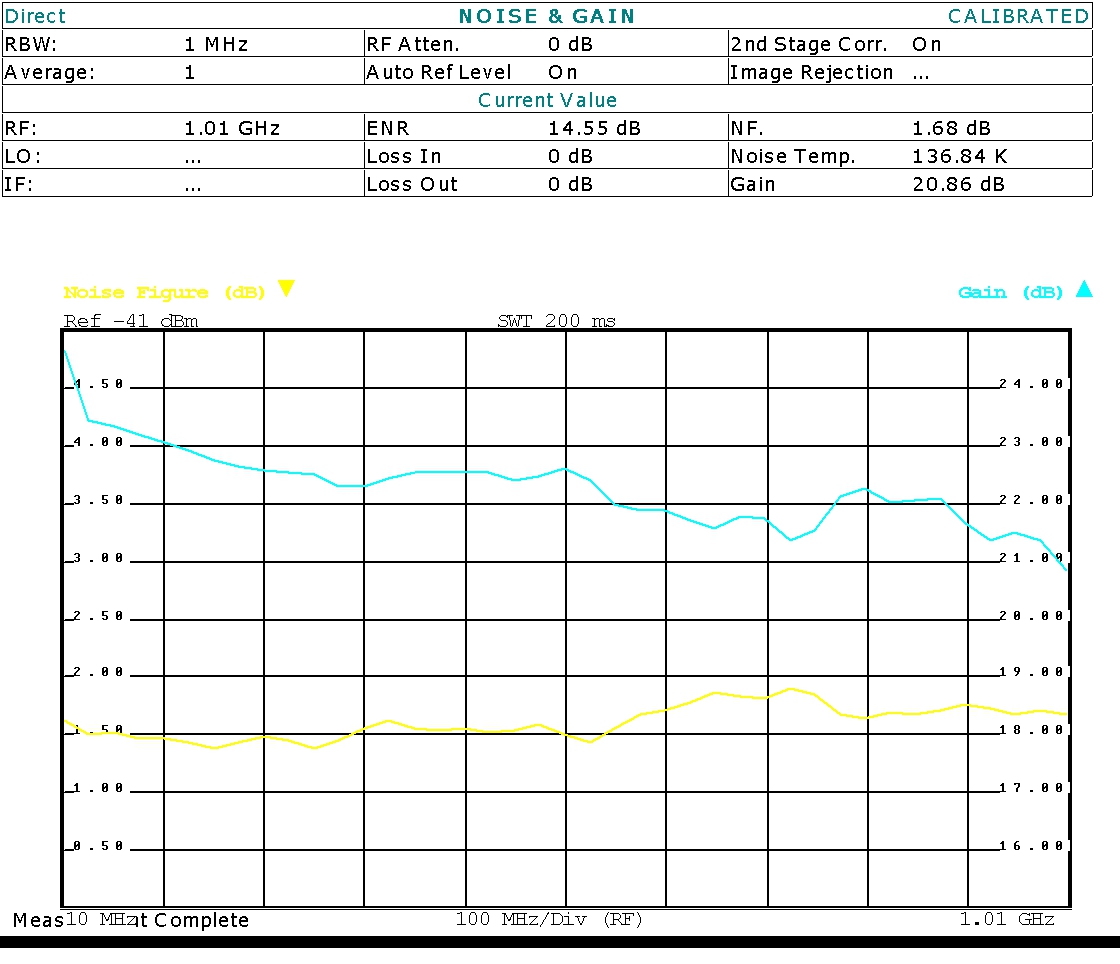

Measured Noise Figure (Yellow Curve):
