Kingst LA1002 Logic Analyzer 24M Sampling Rate 8 Channel 0-5V 10G Input Digital Signal Analysis

Availability: In stock, usually dispatched in 1 business day

  • Price:$14.18
  • Price in reward points: 142 Reward Points: 1
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $13.90 $13.61 $13.19 $12.62 Contact US
Quantity:

Kingst LA1002 Logic Analyzer 24M Sampling Rate 8 Channel 0-5V 10G Input Digital Signal Analysis

Description:

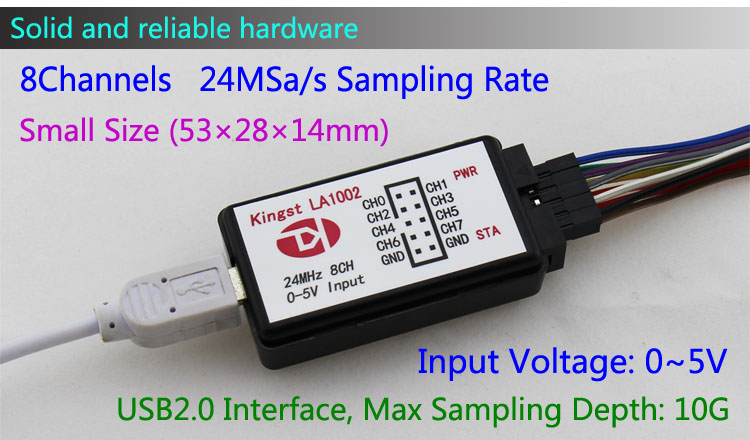

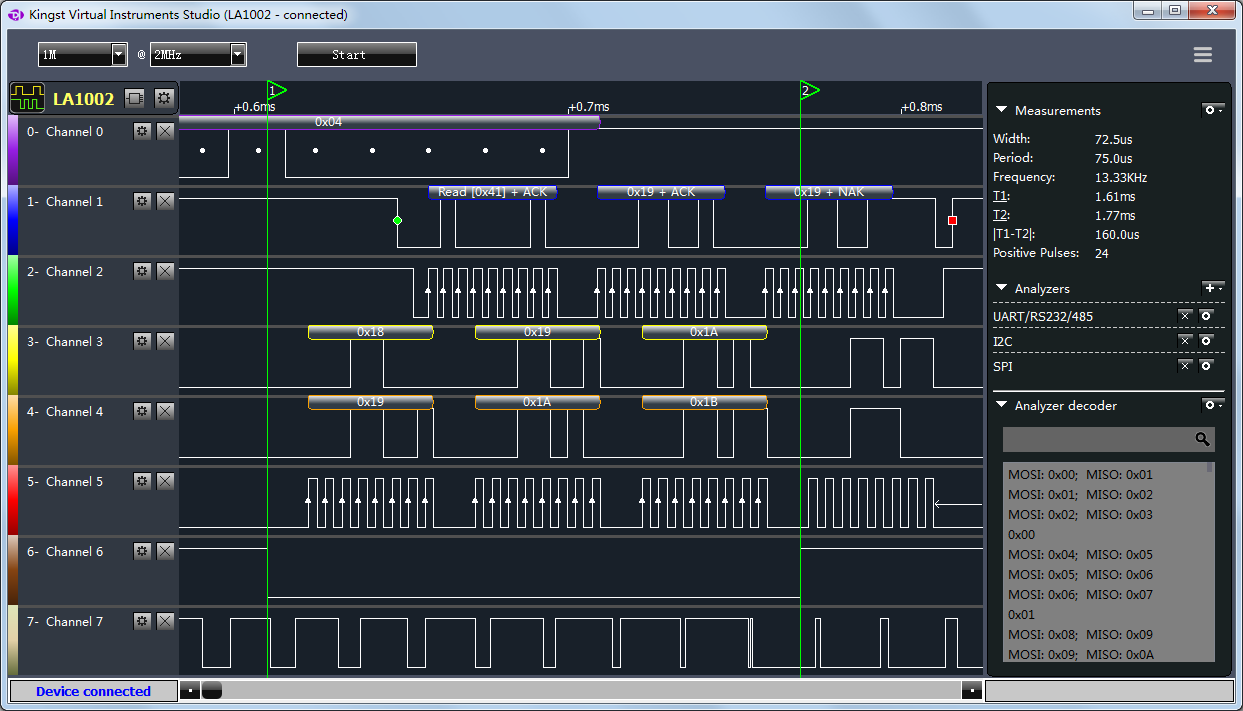

LA1002 is a logic analyzer product with high cost performance. It has 8 input channels and the sampling rate is up to 24M. Along with the PC software KingstVIS, 8 channels of digital signal could be sampled at the same time, and then they could be converted to digital waveform and displayed on the PC screen. The signal could be analyzed with many standard protocols, to get more straightforward communication data. It helps a lot in testing  and analyzing digital system(MCU/ARM/FPGA, etc.), developing and debugging several communication programs, or monitoring and recording some digital signals for a long time.

Features:
·Portable and lightweight
·Max sampling rate: 24M @ 8channels
·Large sampling depth and support compression
·Compatible USB2.0/3.0 interface
·Powerful software and easy to use
·Support online upgrade automatically

Specifications:
·Input channels number: 8
·Max sampling rate: 24M
·Measurement bandwidth: 5M
·Min pulse width can be collected: 80ns
·Max sampling depth: 10G/channel
·Input voltage range: 0V ~ +5V
·Input impedance: 220KΩ, 12pF
·Threshold voltage: Low level < 1.0V, High level > 2.0V
·Standby current: 50mA
·Max operating current: 80mA
·Dimensions: 53mm * 28mm * 14mm
·Supported OS: Windows XP, Vista, Windows 7/8/10(32/64bit)

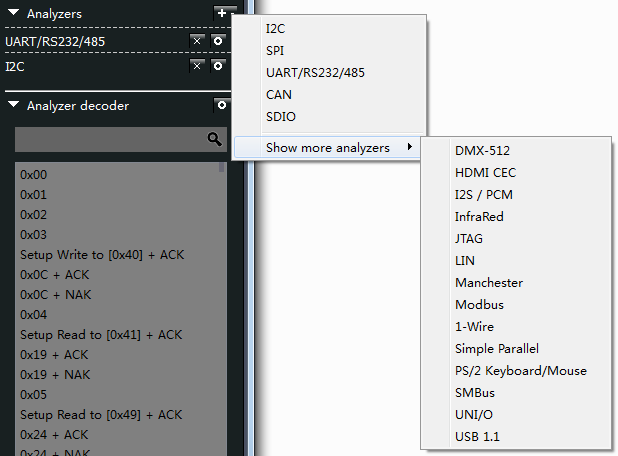

·Supported standard protocols: UART/RS-232/485, I2C, SPI, CAN, DMX512, HDMI CEC, I2S/PCM, JTAG,
LIN, Manchester, Modbus, 1-Wire, UNI/O, SDIO, SMBus, USB1.1, PS/2, NEC InfraRed, Parallel, etc.

Documents:

·Software and user guide:Click here or click here
