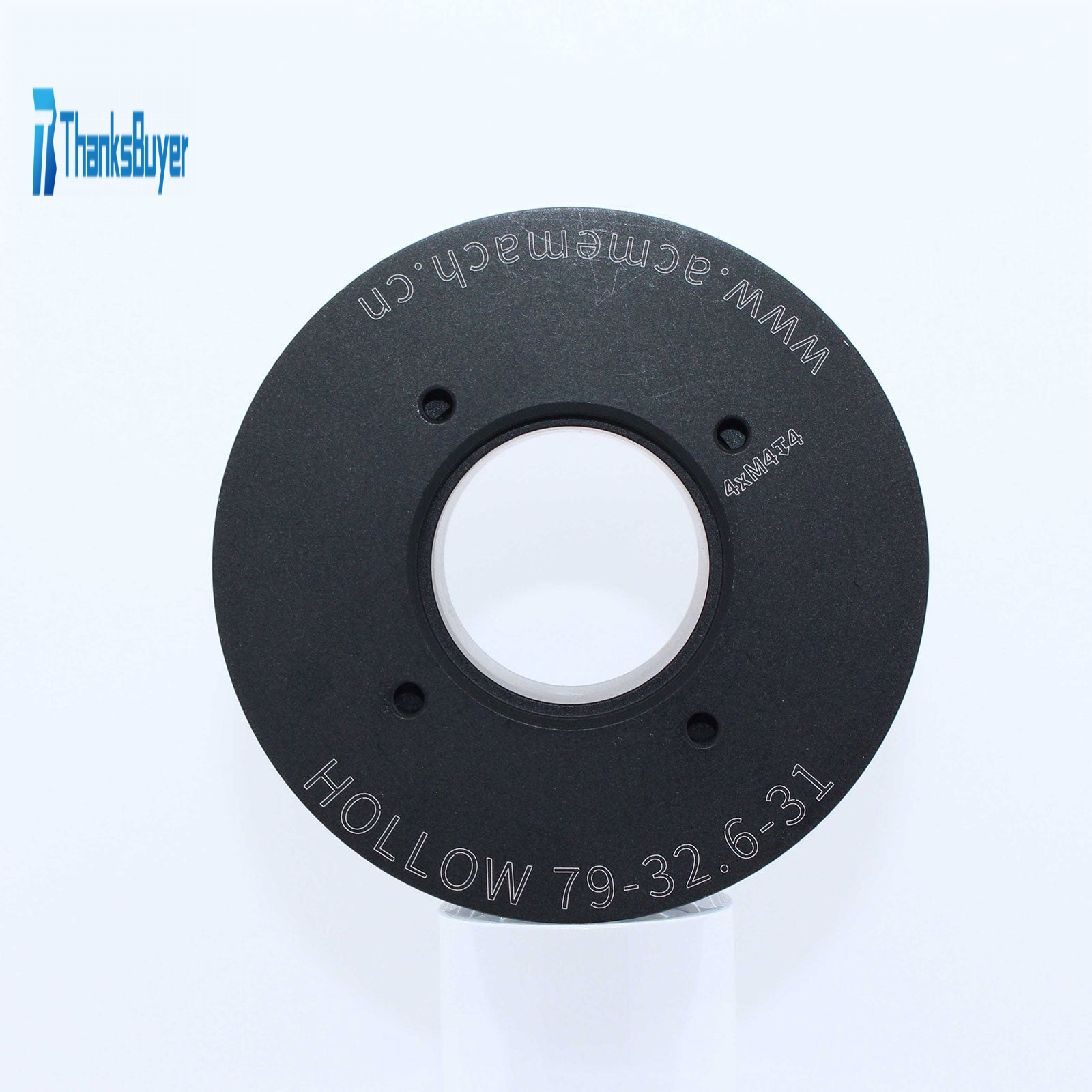

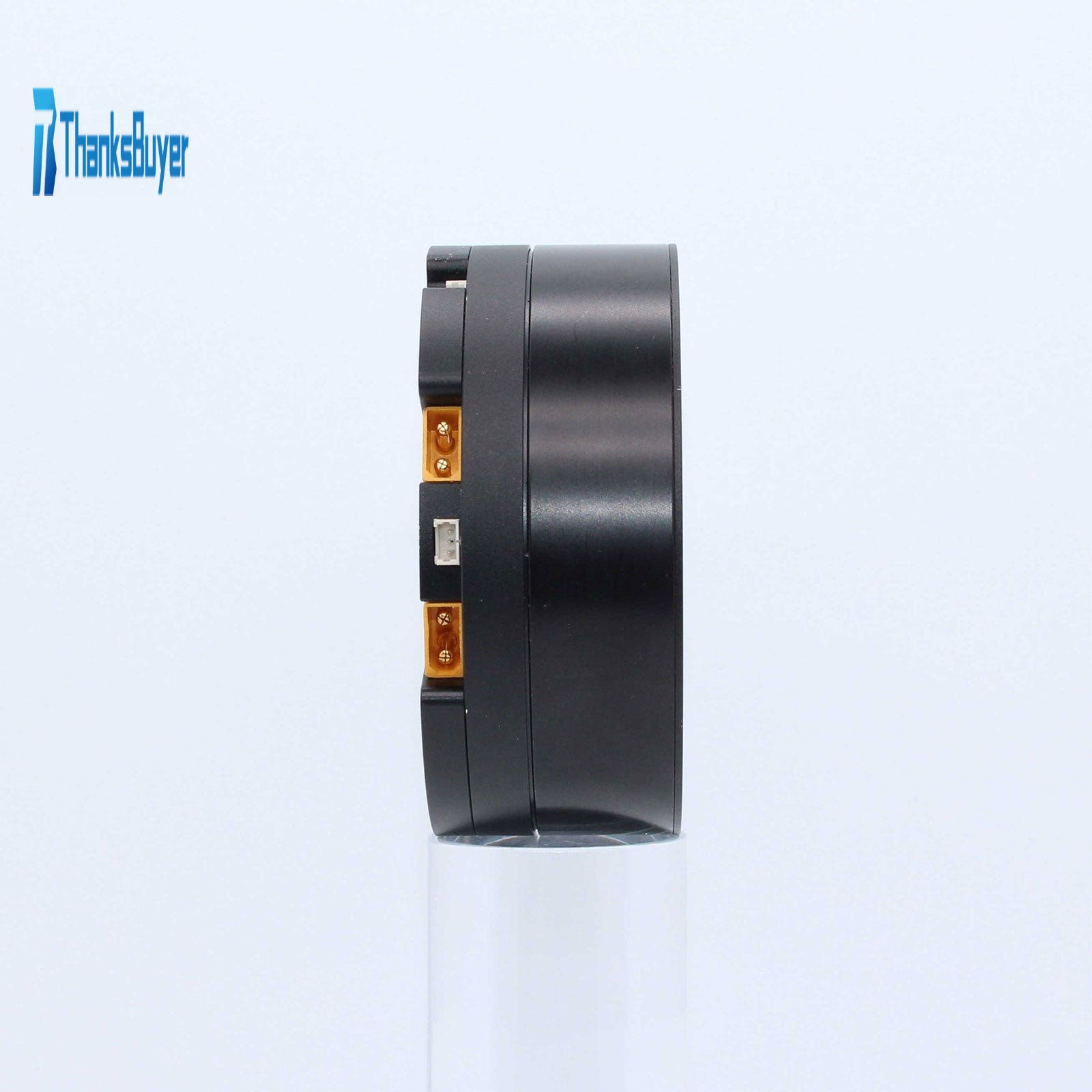

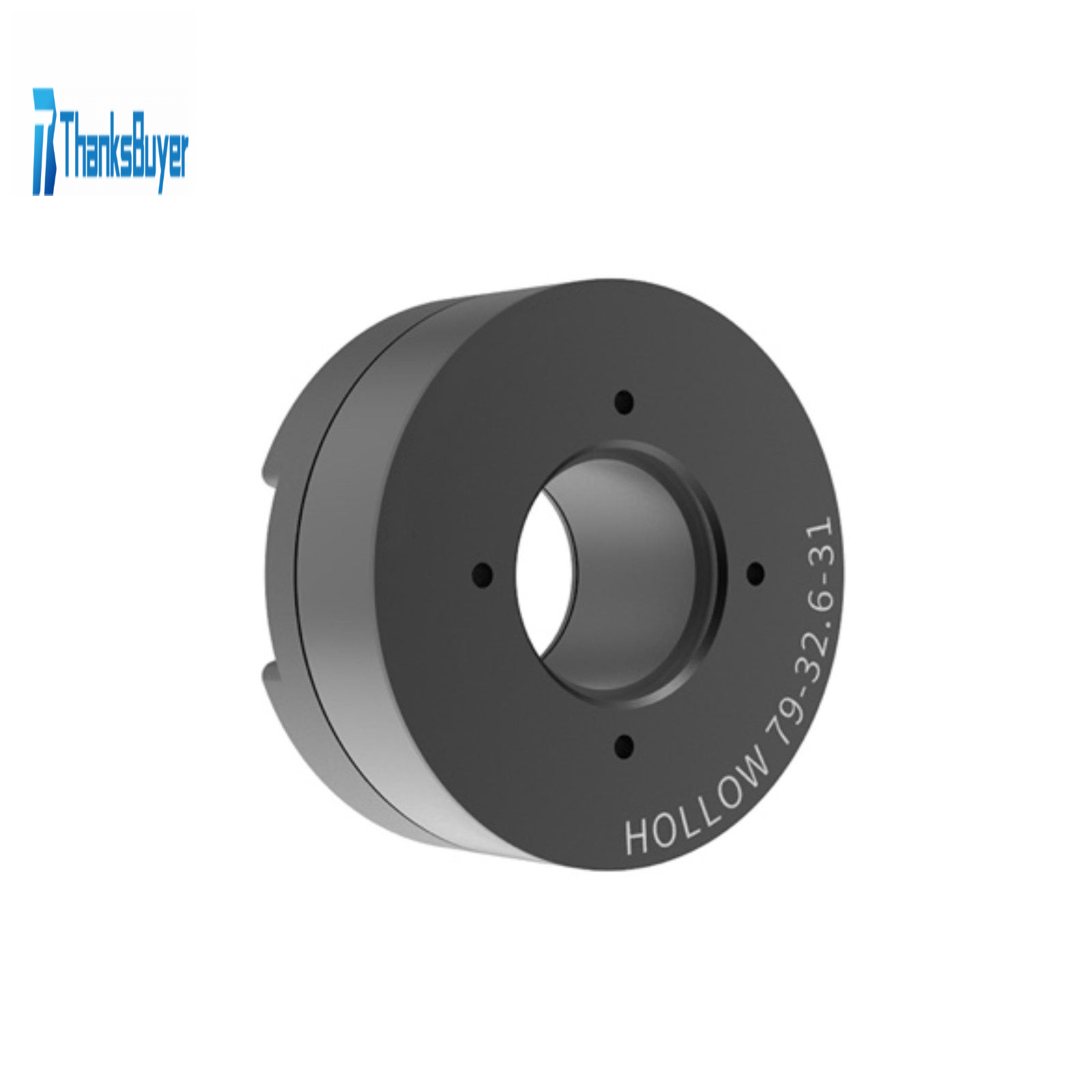

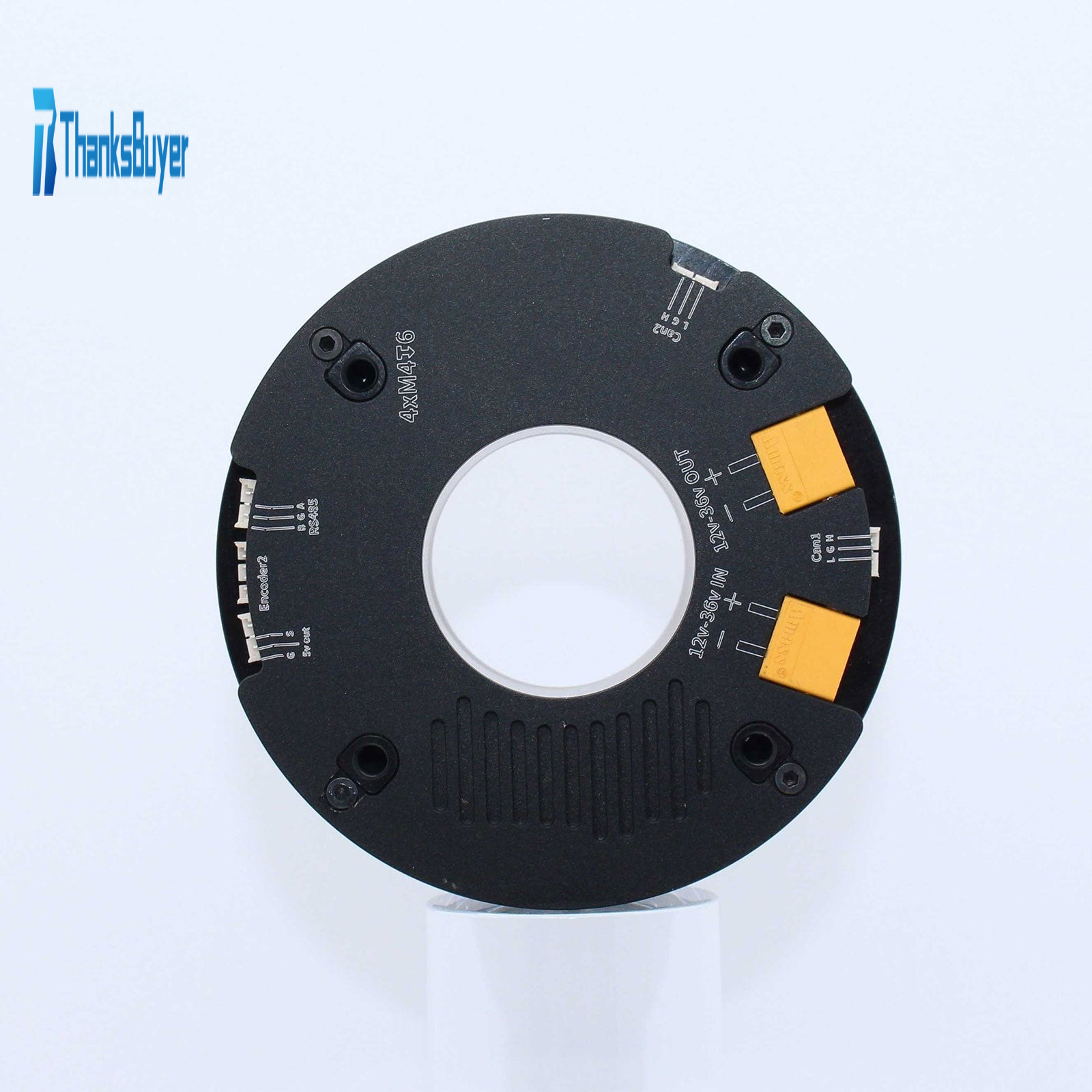

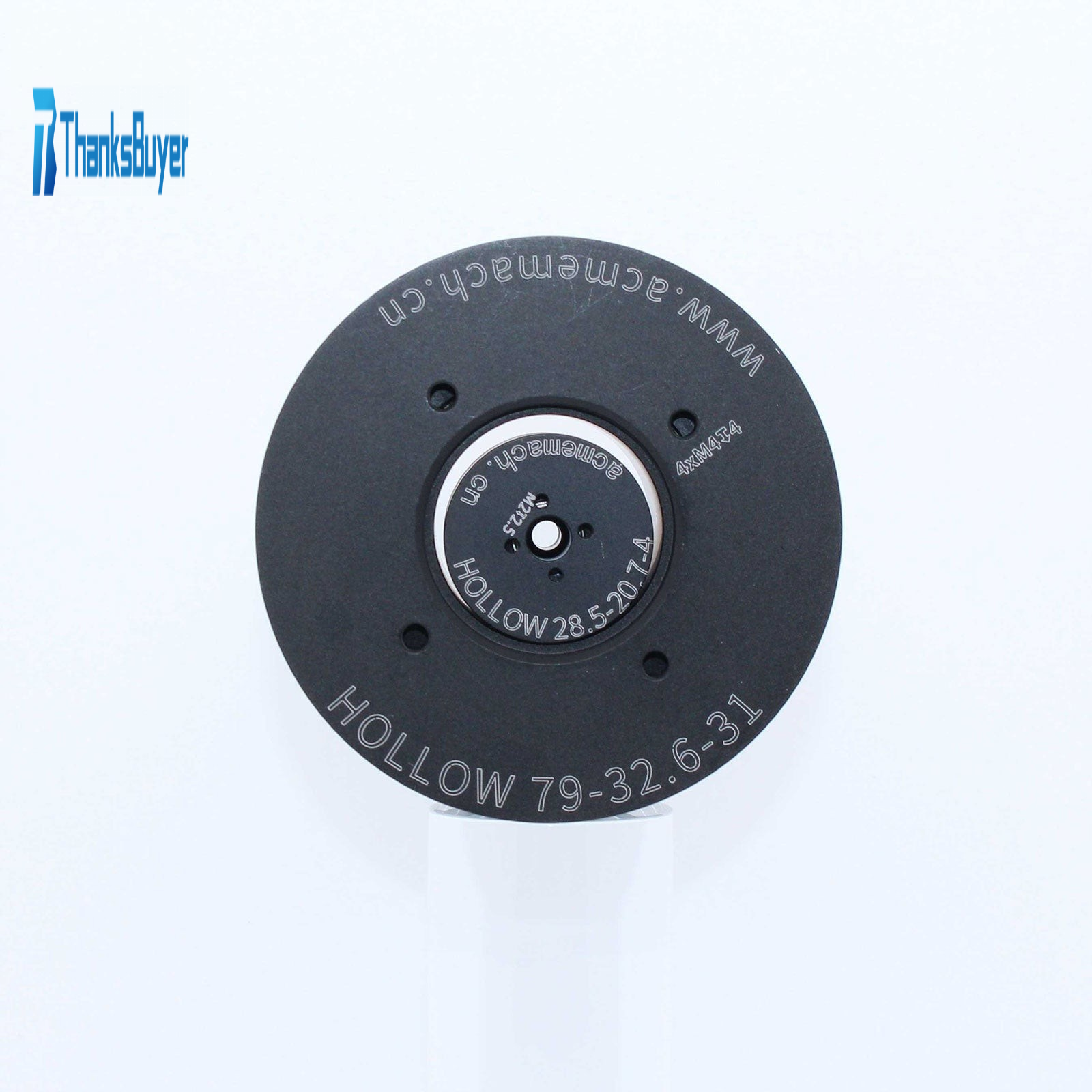

HO7213 Hollow Servo Motor 1N·m Rated Torque for Camera Gimbals & Robots Optional USB to CAN FD

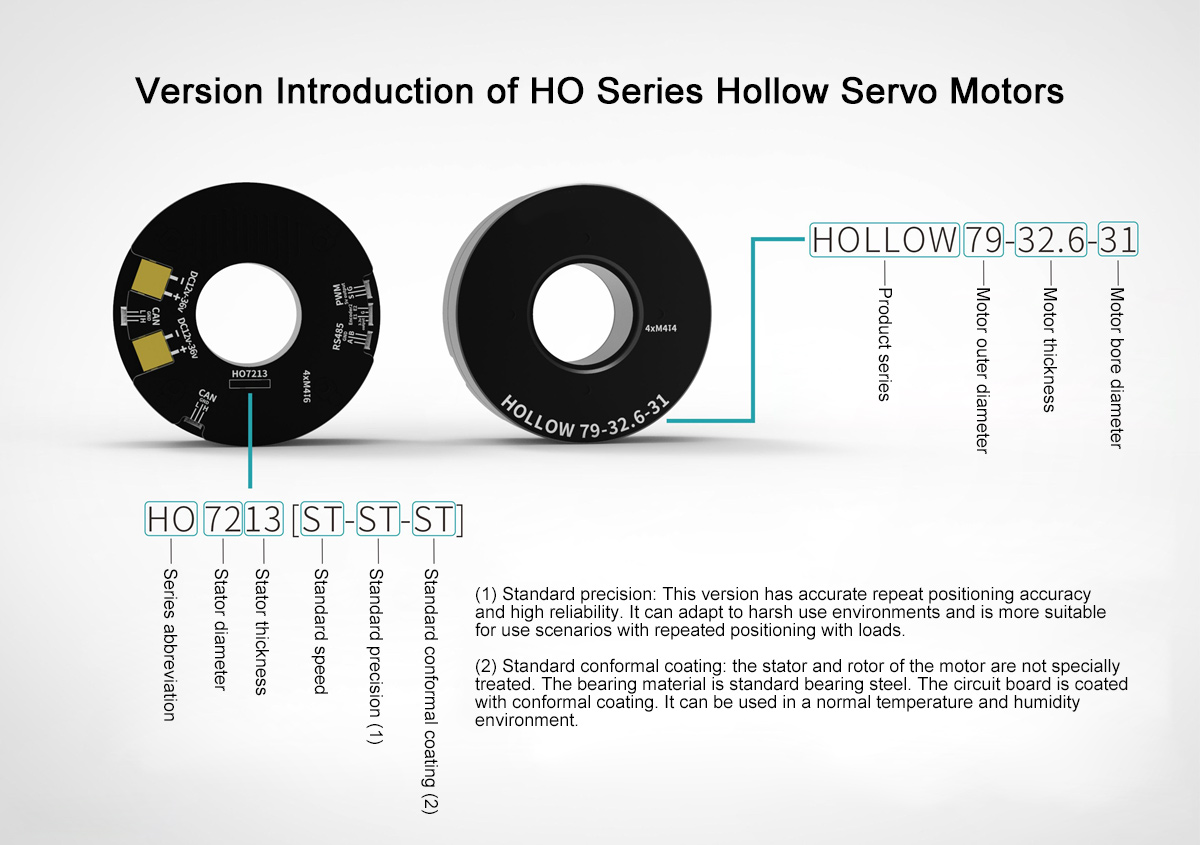

HO7213 ST-ST-ST Hollow Motor:
Features:
- High-precision hollow motor
- With drive
- Ultra-thin disc hollow
- 31mm large bore
- Ultra-low speed of 0.01RPM
- The positioning accuracy is 0.004°

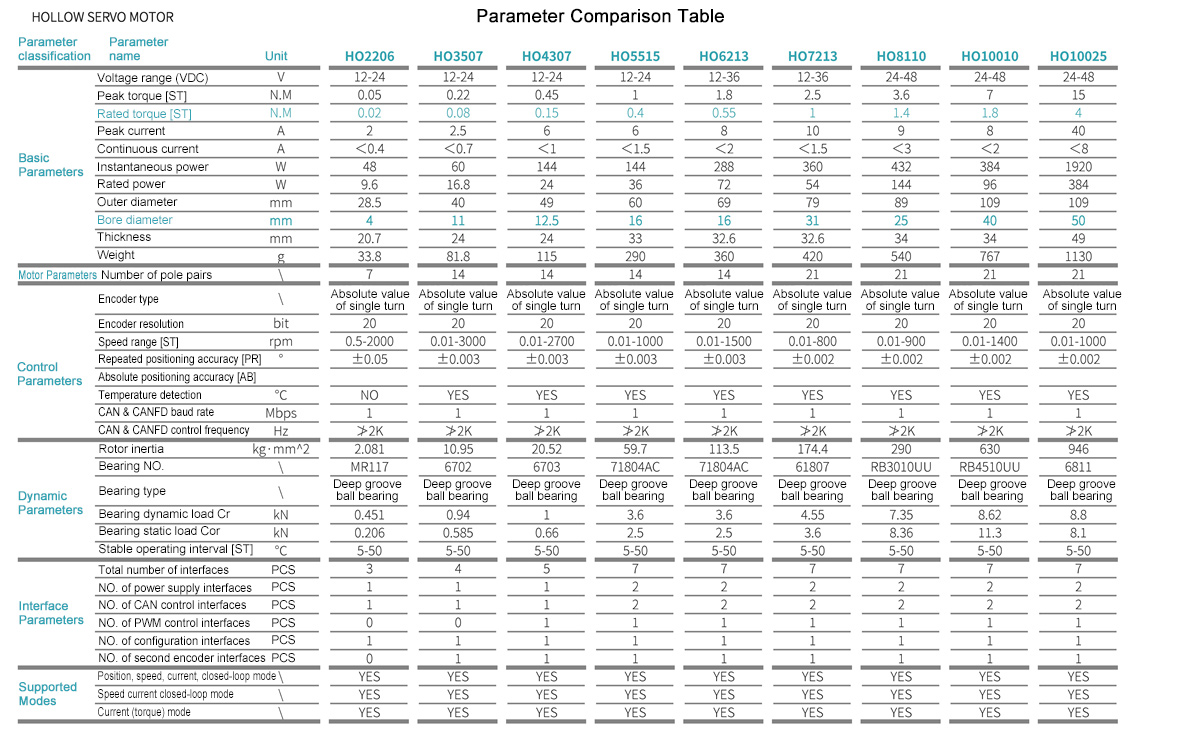

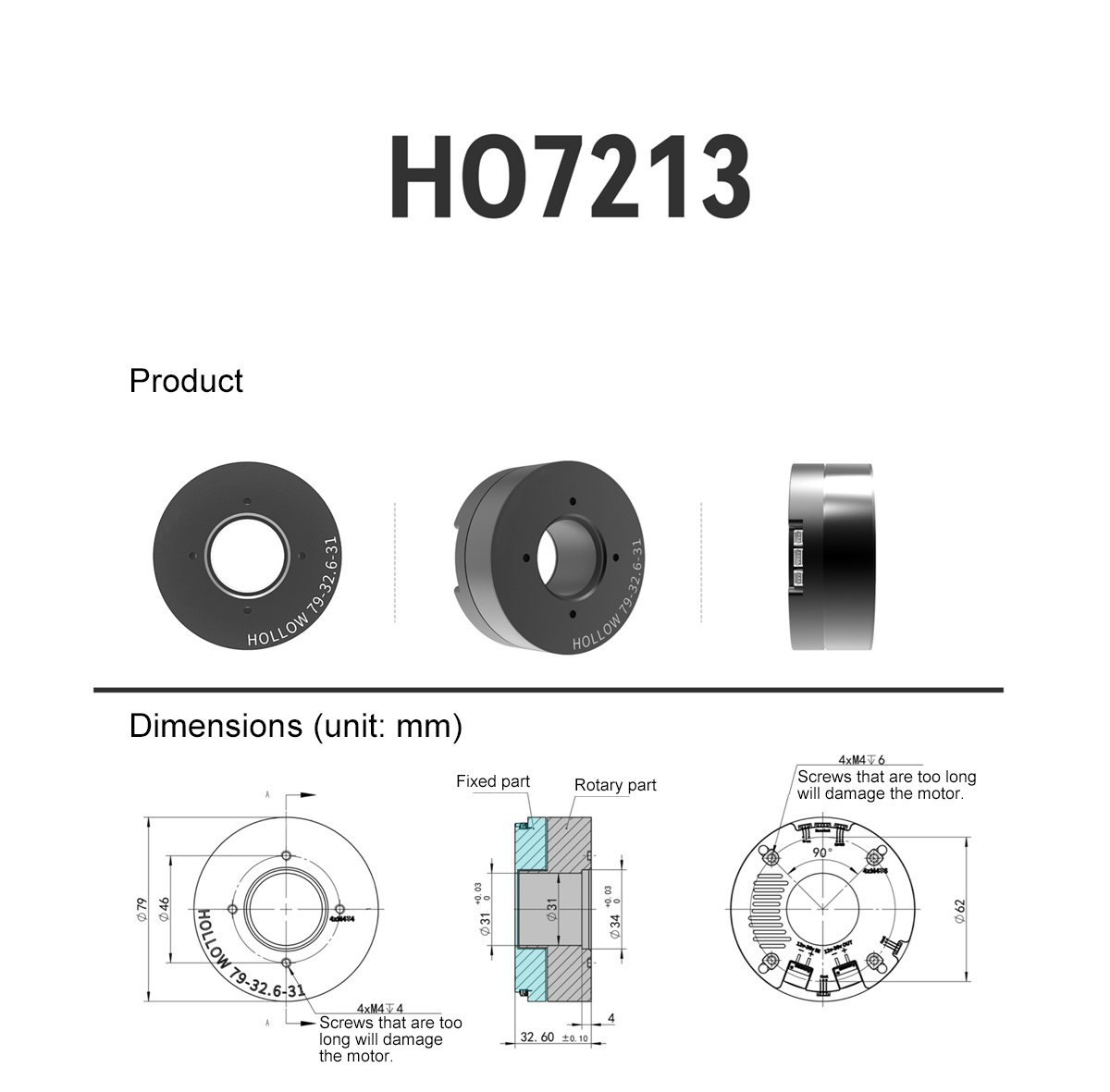

Details:
- Diameter: 79mm
- Thickness: 32.6mm
- Weight: 420g
- Bore diameter: 31mm
- Peak torque: 2.5N.M
- Rated torque: 1N.M

Usage Scenarios:
- Suitable for industrial automation, camera gimbals, lidars, and robotics.

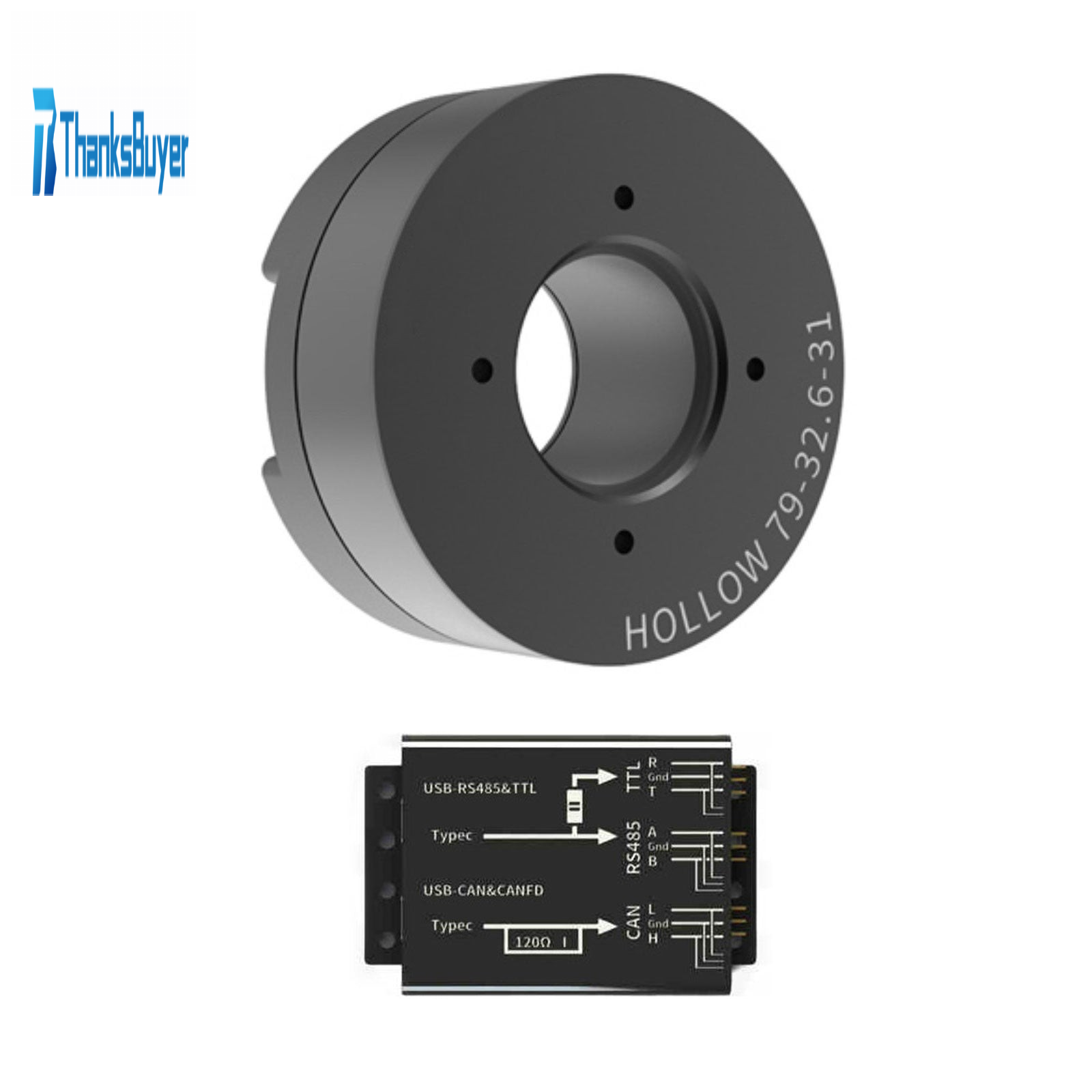

Optional USB to CAN FD Adapter:
- USB-CANFD debugger
- USB to CANFD + RS485/TTL
- High-speed CAN
- Suitable for industrial sites
- STM32G43 master
- CANABLE2.0
- Product size: 79mm x 50mm/3.1" x 2"

Package Contents (Depending on Selected Version):
Standard Motor Only:
- 1 x HO7213 hollow servo motor
- 1 x XT30X2P power cable
- 1 x MX1.25X3P CAN communication cable
- 1 x MX1.25X3P RS485 communication cable

Motor + USB to CAN FD Adapter:
- 1 x HO7213 hollow servo motor
- 1 x XT30X2P power cable
- 1 x MX1.25X3P CAN communication cable
- 1 x MX1.25X3P RS485 communication cable
- 1 x USB-CANFD debugger

Packaging Details:
- Weight: 0.55kg
