Description:

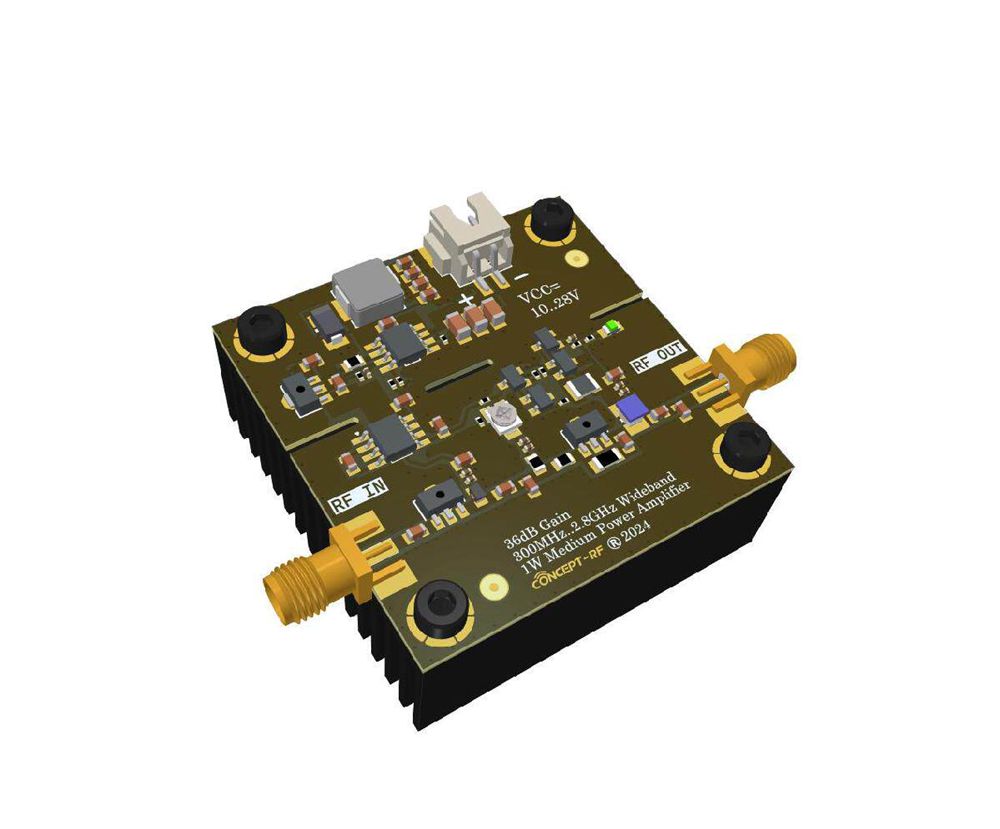

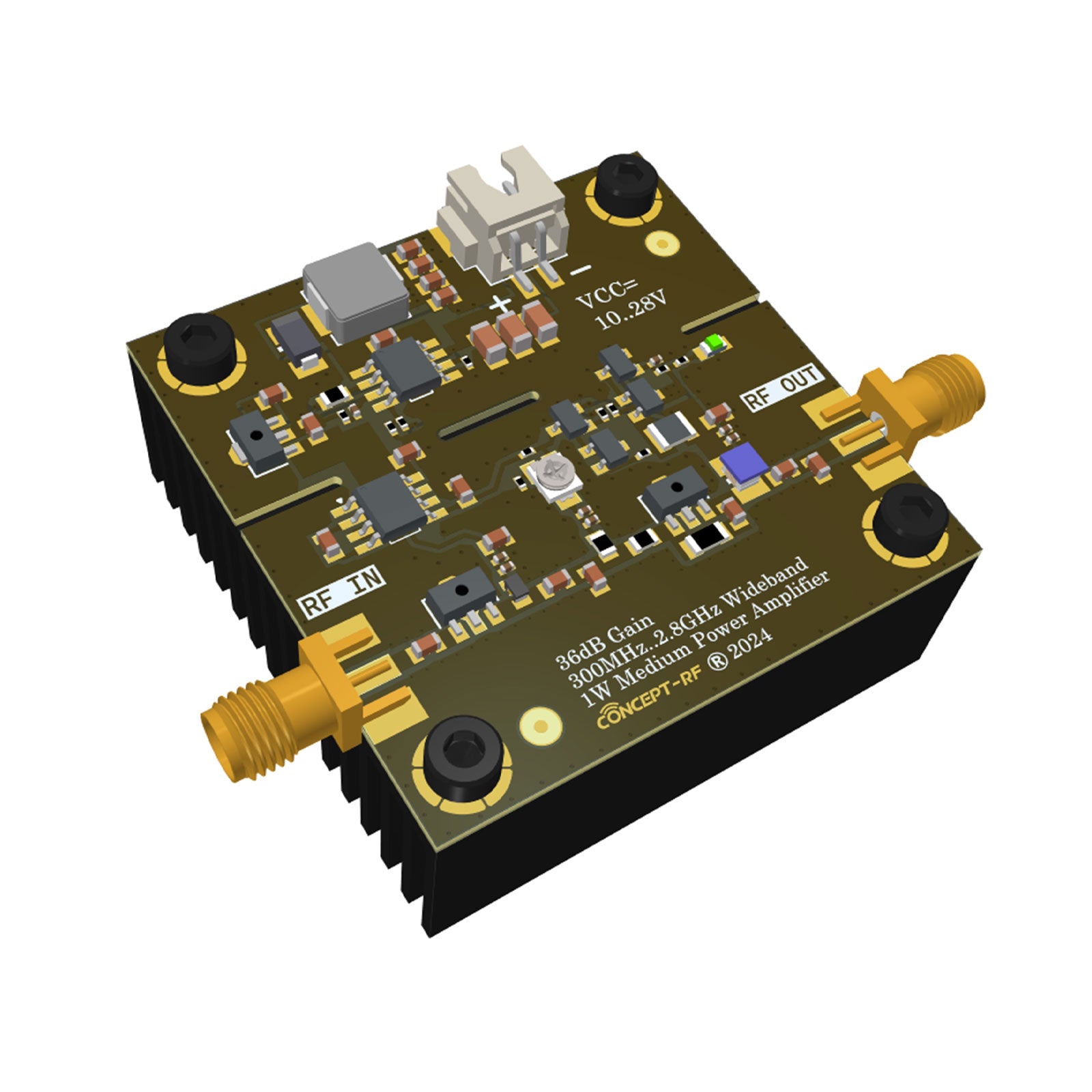

- This 1W broadband RF power amplifier is designed for various broadband applications in the frequency range of 0.3-2.8GHz, such as broadband frequency hopping communication, broadband GaN driver, EMC testing, etc. It has a black appearance, dimensions of approximately 50x50x20mm (excluding connectors), net weight of approximately 60g, supports wide voltage 10-28V power supply, with relatively flat gain and power, onboard temperature compensation circuit and built-in heat sink, which can work stably for a long time. The packaging comes with an XH2.542P power cable.


Specification:

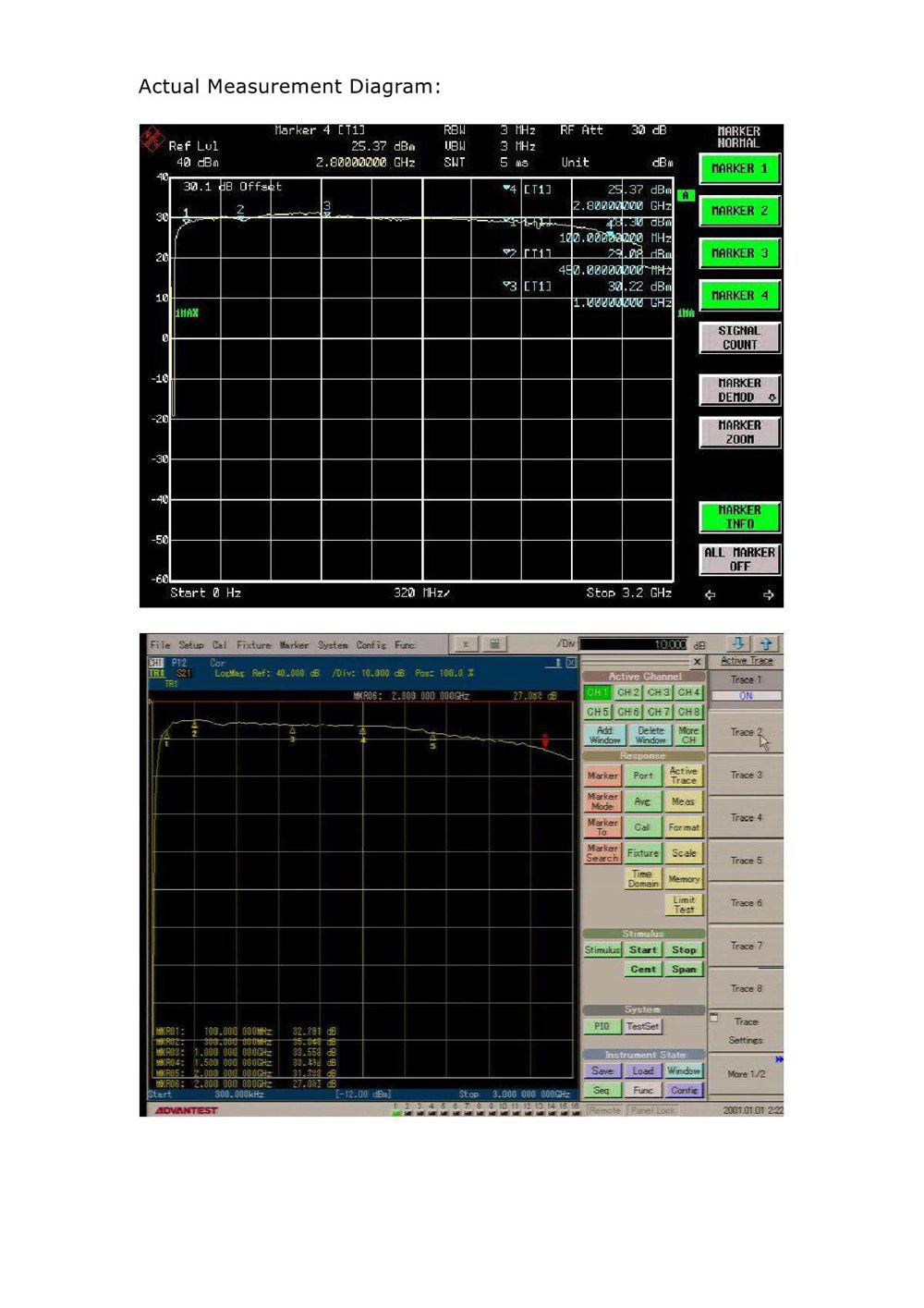

- Bandwidth: 0.3 - 2.8GHz (low frequency can be extended to 100MHz, which means a bandwidth of 0.1-2.8G can actually be used)

- Gain: 35.5dB (input 300MHz - 20dBm, output 15.5dBm)

- Saturation power: 1W at 300MHz

- P1dB: 28dBm at 300MHz

- Maximum RF input power: 3dBm

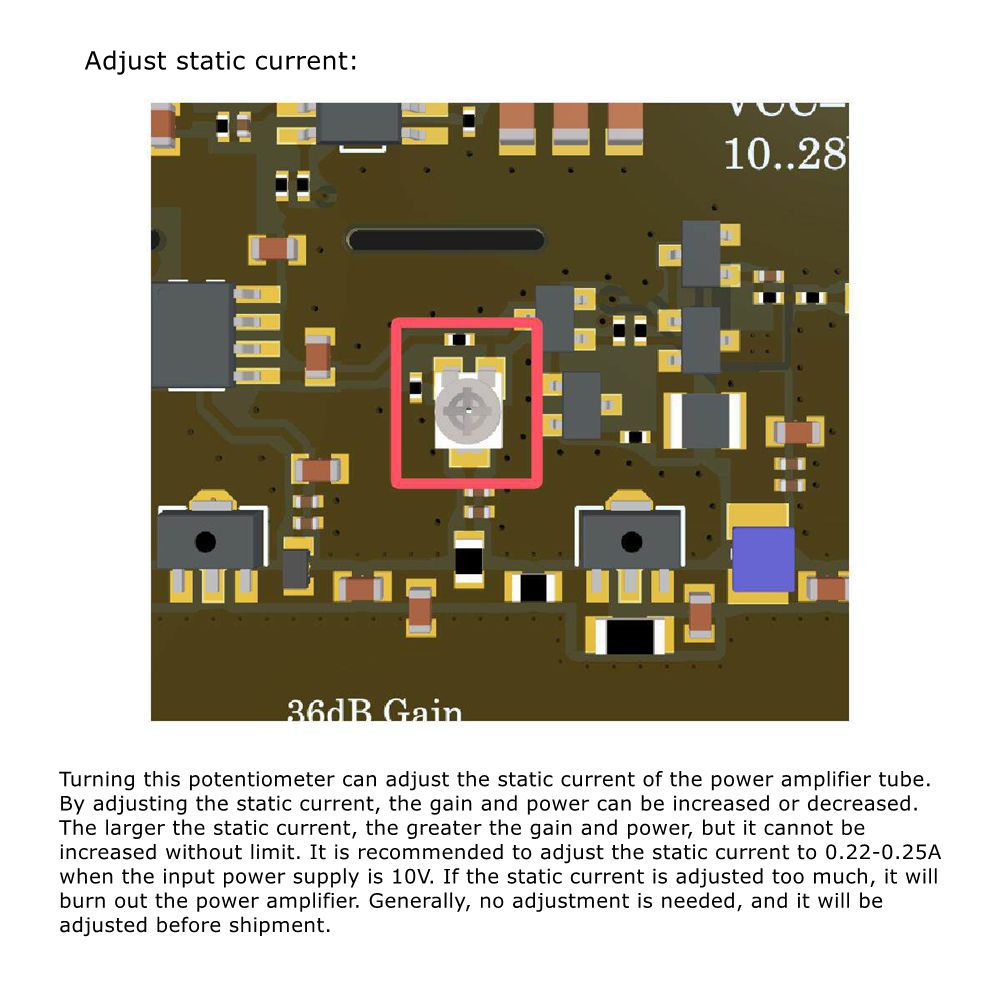

- Static current: 0.22 - 0.25A (input 10V)

- Power supply voltage: 10 - 28V

- RF interface: SMA female connector

- Power supply interface: XH2.54 2P


Package Included:

- 1 x RF Power Amplifier
