KDT5584 High Performance IQ Mixing Module 30MHz-.4GHz IQ Demodulator LTC5584 Broadband IQ Mixer

Specification:
- Module model: KDT5584-021 (for ADI LTC5584)
- Module power supply: +5V
- Module current: +150mA
- Module input impedance matching: 50Ω
- Precautions for module IQ output: the output is chip direct output without capacitive coupling, and the output has DC offset, about VPOS-3.3V level
- Module function: IQ mixer (quadrature demodulator)
- Module demodulation bandwidth: 530MHz (output without filter)
- Module bandwidth: suitable for down mixing, LO=RF=30MHz~1400MHz, IQ=530MHz (please buy and add filters by yourself)
- Module nature: mainly used for down mixing IQ demodulation
- Module operating temperature range: -25℃ ~ +85℃
- Module weight: 17.37g

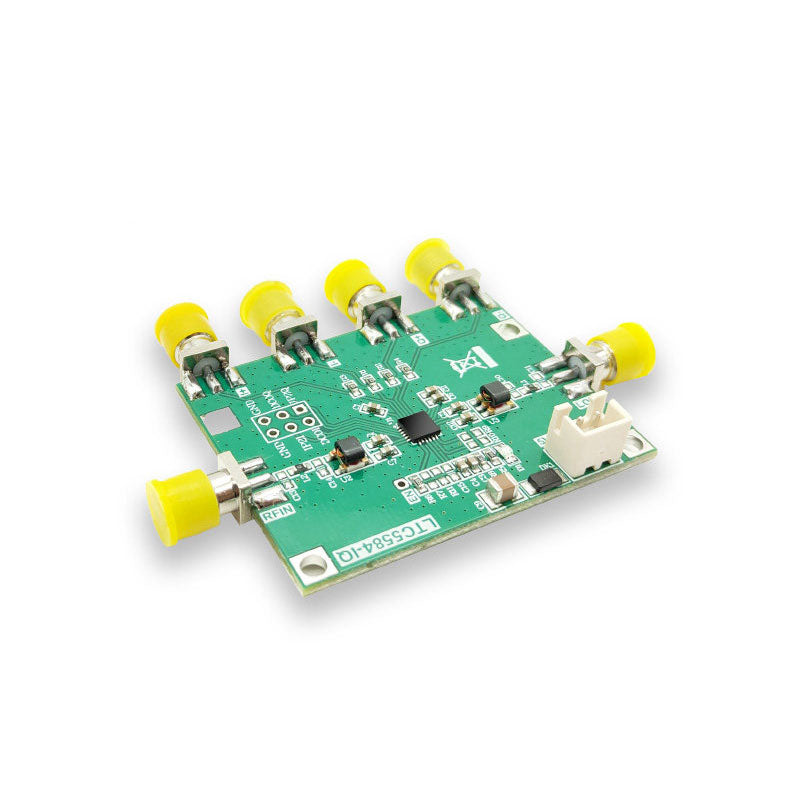

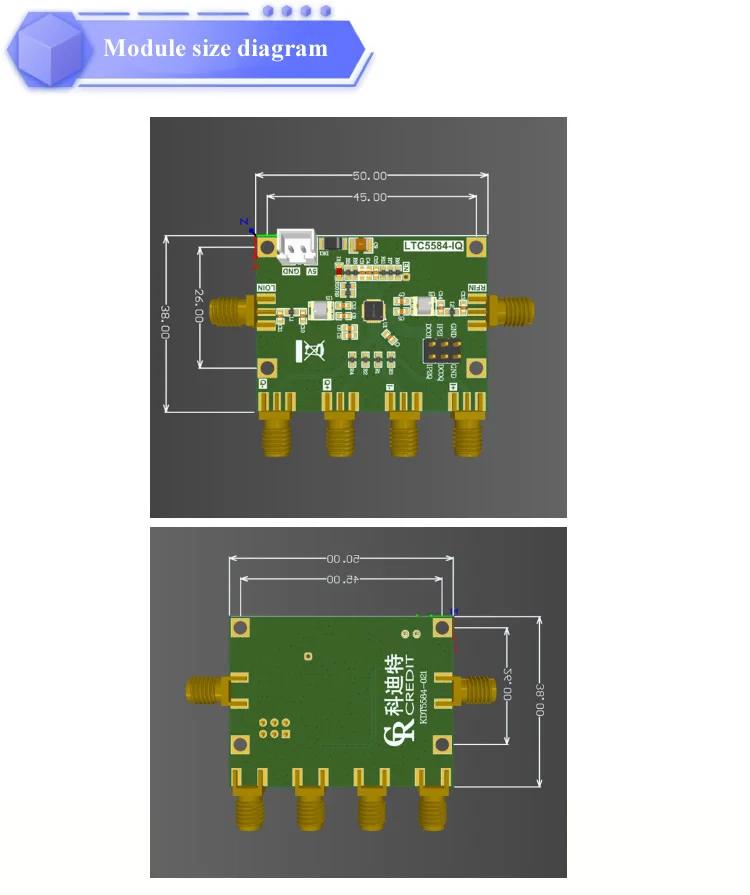

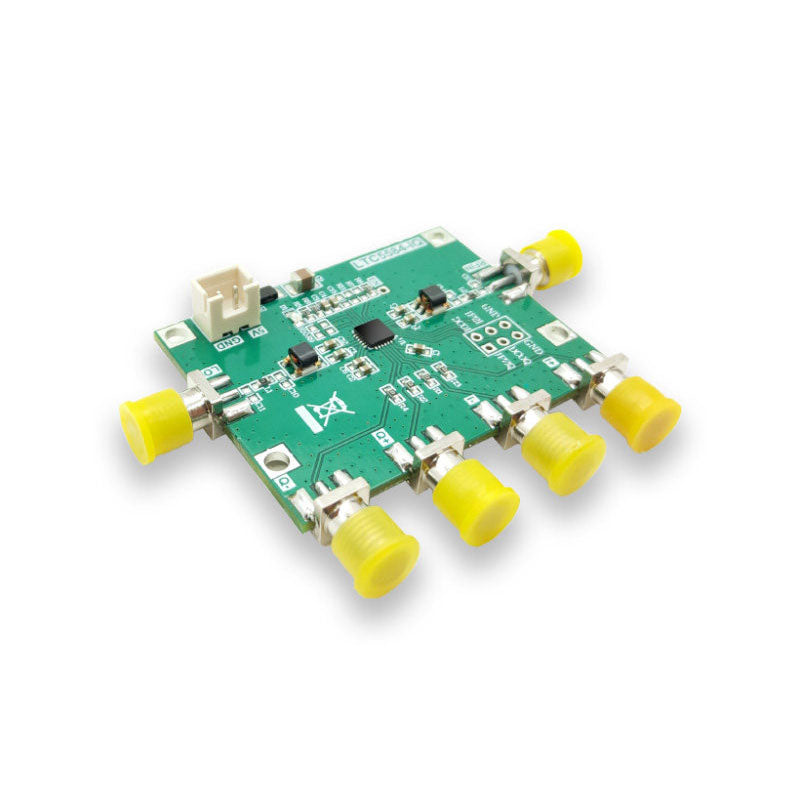

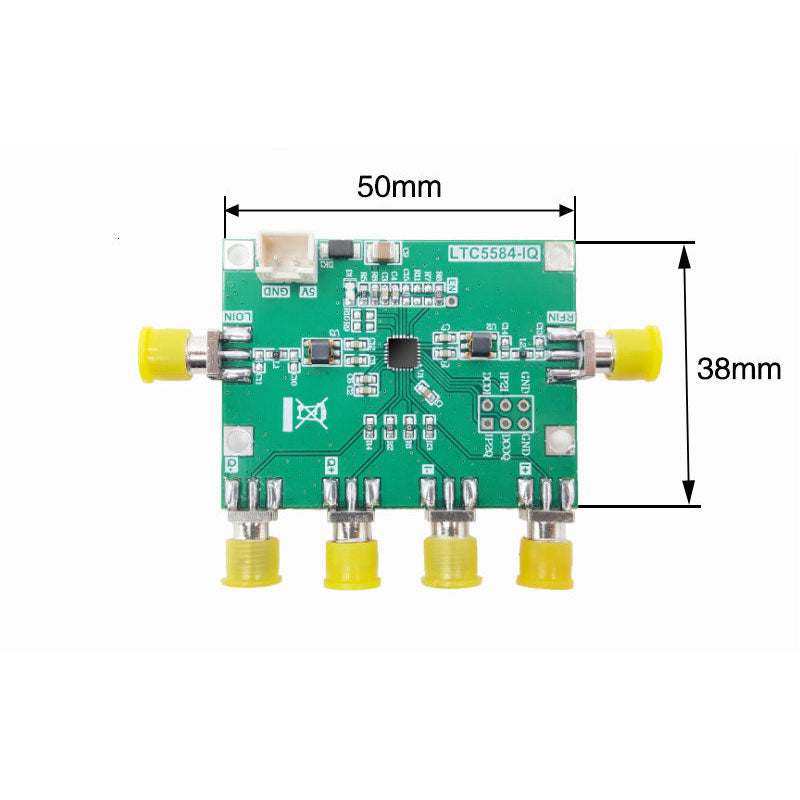

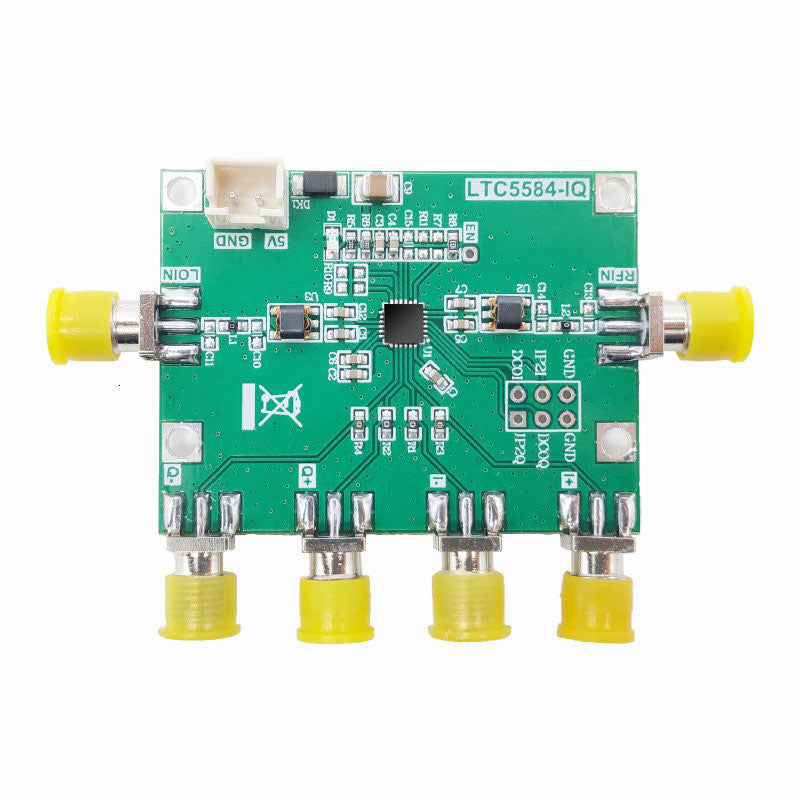

- Module size: 50 x 38 x 7 (excluding SMA size)

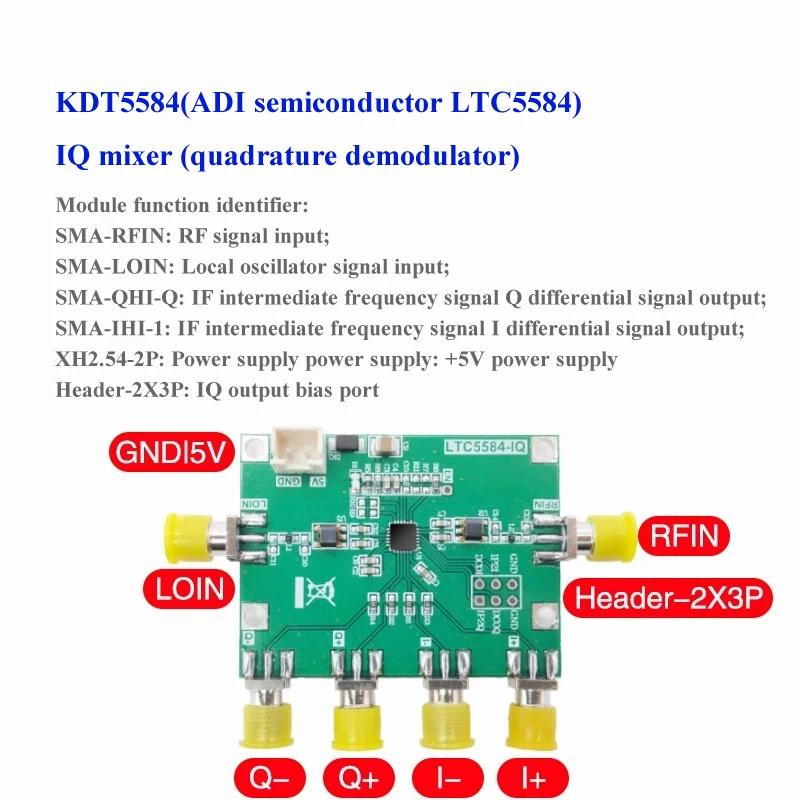

- Other features of the module: power indicator; Power supply anti reverse connection protection, π type power supply filtering; M3 four pin positioning hole; LO and RF inputs are balun inputs, IQ is differential signal output (<530MHz)
- Module power supply interface: plug-in XH2.54-2P
- Module input signal interface: threaded SMA port
- Precautions for using the module: please supply power correctly according to the details of the module; Please test and use correctly according to the module details; The module RF LO IF is AC coupling channel, RF/LO is balun coupling, can be input at one end, IQ is differential signal output, and supports lower mixing.

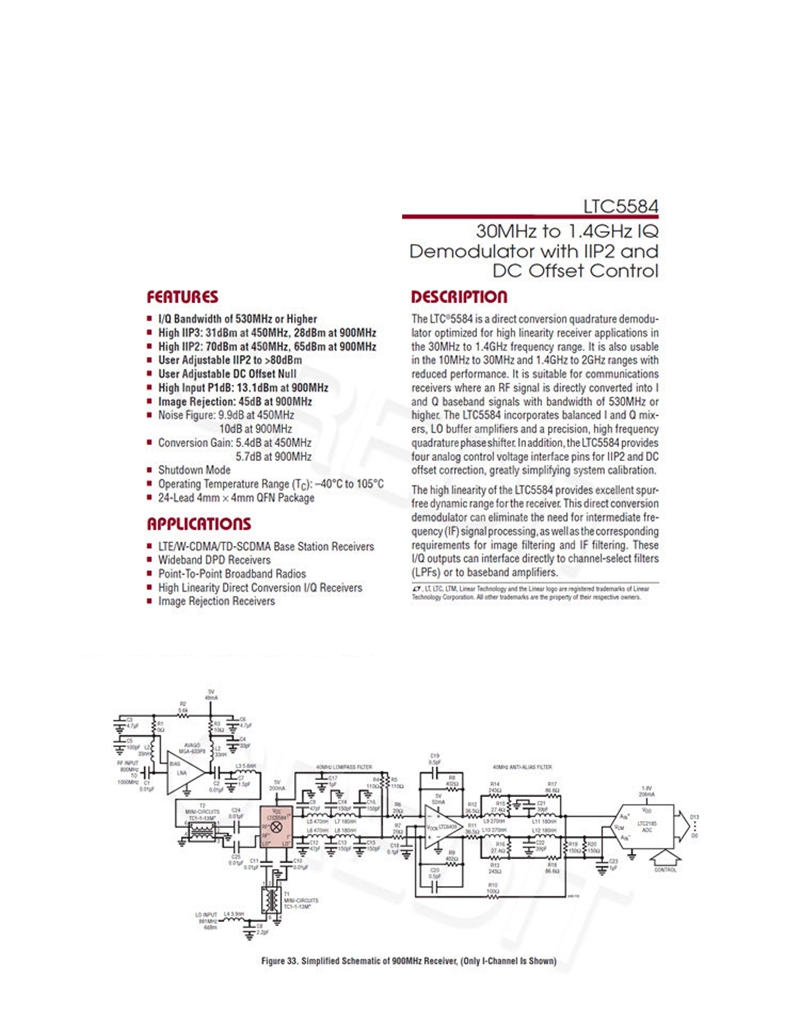

- Module description: LT5584 is a high-performance broadband IQ mixer, which has an input frequency up to 1.4GHz, IQ is a signal with a phase difference of 90°, and has extremely high phase difference accuracy. It can achieve ±0.2° error, and the amplitude balance of IQ output can reach 0.02dB.
- Module application: radar echo signal reception, ultrasonic signal reception spectrum front-end processing, zero IF reception signal mixing.

Package Included:
- 1 x IQ Mixing Module

Precaution:
- Our products are electronic modules, and buyers need to have some knowledge of the circuit. Our store does not recommend buyers who do not understand it at all. We only guarantee that the function of the module itself is normal, and only provide technical guidance for the module itself. Because each buyer's application scenarios are different, we do not make any guarantee on how to use the specific buyer.
- All modules in our store are not recommended for buyers to use at the limit value.
