LTC5548 2GHz-14GHz Microwave RF Frequency Mixer with Wideband DC to 6GHz IF Integrated LO Buffer Support Frequency Doubling

$161.43
$161.43
세금이 포함됩니다. 배송료는 결제 시 계산됩니다.
Availability: 재고 2000개
SKU: 102861
Tags:
Collections:
ThanksbuyerLTC5549 2GHz-14GHz Microwave RF Frequency Mixer with Wideband 500-6000MHz IF Integrated LO Buffer Support Frequency Doubling
LTC5549 2GHz-14GHz Microwave RF Frequency Mixer with Wideband 500-6000MHz IF Integrated LO Buffer Support Frequency Doubling

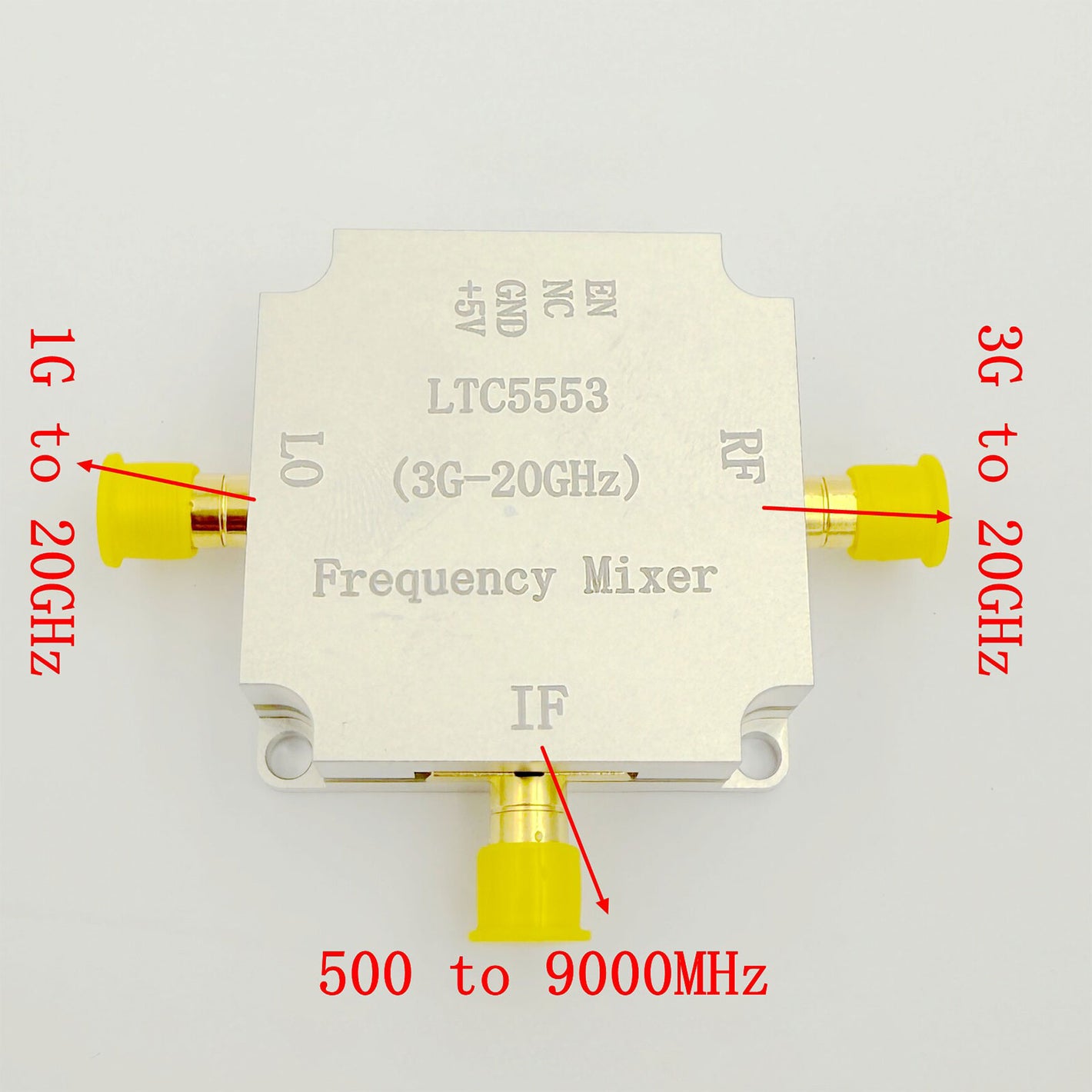

LTC5553 3GHz-20GHz Microwave RF Frequency Mixer with Wideband 500-9000MHz IF Integrated LO Buffer
ThanksbuyerLTC5553 3GHz-20GHz Microwave RF Frequency Mixer with Wideband 500-9000MHz IF Integrated LO Buffer
$161.43
$161.43

Features:
- Upconversion or downconversion
- High IIP3: +24.4dBm at 5.8GHz; +21.4dBm at 9GHz
- 7.1dB conversion loss at 5.8GHz
- +15.2dBm input P1dB at 5.8GHz
- Integrated LO buffer: 0dBm LO drive
- Selectable integrated LO frequency doubler
- Low LO-RF leakage: <-30dBm
- 50 ohm wideband matched RF and LO ports
- 3.3V/120mA supply

Package Included:
- 1 x Frequency Mixer
