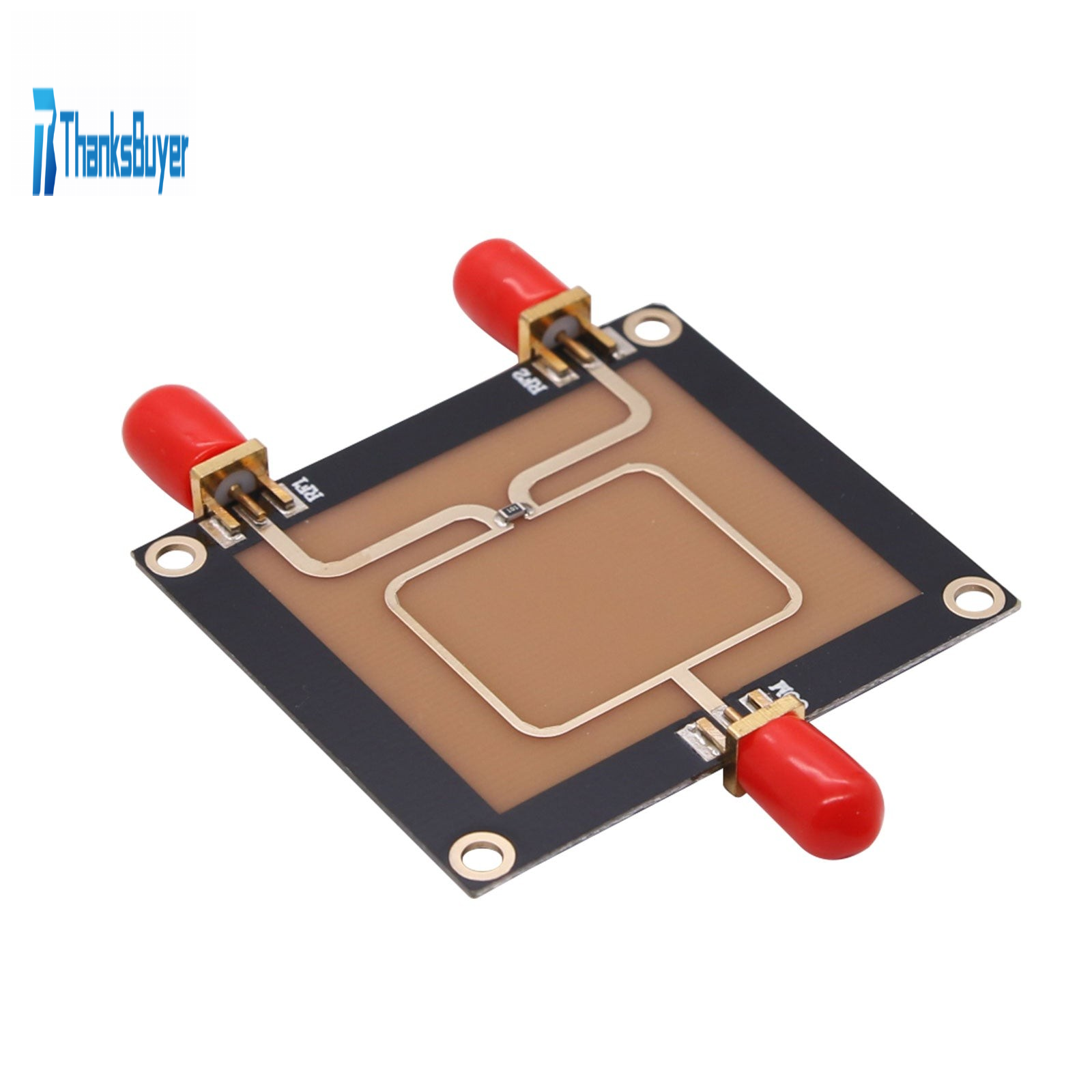

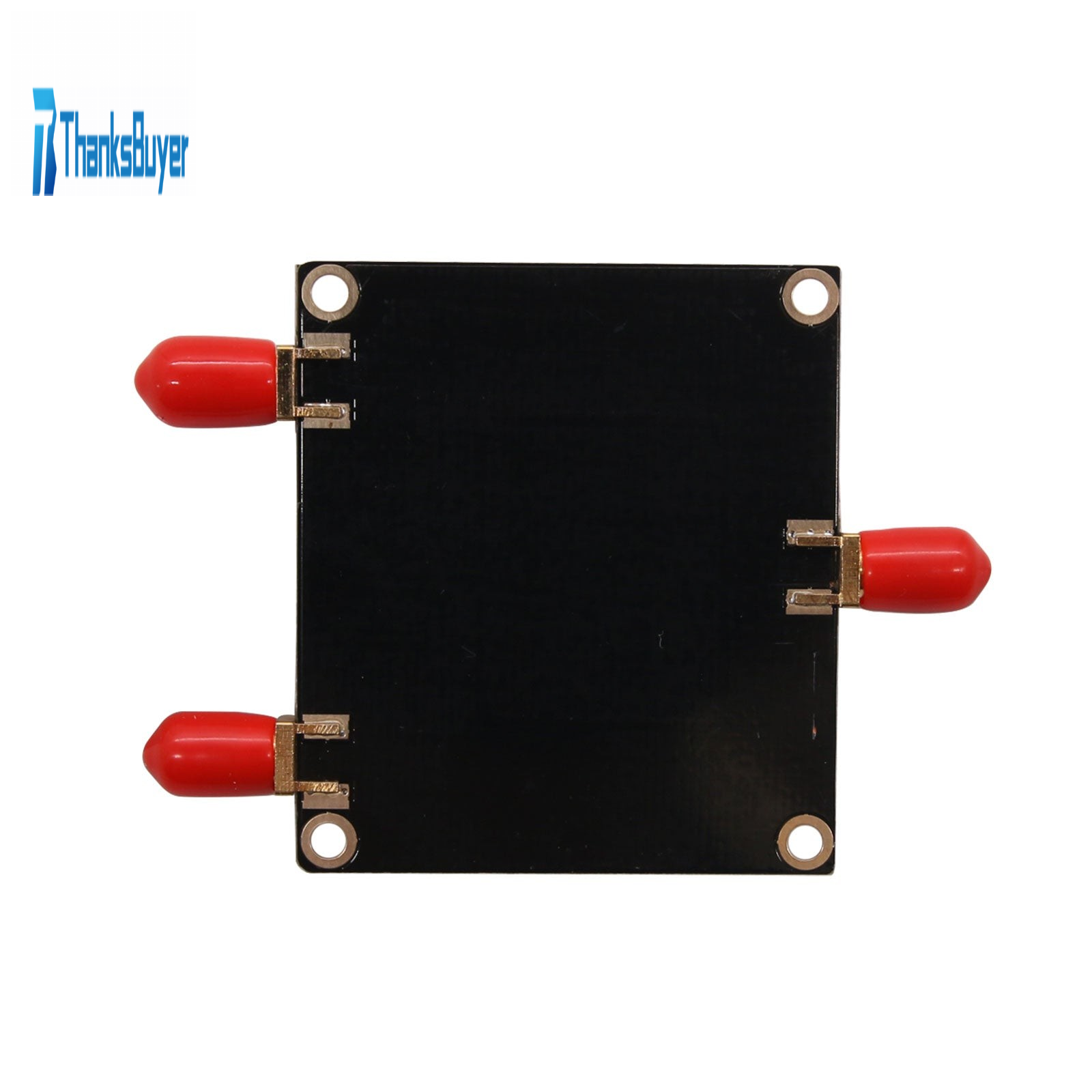

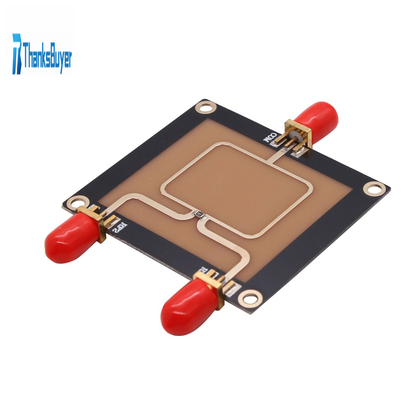

100-2700MHz RF Power Splitter Combiner RF Power Divider 2 Way Power Splitter

100-2700MHz RF Power Splitter Combiner RF Power Divider 2 Way Power Splitter

What is Power Splitter?
It is a device that divides the energy of one input signal into two or more outputs with equal or unequal energy. It can also combine the energy of multiple signals into one output, which is also called a combiner. A certain degree of isolation should be guaranteed between the output ports of a power divider. It features wide operating frequency, small insertion loss, high gain and isolation, and stable performance.

Specifications:
- Frequency Range: 100-2700MHz
- VSWR: ≤1.4
- Isolation: ≥20dB
- Insertion Loss: ≤1
- Pass-band Ripple: ≤0.3dB
- Phase Imbalance: ≤3°
- Input Impedance: 50Ω
- Maximum Power: 25W

Package Included:
- 1 x RF Power Splitter
