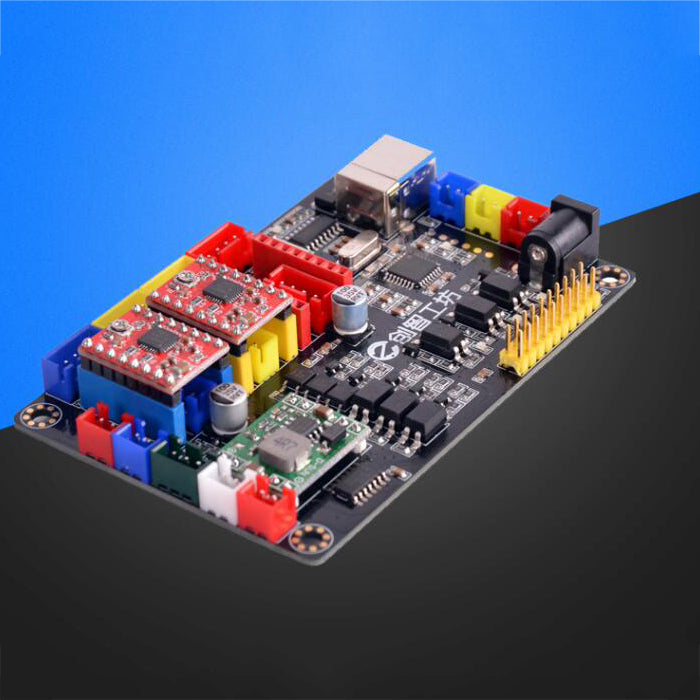

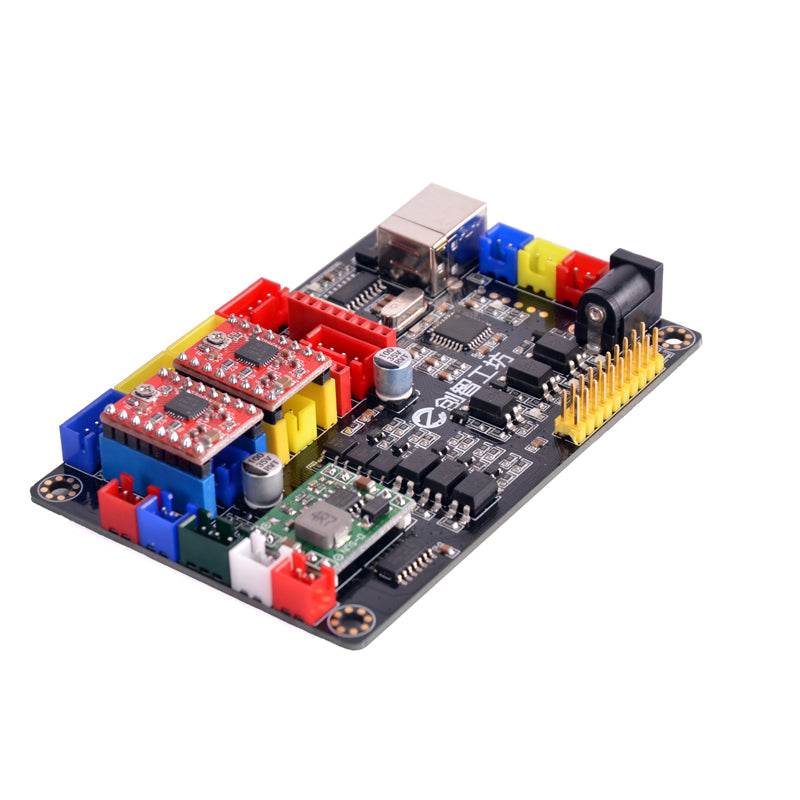

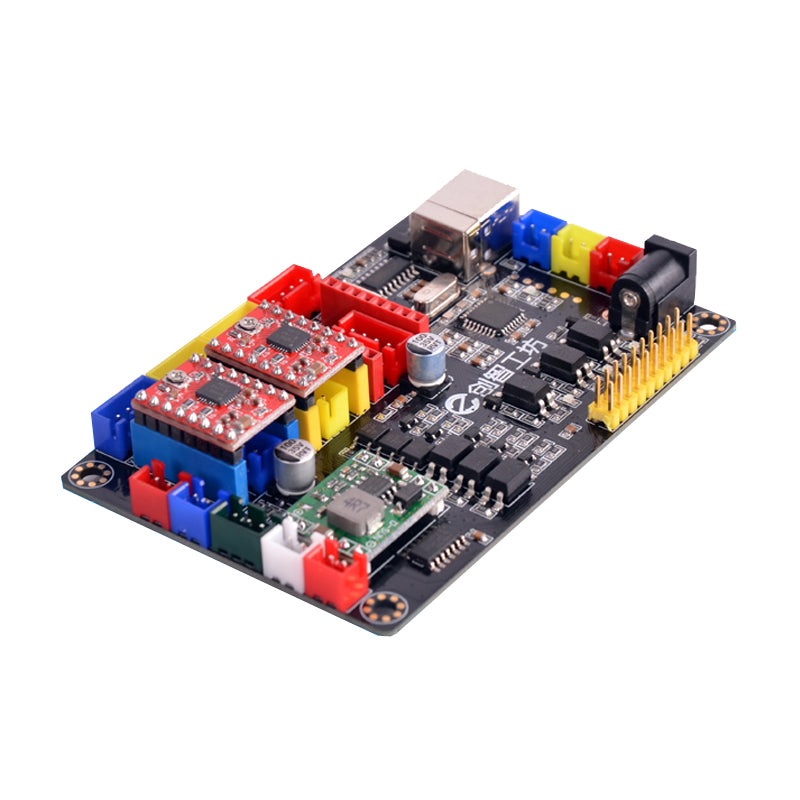

2-Axis Laser Controller Board CNC Control Board for Laser Engraving Writing Machine V6

2-Axis Laser Controller Board CNC Control Board for Laser Engraving Writing Machine V6

Specifications:
- Model: V6
- Axis: 2-Axis
- Size: 96.5 x 65mm
- Input Voltage: 12V DC
- For Servo: Three-Wire Servo
- Drive: A4988, External High Power Drive
- Limit Switch: For X-, Y-, Z-Axis
- Software: Support for Self-developed software, Weidiaodashi (multi-language version) machine, and other software that supports GRBL

Features:
- Full optocoupler isolation design.
- Rich ports for writing machines and plotting instrument
- Limit switch function
- Support connection with servo
- Support software to adjust laser power

Package Included:
- 1 x V6 2-Axis CNC Control Board

Note: V6 board is not for normal lasers which are built with one cable and work once power on. It is not for 5V lasers. It is only for lasers with PWM or TTL signal. It is for lasers with TTL of which the power is not adjustable.
