40KM Radio Modem Radio Telemetry Data Transmission RDF Remote 900 Full Kit For APM Pixhawk Flight Controller

40KM Radio Modem Radio Telemetry Data Transmission RDF Remote 900 Full Kit For APM Pixhawk Flight Controller

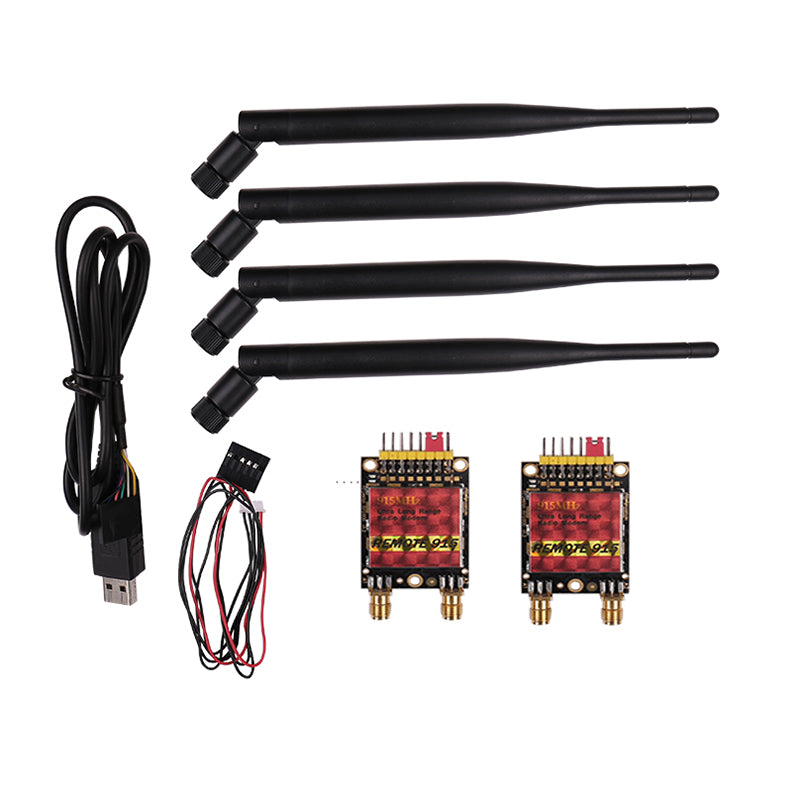

Package Included:
- 2 x Remote 900 Radio Modems

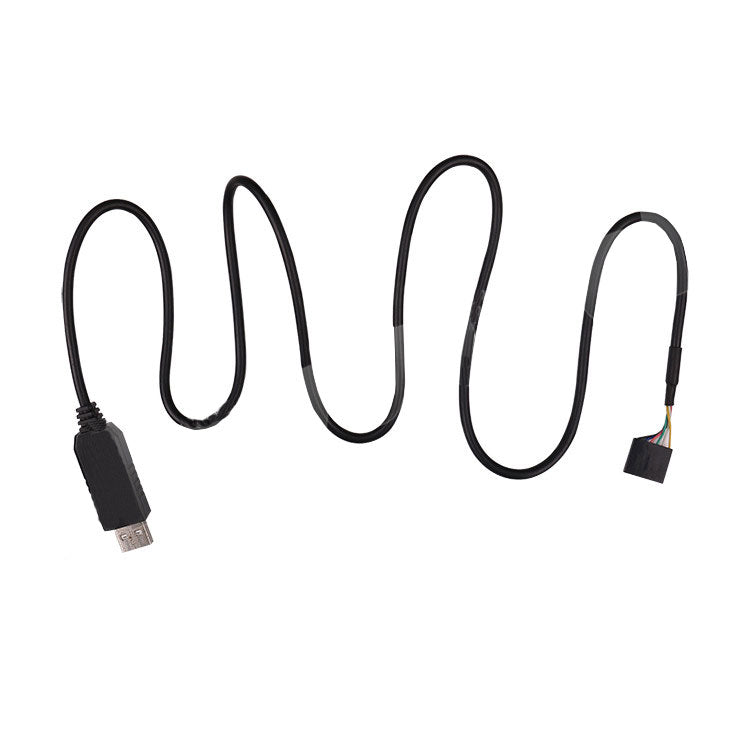

- 1 x Remote 900 Data Cable
- 1 x Remote 900 Connection Cable
- 4 x Original Remote 900 Antennas

Description:

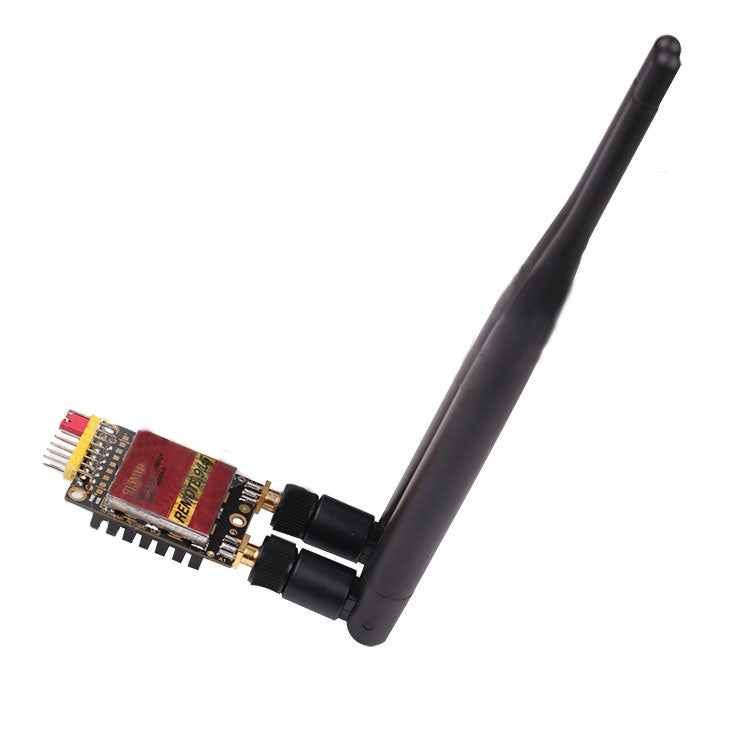

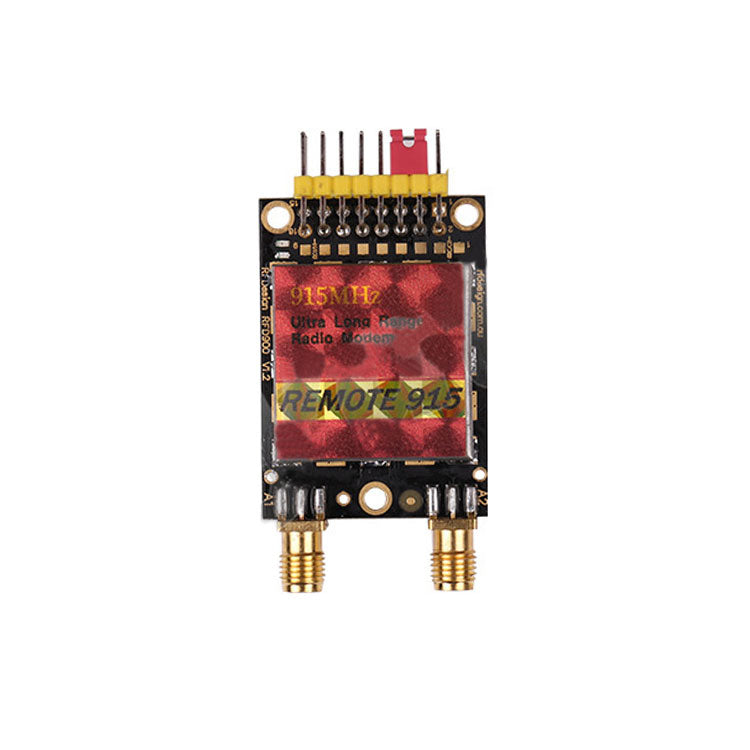

Remote 900 is a high-performance ISM band wireless modem. It works in the range of 902MHz-928MHz. The communications device is designed for long-distance data transmission. It fits for Autopilot (APM) and paparazzi.

Features:
- Working Frequency: 902-928MHz
- Max. Outdoor Communications Distance >40KM (Note: Communications distance depends on antennas' quality)
- Dual Antennas: It can automatically switch to one antenna with stronger signals
- With LPF and low-noise amplifier over 20DB for transmitting
- Data transmission rate up to 250kbps
- Comes with a USB to serial data cable, which can be directly plugged into your computer for radio telemetry communications and parameters adjustment
- Working Temperature: -40℃ to 85℃
- Weight of One Remote 900: 15g

Interfaces:
- RF Port: 2 x RP-SMA Antenna Ports
- Communications Port: RS232 Port
- Power Supply Port: +5V, 800mA Peak (@Max. Transmitting Power)

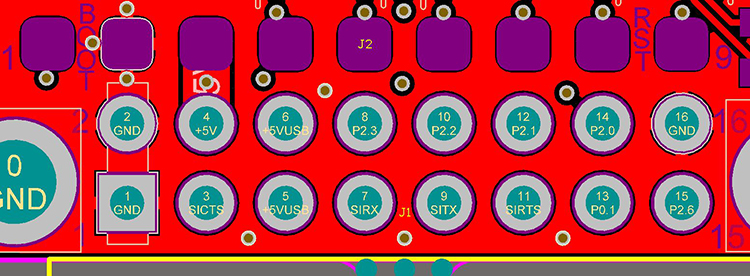

- I/O: 6 x Universal I/O (Digital, ADC and PWM)

Specifications:
- Frequency Range: 902 MHz-928 MHz
- RF Output Power: 1W (+30 dBm), which can be increased or decreased by 1dB through software.
- Data Transmission Rate: 4, 8, 16, 19, 24, 32, 48, 64, 96, 128, 192 and 250 kbit/sec (64K/128K Default Value)
- Receiving Sensitivity: > 121 dBm at low data rate and high data rate (TBA)
- Installation: 3 x M2.5 Screws
- Power Supply: +5V, (+3.5V Min. & +5.5V Max.), 1800mA Peak @Max. Power
