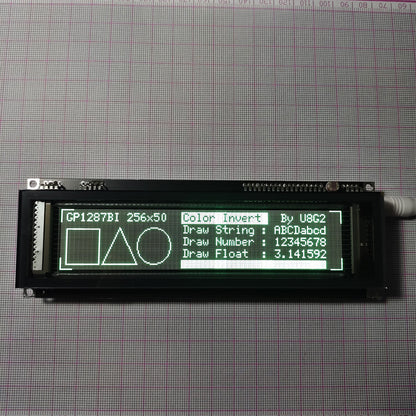

6.1 Inch 256x50 VFD Display Module Graphical Dot Matrix Display Developer Kit for Arduino STM32

6.1 Inch 256x50 VFD Display Module Graphical Dot Matrix Display Developer Kit for Arduino STM32

Features:
- With a wide voltage input range of 4.5-20V
- Adaptive 3.3V/5V level (compatible with mainstream microcontrollers such as 51 and STM32)
- Improved power supply and filament drive scheme, without howling and with higher efficiency
- VFD screen has built-in timing controller, which effectively avoids screen burning caused by improper use
- 1024-level adjustable brightness
- Maximum power consumption is about 6W (with all lights on, 1024 brightness and 5V input)
- Built-in dynamic scanning logic and RAM. Only need to send the command to the screen to complete the display

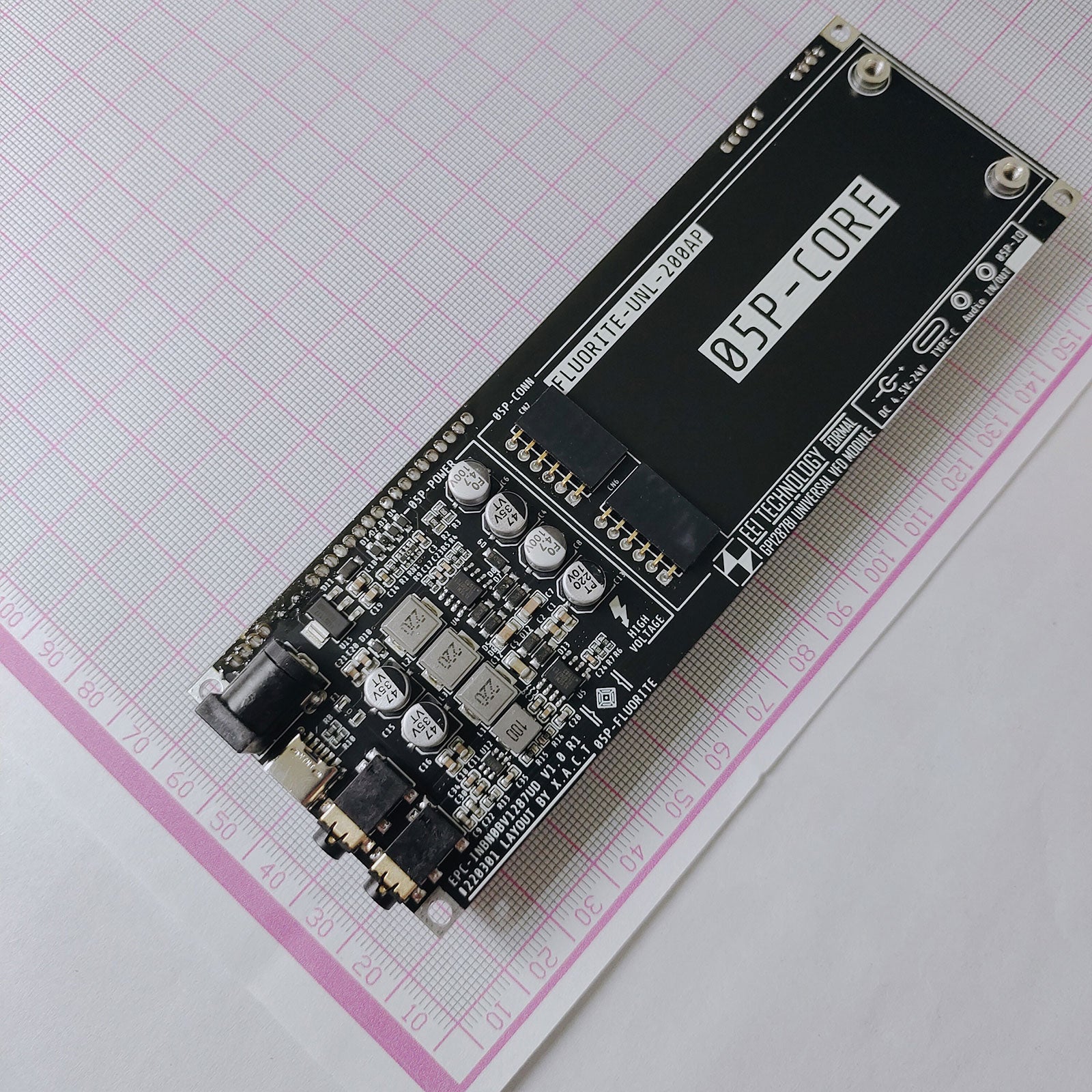

- Reserve the position of main control board on the PCB to effectively use the free space
- Reserved audio input interface makes it convenient for audio applications
- With on-board photoresistor, with it can achieve automatic brightness, working with MCU
- TYPE C and DC 005 power sockets are suitable for all kinds of power supplies

Attention:
- The product is a developer kit, not a finished product with a single function. Please think twice before placing an order.
- The development of this product requires a certain programming knowledge. If necessary, our store can provide paid technical support.
- Please use our U8G2. If you use the U8G2 official graphics library, our store does not provide technical support.

Package Included:
- 1 x VFD Display

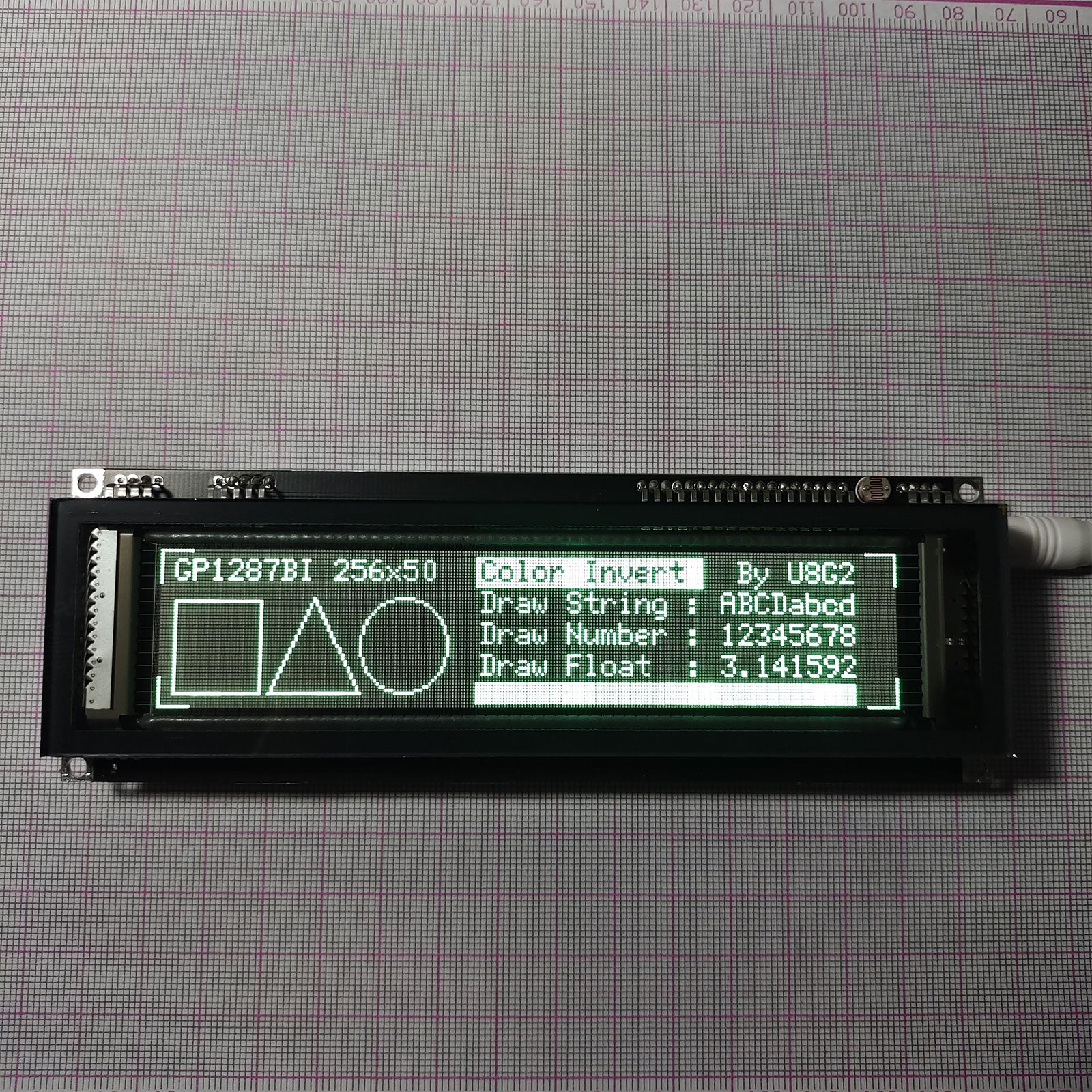

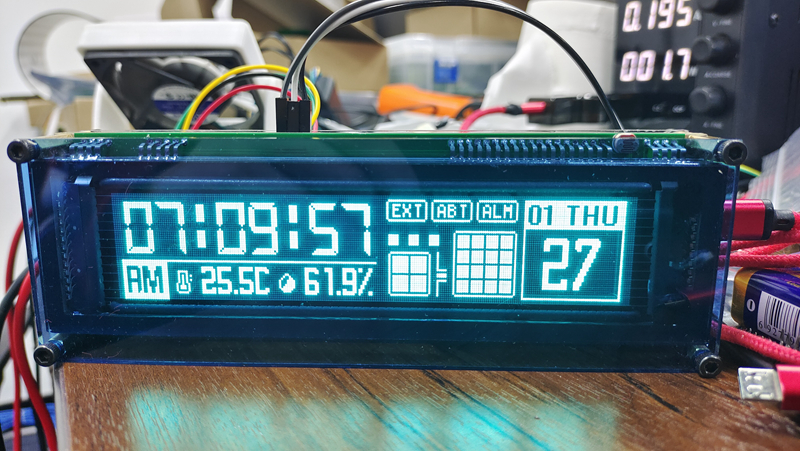

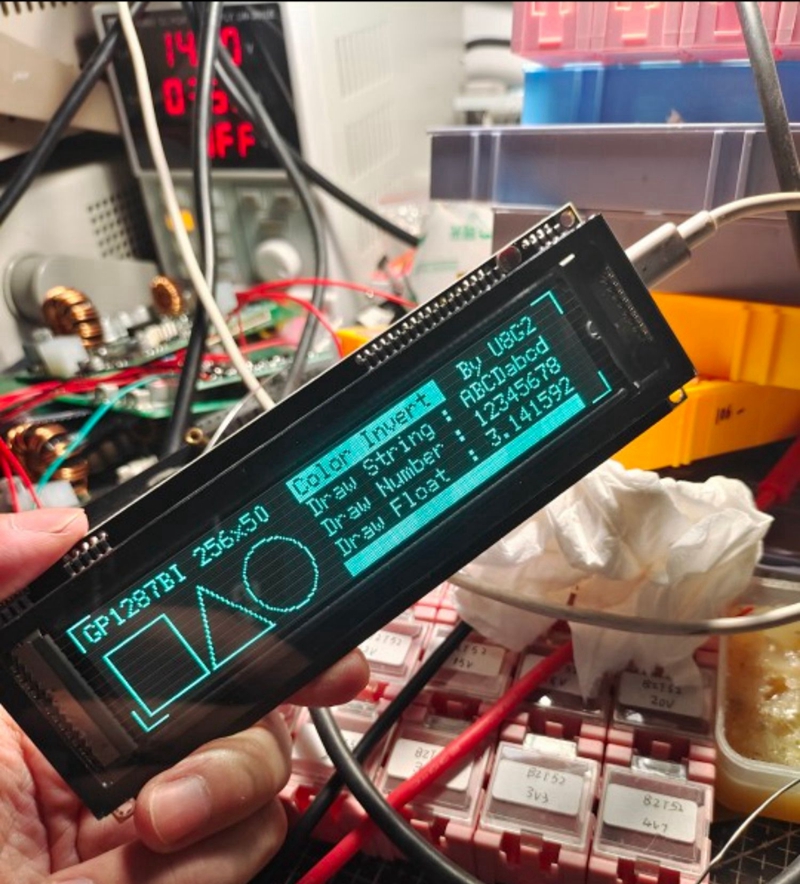

Display Effects:
