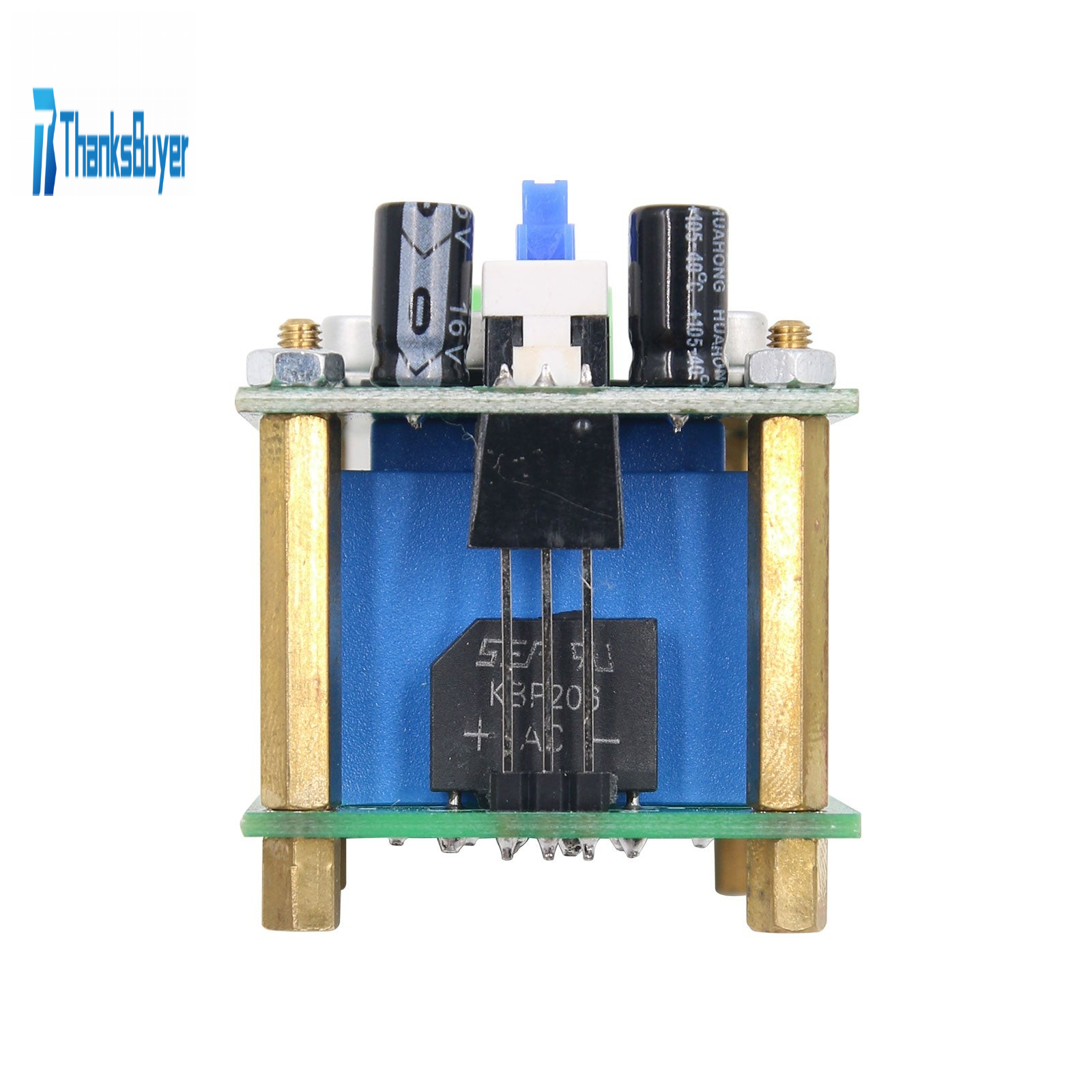

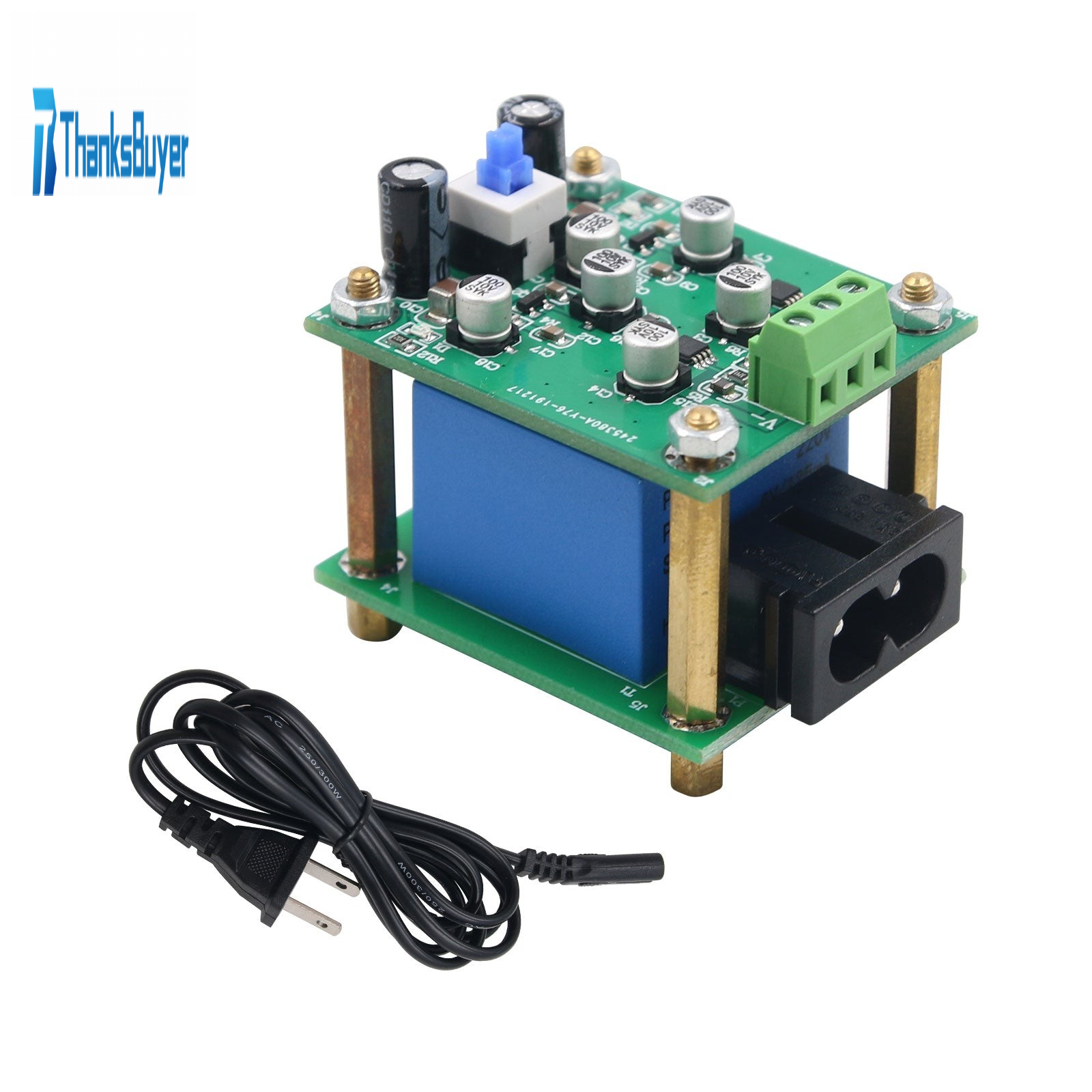

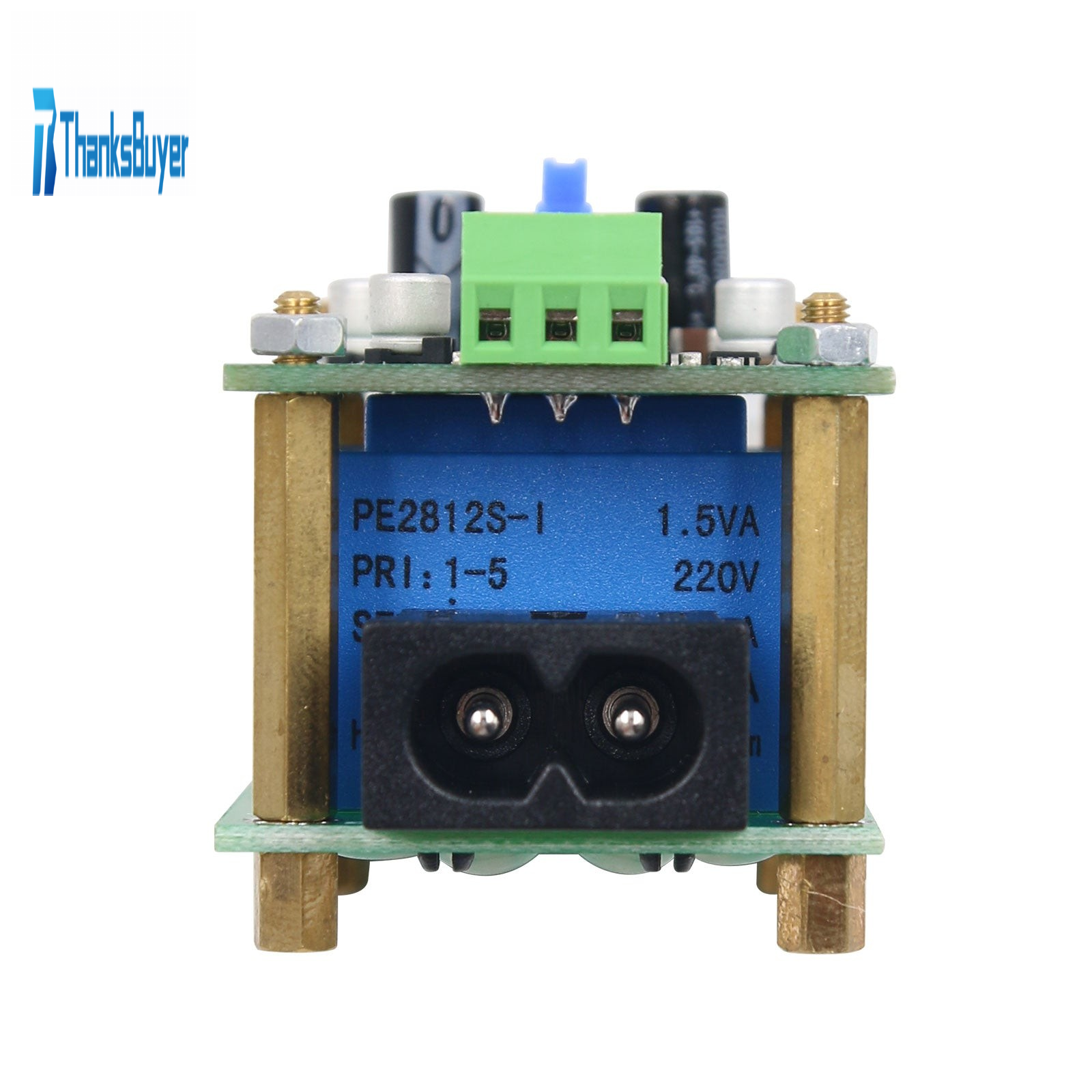

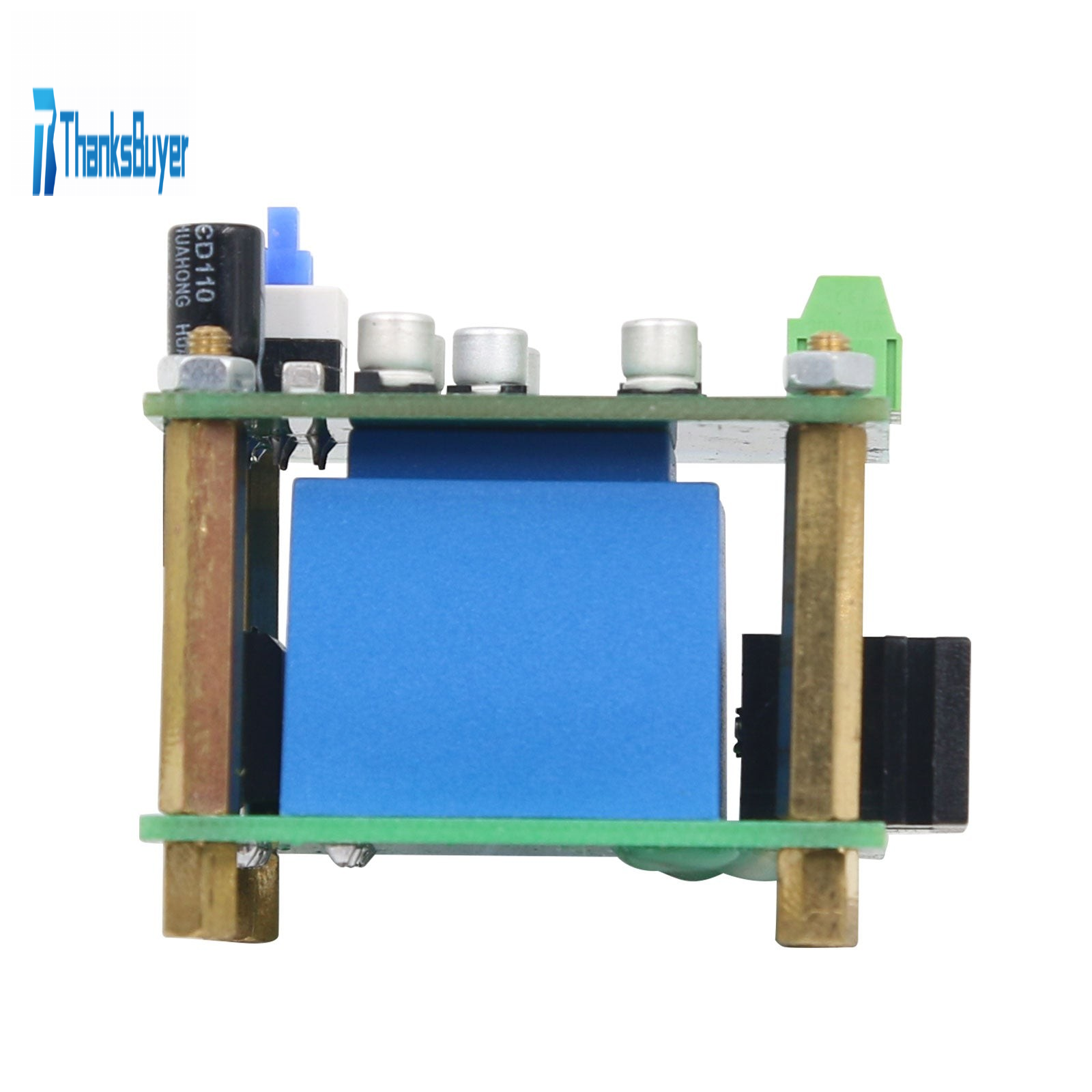

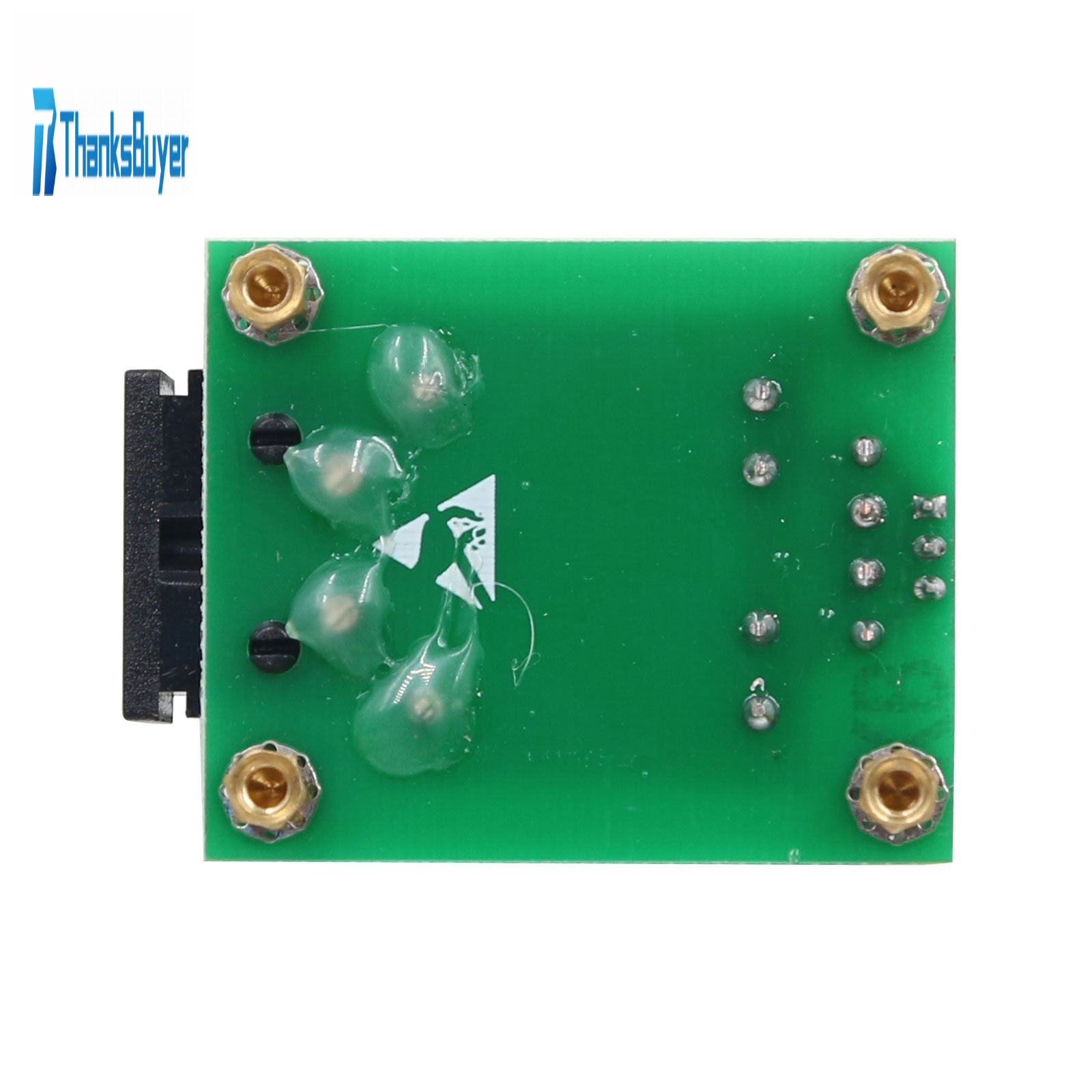

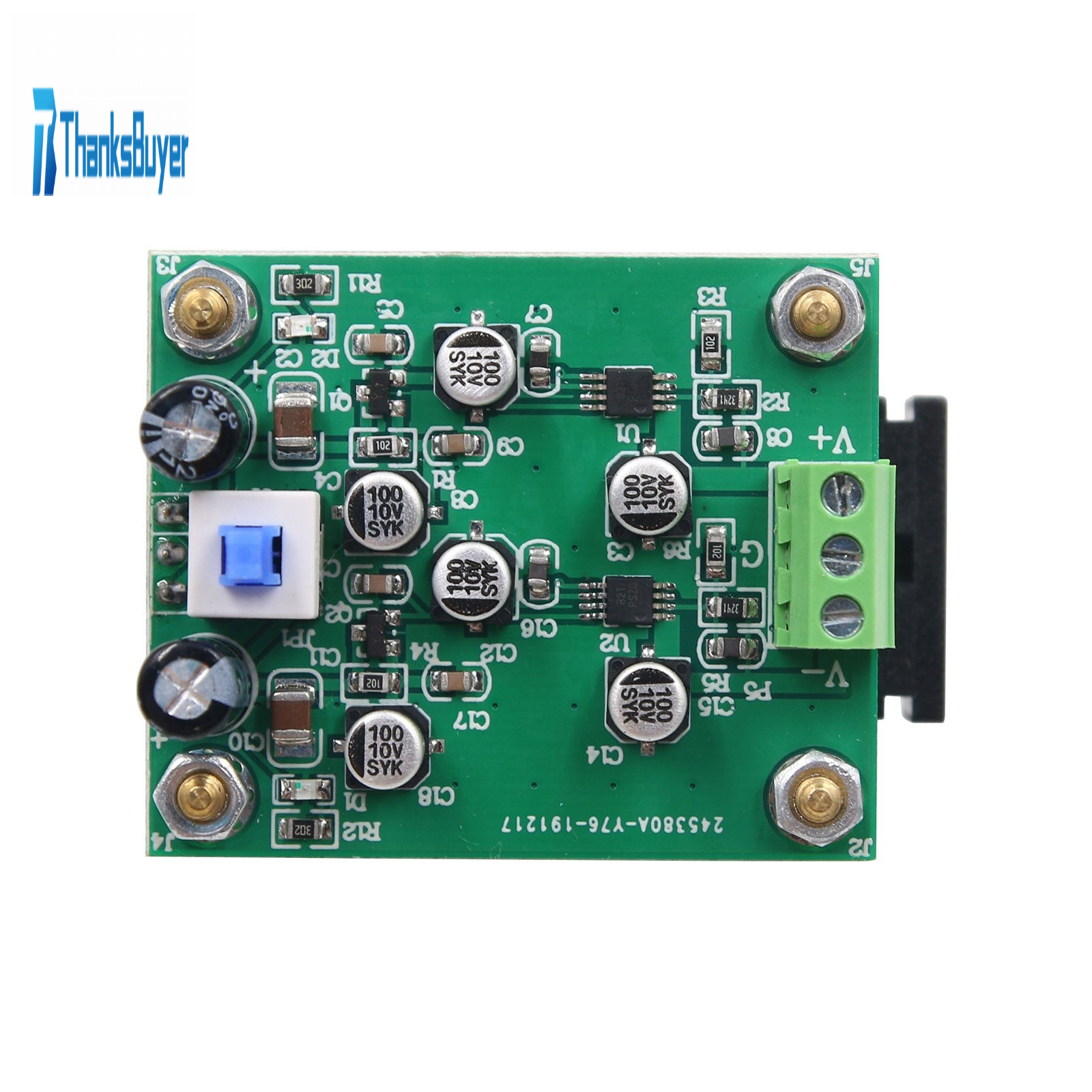

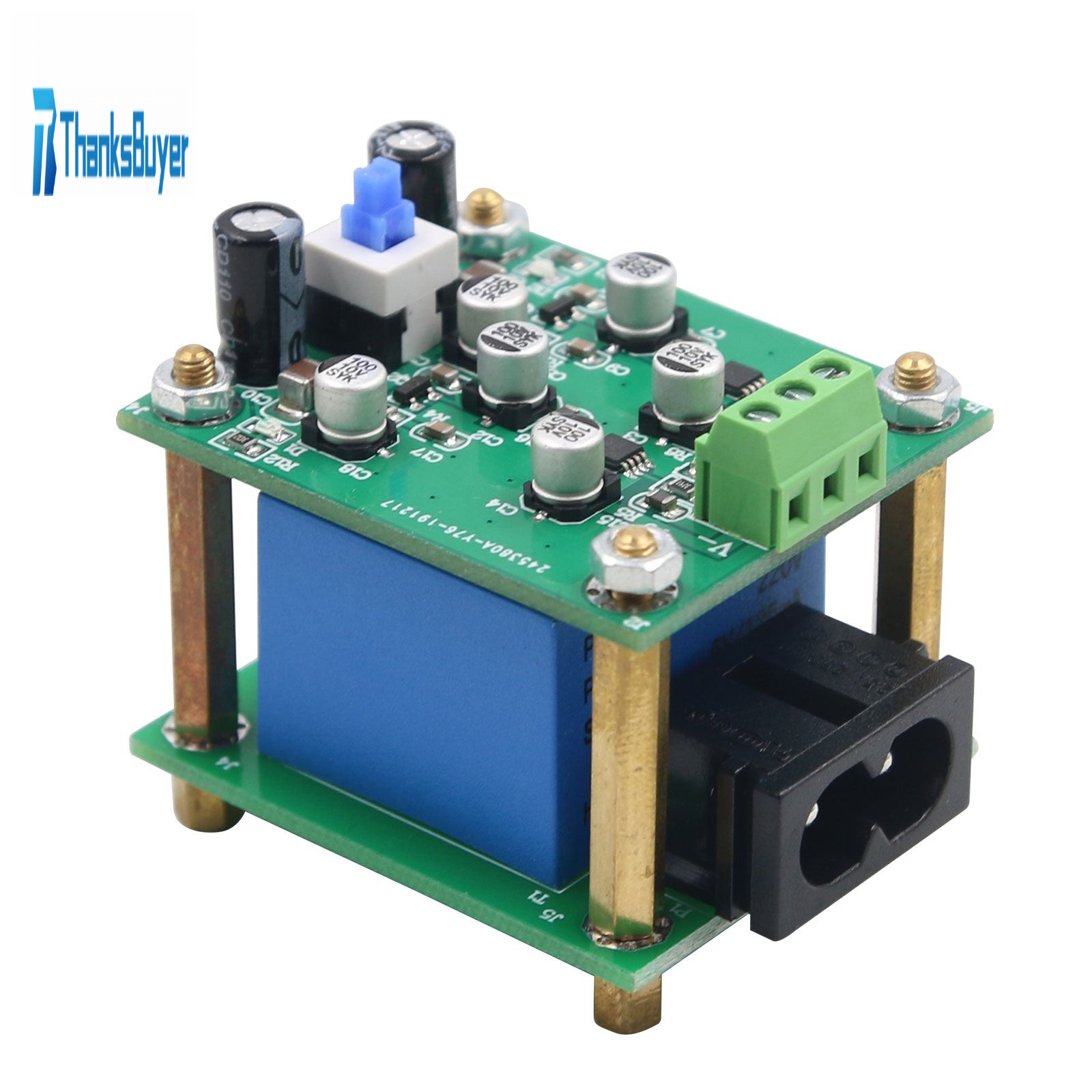

AC DC Linear Power Supply Module 220V to ±5V Dual Power Supply Module 1mV Ultra Low Ripple

Description:
This module uses negative voltage TPS7A30 LDO and positive voltage TPS7A49 LDO, which can provide designers with a complete solution for high-precision power supply simulation applications. These LDOs have ultra-high PSRR performance and extremely low output noise. It can be used to power noise-sensitive applications such as operational amplifiers, ADCs, DACs, and other high-performance analog circuits.

Features:
- Input Voltage: AC 220V
- Output Voltage: +5V & -5V
- Output Current: +80mA (Max.) & -80mA (Max.)
- Module Size: 39 x 47 x 47mm
- Ripple: <1mV

Package Included:
- 1 x Power Supply Module
