제조사 Thanksbuyer

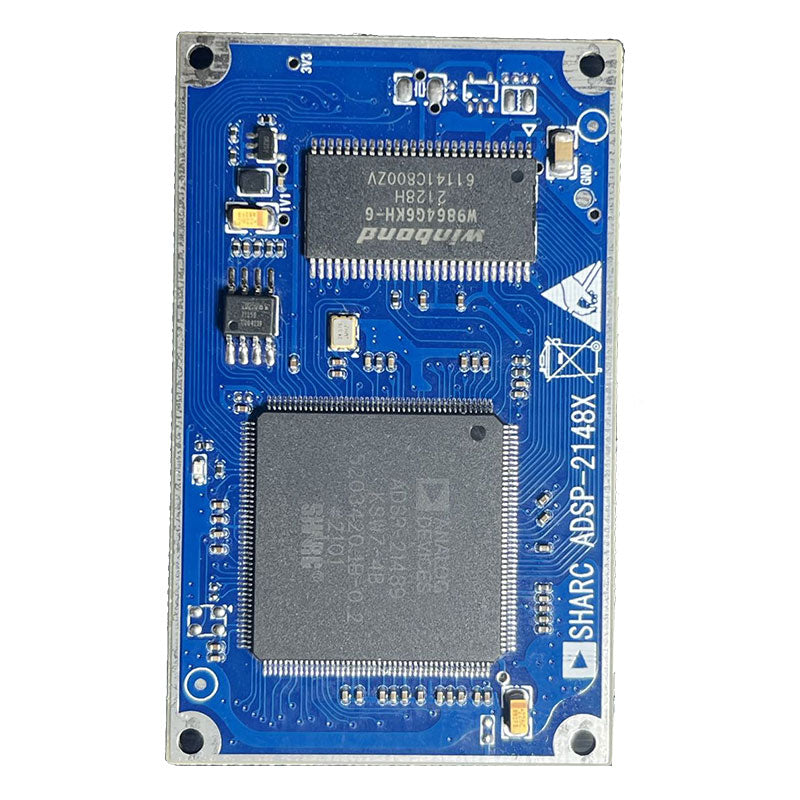

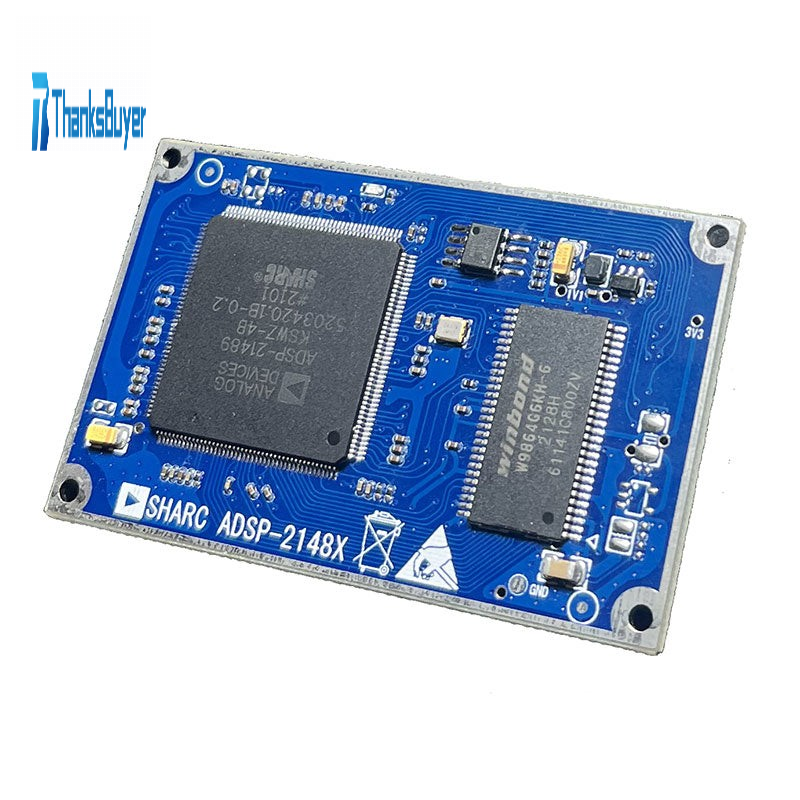

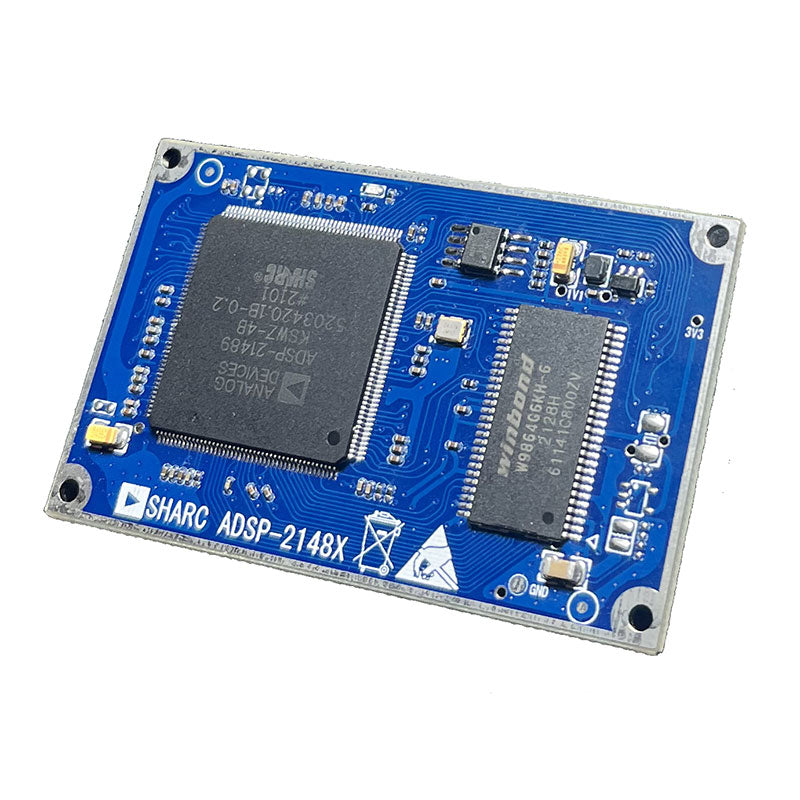

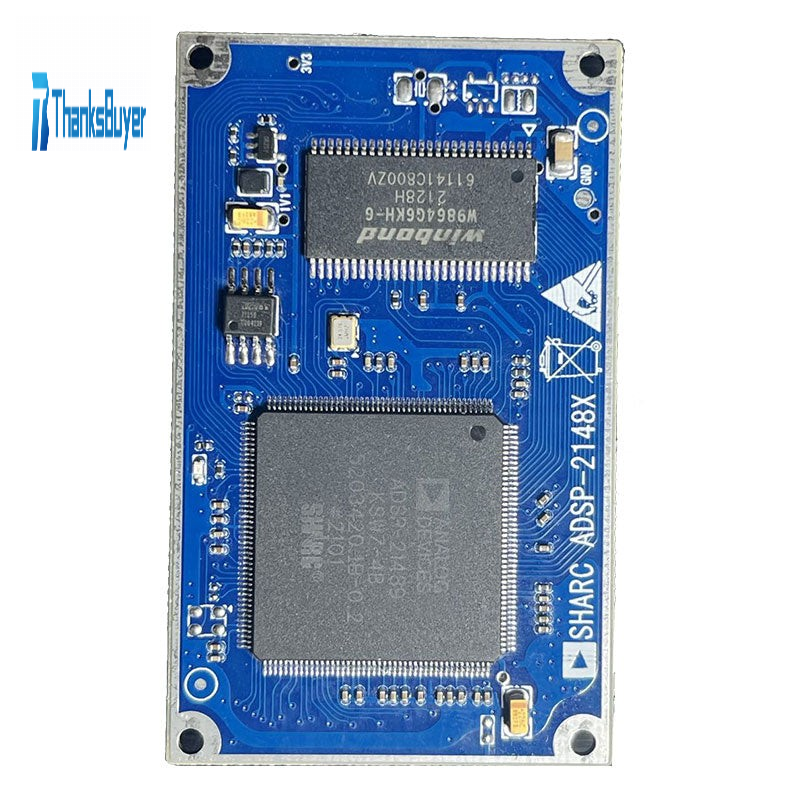

ADSP-21489 Audio Processor Digital Signal Processor DSP Processor Core Board for SHARC
정가
$80.89
정가
할인가
$80.89
단가
단위
세금이 포함됩니다.
배송료는 결제 시 계산됩니다.
픽업 사용 가능 여부를 로드할 수 없습니다.
Availability:
재고 2000개
SKU:
78968
정가
$80.89
정가
할인가
$80.89
ADSP-21489 Audio Processor Digital Signal Processor DSP Processor Core Board for SHARC
Features and Benefits (ADSP-21489):
* 450 MHz core clock speed
* 5Mbits of on-chip RAM
* FIR, IIR, and FFT accelerators
* 16-bit wide SDR SDRAM external memory interface
* Digital Applications Interface (DAI) enabling user-definable access to peripherals including an S/P DIF Tx/Rx, and 8-channel asynchronous sample rate converter
* Fully enhanced DMA engine including scatter/gather DMA, delay line DMA
* 8 serial ports (SPORTs) supporting I2S, left-justified sample pair, DSP Serial and TDM modes
* 2 SPI-compatible ports supporting master and slave modes
* UART and Two-Wire Interface
* 16 Pulse Width Modulation (PWM) channels
* 3 full-featured timers
* 176 ld LQFP EPAD, 100 ld LQFP EPAD and 88 ld LFCSP package options
* Commercial and Industrial temperature ranges
Package Included:
* 1 x Board
Features and Benefits (ADSP-21489):
* 450 MHz core clock speed
* 5Mbits of on-chip RAM
* FIR, IIR, and FFT accelerators
* 16-bit wide SDR SDRAM external memory interface
* Digital Applications Interface (DAI) enabling user-definable access to peripherals including an S/P DIF Tx/Rx, and 8-channel asynchronous sample rate converter
* Fully enhanced DMA engine including scatter/gather DMA, delay line DMA
* 8 serial ports (SPORTs) supporting I2S, left-justified sample pair, DSP Serial and TDM modes
* 2 SPI-compatible ports supporting master and slave modes
* UART and Two-Wire Interface
* 16 Pulse Width Modulation (PWM) channels
* 3 full-featured timers
* 176 ld LQFP EPAD, 100 ld LQFP EPAD and 88 ld LFCSP package options
* Commercial and Industrial temperature ranges
Package Included:
* 1 x Board
