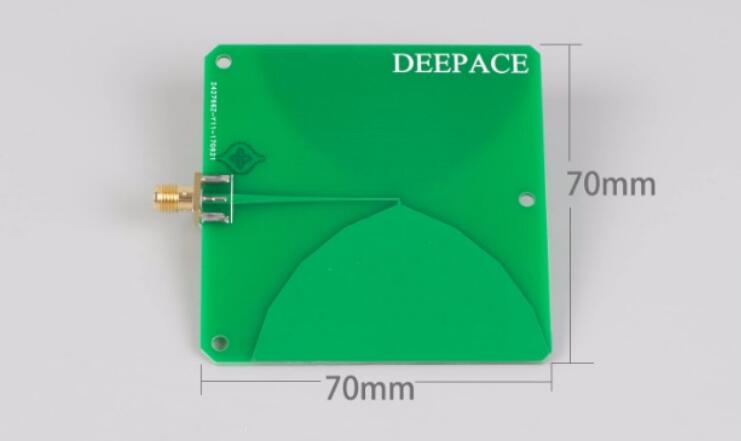

Deepace UWB-4 1.8GHz-9GHz Ultra-wideband Dipole Antenna Omnidirectional Antenna 3.5dBi Gain

Deepace UWB-4 1.8GHz-9GHz Ultra-wideband Dipole Antenna Omnidirectional Antenna 3.5dBi Gain

Description:
-UWB-4 ultra-wideband dipole antenna is a broadband antenna, suitable for omnidirectional radio signal transmission and reception, signal coverage broadband signal testing, etc.
-The antenna covers the common frequencies of radio frequency units such as mobile phone communication, UWB positioning module and Wifi.

Specification:
Antenna impedance: 50 ohm
Power: 5W
Frequency range: 1.8GHz-9GH
Return loss: 10dB
Gain: 3.5dBi
Standing wave ratio: 1.5 typical
Connector type: SMA-K (female, external thread and inner hole)

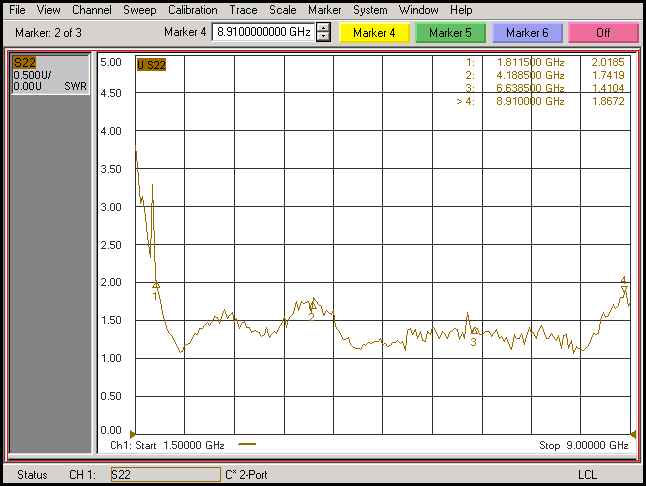

Standing wave ratio measurement data

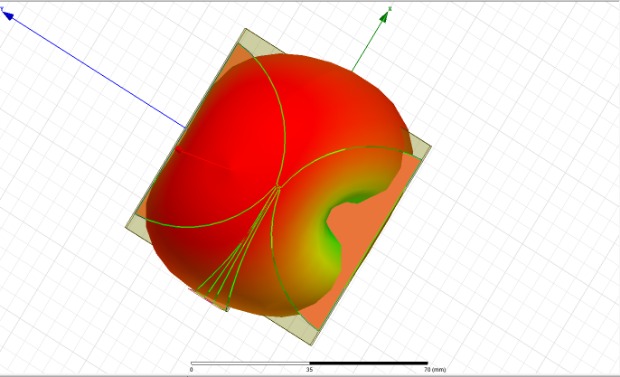

Directional data

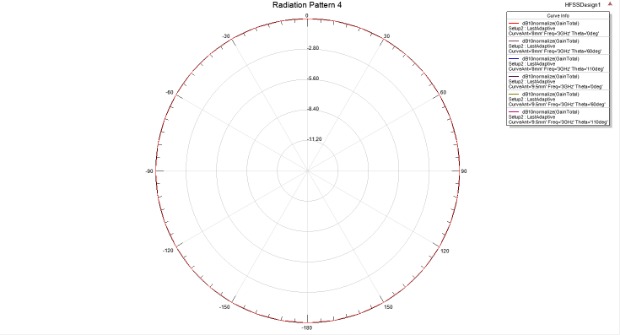

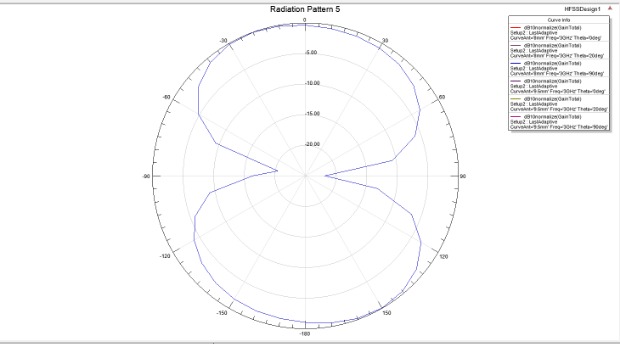

Radiation pattern

Package List:
1 x Antenna
