DeepBCI Brain Computer Interface 8CH/16CH BCI Board Compatible with Cyton+Daisy for OpenBCI

* 8-Channel BCI Board Wired

* 16-Channel BCI Board Wired

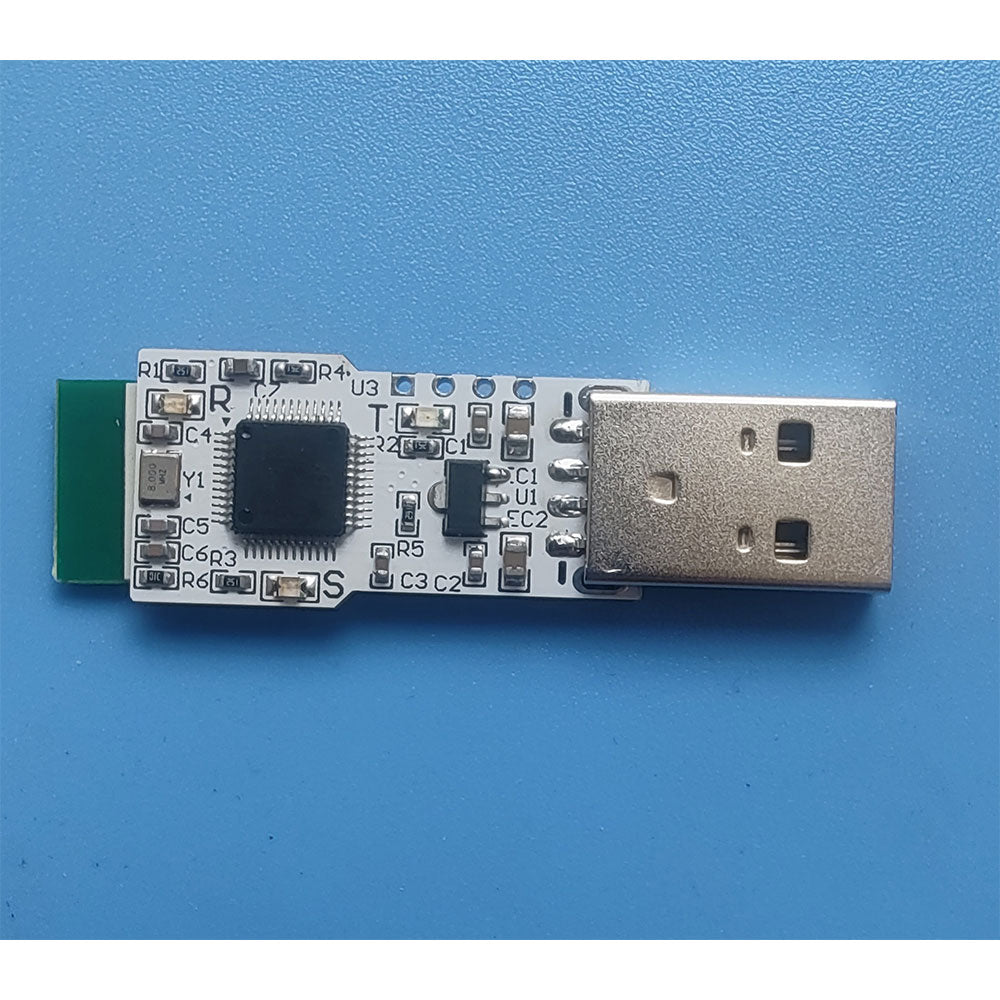

* USB Dongle Wireless Receiver

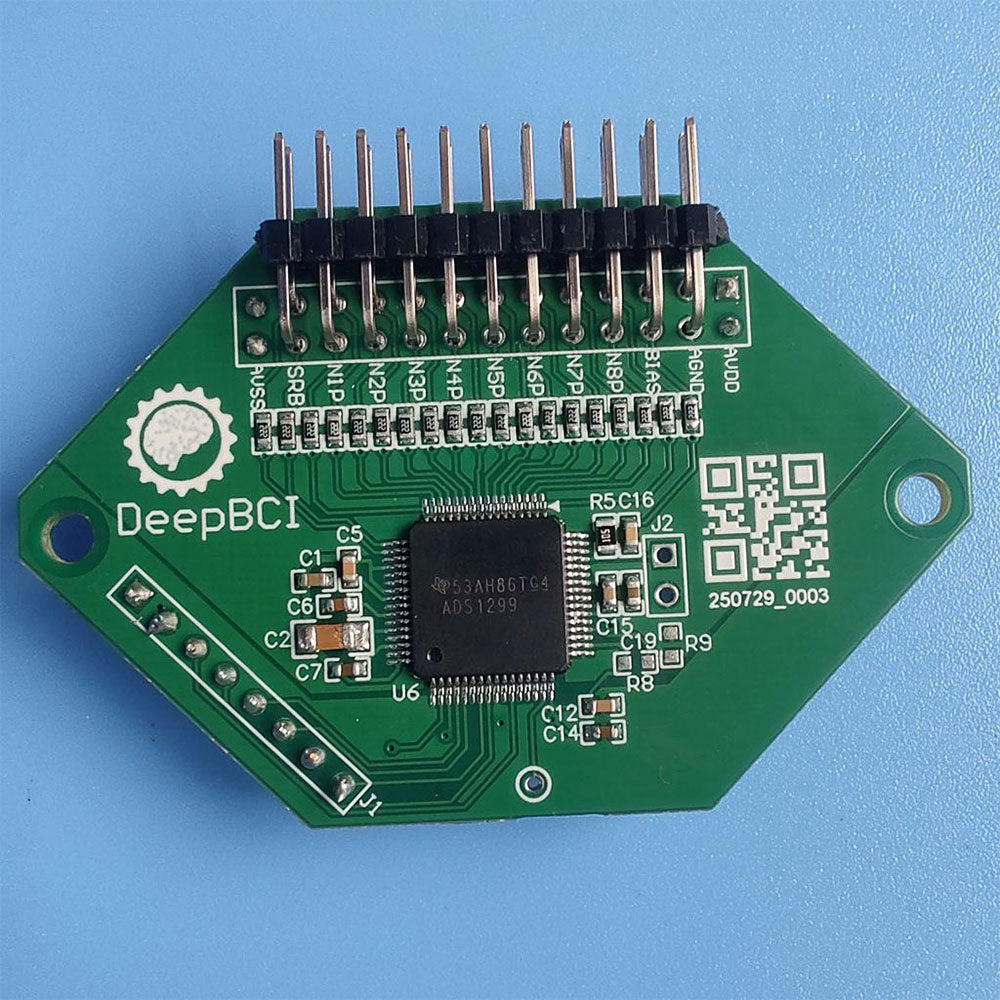

* 8-Channel Expansion Board

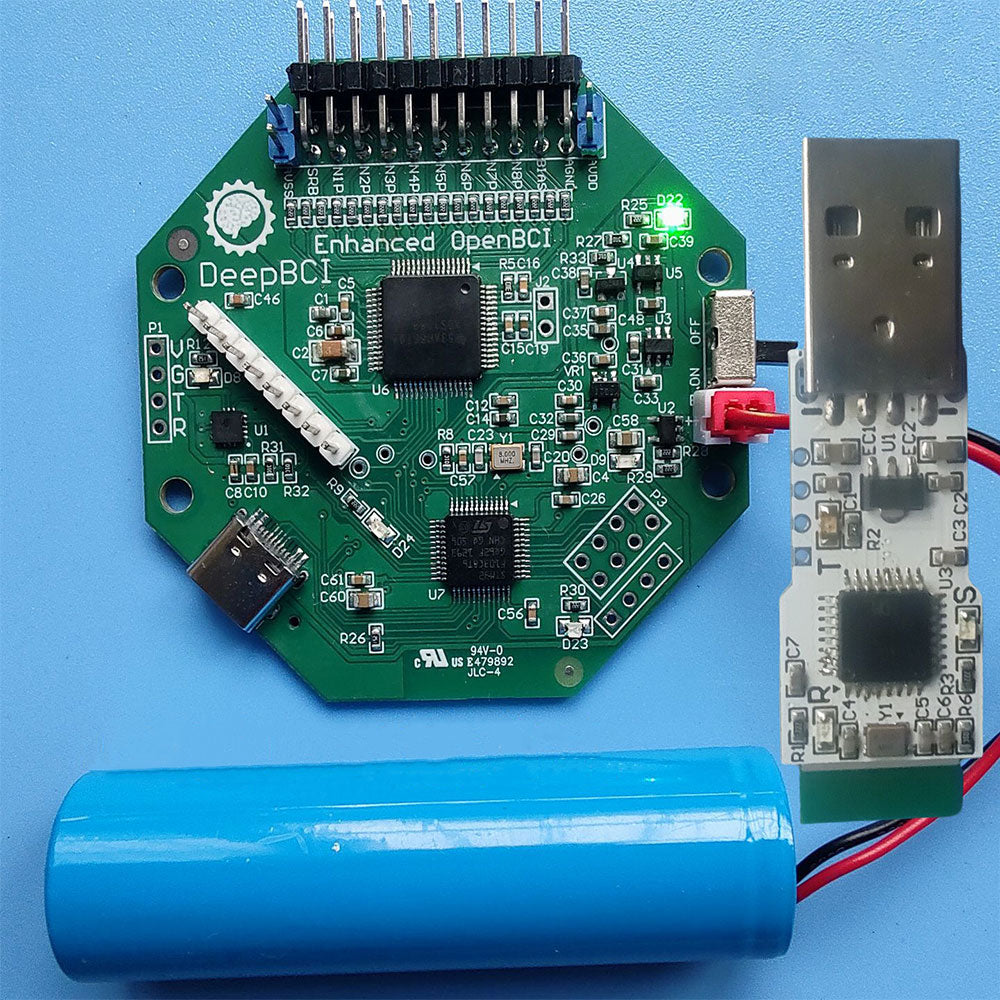

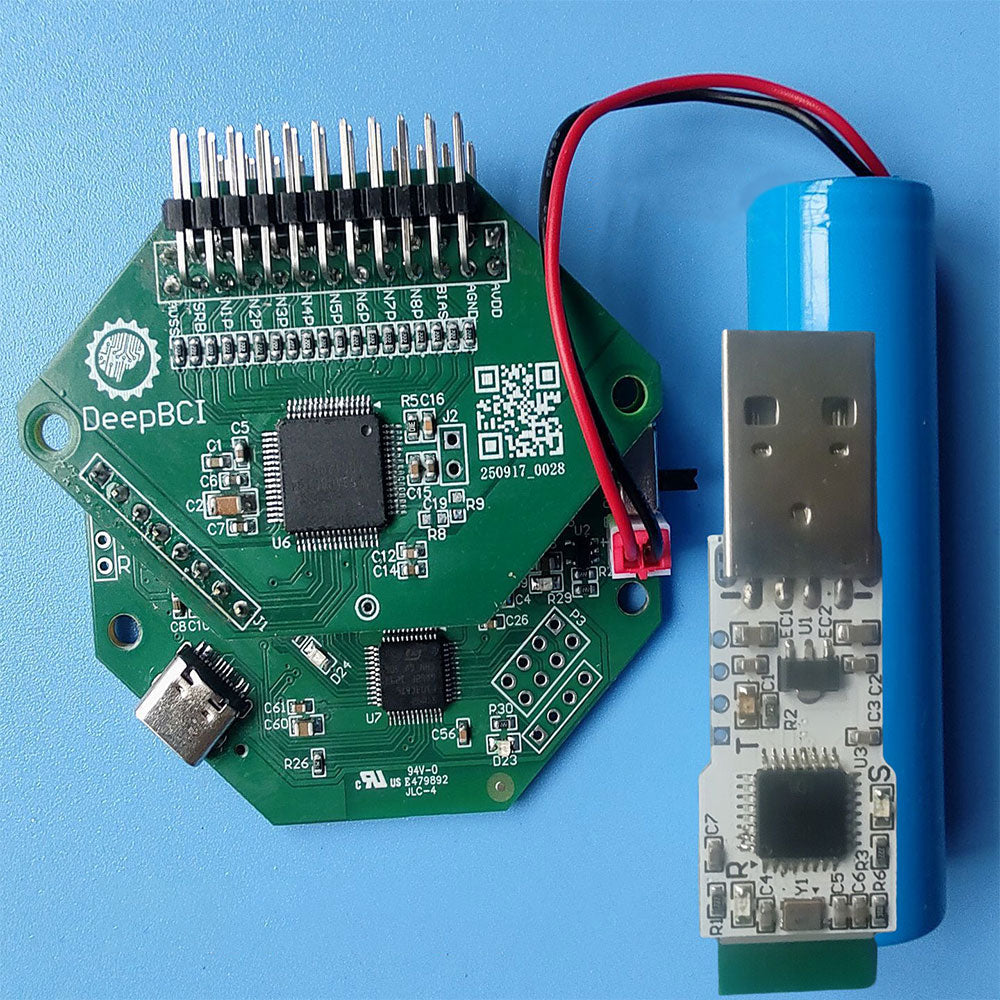

* 8-Channel BCI Board + USB Dongle Wireless Receiver

* 16-Channel BCI Board + USB Dongle Wireless Receiver

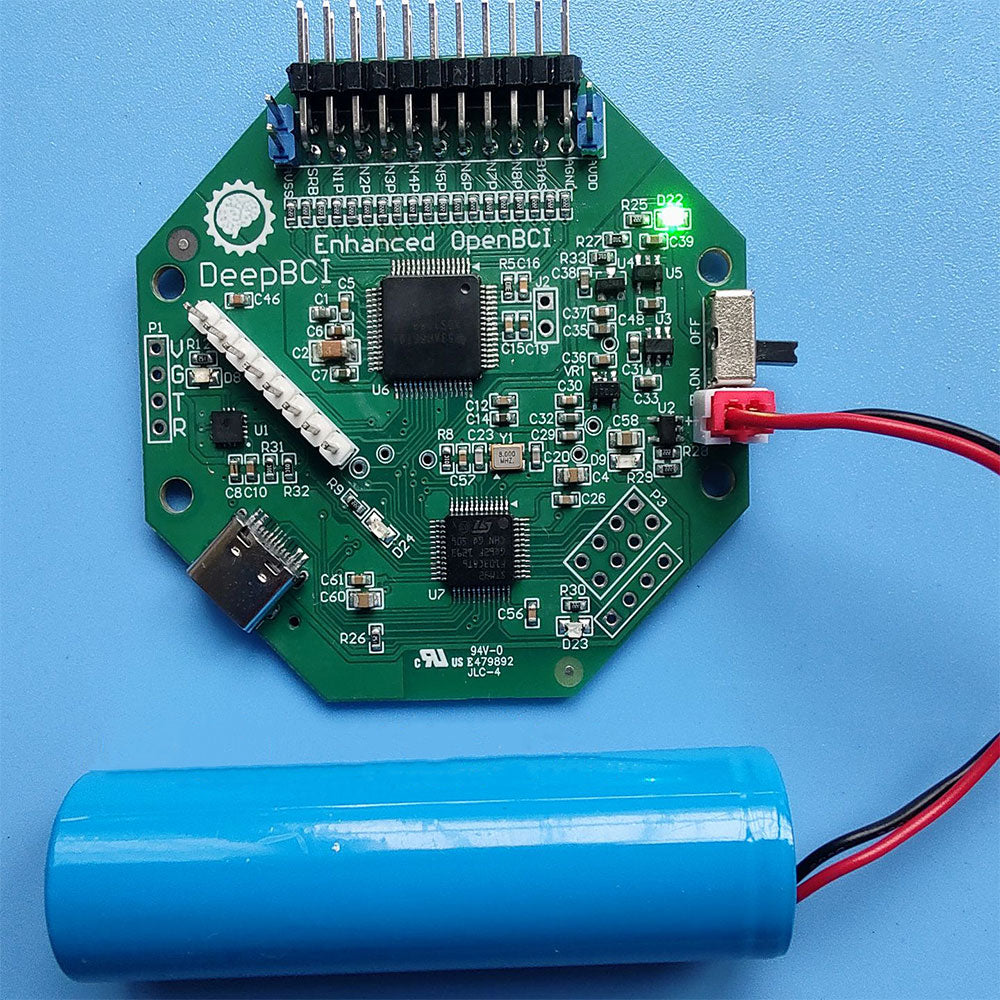

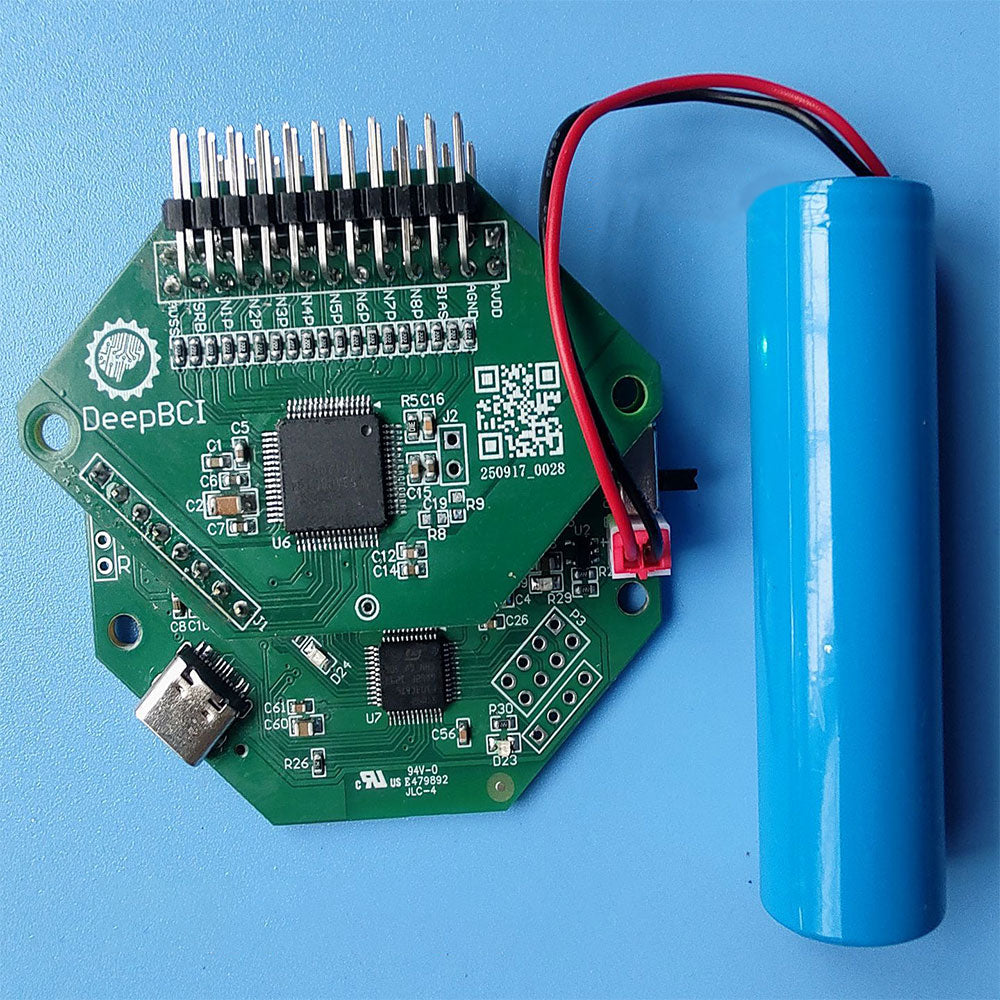

* DeepBCI enhanced bio-electrical acquisition brain computer interface board

* Developed based on the communication protocol for OpenBCI, the DeepBCI brain-computer interface development board adopts a higher-performance main control chip.

* It can directly replace the Cyton 8-channel development board or Daisy 16-channel development board for OpenBCI.

* Ideal for researchers and enthusiasts working on brain-computer interface projects.

* It delivers full instruction-level compatibility, supporting direct operation via the official GUI software for OpenBCI.

* Powered by a standard 3.7V lithium battery, the board integrates an onboard lithium battery charging management IC and supports direct charging through the USB port.

* USB communication speed reaches up to 12M.

* High-speed Bluetooth communication runs at a baud rate of 921600, far exceeding official default 115200 baud rate. Official software downloaded from the website for OpenBCI works seamlessly with this board.

* Redesigned with Chinese components as much as possible, this board offers more functions at a cheaper price.

* This board uses the same ADC signal acquisition chip as official products for OpenBCI, with a consistent signal-to-noise ratio of 121dB.

* For stable and reliable performance, wireless communication mode is highly recommended.

* Operating System Support: Windows and Linux

* Wired communication mode is susceptible to electromagnetic interference from computers. Please keep the main board as far away from your computer as possible and power the unit with the lithium battery.

* Hardware schematics and source code software are not included with this product.

* Compatible with both 8-channel and 16-channel BCI interface boards

* 8-channel expansion board fully compatible with BCI equipment

* 1 x Set of BCI Board/Expansion Board

* 1 x Set of USB Dongle Wireless Receiver

* Package weight: 0.3kg
