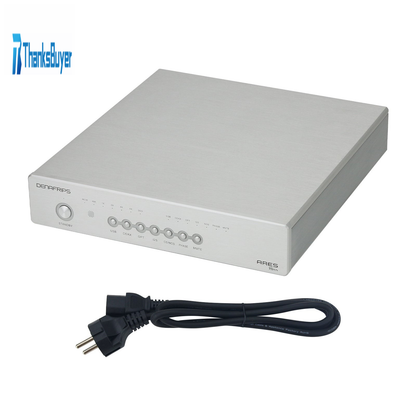

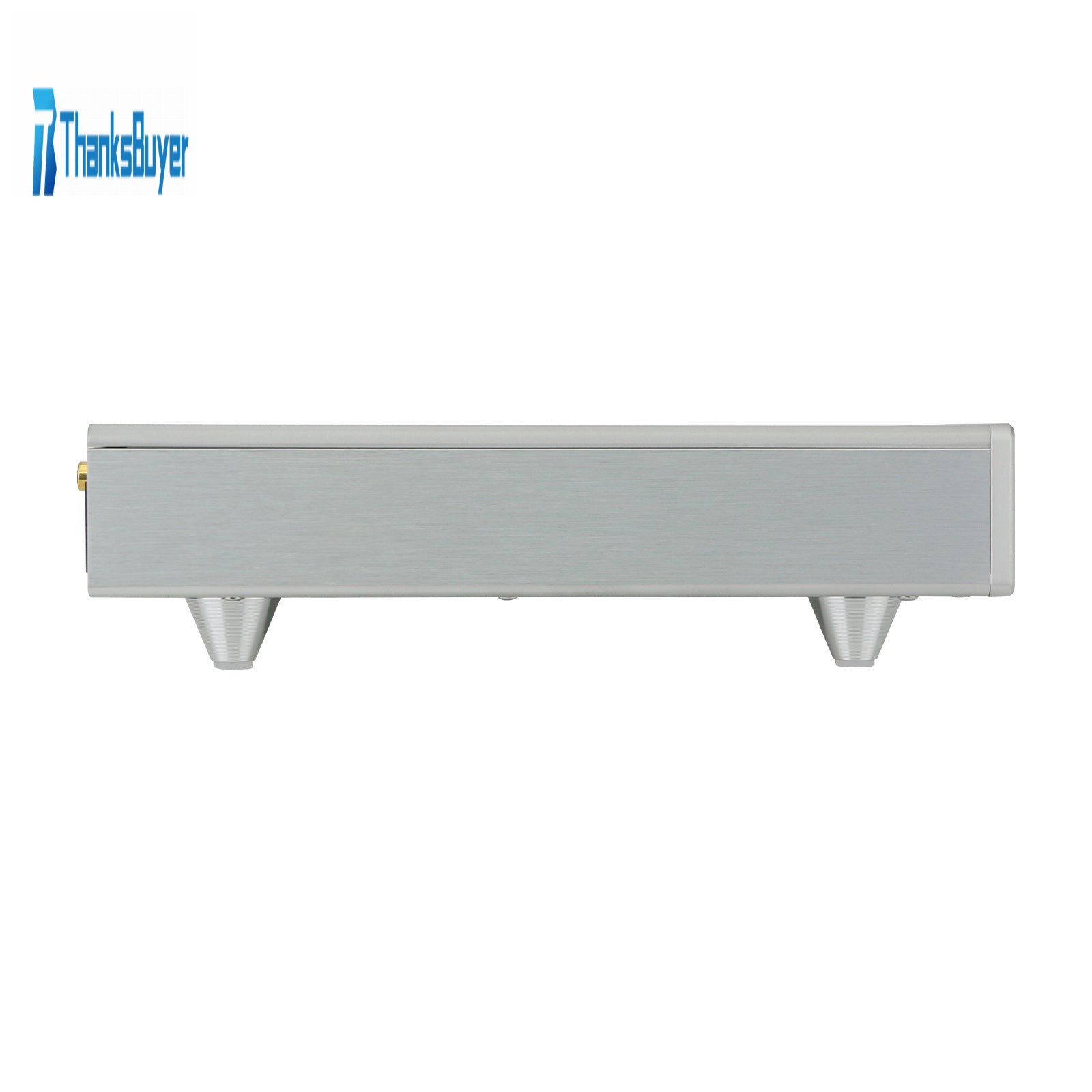

DENAFRIPS Silvery ARES15th DAC Digital Audio Decoder 80VAx2 HiFi R2R Support up to 1536kHz PCM Decoding

DENAFRIPS Silvery ARES15th DAC Digital Audio Decoder 80VAx2 HiFi R2R Support up to 1536kHz PCM Decoding

Technical Highlights:
- The proprietary R2R + DSD architecture truly balances 26 bit R2R + 64 bit DSD (32-bit FIR filter)
- Advanced ultra-low noise power supply with low thermal effect and high-precision manual matching of 0.005% resistor packaging
- A New improved digital signal for Low Phase Noise Crystal Oscillator LPNO adaptive FIFO buffered reclock
- Supports for DSD1024 and PCM1536 for processing FPGA code USB and I2S inputs
- Implemented through STM32F446 advanced AMR architecture MCU
- A proprietary USB audio solution for Windows platform
- Authorized Thesycon USB driver for Mac and Linux
- No need to drive dual AES/EBU inputs to support sharp/slow filters
- Option I2S pin configuration I2S DSD channel switching configuration

Specification:
- DSD: Coaxial /AES /optical fiber input support DSD64 (DoP), USB and I2S input support DSD1024
- PCM: all inputs support 24bit/44.1, 48, 88.2, 96, 176.4, 192kHz; USB and I2S input support 1536kHz
- Sampling mode: non-oversampling (NOS)/oversampling (OS)
- Digital input: Coax x 1, OPT x 1, I2S x 1, USB2.0 Type B
- Analog output: RCA at 2.0Vrms, 625Ω; XLR at 4.0Vrms, 1250Ω
- Frequency response: 20-70KHz, -3dB
- THD+N: 0.0020%
- S/N ratio: 120dB
- Dynamic range: >121dB
- Stereo Crosstalk: -110dB
- AC power requirement: 100-240VAC, 50/60Hz (Worldwide Voltage, Manual Selector)
- Power Consumption: ≤20W
- Dimension: 215 x 215 x 44mm (including the foot pad length)
- Packaging size: 470 x 440 x 175mm
- Product weight: 3.5kg

Package Included:
- 1 x DAC
